Nissan Murano. Manual - part 3





ADP-4

ADP SYSTEM SYMPTOMS  ............................

195

Symptom Table  .....................................................

195

ALL PARTS DO NOT OPERATE IN MEMORY
FUNCTION .......................................................

196

Diagnosis Procedure  .............................................

196

MEMORY INDICATE DOES NOT OPERATE .

197

Diagnosis Procedure  .............................................

197

ALL COMPONENTS OF POWER SEAT DO
NOT OPERATE  ...............................................

198

Diagnosis Procedure  .............................................

198

MANUAL FUNCTION OR MEMORY FUNC-
TION DOES NOT OPERATE ...........................

199

SEAT SLIDING .........................................................

199

SEAT SLIDING : Diagnosis Procedure  .................

199

SEAT RECLINING  ...................................................

199

SEAT RECLINING : Diagnosis Procedure  ............

199

SEAT LIFTING (FRONT)  .........................................

200

SEAT LIFTING (FRONT) : Diagnosis Procedure ..

200

SEAT LIFTING (REAR) ............................................

201

SEAT LIFTING (REAR) : Diagnosis Procedure .....

201

STEERING TILT .......................................................

201

STEERING TILT : Diagnosis Procedure  ...............

201

STEERING TELESCOPIC  .......................................

202

STEERING TELESCOPIC : Diagnosis Procedure ..

202

DOOR MIRROR  .......................................................

203

DOOR MIRROR : Diagnosis Procedure  ................

203

ENTRY/EXIT ASSIST FUNCTION DOES NOT
OPERATE ........................................................

204

Diagnosis Procedure  .............................................

204

INTELLIGENT KEY INTERLOCK FUNCTION
DOES NOT OPERATE  ....................................

205

Diagnosis Procedure  .............................................

205

ALL COMPONENTS OF TILT & TELESCOP-
IC SWITCH DO NOT OPERATE  .....................

206

Diagnosis Procedure .............................................

206

NORMAL OPERATING CONDITION  ...............

207

Description ............................................................

207

PRECAUTION ...........................................

208

PRECAUTIONS  ................................................

208

FOR USA AND CANADA  .......................................

208

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"  .........................

208

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal  ...................................

208

FOR MEXICO  ..........................................................

208

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ...............................................

208

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal  .........................................................

209

REMOVAL AND INSTALLATION .............

210

DRIVER SEAT CONTROL UNIT  ......................

210

Exploded View  ......................................................

210

Removal and Installation .......................................

210

AUTOMATIC DRIVE POSITIONER CON-
TROL UNIT  .......................................................

211

Exploded View  ......................................................

211

Removal and Installation .......................................

211

SEAT MEMORY SWITCH  ................................

212

Exploded View  ......................................................

212

Removal and Installation .......................................

212

POWER SEAT SWITCH ...................................

213

Exploded View  ......................................................

213

Removal and Installation .......................................

213

TILT&TELESCOPIC SWITCH  ..........................

214

Exploded View  ......................................................

214

Removal and Installation .......................................

214

DIAGNOSIS AND REPAIR WORK FLOW

ADP-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009720619

OVERALL SEQUENCE

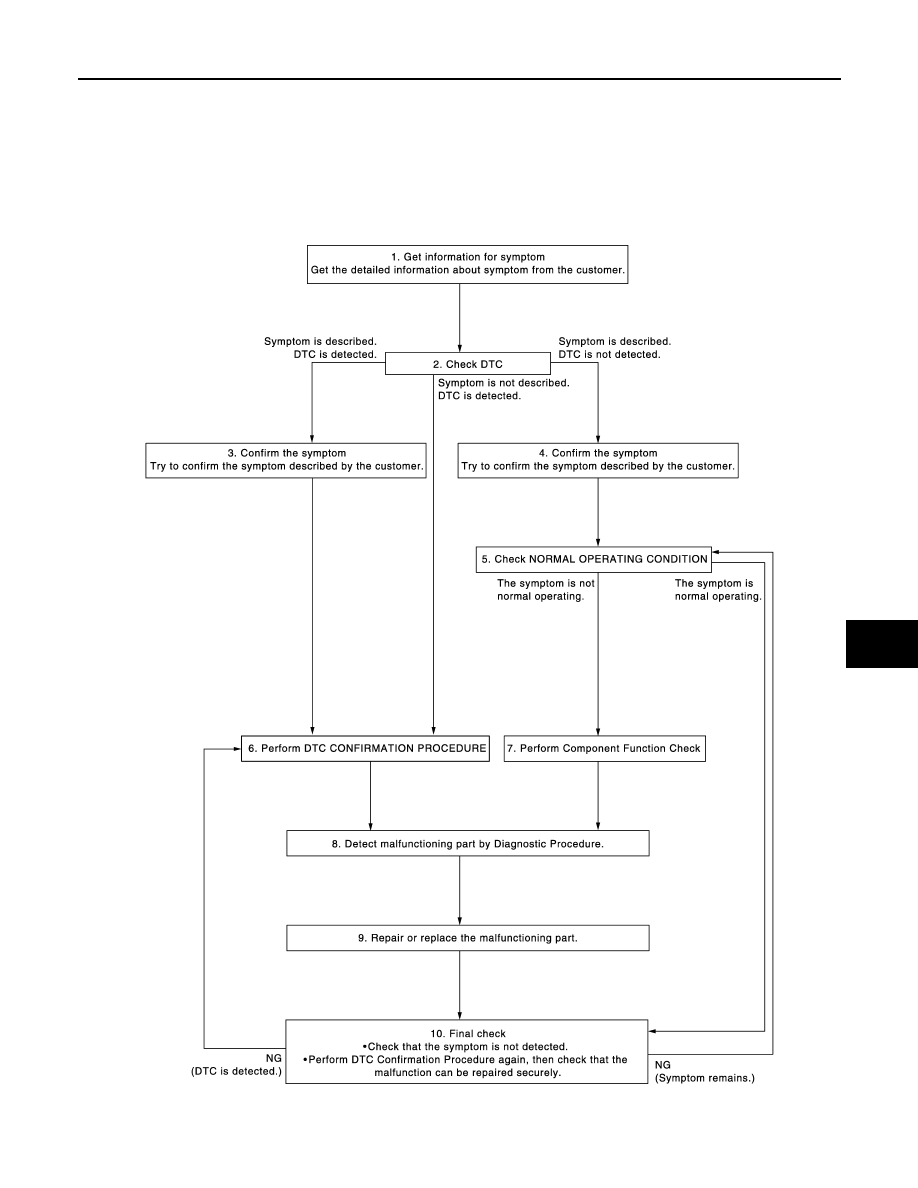

DETAILED FLOW

JMJIA1702GB

ADP-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK DTC WITH AUTOMATIC DRIVE POSITIONER SYSTEM

Check “Self Diagnostic Result” with CONSULT. Refer to

ADP-136, "DTC Index"

Is any symptom described and any DTC is displayed?

Symptom is described, DTC is displayed.>>GO TO 3.
Symptom is not described, DTC is displayed.>>GO TO 6.
Symptom is described, DTC is not displayed.>>GO TO 4.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 6.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 5.

5.

CHECK NORMAL OPERATING CONDITION

Check normal operating condition. Refer to

ADP-207, "Description"

.

Is the incident normal operation?

YES

>> INSPECTION END

NO

>> GO TO 7.

6.

PERFORM DTC CONFIRMATION PROCEDURE

Perform the confirmation procedure for the detected DTC.

Is the DTC displayed?

YES

>> GO TO 8.

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

7.

PERFORM COMPONENT FUNCTION CHECK

Perform the component function check for the isolated malfunctioning point.

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Isolate the malfunctioning point by performing the diagnosis procedure relevant to the symptom during the
component diagnosis.

>> GO TO 9.

9.

REPARE OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

FINAL CHECK

Perform the DTC confirmation procedure (if DTC is detected) or component function check (if no DTC is
detected) again, and then check that the malfunction can be repaired securely.

Are all malfunctions corrected?

DIAGNOSIS AND REPAIR WORK FLOW

ADP-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

YES

>> INSPECTION END

Symptom is detected.>> GO TO 5.
DTC is detected.>> GO TO 6.
