PRECAUTIONS

DLN-111

< PRECAUTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Stop/Start System Service

INFOID:0000000011046001

CAUTION:

When performing an inspection and its related work with the engine at idle, always turn the stop/start
OFF switch ON or open the hood to release the stop/start system.

Service Notice or Precautions for Transfer

INFOID:0000000011003964

• Use recommended transfer oil only, refer to

MA-23, "Fluids and Lubricants"

.

• Never reuse transfer oil, once it has been drained.
• Check the oil level or replace the oil only with the vehicle parked on level ground.
• During removal or installation, keep inside of transfer clear of dust or dirt.
• Replace all tires at the same time. Always use tires of the proper size and the same brand and pattern. Fit-

ting improper size and unusually worn tires applies excessive force to vehicle mechanism and can cause
longitudinal vibration.

• Disassembly should be done in a clean work area, it is preferable to work in dustproof area.
• Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal

parts from becoming contaminated by dirt or other foreign matter.

• All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or

reassembly.

• Check for the correct installation status prior to removal or disassembly. If matching marks are required, be

certain they do not interfere with the function of the parts when applied.

• Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them

with a new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the transfer is disassembled.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

DLN-112

< PRECAUTION >

[TRANSFER: TY30A]

PRECAUTIONS

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If tight-

ening sequence is specified, use it.

• Observe the specified torque when assembling.
• Clean and flush the parts sufficiently and blow-dry them.
• Be careful not to damage sliding surfaces and mating surfaces.
• Clean inner parts with lint-free cloth or towels. Do not use cotton work gloves and rags to prevent adhering

fibers.

PREPARATION

DLN-113

< PREPARATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

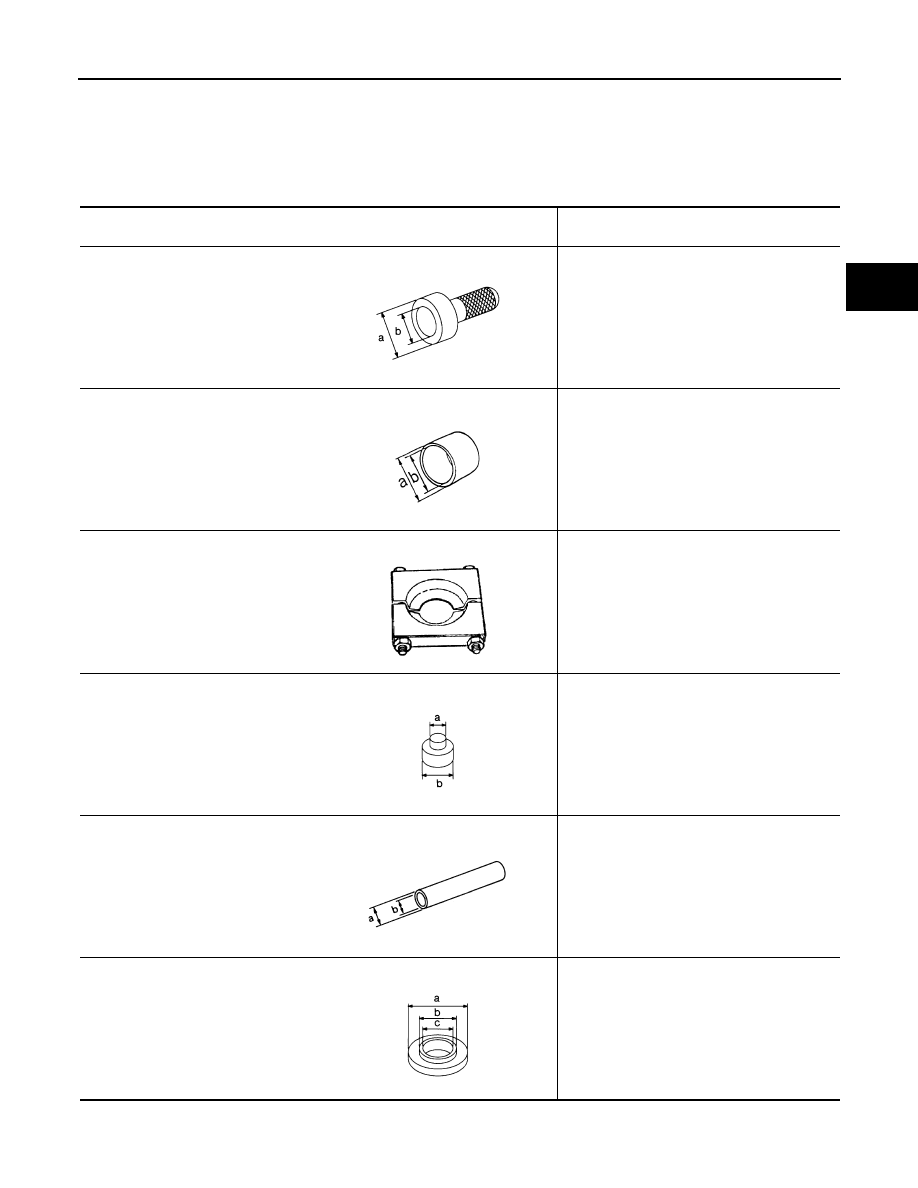

Special Service Tool

INFOID:0000000011003965

Tool number
Tool name

Description

ST30720000
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

• Installing adapter case oil seal (inner/outer)
• Installing drive pinion oil seal

ST27861000
Drift
a: 62 mm (2.44 in) dia.
b: 52 mm (2.05 in) dia.

• Installing adapter case oil seal (inner/outer)
• Installing drive pinion oil seal

ST22730000
Replacer

• Removing inner race of ring gear shaft bear-

ing (transfer case side)

• Removing inner race of drive pinion bearing

(front side)

ST33052000
Drift
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.

• Removing ring gear
• Removing inner race of drive pinion bearing

(front side)

ST01530000
Drift
a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.

Installing ring gear

ST35272000
Drift
a: 72 mm (2.83 in) dia.
b: 40 mm (1.57 in) dia.
c: 35.5 mm (1.398 in) dia.

• Installing ring gear
• Installing outer race of drive pinion bearing

(front side)

NT115

ZZA1003D

ZZA0700D

NT116

ZZA0534D

NT107

DLN-114

< PREPARATION >

[TRANSFER: TY30A]

PREPARATION

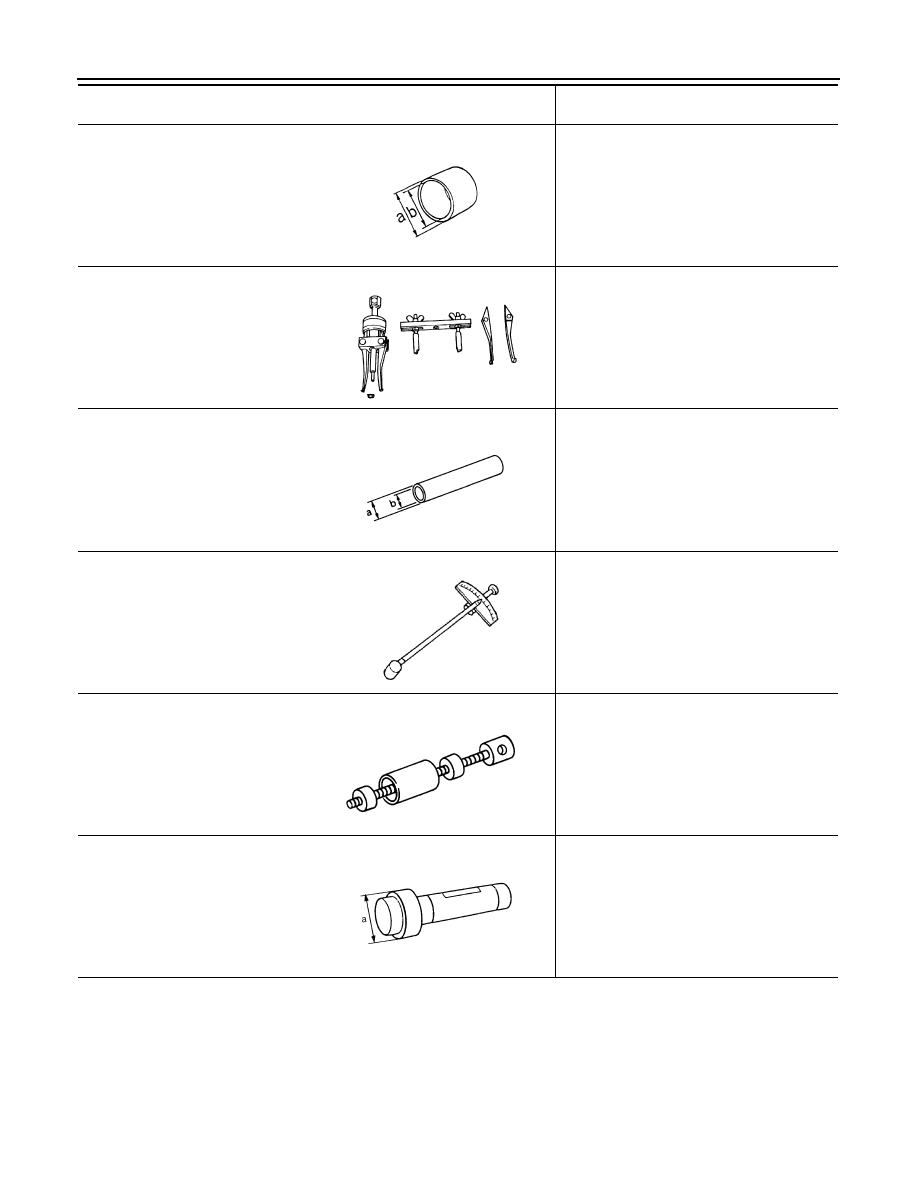

KV10111400
Drift
a: 25 mm (0.98 in) dia.
b: 20.8 mm (0.819 in) dia.

Installing inner race of ring gear shaft bearing
(transfer case side)

KV381054S0
Puller

Removing drive pinion oil seal

ST23860000
Drift
a: 38 mm (1.50 in) dia.
b: 33 mm (1.30 in) dia.

Installing inner race of drive pinion bearing
(front side)

ST3127S000
Preload gauge

Measuring preload torque

ST38280000
Bushing remover

Installing outer race of drive pinion bearing
(front side)

ST33230000
Drift
a: 51 mm (2.01 in) dia.

Installing outer race of drive pinion bearing
(rear side)

Tool number
Tool name

Description

ZZA1003D

ZZA0601D

ZZA0534D

ZZA0503D

NT685

ZZA0938D
