TRANSFER CASE

DLN-107

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

9.

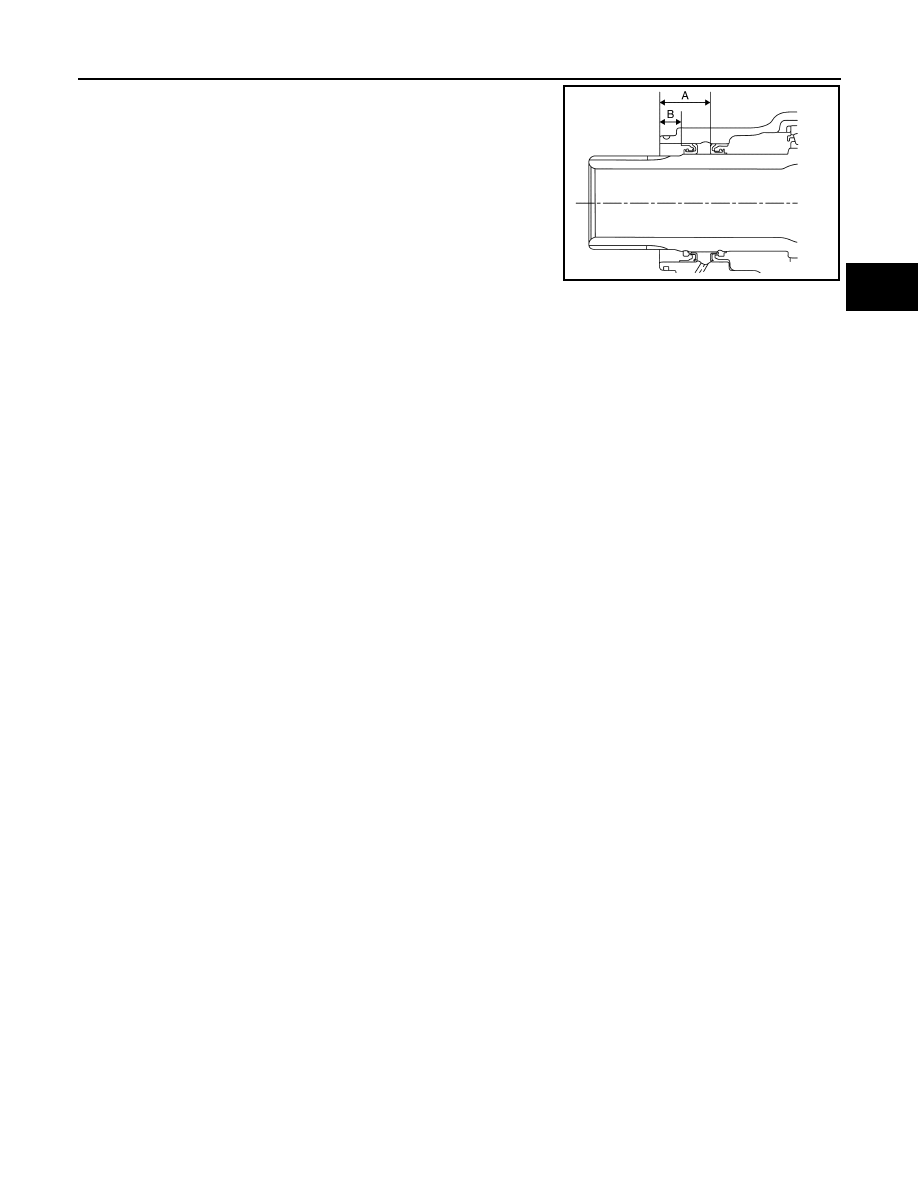

Install oil seals using suitable tool.

CAUTION:

• When checking the total preload torque, measure it with-

out the oil seal, then install the oil seal.

• Never reuse the oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and transfer

oil onto the circumference of the oil seal.

• Never damage oil seals by spline of ring gear shaft.

10. After installing oil seals to transfer case, remove wrapped vinyl from the spline of ring gear shaft.

11. Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the transfer case.

CAUTION:

• Never reuse O-ring.
• When installing O-ring, never use a suitable tool.
• Never damage O-ring.

Inspection

INFOID:0000000010992055

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Case

Check the bearing mounting surface for wear, cracks and damages.

A

: 24.8 mm (0.976 in)

B

: 10.3 mm (0.406 in)

JSDIA4047ZZ

DLN-108

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSFER: TY21C]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010992056

Preload Torque

INFOID:0000000010992057

Unit: N·m (kg-m, in-lb)

Backlash

INFOID:0000000010992058

Unit: mm (in)

Companion Flange Runout

INFOID:0000000010992059

Unit: mm (in)

Applied model

Axle

4WD

Engine

MR20DD

QR25DE

Transaxle

CVT

Transfer model

TY21C

Gear ratio

0.404

Number of teeth

Ring gear

42

Drive pinion

17

Oil capacity

Refer to

MA-23, "Fluids and Lubricants"

.

Item

Standard

Pinion bearing preload (P

1

)

0.25 – 1.15 (0.03 – 0.11, 3.0 – 10.0)

Total preload

With all oil seals

P

1

 + 0.7 – 1.0 (0.08 – 0.1, 7.0 – 8.0)

Without oil seals (for transfer cover and
transfer case)

P

1

 + 0.5 – 0.8 (0.06 – 0.08, 5.0 – 7.0)

Item

Standard

Ring gear to drive pinion

0.16 – 0.21 (0.0063 – 0.0083)

Item

Standard

Companion flange face runout

0.15 (0.0059) or less

Inner side of the companion flange runout

0.1 (0.004) or less

HOW TO USE THIS SECTION

DLN-109

< HOW TO USE THIS MANUAL >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Information

INFOID:0000000011058862

Both “VDC” and “ESP” are used in this manual. These indicate the same system.

DLN-110

< PRECAUTION >

[TRANSFER: TY30A]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011003962

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000011003963

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H
