AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 30 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

809, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Without Super Lock)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-11, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

Door lock operation

(With keyfob button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

DLK-802

< SYSTEM DESCRIPTION >

[TYPE 4]

SYSTEM

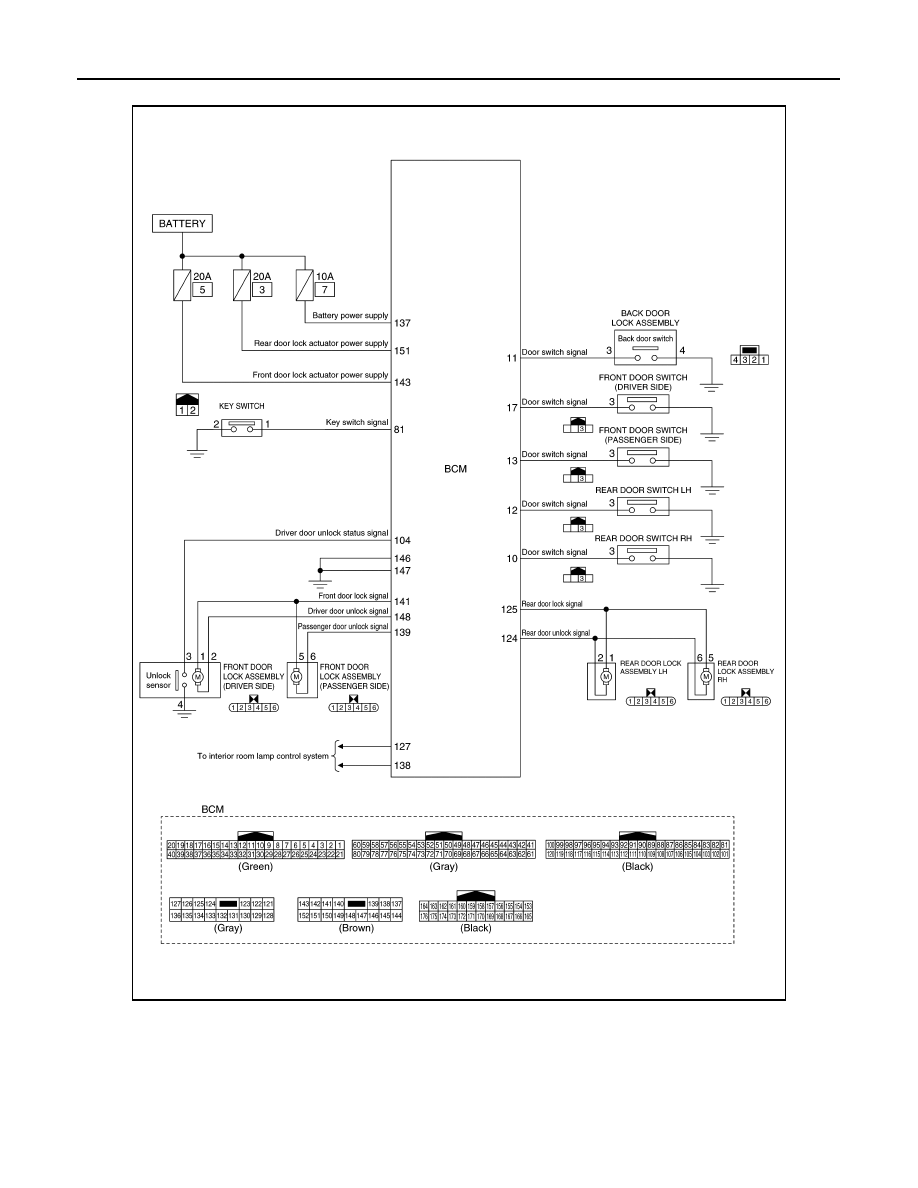

REMOTE KEYLESS ENTRY SYSTEM : Circuit Diagram

INFOID:0000000010755012

BACK DOOR OPENER SYSTEM

JMKIB3735GB

SYSTEM

DLK-803

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SYSTEM : System Description

INFOID:0000000010755013

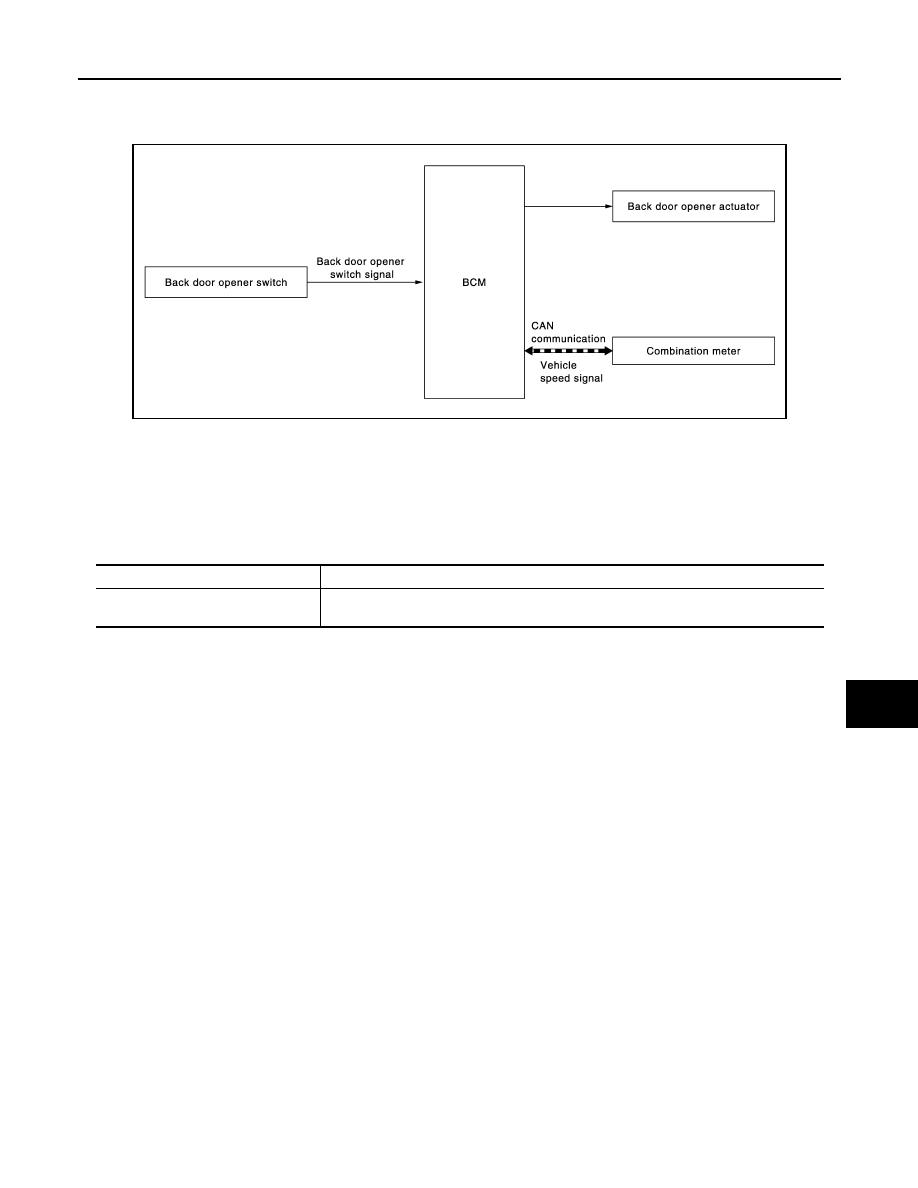

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• When back door opener switch is pressed while all doors are in unlock status.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-804

< SYSTEM DESCRIPTION >

[TYPE 4]

SYSTEM

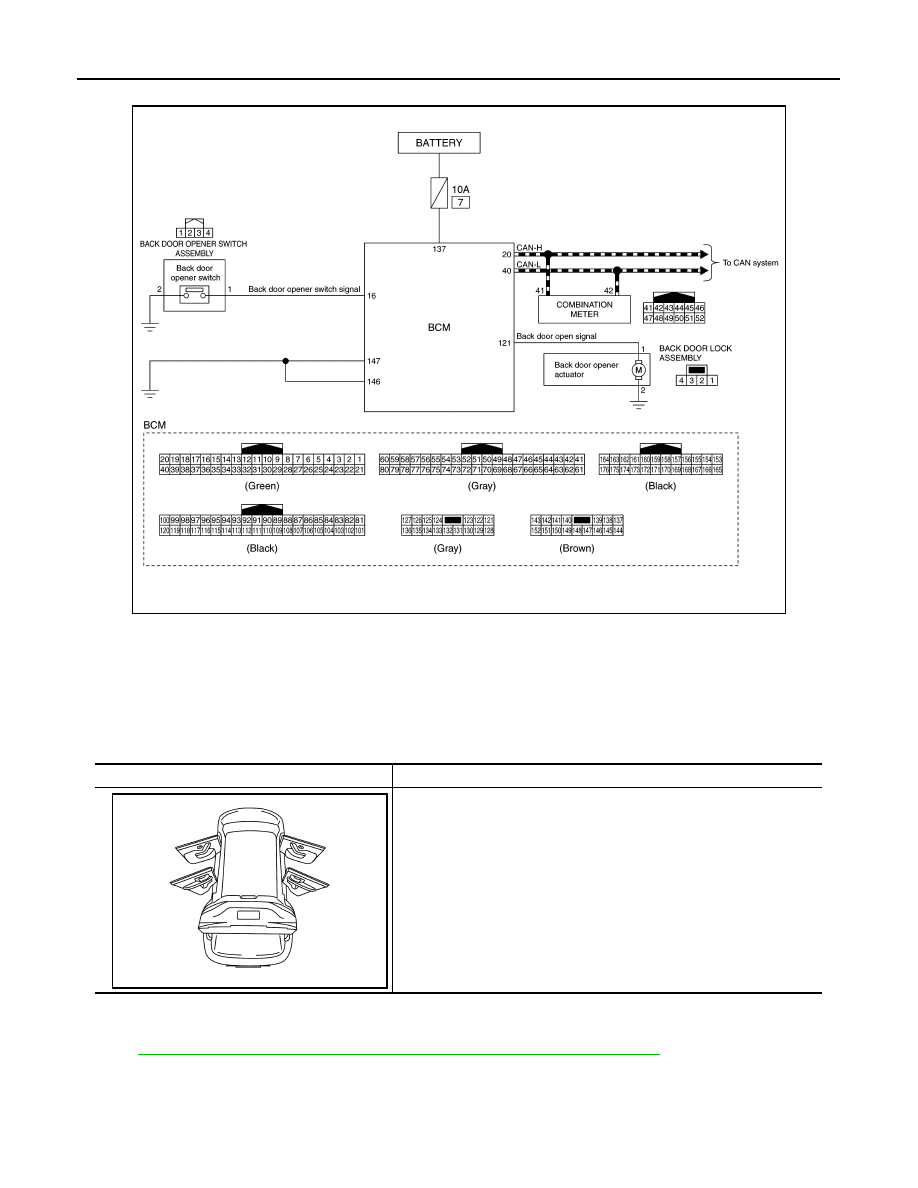

BACK DOOR OPENER SYSTEM : Circuit Diagram

INFOID:0000000010755014

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Door Open Warning

INFOID:0000000010755015

DESIGN/PURPOSE

Information display warns the driver that each door or trunk lid is open or is not fully closed.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

JMKIB3600GB

Symbol

Message

–

JMKIB2780ZZ
