SYSTEM

DLK-805

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

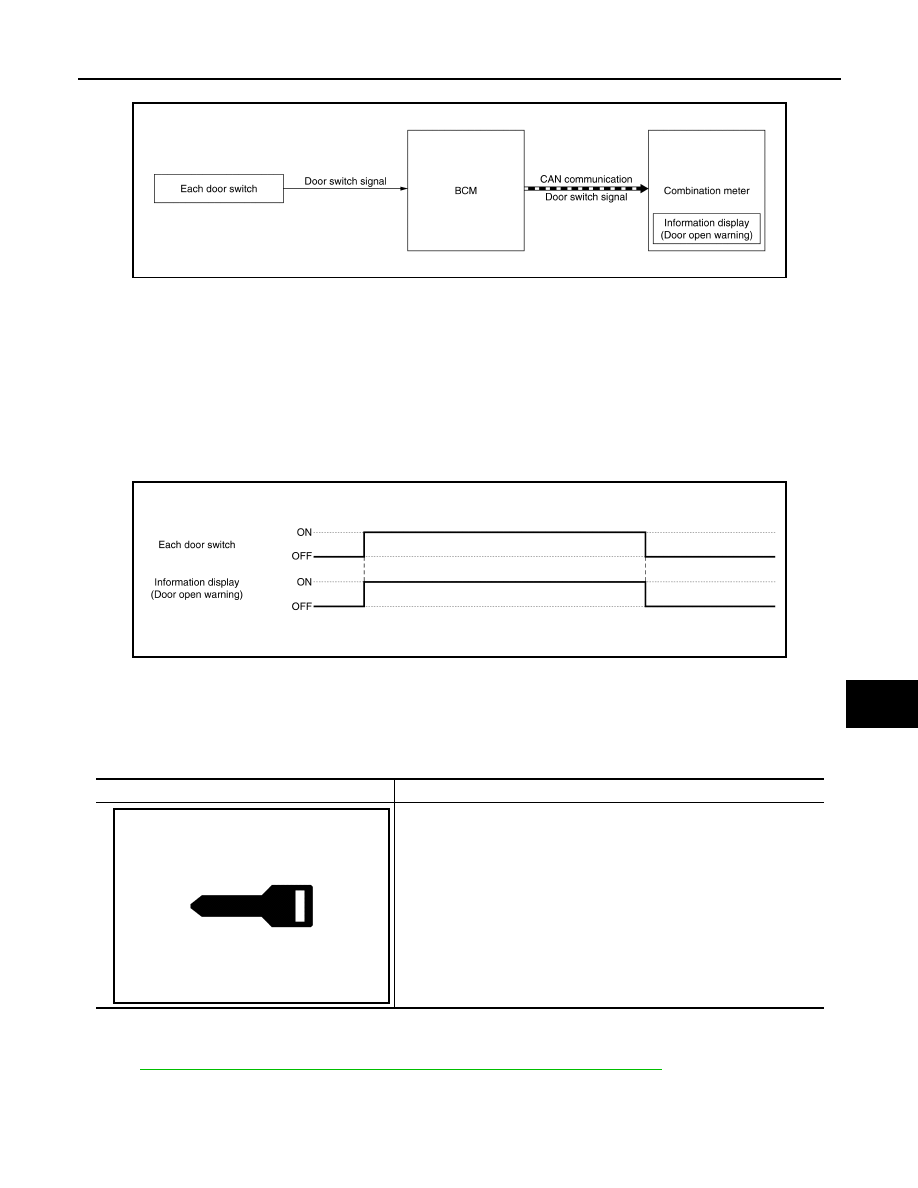

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits door switch signal to combination meter via CAN communication.
• When combination meter judges according to received door switch signal that a door is open or not fully

closed, door open warning displays.

WARNING/INDICATOR OPERATIONG CONDITION

Each door switch is ON

WARNING/INDICATOR CANCEL CONDITION

All door switches are OFF

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Key System Malfunction

INFOID:0000000010755016

DESIGN/PURPOSE

Information display warns the driver that engine cannot be started.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

JMKIB3593GB

JMKIB3594GB

Symbol

Message

Key System Error
See Owner’s Manual

JMKIB1398ZZ

DLK-806

< SYSTEM DESCRIPTION >

[TYPE 4]

SYSTEM

SYSTEM DIAGRAM

SIGNAL PATH

• When BCM detects that the engine cannot be started, meter display signal is transmitted by BCM to combi-

nation meter via CAN communication.

• When combination meter receives meter display signal, key system malfunction displays.

WARNING/INDICATOR OPERATING CONDITION

The engine cannot be started.

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• Engine non-start status is resolved.
• Ignition switch is turned to LOCK or OFF, and 15 seconds are passed.

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator (Information Display)

INFOID:0000000010755017

WARNING/INDICATOR/CHIME LIST : Warning Chime

INFOID:0000000010755018

JMKIB3620GB

Item

Reference

Door open warning

Refer to

DLK-804, "INFORMATION DISPLAY (COMBINATION METER) :

Door Open Warning"

Key system malfunction

Refer to

DLK-805, "INFORMATION DISPLAY (COMBINATION METER) :

Key System Malfunction"

Item

Reference

Key warning chime

Refer to

WCS-11, "WARNING CHIME : Key Warning Chime (Without Intelligent Key Sys-

tem)"

.

DIAGNOSIS SYSTEM (BCM)

DLK-807

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010869007

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DLK-808

< SYSTEM DESCRIPTION >

[TYPE 4]

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Without Intelligent Key
System and Super Lock)

INFOID:0000000010755020

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Monitor item

Description

DOOR LOCK-UNLOCK SET

Selective unlock function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

AUTO UNLOCK TYPE

NOTE:
This item is displayed, but cannot be used

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY SW

Indicated [On/Off] condition of key switch
