PREPARATION

DLK-793

< PREPARATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

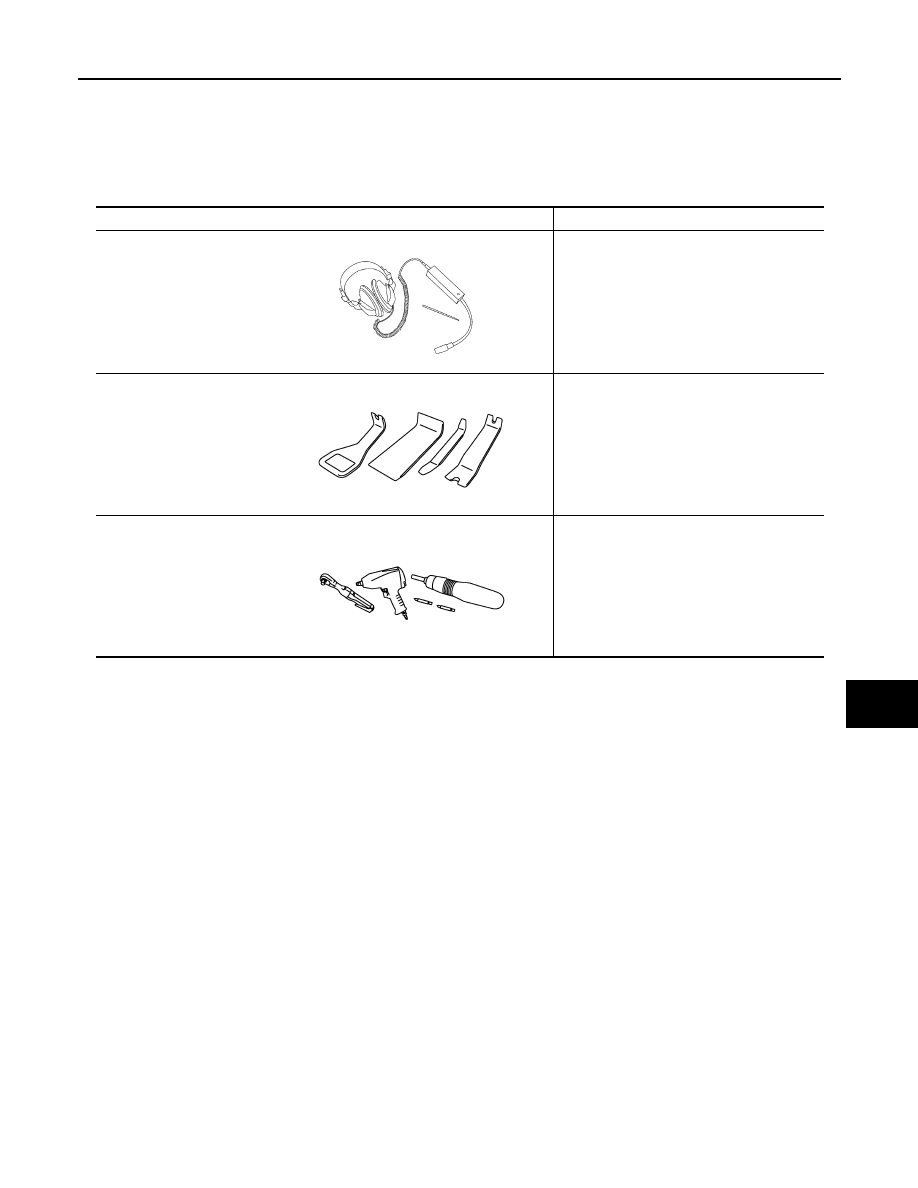

Commercial Service Tools

INFOID:0000000010755001

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-794

< SYSTEM DESCRIPTION >

[TYPE 4]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

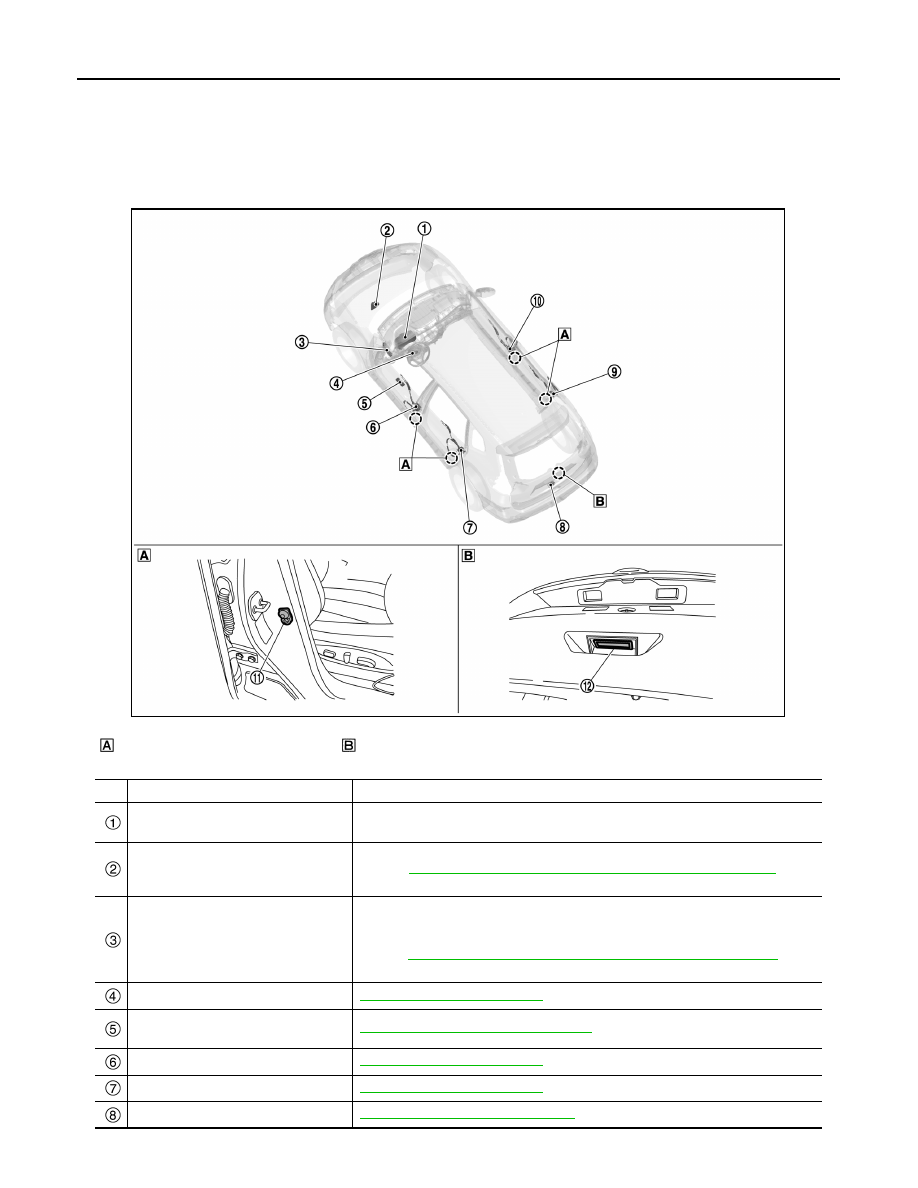

Component Parts Location

INFOID:0000000010755002

View with door opened

View with back door panel

No.

Component

Function

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle speed signal to CAN communication line.

TCM

Transmits shift position signal to BCM via CAN communication line.
Refer to

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

BCM

BCM detects the vehicle status according to signals from each door switch. BCM
transmits drive signal to door lock actuator when BCM receives operation signal
from remote keyless entry receiver (integrated in BCM).
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Ignition key cylinder (key switch)

DLK-796, "Ignition Key Cylinder"

Power window main switch (door lock
and unlock switch)

DLK-796, "Door Lock and Unlock Switch"

Front door lock assembly (driver side)

DLK-795, "Door Lock Assembly"

Rear door lock assembly LH

DLK-795, "Door Lock Assembly"

Back door lock assembly

DLK-795, "Back Door Lock Assembly"

JMKIB3591ZZ

COMPONENT PARTS

DLK-795

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

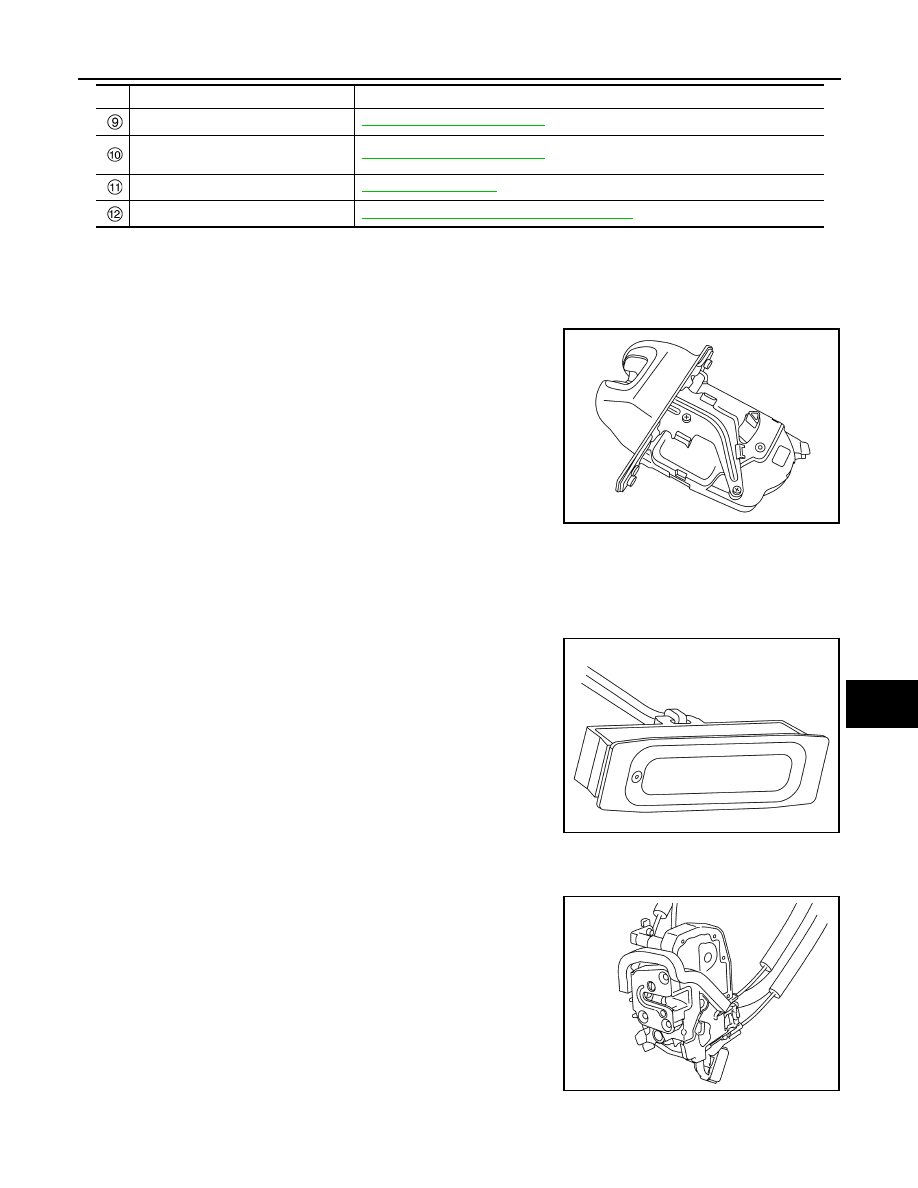

Back Door Lock Assembly

INFOID:0000000010755003

• Back door lock assembly integrates back door opener actuator and back door switch.
• Back door opener actuator opens the back door according to the back door open signal from BCM.
• Back door switch detects open/close status of back door.
• Back door lock assembly is installed in the back door panel.

Back Door Opener Switch Assembly

INFOID:0000000010755004

• Back door opener switch assembly integrates back door opener switch.
• Back door opener switch detects open operation of back door and transmits back door opener switch signal

to BCM.

• Back door opener switch assembly is installed in the back door

panel.

Door Lock Assembly

INFOID:0000000010755005

• Door lock actuator and unlock sensor are integrated in front door

lock assembly (driver side).

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver side door
to BCM.

Rear door lock assembly RH

DLK-795, "Door Lock Assembly"

Front door lock assembly (passenger
side)

DLK-795, "Door Lock Assembly"

Door switch

DLK-796, "Door Switch"

Back door opener switch assembly

DLK-795, "Back Door Opener Switch Assembly"

No.

Component

Function

JMKIB2941ZZ

JMKIA9666ZZ

JMKIA9347ZZ

DLK-796

< SYSTEM DESCRIPTION >

[TYPE 4]

COMPONENT PARTS

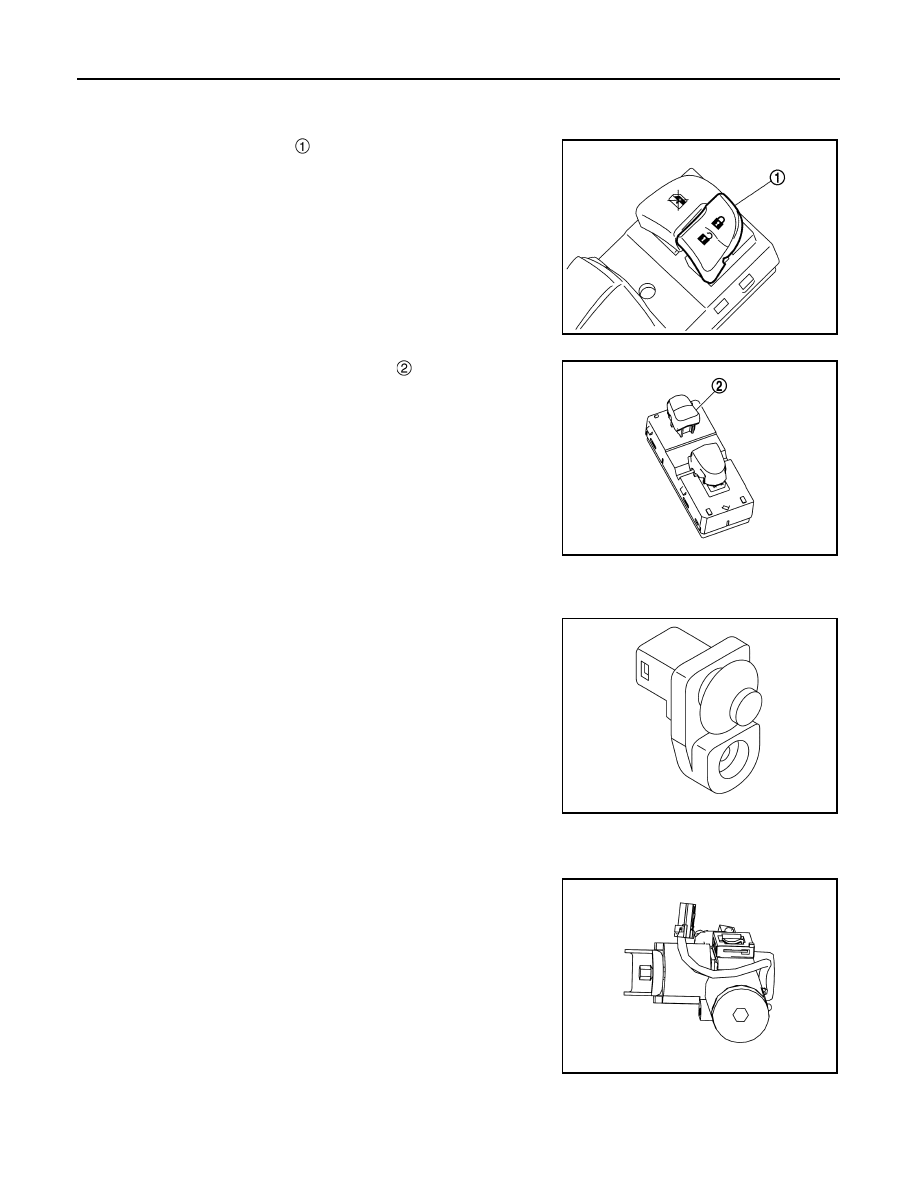

Door Lock and Unlock Switch

INFOID:0000000010755006

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.
• Door lock and unlock switch

 is integrated in the power window

main switch.

• Passenger side door lock and unlock switch

 is integrated in front

power window switch (passenger side).

Door Switch

INFOID:0000000010755007

Detects door open/close condition.

Ignition Key Cylinder

INFOID:0000000010755008

• Key switch is installed in ignition key cylinder.
• Key switch detects ignition key or keyfob is inserted in ignition key

cylinder, and then transmits key insertion status to BCM.

JMKIA9352ZZ

JMKIB1506ZZ

JMKIA9779ZZ
