Nissan X-Trail 32. Manual - part 580





DIAGNOSIS SYSTEM (BCM)

DLK-661

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Contents

STARTER CUT RELAY

Indicates [On/Off] condition of starter control relay

KEY CYL SW-TR

NOTE:
This item is displayed, but cannot be monitored

TR CANCEL SW

NOTE:
This item is displayed, but cannot be monitored

TRUNK LID OPENER SW

NOTE:
This item is displayed, but cannot be monitored

BACK DOOR OPENER SW

Indicates [On/Off] condition of back door opener switch

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

DLK-662

< ECU DIAGNOSIS INFORMATION >

[TYPE 3]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010708354

ECU

Reference

BCM

BCS-53, "Reference Value"

BCS-76, "Fail-safe"

BCS-77, "DTC Inspection Priority Chart"

BCS-78, "DTC Index"

DOOR & LOCK SYSTEM

DLK-663

< WIRING DIAGRAM >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

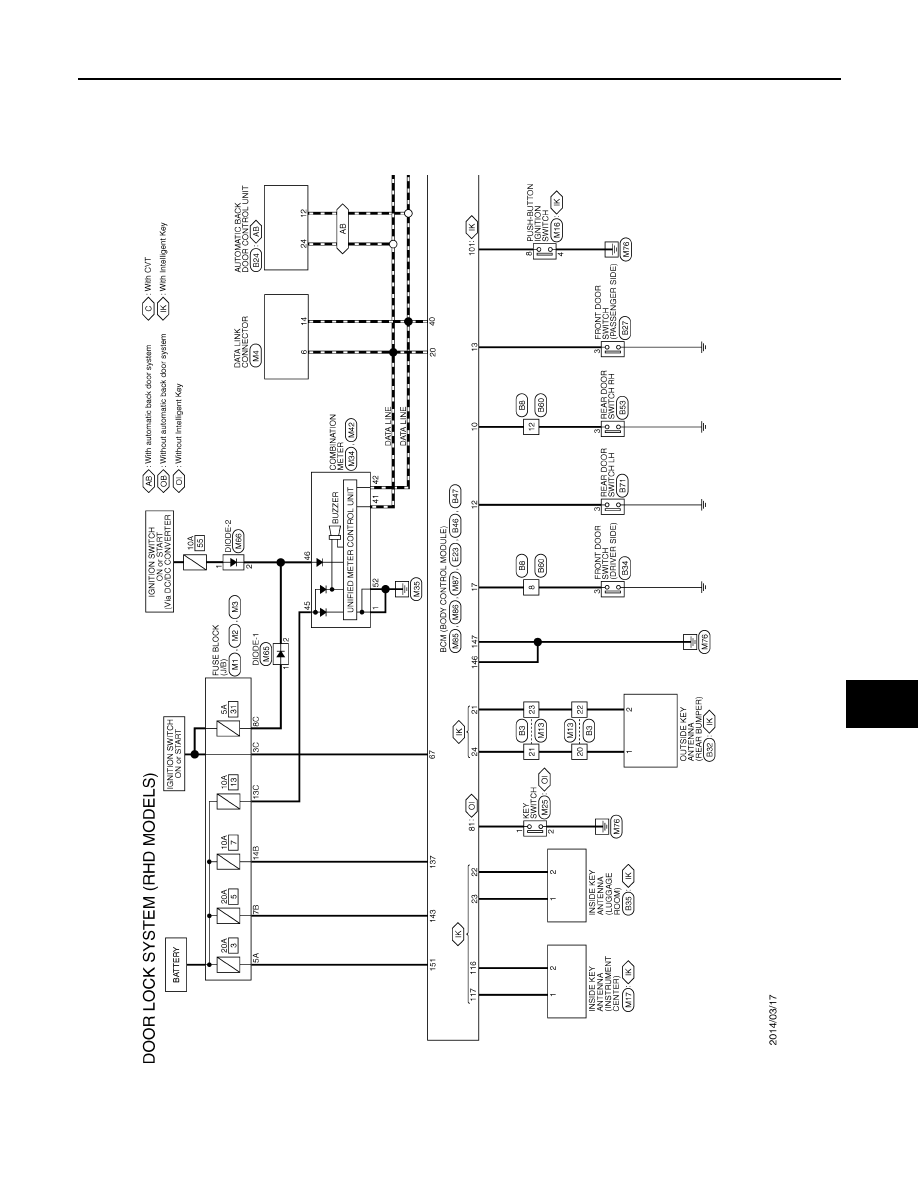

WIRING DIAGRAM

DOOR & LOCK SYSTEM

Wiring Diagram

INFOID:0000000010708355

JRKWD4418GB

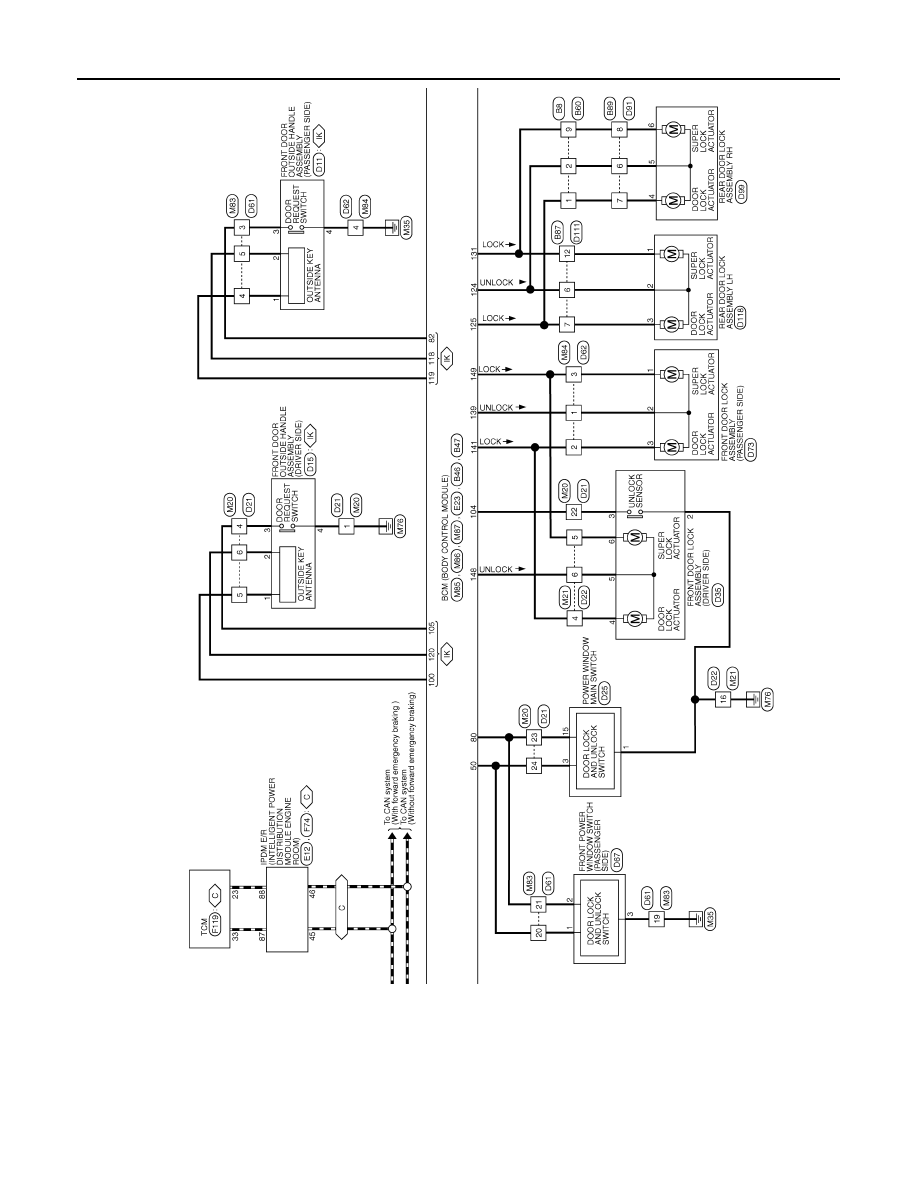

DLK-664

< WIRING DIAGRAM >

[TYPE 3]

DOOR & LOCK SYSTEM

JRKWD4419GB
