Nissan X-Trail 32. Manual - part 581

DOOR & LOCK SYSTEM

DLK-665

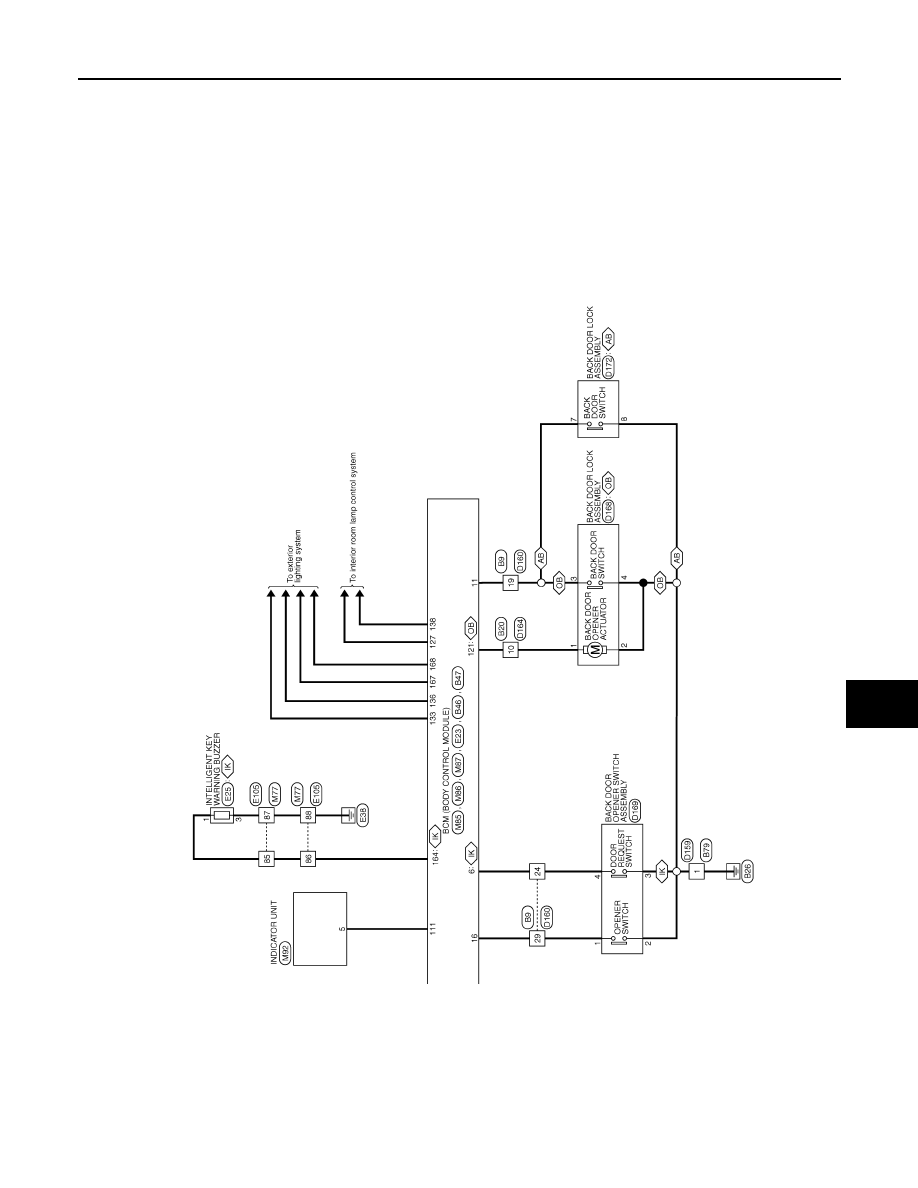

< WIRING DIAGRAM >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWD4420GB

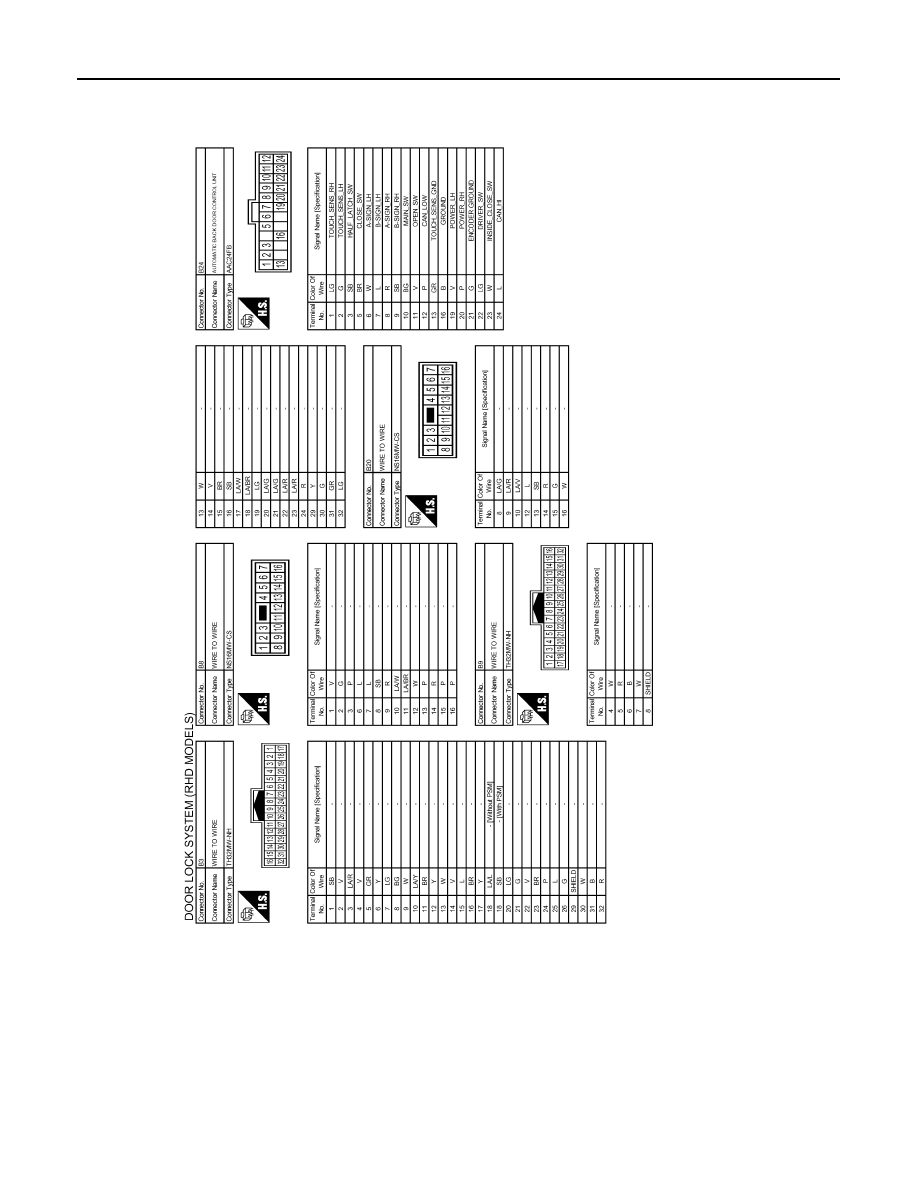

DLK-666

< WIRING DIAGRAM >

[TYPE 3]

DOOR & LOCK SYSTEM

JRKWD4421GB

DOOR & LOCK SYSTEM

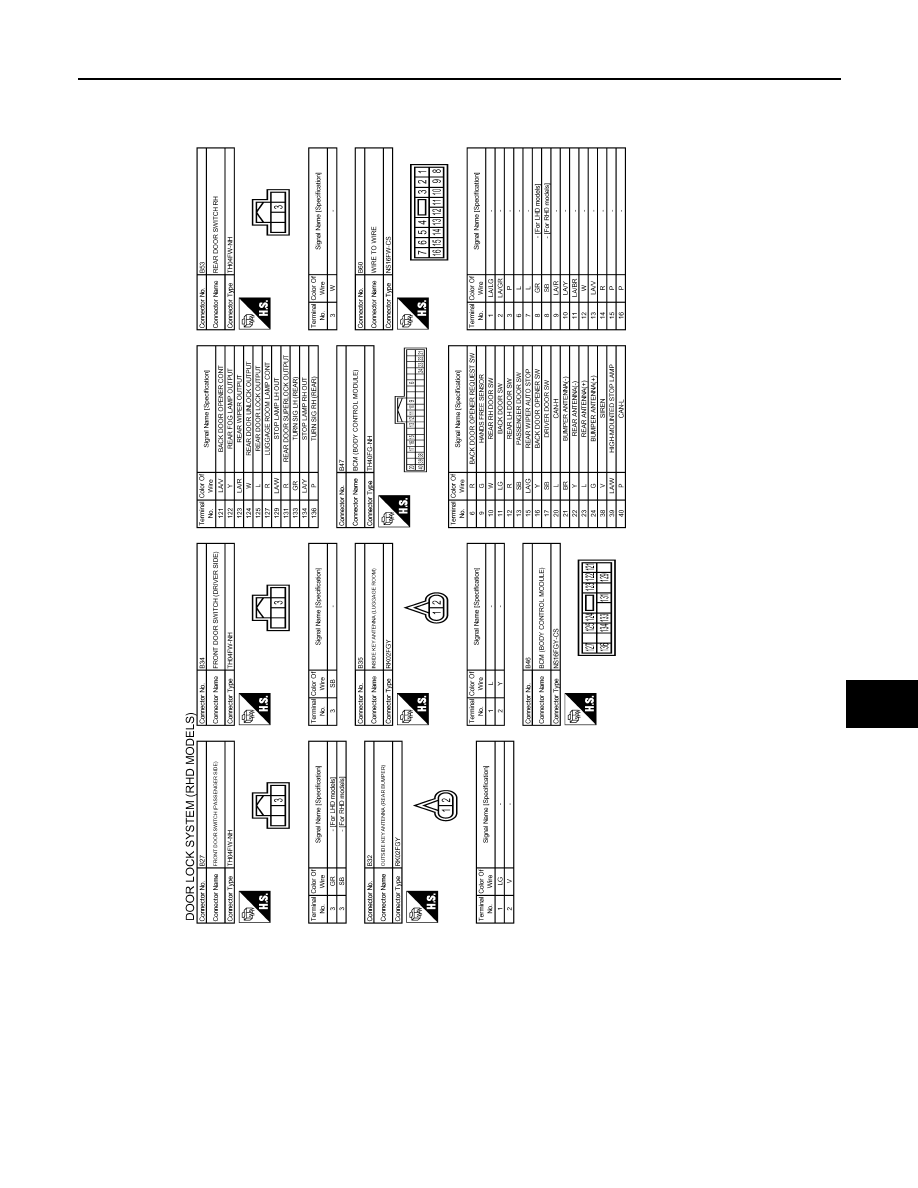

DLK-667

< WIRING DIAGRAM >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWD4422GB

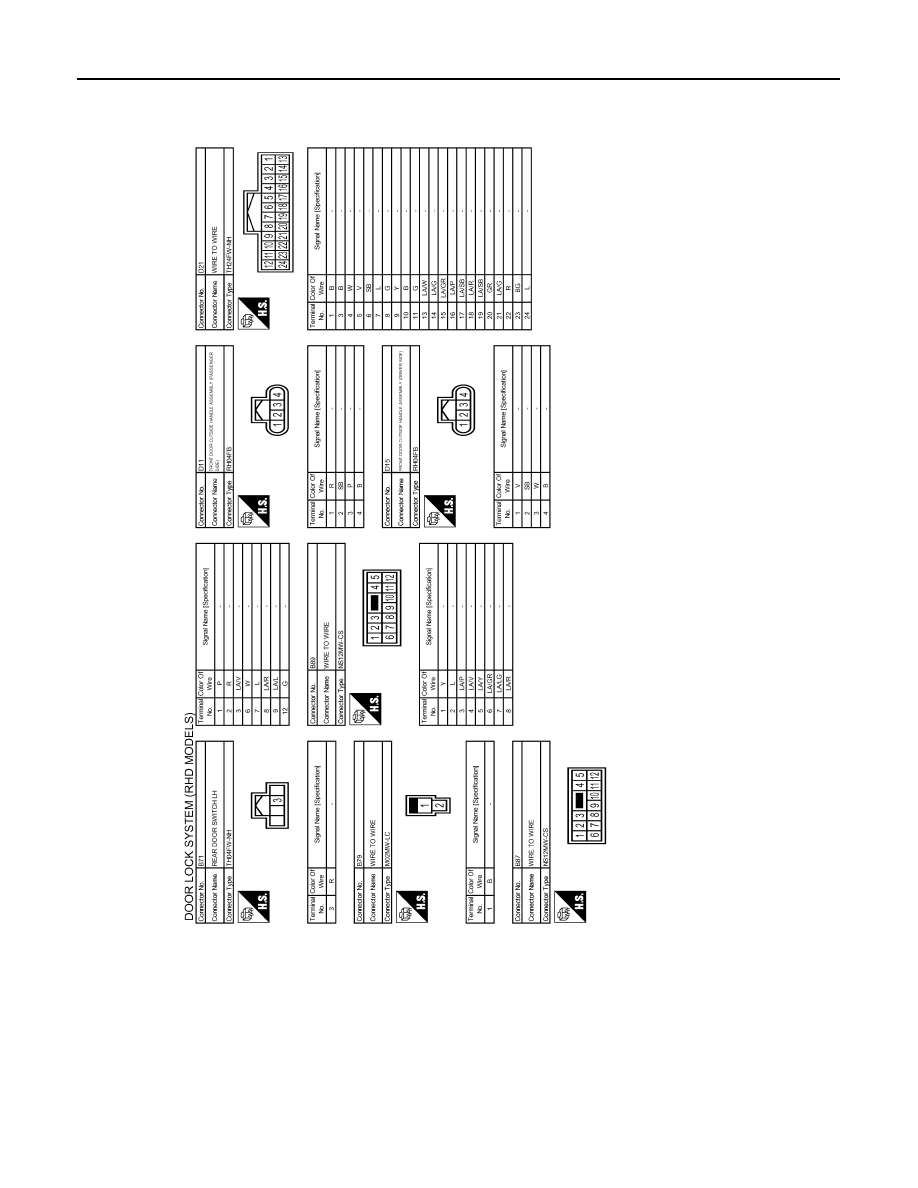

DLK-668

< WIRING DIAGRAM >

[TYPE 3]

DOOR & LOCK SYSTEM

JRKWD4423GB
