SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

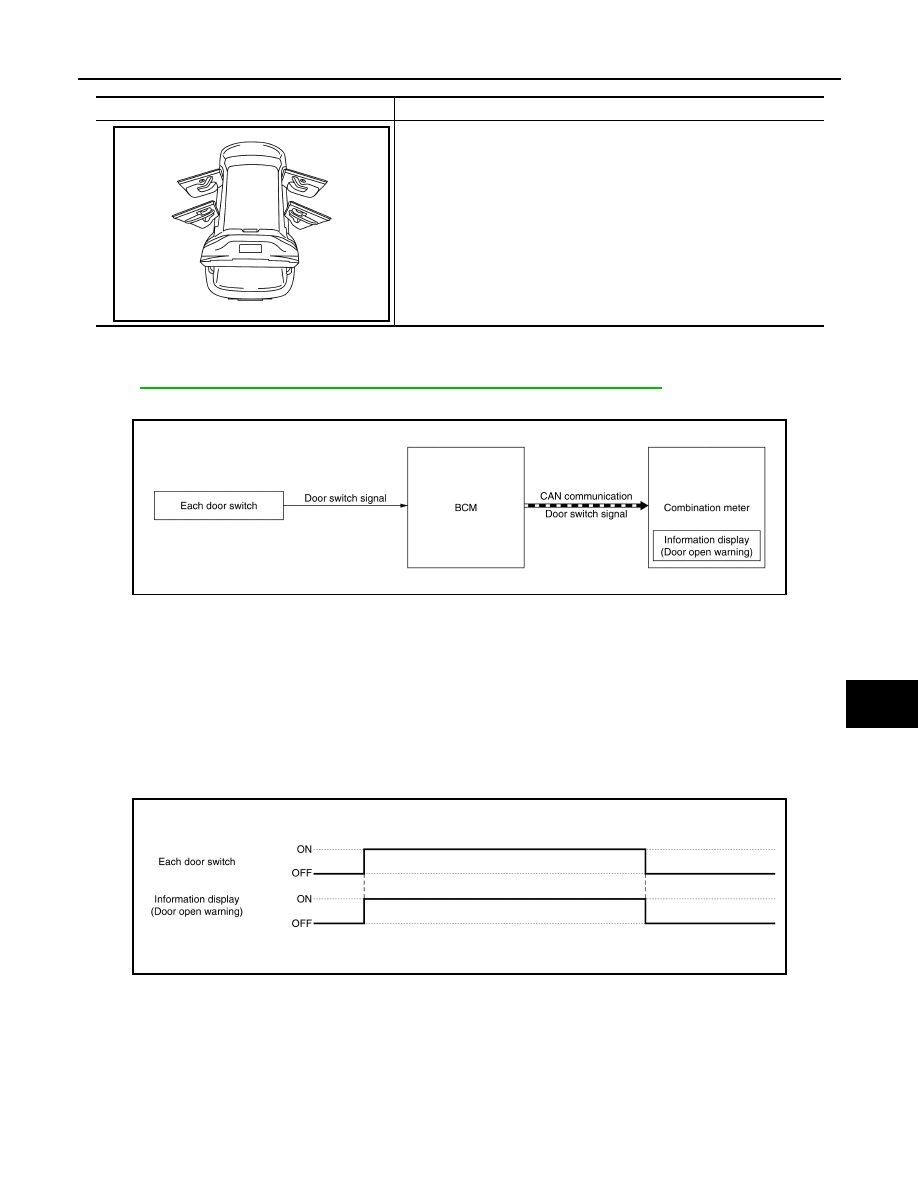

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits door switch signal to combination meter via CAN communication.
• When combination meter judges according to received door switch signal that a door is open or not fully

closed, door open warning displays.

WARNING/INDICATOR OPERATIONG CONDITION

Each door switch is ON

WARNING/INDICATOR CANCEL CONDITION

All door switches are OFF

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Key System Malfunction

INFOID:0000000010708347

DESIGN/PURPOSE

Information display warns the driver that engine cannot be started.

Symbol

Message

–

JMKIB2780ZZ

JMKIB3593GB

JMKIB3594GB

DLK-654

< SYSTEM DESCRIPTION >

[TYPE 3]

REMOTE KEYLESS ENTRY SYSTEM

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

SYSTEM DIAGRAM

SIGNAL PATH

• When BCM detects that the engine cannot be started, meter display signal is transmitted by BCM to combi-

nation meter via CAN communication.

• When combination meter receives meter display signal, key system malfunction displays.

WARNING/INDICATOR OPERATING CONDITION

The engine cannot be started.

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• Engine non-start status is resolved.
• Ignition switch is turned to LOCK or OFF, and 15 seconds are passed.

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator (Information Display)

INFOID:0000000010708348

WARNING/INDICATOR/CHIME LIST : Warning Chime

INFOID:0000000010708349

Symbol

Message

Key System Error
See Owner’s Manual

JMKIB1398ZZ

JMKIB3620GB

Item

Reference

Door open warning

Refer to

DLK-652, "INFORMATION DISPLAY (COMBINATION METER) :

Door Open Warning"

Key system malfunction

Refer to

DLK-653, "INFORMATION DISPLAY (COMBINATION METER) :

Key System Malfunction"

Item

Reference

Key warning chime

Refer to

WCS-11, "WARNING CHIME : Key Warning Chime (Without Intelligent Key Sys-

tem)"

.

BACK DOOR OPENER SYSTEM

DLK-655

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SYSTEM

System Description

INFOID:0000000010708344

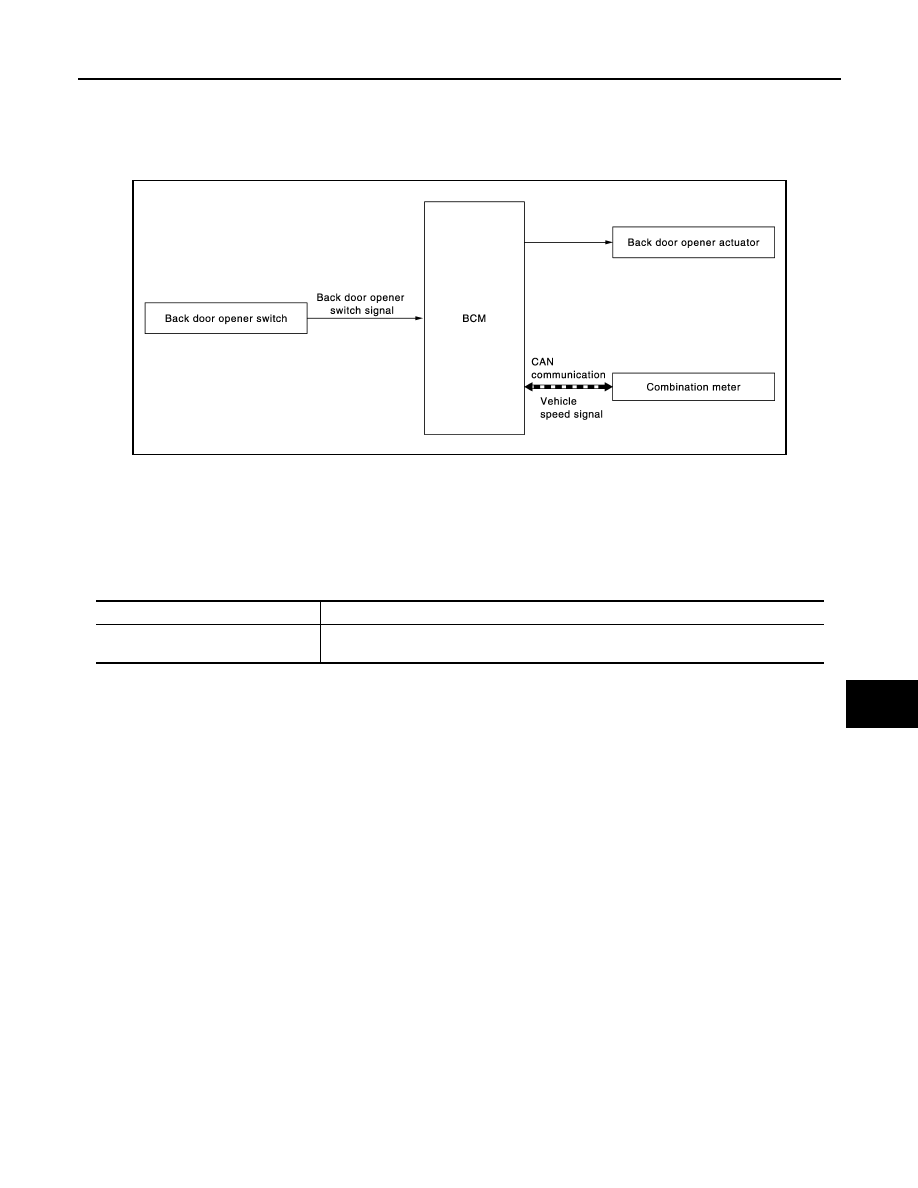

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• When back door opener switch is pressed while all doors are in unlock status.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-656

< SYSTEM DESCRIPTION >

[TYPE 3]

BACK DOOR OPENER SYSTEM

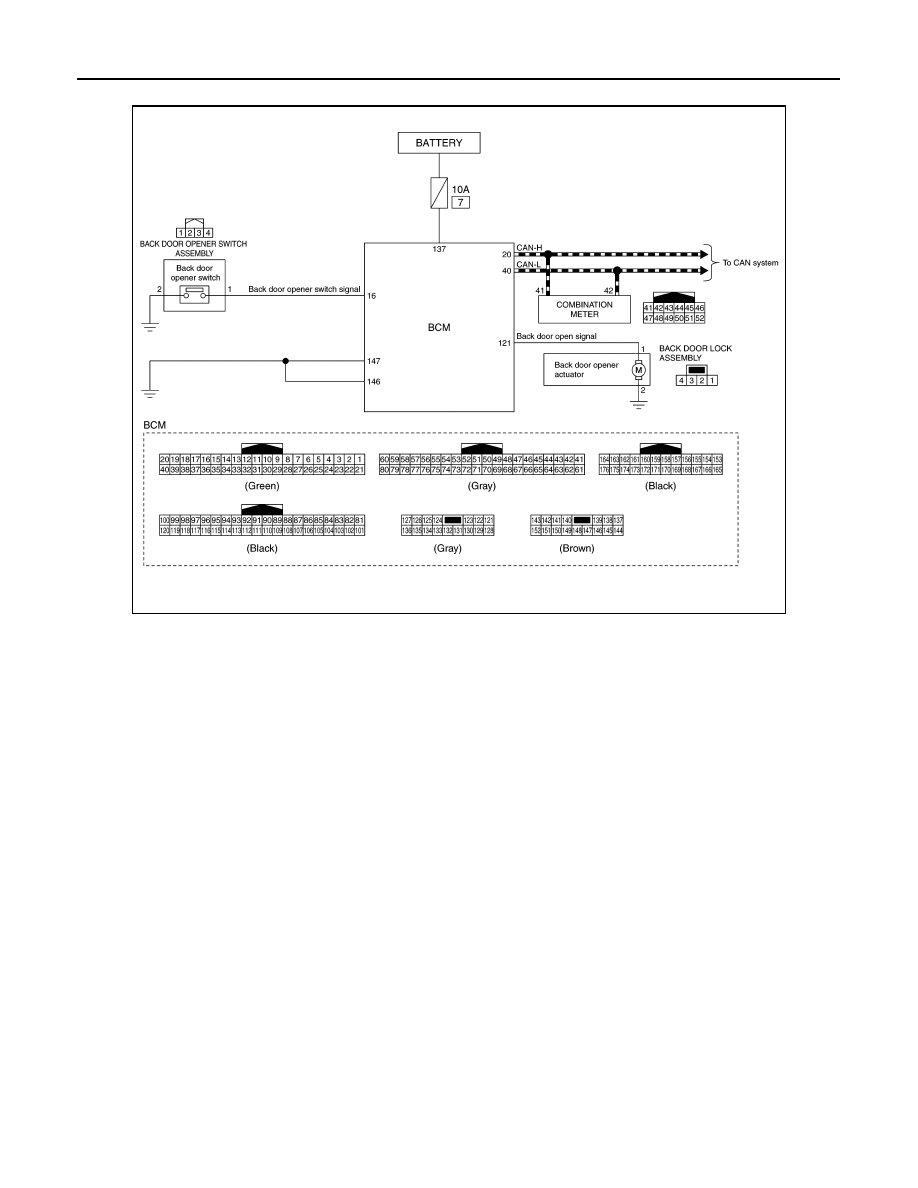

Circuit Diagram

INFOID:0000000010708345

JMKIB3600GB
