COMPONENT PARTS

DLK-645

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

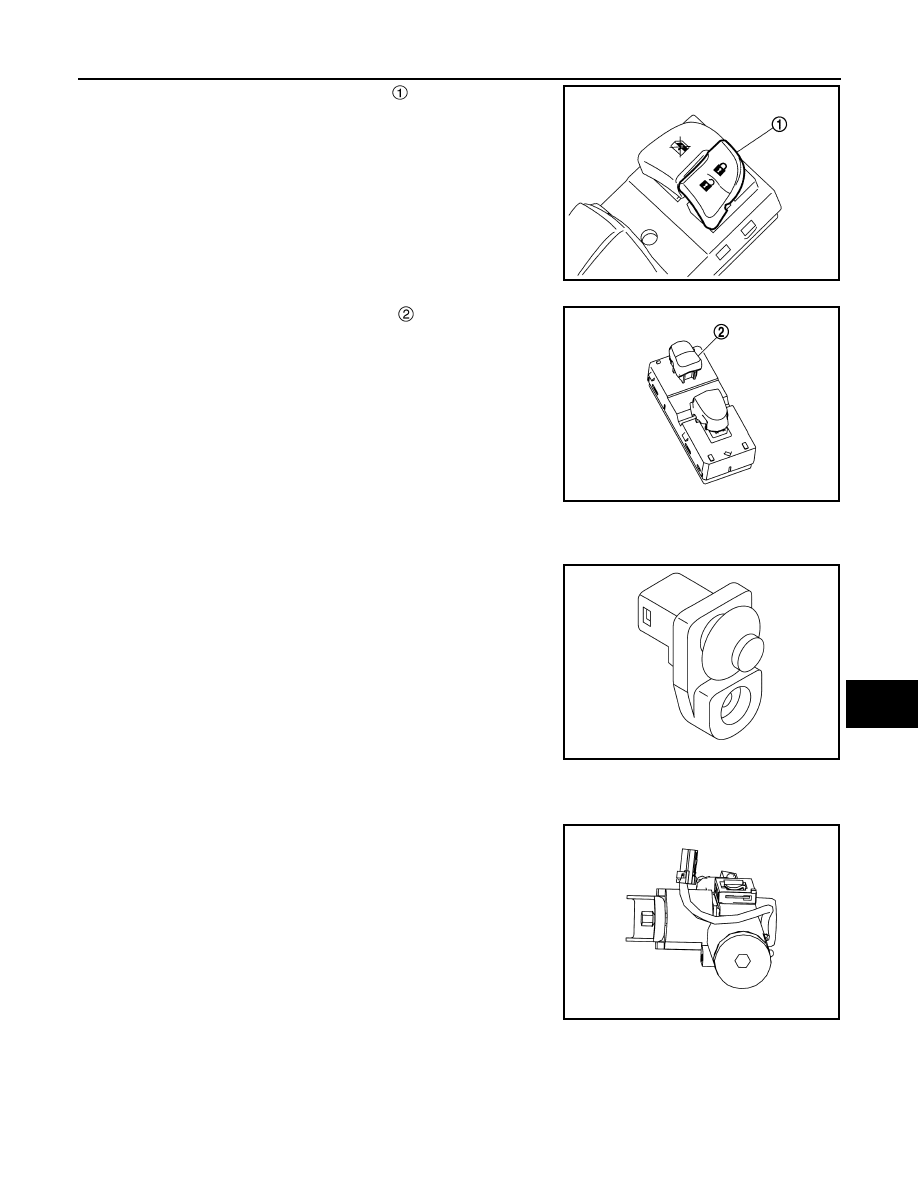

• Driver side door lock and unlock switch

 is integrated in the

power window main switch.

• Passenger side door lock and unlock switch

 is integrated in front

power window switch (passenger side).

Door Switch

INFOID:0000000010708338

Detects door open/close condition.

Ignition Key Cylinder

INFOID:0000000010708339

• Key switch is installed in ignition key cylinder.
• Key switch detects ignition key or keyfob is inserted in ignition key

cylinder, and then transmits key insertion status to BCM.

JMKIA9352ZZ

JMKIB1506ZZ

JMKIA9779ZZ

JMKIB0273ZZ

DLK-646

< SYSTEM DESCRIPTION >

[TYPE 3]

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM

System Description

INFOID:0000000010708340

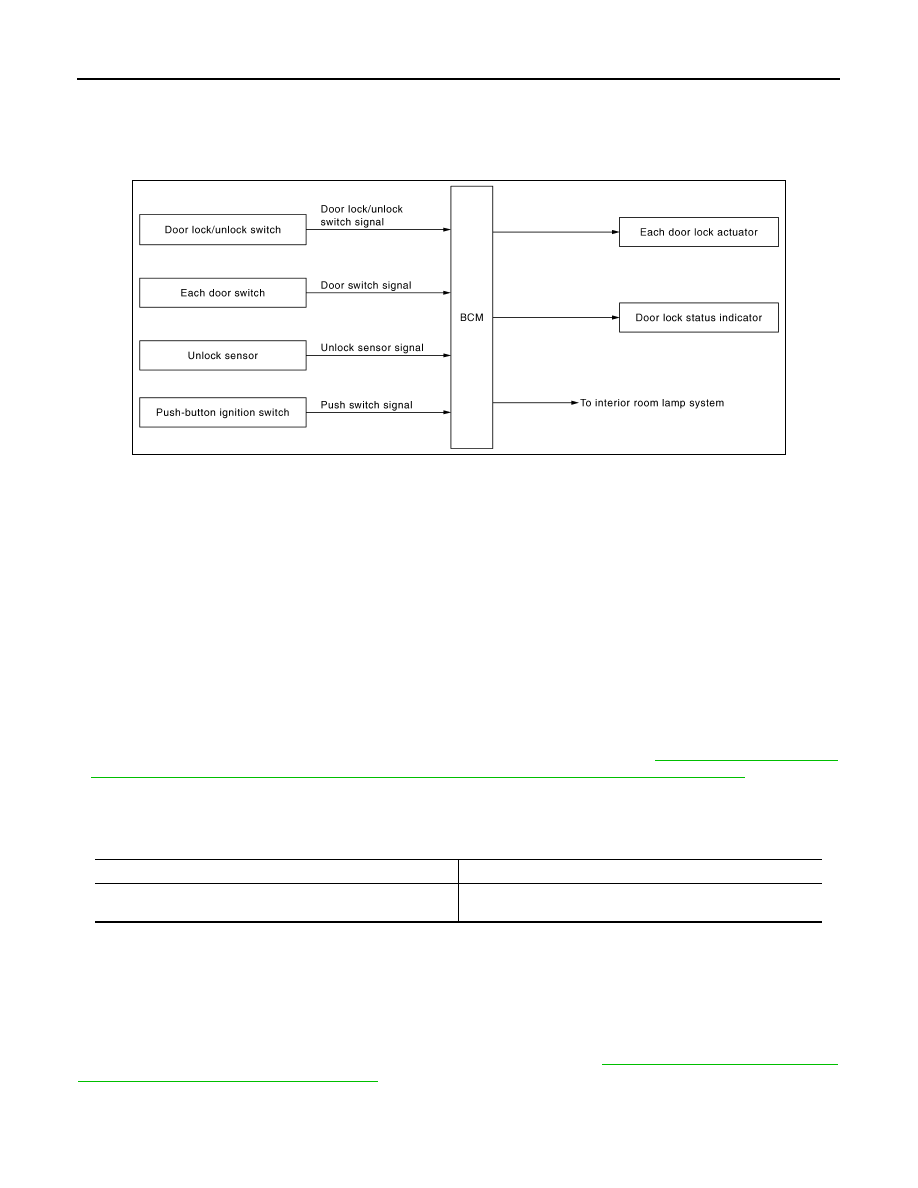

SYSTEM DIAGRAM

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switches are built into power window main switch and front power window switch

(passenger side).

• Interlocked with the locking operation of door lock and unlock switch, door lock actuator of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuator of all doors are

unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once

unlocks the driver door, turning it to unlock position again within 5 seconds after the first unlock operation
unlocks all of the other doors actuator. (Anti-hijack function operation)
Anti-hijack function operation mode can be changed using CONSULT. Refer to

DLK-658, "DOOR LOCK :

CONSULT Function (BCM - DOOR LOCK) (Without Intelligent Key System, With Super Lock)"

.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-11, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

OVERRIDE FUNCTION

JMKIB2435GB

Door lock and unlock switch operation

Operation condition

LOCK/UNLOCK

• Doors are not locked by keyfob and auto door lock function
• Ignition position warning function is not activated

POWER DOOR LOCK SYSTEM

DLK-647

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

When inside handle of driver door is operated while doors are in lock states, lock state of the applicable door
lock becomes invalid and the door is open.

UNLOCK LINK FUNCTION

When driver door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door is open while all of the following conditions are satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition.

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver side door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

 OFF

(All doors are closed

 any

door is open) or (All doors are
locked

 any door is un-

locked)

ON (timer is running)

 ON

(timer is stop)

OFF

 ON

ON

 ON (30 minutes timer)

ON

 OFF

Door lock and unlock switch

ON

 ON (1 minute timer)

ON

 OFF

Intelligent Key, door request

switch or auto door lock func-

tion

DLK-648

< SYSTEM DESCRIPTION >

[TYPE 3]

POWER DOOR LOCK SYSTEM

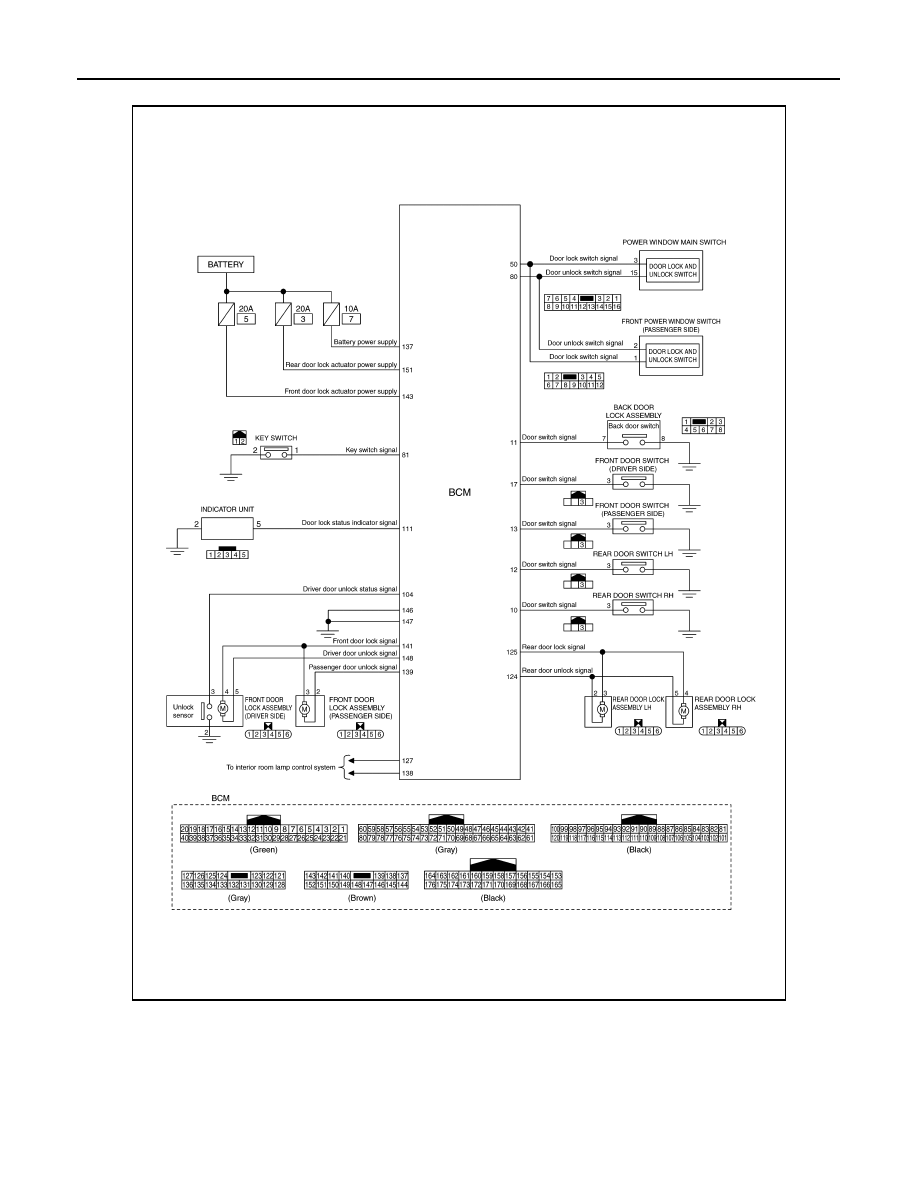

Circuit Diagram

INFOID:0000000010708341

JMKIB3731GB
