REMOTE KEYLESS ENTRY SYSTEM

REMOTE KEYLESS ENTRY FUNCTION

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010708342

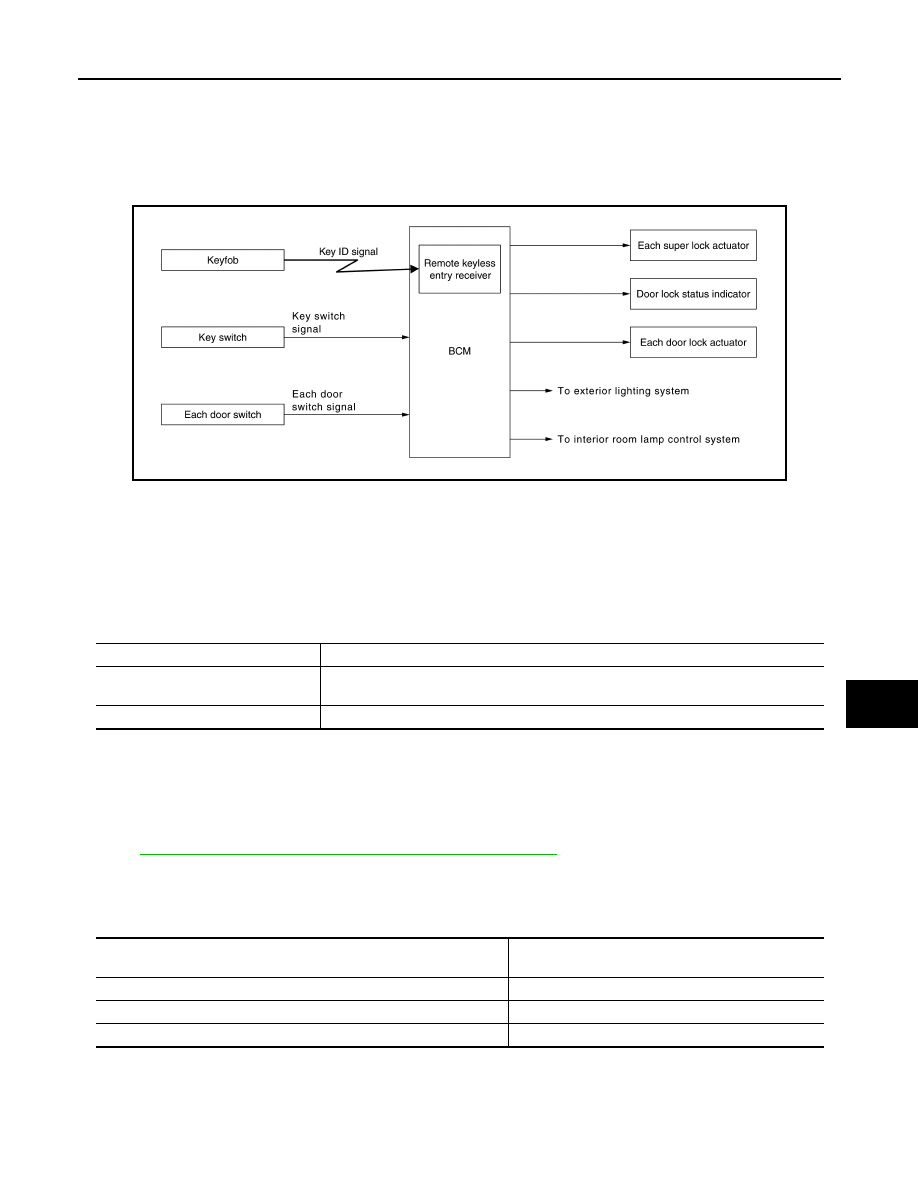

System Diagram

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, brinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 1 m (3 ft) range of each door, however the operable
range may differ according to surroundings.

ANTI-HIJACK FUNCTION

Information of super lock function with anti-hijack function.
Refer to

DLK-652, "SUPER LOCK FUNCTION : System Description"

.

REMINDER FUNCTION

When doors are locked or unlocked by keyfob button operation, BCM blinks hazard warning lamps as a
reminder.

AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 30 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

JMKIB3686GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

Door lock operation

(With keyfob button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

DLK-650

< SYSTEM DESCRIPTION >

[TYPE 3]

REMOTE KEYLESS ENTRY SYSTEM

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

659, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (With Super Lock)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-11, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

REMOTE KEYLESS ENTRY SYSTEM

DLK-651

< SYSTEM DESCRIPTION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

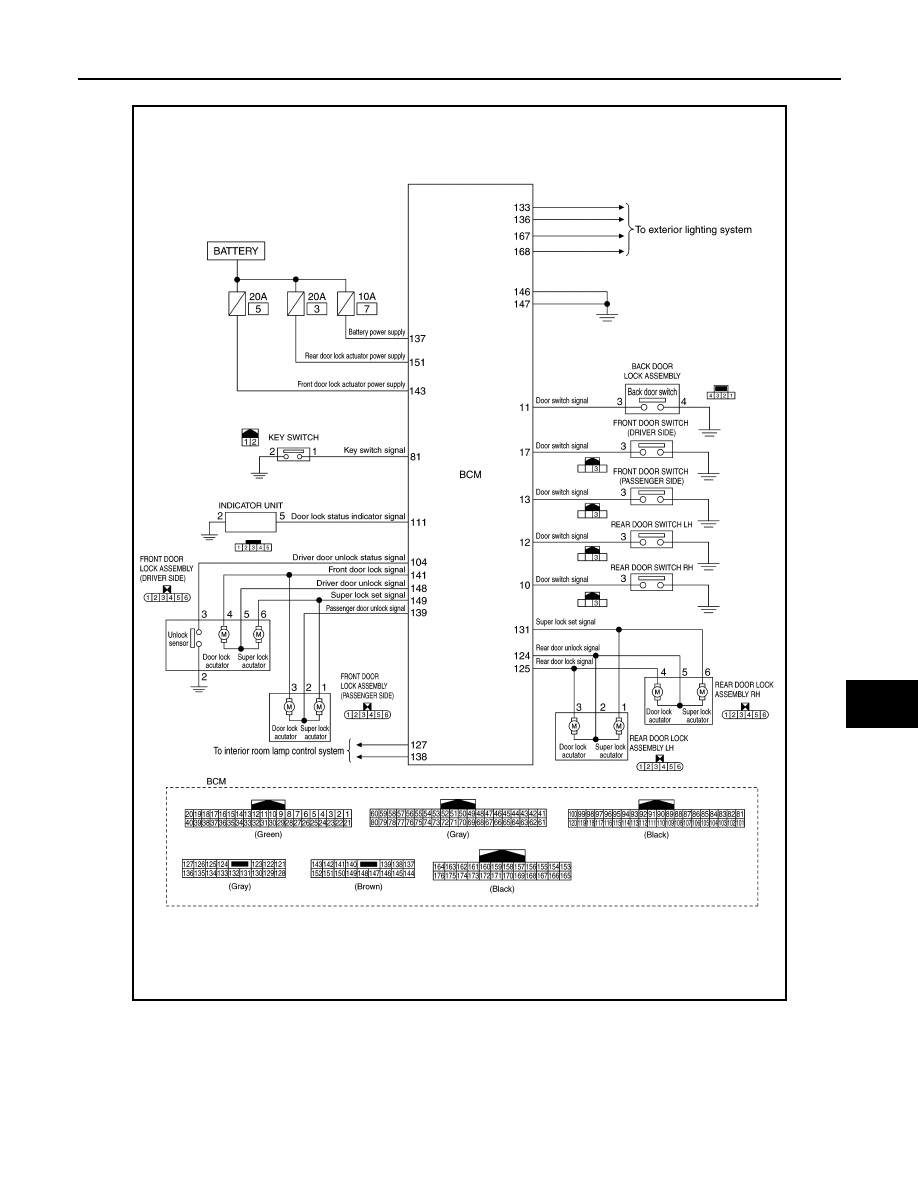

REMOTE KEYLESS ENTRY FUNCTION : Circuit Diagram

INFOID:0000000010708343

SUPER LOCK FUNCTION

JMKIB3732GB

DLK-652

< SYSTEM DESCRIPTION >

[TYPE 3]

REMOTE KEYLESS ENTRY SYSTEM

SUPER LOCK FUNCTION : System Description

INFOID:0000000010728213

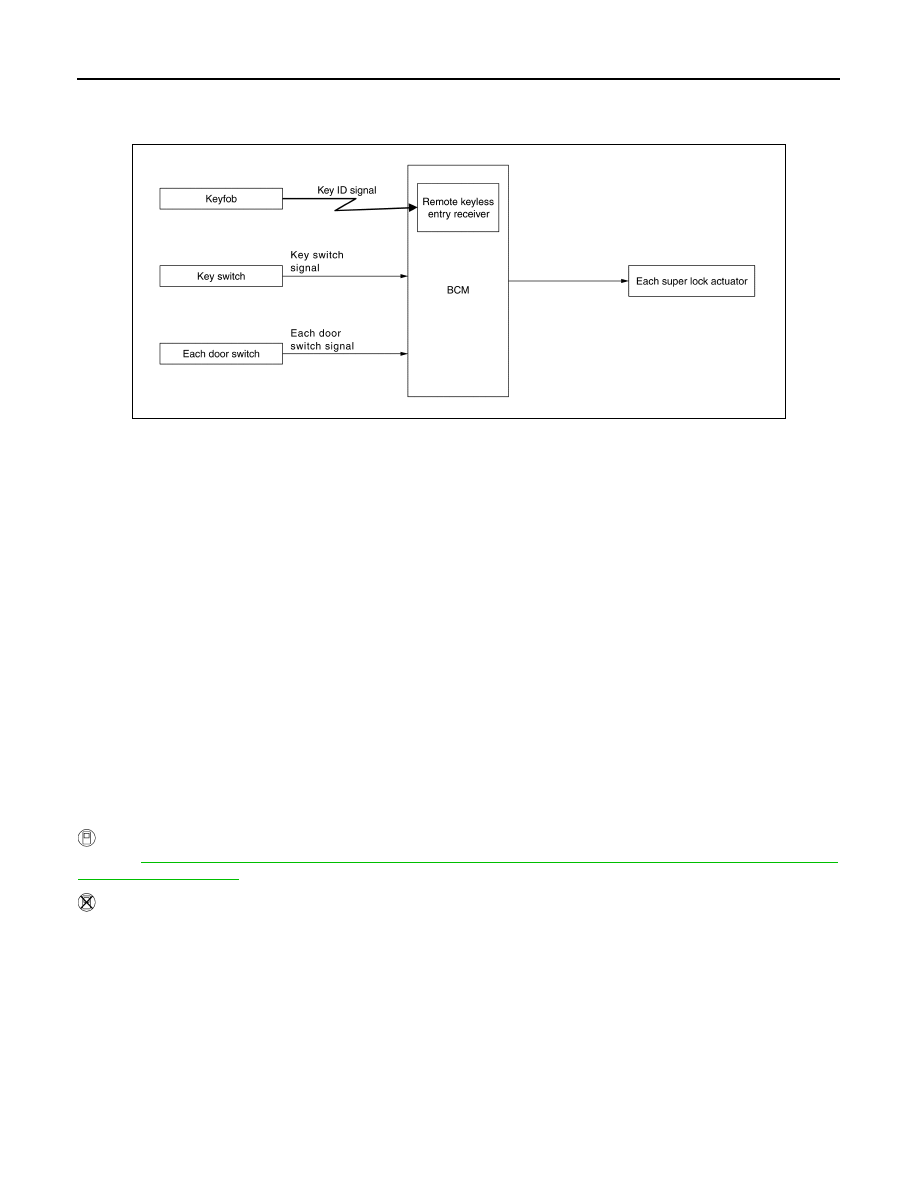

SYSTEM DIAGRAM

• Super lock provides a higher anti-theft performance than a conventional door lock function.
• BCM controls the super lock system.
• When all doors are closed super lock system can be set/release by keyfob.
• When super lock is set, inside handle of doors do not work.

SUPER LOCK SET OPERATION (LOCK OPERATION)

When Keyfob lock button is operated while all doors are in unlock state, super lock of all doors is set, and
simultaneously, all doors are locked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITH ANTI-HIJACK MODE

When Keyfob unlock button is operated while super lock of all doors is set, super lock of all doors is released,
and simultaneously, driver door are unlocked. When Keyfob unlock button is operated again, all doors are
unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) WITHOUT ANTI-HIJACK MODE

When keyfob unlock button is operated while super lock of all doors is set, super lock of all doors is released,
and simultaneously, all doors are unlocked.

SUPER LOCK RELEASE OPERATION (UNLOCK OERATION) CHANGE IGNITION SWITCH

Super Lock Release by Ignition Switch is Changed from OFF to ON

When the super lock is set, release super lock when the ignition switch is changed from OFF to ON.

ANTI-HIJACK FUNCTION SETTING

 With CONSULT

Refer to

DLK-658, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Without Intelligent Key Sys-

tem, With Super Lock)"

.

 Without CONSULT

• ON/OFF can be switched when keyfob lock button and unlock button are pressed simultaneously for 4 sec-

onds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Door Open Warning

INFOID:0000000010708346

DESIGN/PURPOSE

Information display warns the driver that each door or trunk lid is open or is not fully closed.

JMKIB3687GB

OFF

→

 ON

: 1 blinks

ON

→

 OFF

: 3 blink
