OUTSIDE KEY ANTENNA

FRONT DOOR

FRONT DOOR : Removal and Installation

INFOID:0000000010717719

REMOVAL

Remove outside handle grip. Refer to

DLK-612, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Removal and Installation

INFOID:0000000010717720

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Disconnect outside key antenna (rear bumper) harness connector.

3.

Remove the outside key antenna (rear bumper) mounting clip

,

and then remove outside key antenna (rear bumper)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2757ZZ

DLK-630

< REMOVAL AND INSTALLATION >

[TYPE 2]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010717721

REMOVAL

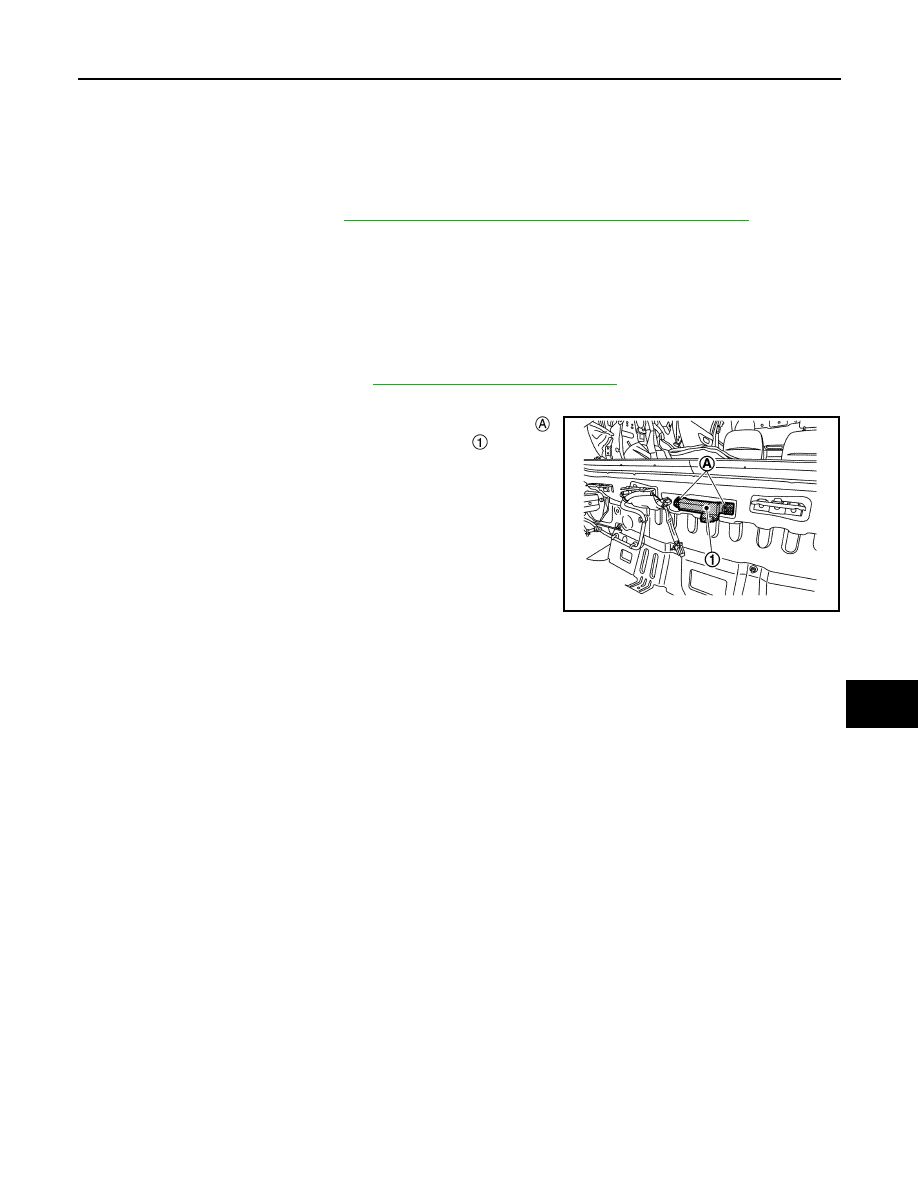

1.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect Intelligent Key warning buzzer harness connector.

3.

Remove Intelligent Key warning buzzer mounting bolt

, and

then remove Intelligent Key warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2758ZZ

INTELLIGENT KEY BATTERY

DLK-631

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010717722

1.

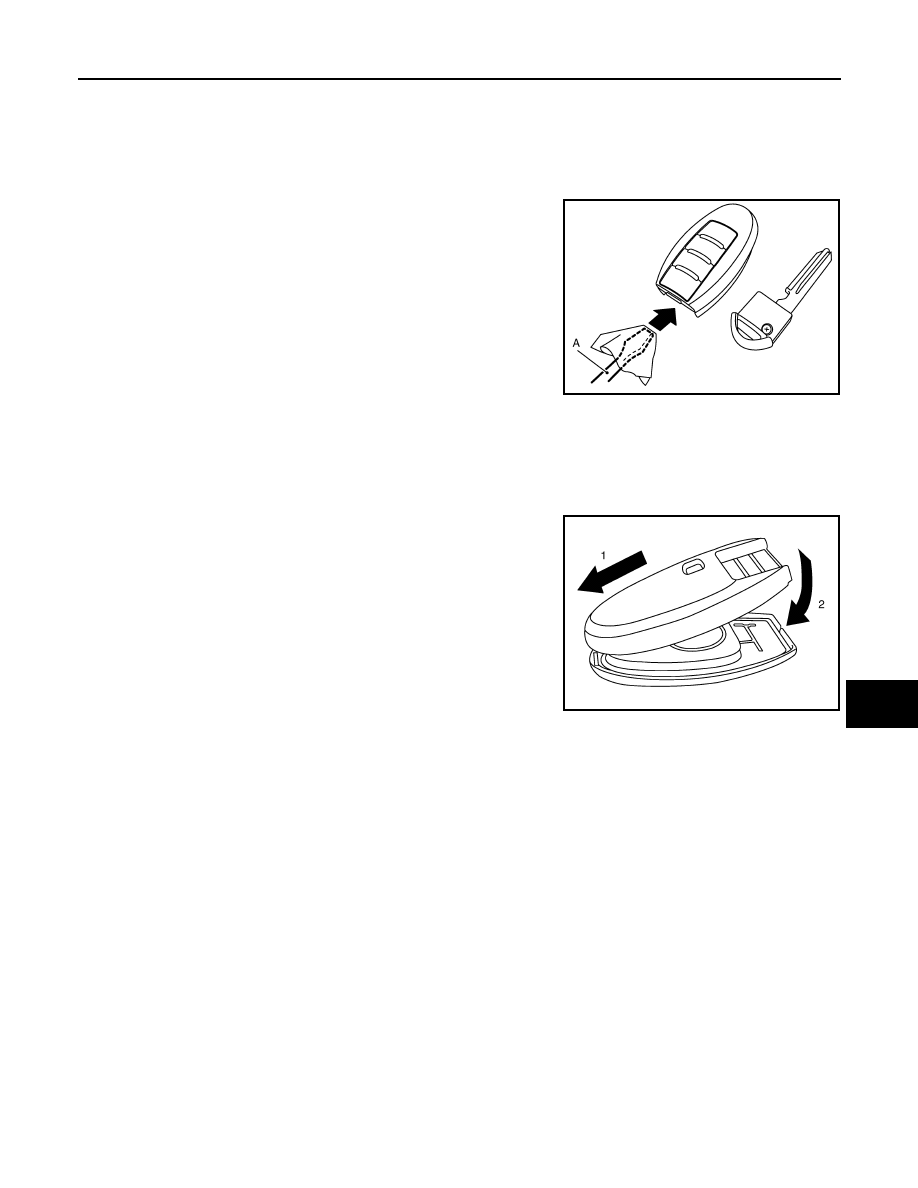

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert remover tool (A) wrapped with a cloth into the slit of the
corner and twist it to separate the upper part from the lower part.

CAUTION:

• Never touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2032)

PIIB6222E

DLK-632

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR OPENER SWITCH ASSEMBLY

BACK DOOR OPENER SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000010717723

REMOVAL

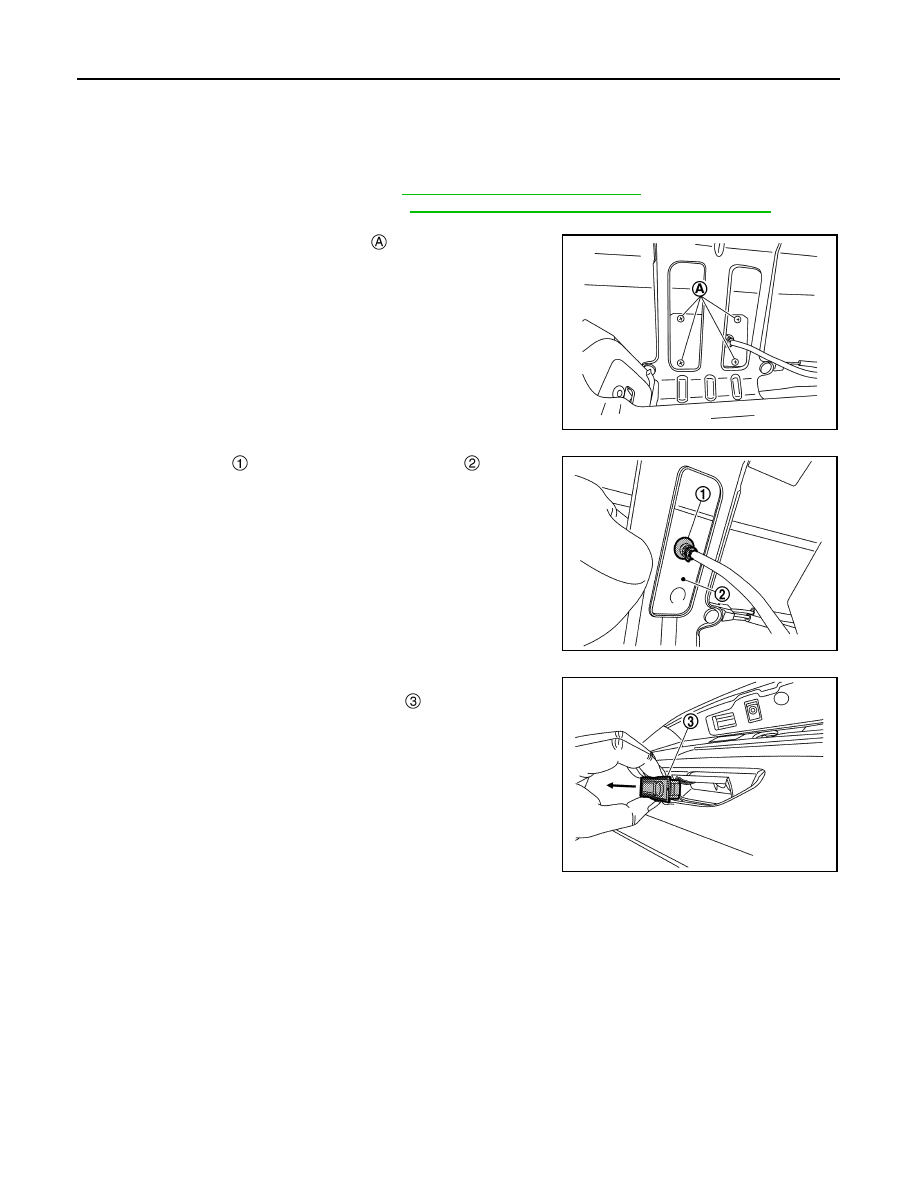

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Remove back door lock assembly. Refer to

DLK-619, "DOOR LOCK : Removal and Installation"

.

3.

Disconnect back door opener switch assembly harness connector.

4.

Remove switch cover mounting screw

.

5.

Remove grommet

, and then remove switch cover

.

6.

Press toward outside (in the direction shown by arrow) and then
remove back door opener switch assembly

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2751ZZ

JMKIB2752ZZ

JMKIB2753ZZ
