SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-353

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

How to Change Door Lock and Unlock Function Operation Mode

Door lock and unlock function (door request switch) operation mode can be changed using CONSULT.
Refer to

DLK-385, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Without Super

Lock)"

.

ANTI-HIJACK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side or back door), all doors
are locked.

Unlock Operation

• When an UNLOCK signal from front door request switch (driver side) is transmitted, driver side door

unlocks. When another UNLOCK signal is transmitted within 5 seconds, all door unlocks.

• When an UNLOCK signal from front door request switch (passenger side) is transmitted, all doors unlocks.
• When an UNLOCK signal from back door request switch is transmitted, back door open permission is set.

When another UNLOCK signal is transmitted within 5 seconds, all door unlocks.

How to change anti-hijack mode.

 With CONSULT

Anti-hijack mode can be set to ON or OFF using CONSULT.
Refer to

DLK-384, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (With Intelligent Key System,

Without Super Lock)"

.

 Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

REMINDER FUNCTION (DOOR REQUEST SWITCH)

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder.
Reminder function does not operate if ignition switch in ON position.

AUTO DOOR LOCK FUNCTION (DOOR REQUEST SWITCH)

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

OFF

→

 ON

: 1 blink

ON

→

 OFF

: 3 blinks

Door lock operation

(With door request switch)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

DLK-354

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

How to Change Auto Door Lock Function Operation Time

 With CONSULT

Auto door lock function operation time can be changed using CONSULT.
Refer to

DLK-385, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Without Super

Lock)"

.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver outside door handle, passenger outside door handle

 and

back door request switch

. However, this operating range depends

on the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

BACK DOOR OPEN FUNCTION

Operating condition

• Door switch is ON (each door is open)
• BCM receives door lock signal
• Push switch is pressed

JMKIA1954ZZ

Function

Int

e

llig

en

t Ke

y

Re

mo

te ke

yl

es

s e

n

try re

ce

iv

er

Doo

r swi

tch

Do

or re

qu

es

t s

w

it

c

h

Doo

r lo

ck actu

ato

r

In

si

de

 k

e

y

 an

te

nn

a

O

u

ts

id

e

 ke

y an

ten

n

a

Int

e

llig

en

t Ke

y wa

rni

n

g

 bu

zz

er

CAN c

o

mm

un

ic

a

ti

o

n sy

st

em

BCM

Hazard warning lamp

Pu

sh

-bu

tto

n i

g

n

iti

on

 swi

tch

Com

b

in

at

ion

 m

e

te

r

Door lock and unlock function (door request switch)

×

×

×

×

×

×

×

×

Anti-hijack function (door request switch)

×

×

×

×

×

×

×

×

Reminder function (door request switch)

×

×

×

×

×

Auto door lock function (door request switch)

×

×

×

×

×

×

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-355

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010717440

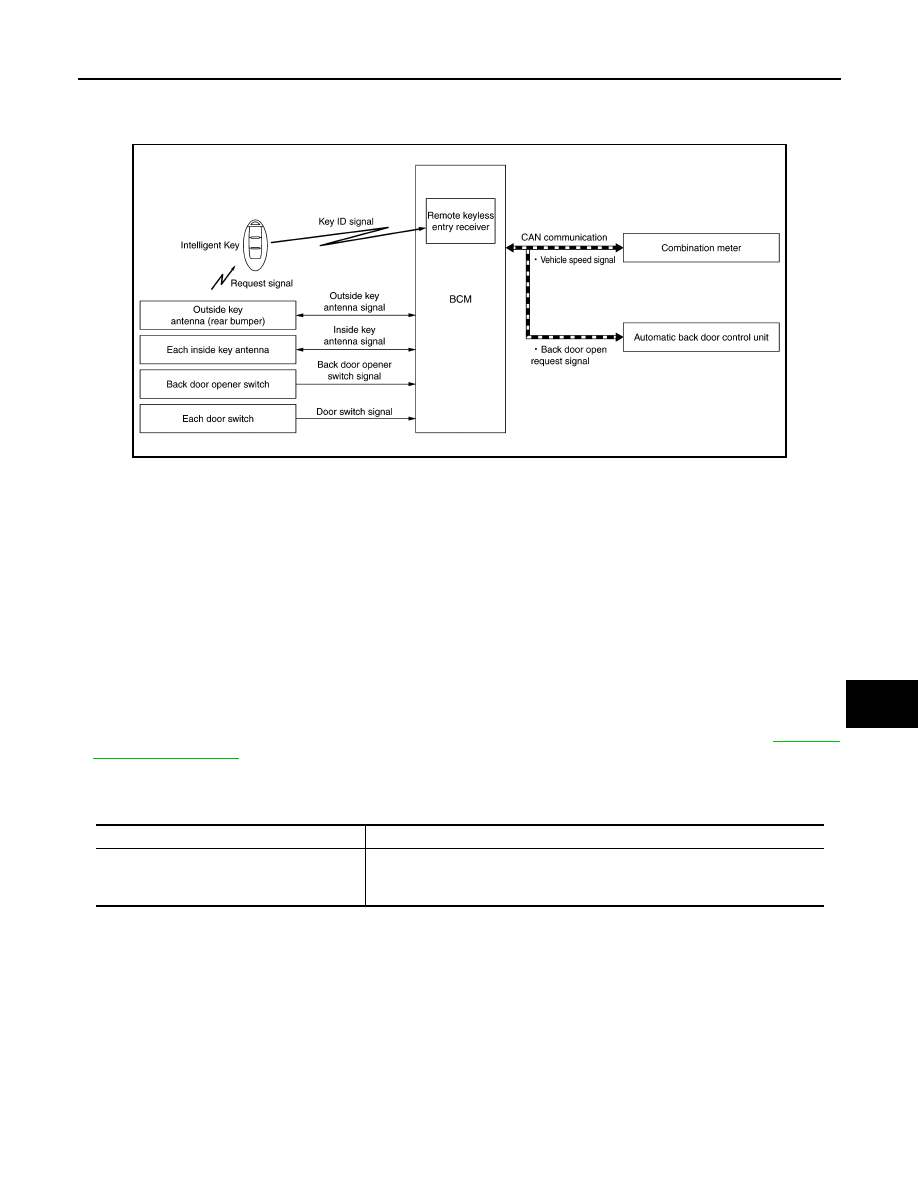

SYSTEM DIAGRAM

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM transmits the back door open request signal to automatic back door con-

trol module via CAN communication.

• BCM unlocks all doors (except back door) and blinks hazard lamp 2 times as a reminder.
• Automatic back door control module transmits back door open request signal to back door lock assembly

and back door is open.

• When the back door is open, automatic back door system performs waiting operation for next back door

close operation.
The operation of then back door open is the same as the automatic back door system, refer to

DLK-371,

"System Description"

.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

*

: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

JMKIB3642GB

Back door opener switch operation

Operation condition

Open

• All door: locked
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

*

DLK-356

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

REMOTE KEYLESS ENTRY FUNCTION

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010717441

SYSTEM DIAGRAM

The Intelligent Key has the same functions as the remote control entry function. Therefore, it can be used in
the same manner as the remote controller by operating the door lock/unlock button.
Remote keyless entry function controls operation function of the following items.
• Door lock and unlock function (Intelligent Key)
• Anti-hijack function (Intelligent Key)
• Reminder function (Intelligent Key)
• Auto door lock function (Intelligent Key)
• Automatic back door open/close function

DOOR LOCK AND UNLOCK FUNCTION (INTELLIGENT KEY)

JMKIA1955ZZ

Function

In

te

llige

n

t Key

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Ba

ck

 do

or swi

tch

In

si

de

 ke

y an

ten

n

a

Ou

ts

ide

 k

e

y

 an

te

nn

a (re

ar

bum

p

e

r)

CA

N co

mm

un

ic

ati

o

n

 s

y

s

tem

BC

M

Au

tom

a

ti

c ba

ck

 d

o

o

r co

ntrol

 un

it

Ba

ck

 do

or op

en

er s

w

it

c

h

Back open function (back door opener switch)

×

×

×

×

×

×

×

×

×
