Operation Description

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM lock/unlock each door lock actuator, when key ID matches.

Operation Condition

If the following condition is satisfied, door lock and unlock operation is performed if the Intelligent Key button is
pressed.

ANTI-HIJACK FUNCTION

• When an LOCK signal is transmitted from Intelligent Key, all doors are locked.
• When an UNLOCK signal is transmitted from Intelligent Key once, driver door is unlocked.
• Then, if an UNLOCK signal is transmitted from Intelligent Key again, all other doors are unlocked.
How to change anti-hijack mode.

 With CONSULT

Anti-hijack mode can be set to ON or OFF using CONSULT.
Refer to

DLK-384, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (With Intelligent Key System,

Without Super Lock)"

.

 Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

REMINDER FUNCTION (INTELLIGENT KEY)

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder.

AUTO DOOR LOCK FUNCTION (INTELLIGENT KEY)

After door is unlocked by Intelligent Key button operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

How to Change Auto Door Lock Function Operation Time

Auto door lock function operation time can be changed using CONSULT.
Refer to

DLK-385, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Without Super

Lock)"

.

Intelligent Key button opera-

tion

Operation condition

Lock

• Ignition switch: OFF position
• P position warning is not activated
• All doors are closed

Unlock

Ignition switch: OFF position

OFF

→

 ON

: 1 blink

ON

→

 OFF

: 3 blinks

Door lock operation

(With Intelligent Key button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• BCM receives lock signal
• Push switch is pressed

DLK-358

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION

When back door open button is pressed, back door open automatically for detailed description.
Refer to

DLK-371, "System Description"

.

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft.) range of each door, however the opera-
ble range may differ according to surroundings.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION : System Description

INFOID:0000000010717442

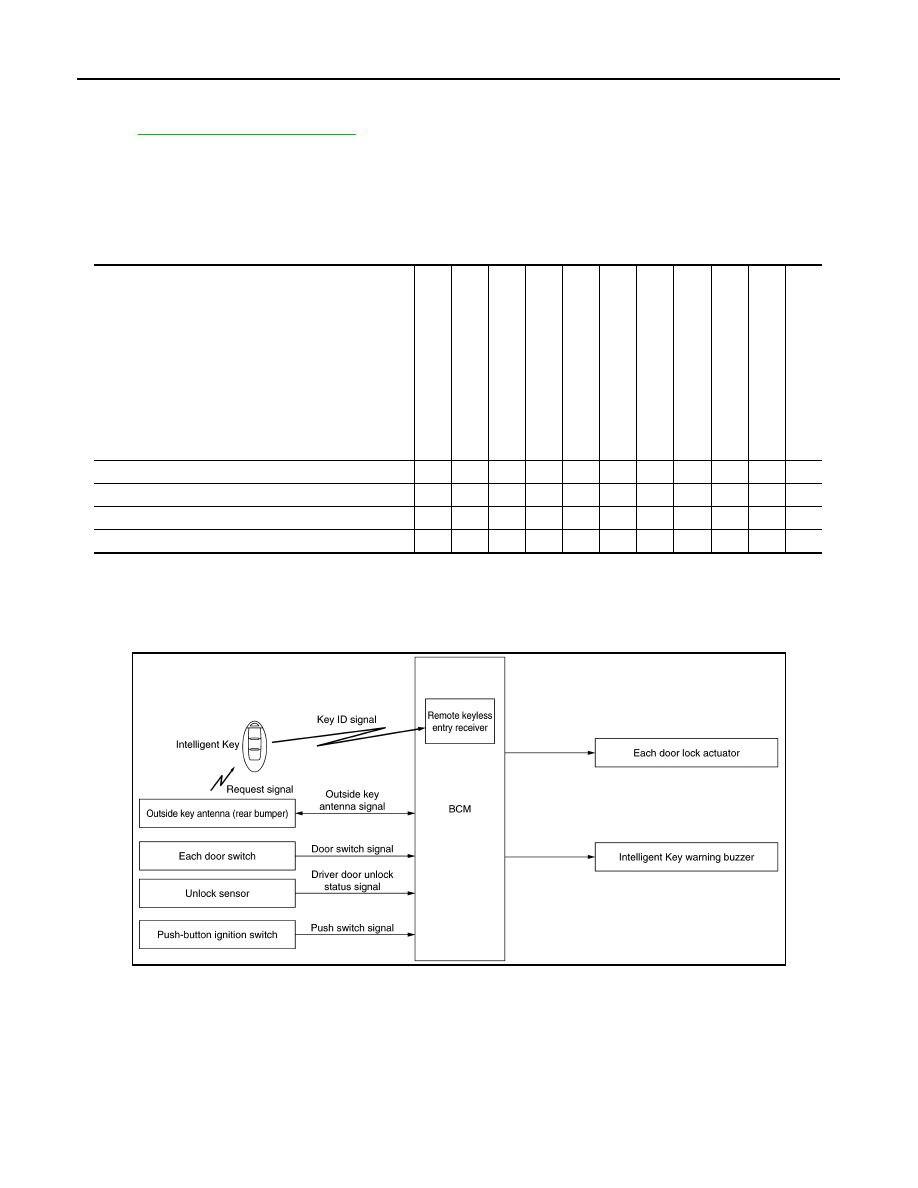

SYSTEM DIAGRAM

BASIC OPERATION

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

Function

In

tel

lig

en

t K

e

y

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Do

or swi

tch

Do

or l

o

ck

 ac

tu

at

o

r

Pu

sh

-bu

tto

n i

g

n

iti

on

swi

tch

CAN communication

system

BCM

IPDM

 E/

R

Au

tom

a

ti

c

 ba

ck

 d

o

o

r co

nt

rol

un

it

Combination meter

Hazard warning

lamp

Door lock and unlock function (Intelligent Key)

×

×

×

×

×

Reminder function (Intelligent Key)

×

×

×

×

×

×

×

×

Auto door lock function (Intelligent Key)

×

×

×

×

×

×

Automatic back door open/close function

×

×

×

×

×

JMKIB3556GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-359

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation is perform in these cases.

NOTE:
The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when
the Intelligent Key cannot be detected, and this function does not operate when the Intelligent Key is on the
instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the
Intelligent Key is in the door pocket for the open door.

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Door Open Warning

INFOID:0000000010750521

DESIGN/PURPOSE

Information display warns the driver that each door is open or is not fully closed.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

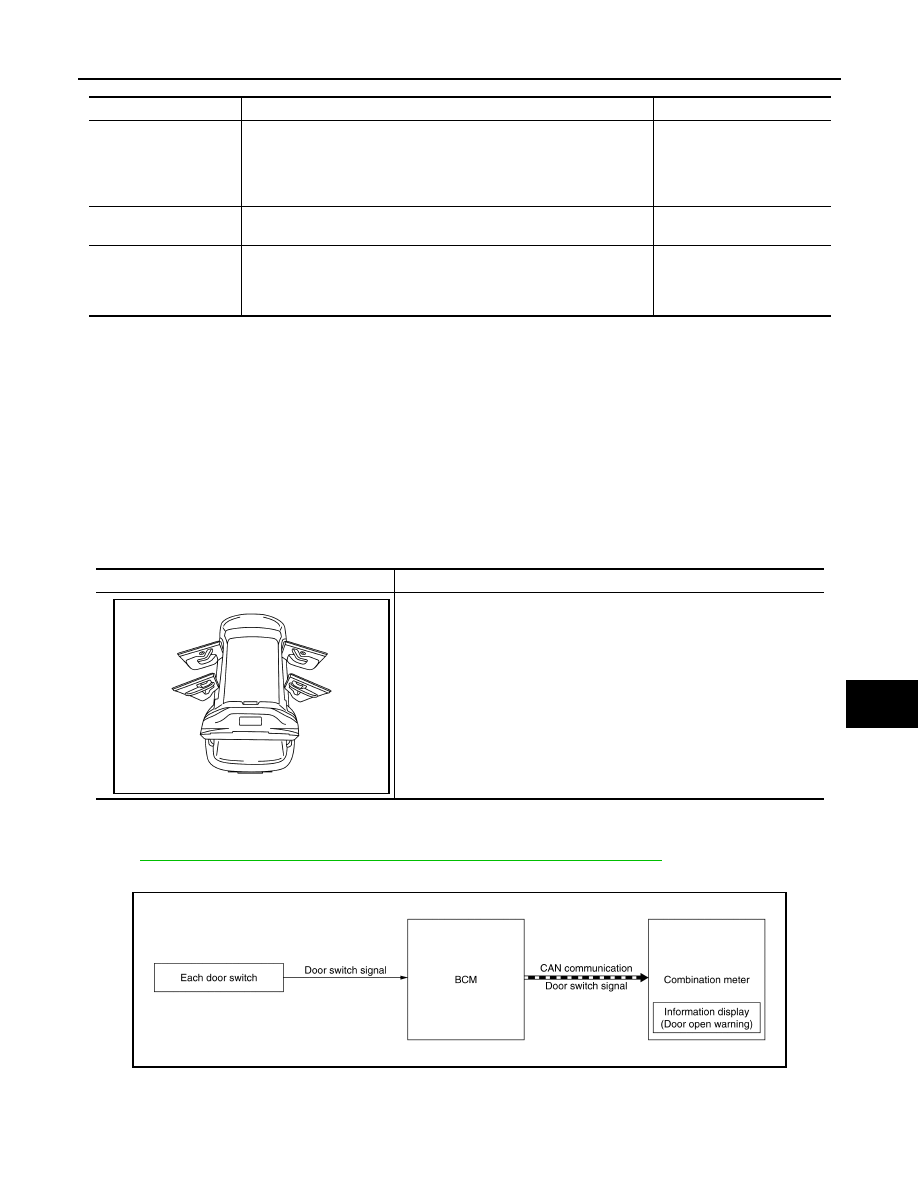

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits door switch signal to combination meter via CAN communication.

Key remainder function

Operation condition

Operation

Driver door opened

Right after door is locked by door lock/unlock switch or driver door lock
knob operation under the following conditions
• Ignition switch: LOCK or OFF position
• Registered Intelligent Key is inside the vehicle
• Driver door is opened

All doors unlock

Driver door closed

*

When all doors are locked by door lock/unlock switch or driver door lock
knob within 0.2 seconds after driver door is closed

All doors unlock

Door is open to closed

When all of the following conditions are satisfied
• Locked all doors
• [Any door: open]

→

 [all doors: closed]

• Registered Intelligent Key is inside the vehicle

• All doors unlock
• Honk Intelligent Key warn-

ing buzzer

Symbol

Message

–

JMKIB2780ZZ

JMKIB3593GB

DLK-360

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

• When combination meter judges according to received door switch signal that a door is open or not fully

closed, door open warning displays.

WARNING/INDICATOR OPERATIONG CONDITION

Each door switch is ON

WARNING/INDICATOR CANCEL CONDITION

All door switches are OFF

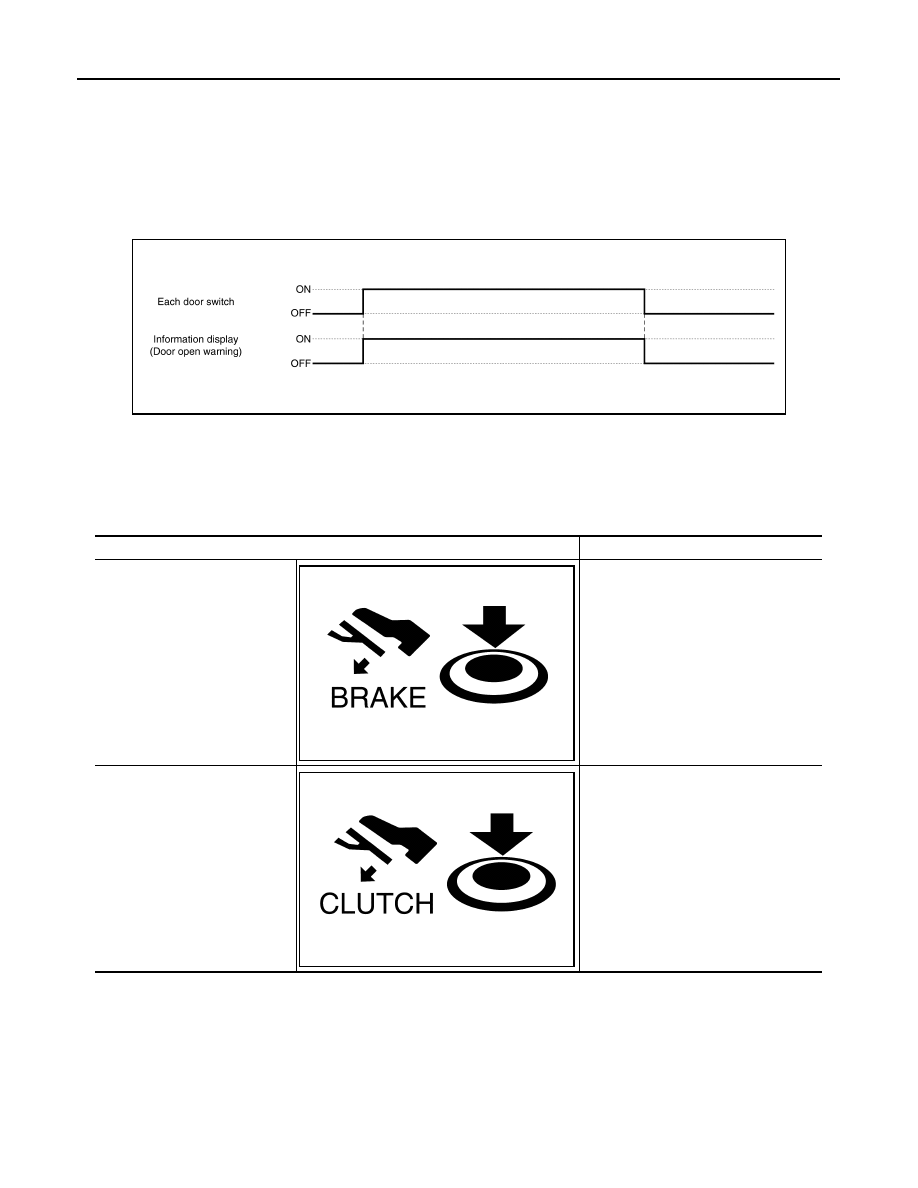

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Engine Start Information

INFOID:0000000010750522

DESIGN/PURPOSE

Information display informs the driver that the engine can be started.

SYNCHRONIZATION WITH MASTER WARNING LAMP

No applicable

JMKIB3594GB

Symbol

Message

CVT models

–

M/T models

–

JMKIB1883ZZ

JMKIB1884ZZ
