Nissan X-Trail 32. Manual - part 501





SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-345

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (POWER DOOR LOCK SYSTEM)

System Description

INFOID:0000000010717435

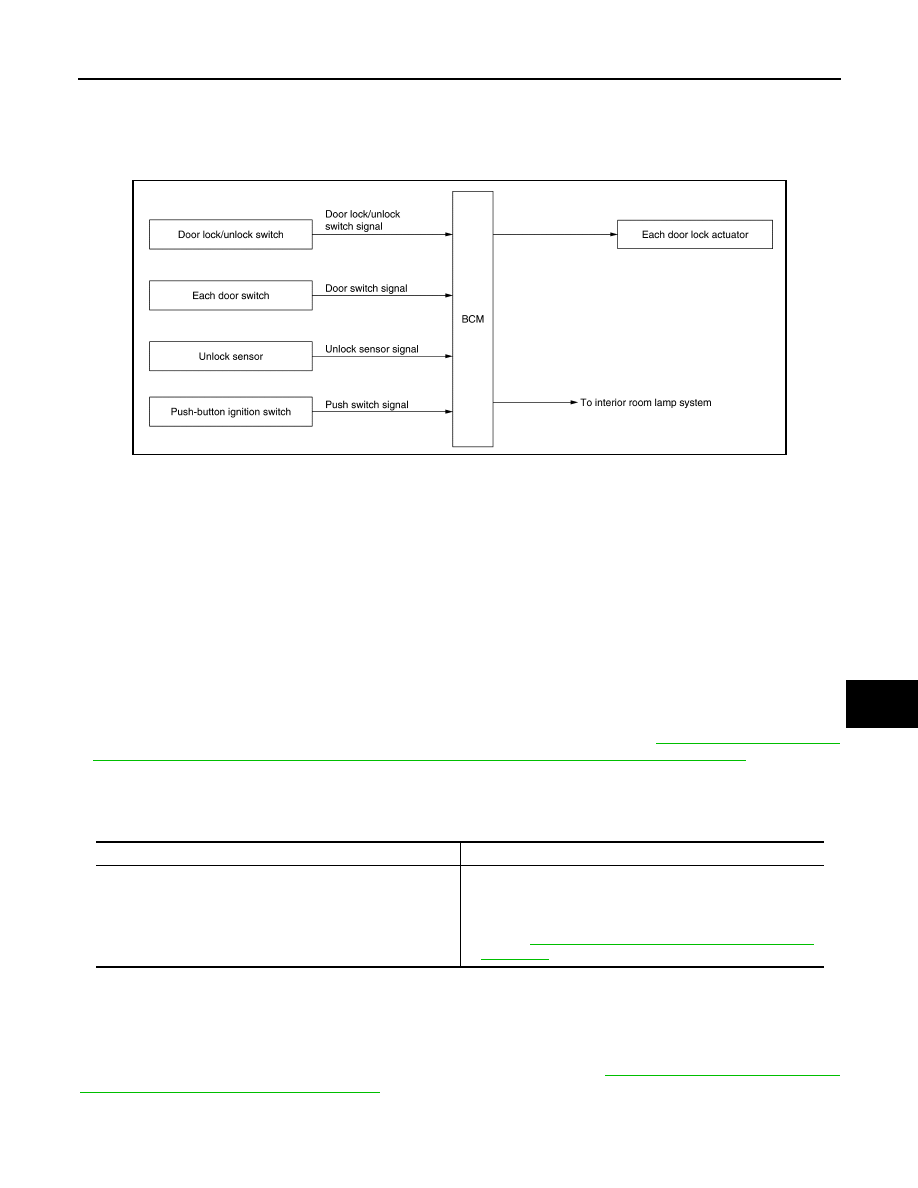

SYSTEM DIAGRAM

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch is built into power window main switch.
• Interlocked with the locking operation of door lock and unlock switch, door lock actuator of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuator of all doors are

unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once

unlocks the driver door, turning it to unlock position again within 5 seconds after the first unlock operation
unlocks all of the other doors actuator. (Anti-hijack function operation)
Anti-hijack function operation mode can be changed using CONSULT. Refer to

DLK-384, "DOOR LOCK :

CONSULT Function (BCM - DOOR LOCK) (With Intelligent Key System, Without Super Lock)"

.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

IGNITION POSITION WARNING FUNCTION

When ignition switch position is ON and any door is open, all doors cannot locked when door lock and unlock
switch is operated in lock direction.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-11, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

OVERRIDE FUNCTION

JMKIB3693GB

Door lock and unlock switch operation

Operation condition

LOCK/UNLOCK

• Doors are not locked by Intelligent Key, door request switch

and auto door lock function.

• Ignition position warning function is not activated.
• Key remainder function (driver door opened) is not activated.

Refer to

DLK-358, "KEY REMINDER FUNCTION : System

Description"

DLK-346

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (POWER DOOR LOCK SYSTEM)

When inside handle of driver door is operated while doors are in lock states, lock state of the applicable door
lock becomes invalid and the door is open.

UNLOCK LINK FUNCTION

When driver door opened using the override function, all doors are unlocked.
Unlock function operates when driver door is open while all of the following conditions are satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function.
• Driver side door switch is switched from OFF to ON.
• Anti-hijack function is not activated.
• Vehicle speed is 5 km/h (3 MPH) or less.

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-347

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

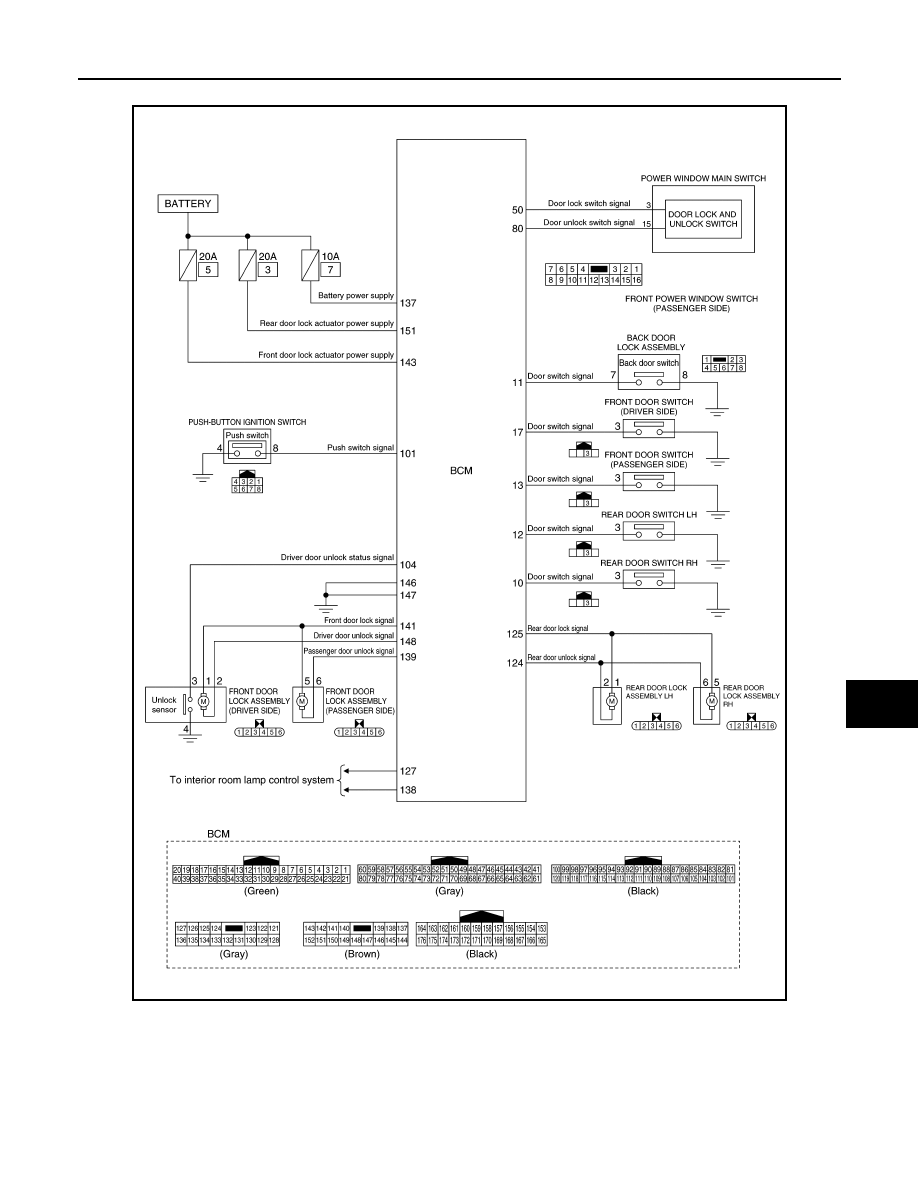

Circuit Diagram

INFOID:0000000010717436

JMKIB3726GB

DLK-348

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010717437

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).
NOTE:
The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3694GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the door request switch.

DLK-352

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-355
