COMPONENT PARTS

DLK-337

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

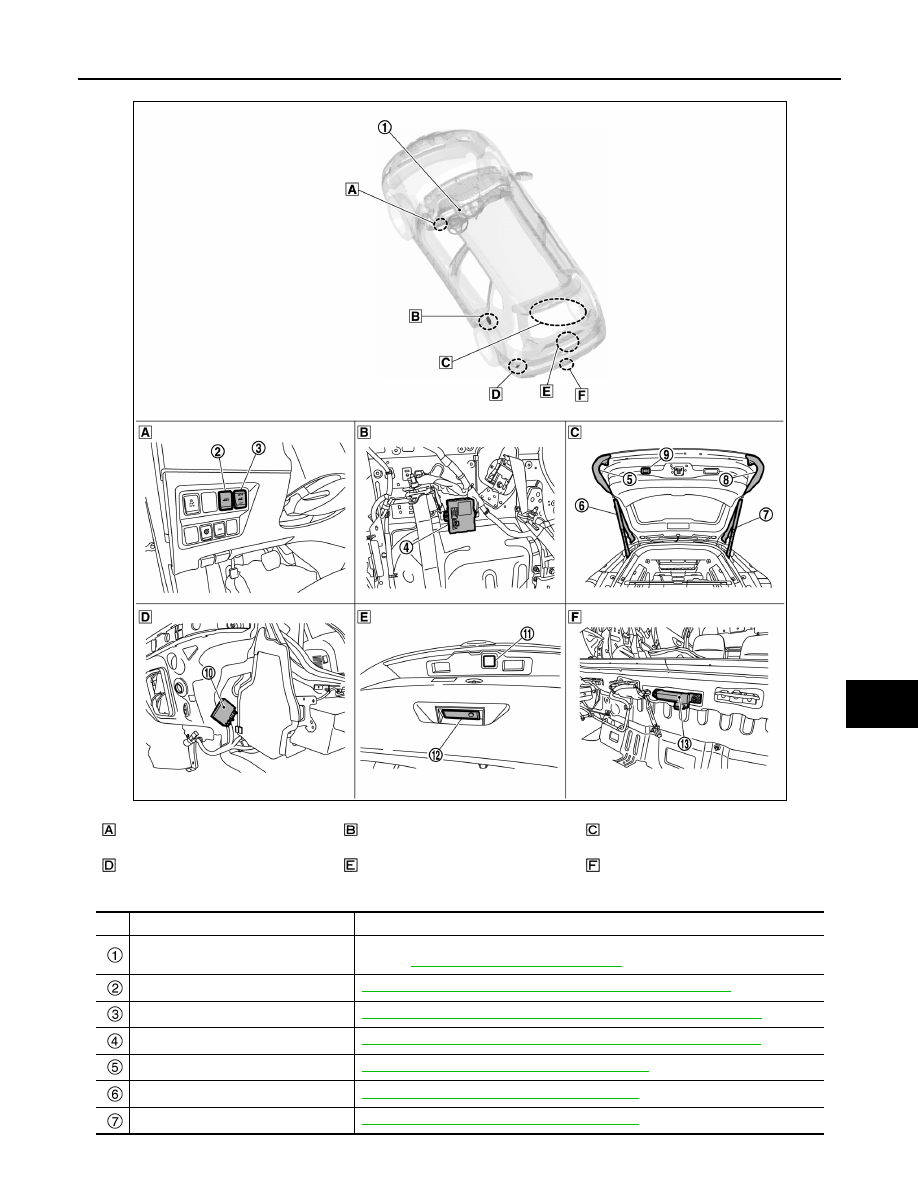

View with instrument lower panel LH

View with luggage side lower finisher
removed

View with back door opened

View with rear bumper fascia assem-
bly removed

View with back door panel

View with rear bumper fascia assem-
bly removed

No.

Component

Function

Push-button ignition switch

Inputs push-button ignition switch ON/OFF condition to BCM.
Refer to

PCS-65, "Component Parts Location"

 for detailed installation location.

Automatic back door switch

DLK-339, "DOOR LOCK SYSTEM : Automatic Back Door Switch"

Automatic back door main switch

DLK-338, "DOOR LOCK SYSTEM : Automatic Back Door Main Switch"

Automatic back door control unit

DLK-338, "DOOR LOCK SYSTEM : Automatic Back Door Control Unit"

Touch sensor LH

DLK-344, "DOOR LOCK SYSTEM : Touch Sensor"

Spindle unit LH

DLK-343, "DOOR LOCK SYSTEM : Spindle Unit"

Spindle unit RH

DLK-343, "DOOR LOCK SYSTEM : Spindle Unit"

JMKIB3573ZZ

DLK-338

< SYSTEM DESCRIPTION >

[TYPE 2]

COMPONENT PARTS

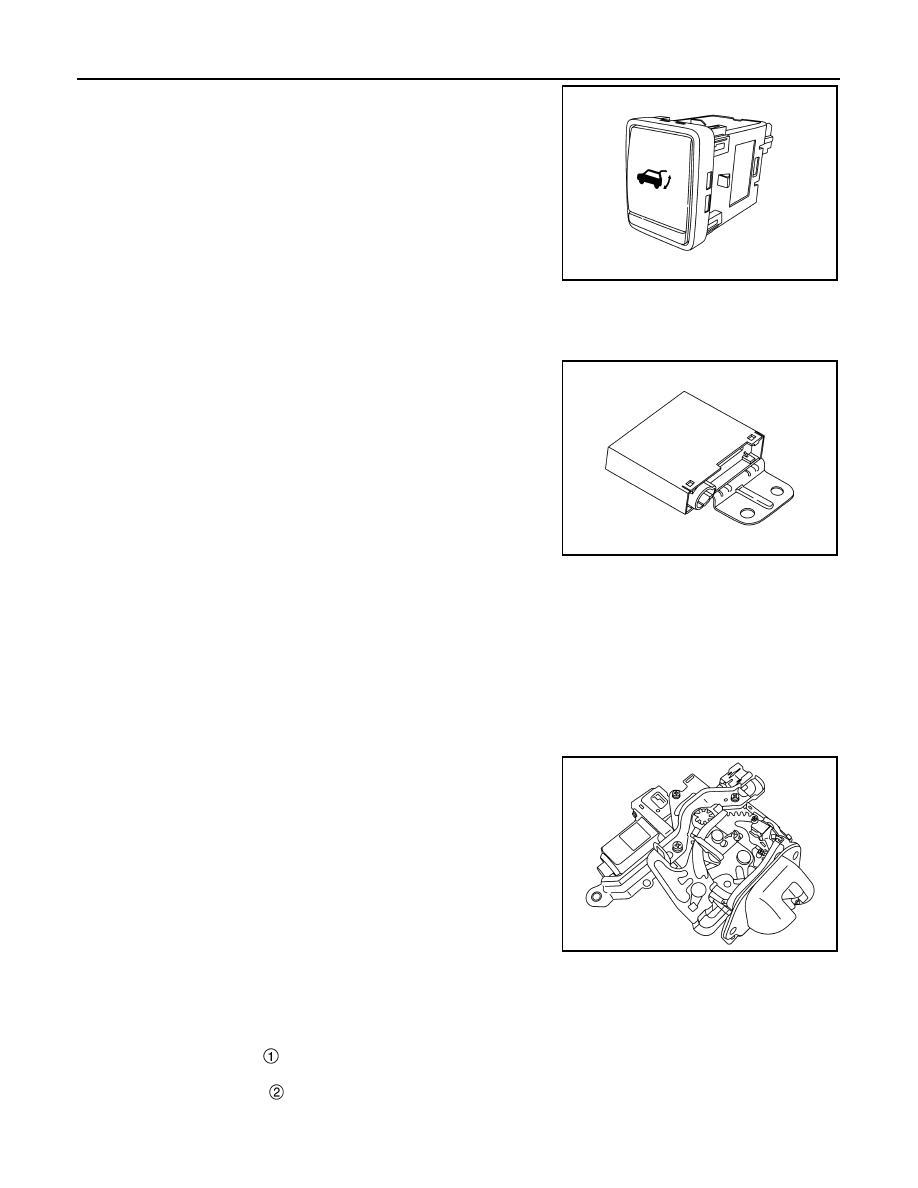

DOOR LOCK SYSTEM : Automatic Back Door Close Switch

INFOID:0000000010717418

• When automatic back door close switch is pressed, back door auto close or reverse operation is detected

and transmits automatic back door close switch signal to automatic back door control unit.

• Automatic back door close switch is installed in the back door

panel.

DOOR LOCK SYSTEM : Automatic Back Door Control Unit

INFOID:0000000010717419

• Automatic back door control unit controls the automatic back door system.
• Automatic back door control unit is installed behind luggage side

lower finisher.

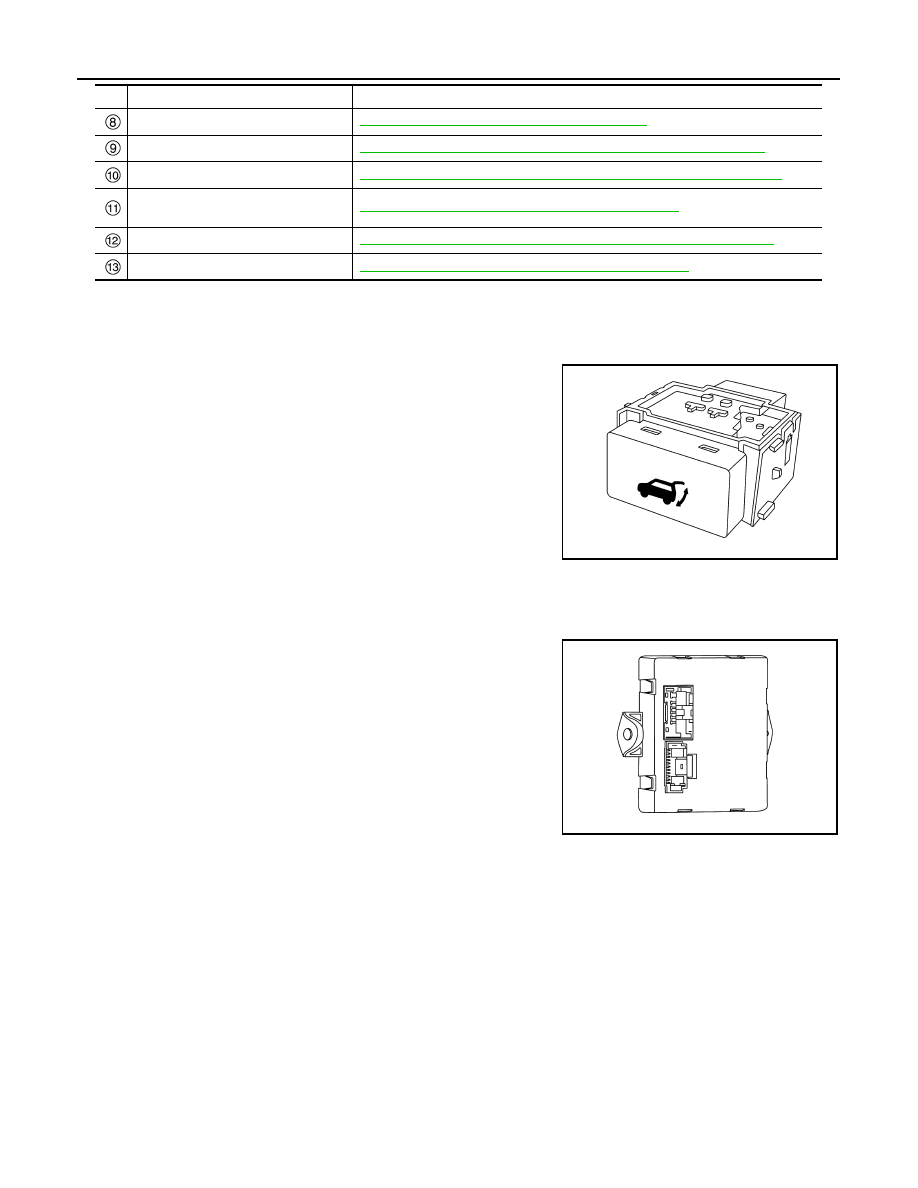

DOOR LOCK SYSTEM : Automatic Back Door Main Switch

INFOID:0000000010717420

WITH HANDZ FREE SENSOR MODELS

• Controls automatic back door open/close operation of automatic back door open/close function and hands

free function.

Touch sensor RH

DLK-344, "DOOR LOCK SYSTEM : Touch Sensor"

Automatic back door close switch

DLK-338, "DOOR LOCK SYSTEM : Automatic Back Door Close Switch"

Automatic back door warning buzzer

DLK-340, "DOOR LOCK SYSTEM : Automatic Back Door Warning Buzzer"

Hands free sensor
(with hands free sensor models)

DLK-342, "DOOR LOCK SYSTEM : Hands Free Sensor"

Back door opener switch assembly

DLK-340, "DOOR LOCK SYSTEM : Back Door Opener Switch Assembly"

Outside key antenna (rear bumper)

DLK-343, "DOOR LOCK SYSTEM : Outside Key Antenna"

No.

Component

Function

JMKIB2928ZZ

JMKIB2929ZZ

COMPONENT PARTS

DLK-339

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Automatic back door main switch is installed in the instrument

lower panel LH.

WITHOUT HANDS FREE SENSOR MODELS

• Controls automatic back door open/close operation of automatic back door open/close function.
• Automatic back door main switch is installed in the instrument

lower panel LH.

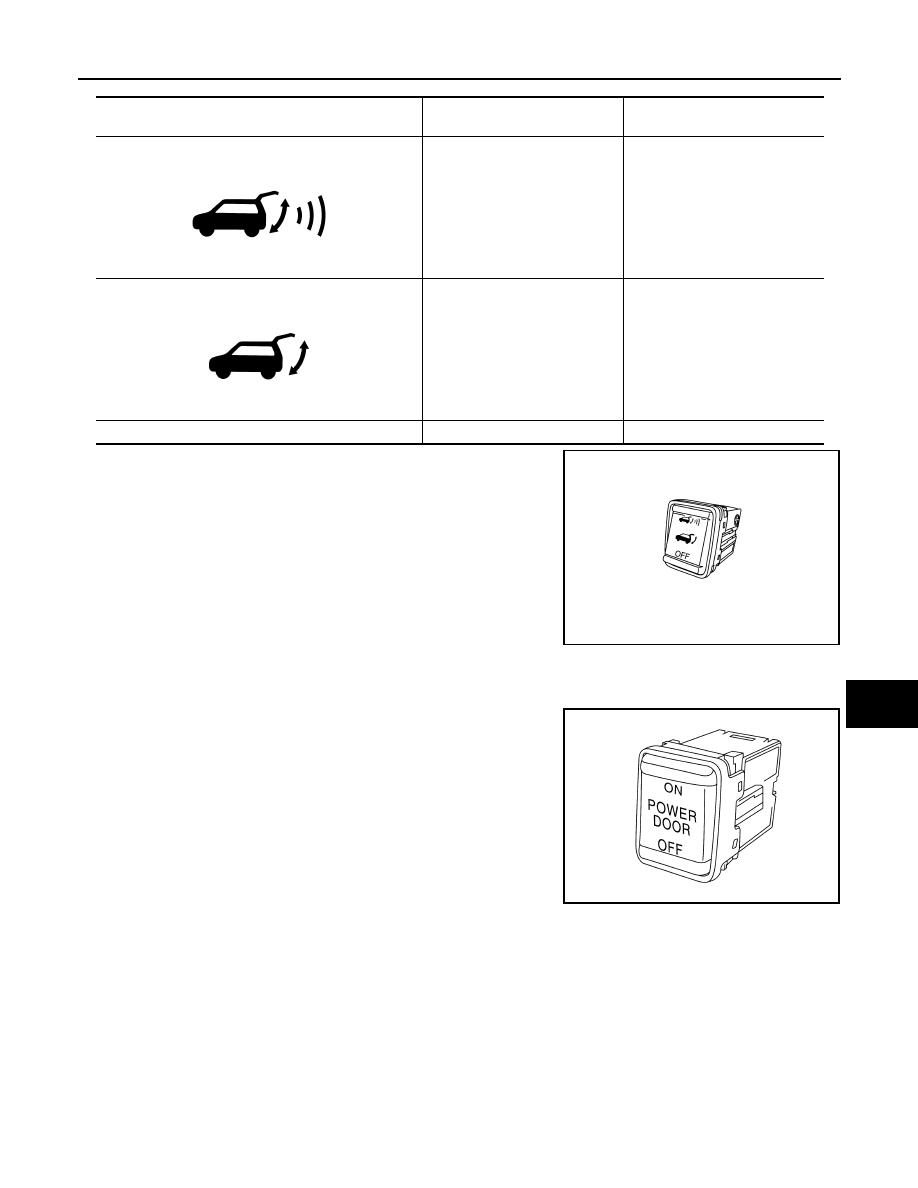

DOOR LOCK SYSTEM : Automatic Back Door Switch

INFOID:0000000010717421

• When automatic back door switch is pressed, back door auto open/close operation is detected and transmits

automatic back door switch signal to automatic back door control unit.

Setting position

Automatic back door open/close

function

Hands free function

ON

ON

ON

OFF

OFF

OFF

OFF

JMKIB2820ZZ

JMKIB2821ZZ

JMKIB2932ZZ

JMKIB3657ZZ

DLK-340

< SYSTEM DESCRIPTION >

[TYPE 2]

COMPONENT PARTS

• Automatic back door switch is installed in the instrument lower

panel LH.

DOOR LOCK SYSTEM : Automatic Back Door Warning Buzzer

INFOID:0000000010717422

• Warns the user of the automatic back door condition and inappropriate operations with the buzzer sounds.
• Automatic back door warning buzzer is installed behind rear

bumper fascia assembly.

DOOR LOCK SYSTEM : Back Door Lock Assembly

INFOID:0000000010717423

• Back door lock assembly integrates back door closure motor, half latch switch, open switch, close switch

and back door switch.

• Closure motor: Inputs open/close signal from automatic back door control unit and activates the back door

auto closure operation.

• Half latch switch: Starts the closure motor close operation.
• Open switch: Stops the closure motor open operation.
• Close switch: Stops the closure motor close operation
• Back door switch: Detects open/close status of back door.
• Back door lock assembly is installed in the back door panel.

DOOR LOCK SYSTEM : Back Door Opener Switch Assembly

INFOID:0000000010717424

• Back door opener switch assembly integrates back door opener switch and back door opener request

switch.

• Back door opener switch

 detects open operation of back door and transmits back door opener switch sig-

nal to BCM.

• Back door request switch

 detects door lock/unlock operation and transmits door request switch signal to

BCM.
