AUTOMATIC BACK DOOR SWITCH

Removal and Installation

INFOID:0000000010708324

REMOVAL

1.

Remove the instrument lower panel RH. Refer to

IP-41, "Removal and Installation"

.

2.

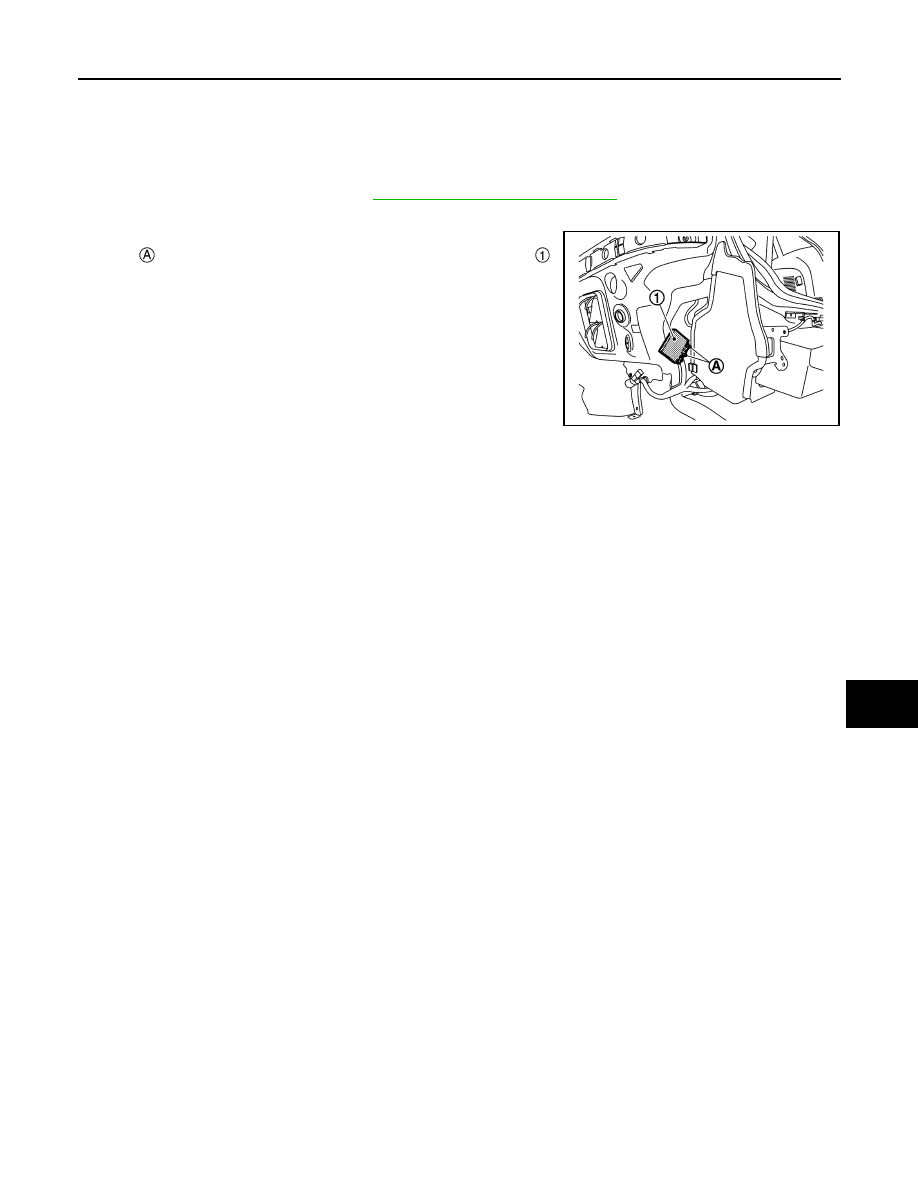

Remove screws

 and then remove the switch bracket

 from

the instrument lower panel RH

.

3.

Remove automatic back door switch

 from the switch bracket.

INSTALLATION

Install in the reverse order of removal.

JMKIB2781ZZ

: Pawl

JMKIB3655ZZ

DLK-330

< REMOVAL AND INSTALLATION >

[TYPE 1]

AUTOMATIC BACK DOOR CLOSE SWITCH

AUTOMATIC BACK DOOR CLOSE SWITCH

Removal and Installation

INFOID:0000000010708325

REMOVAL

1.

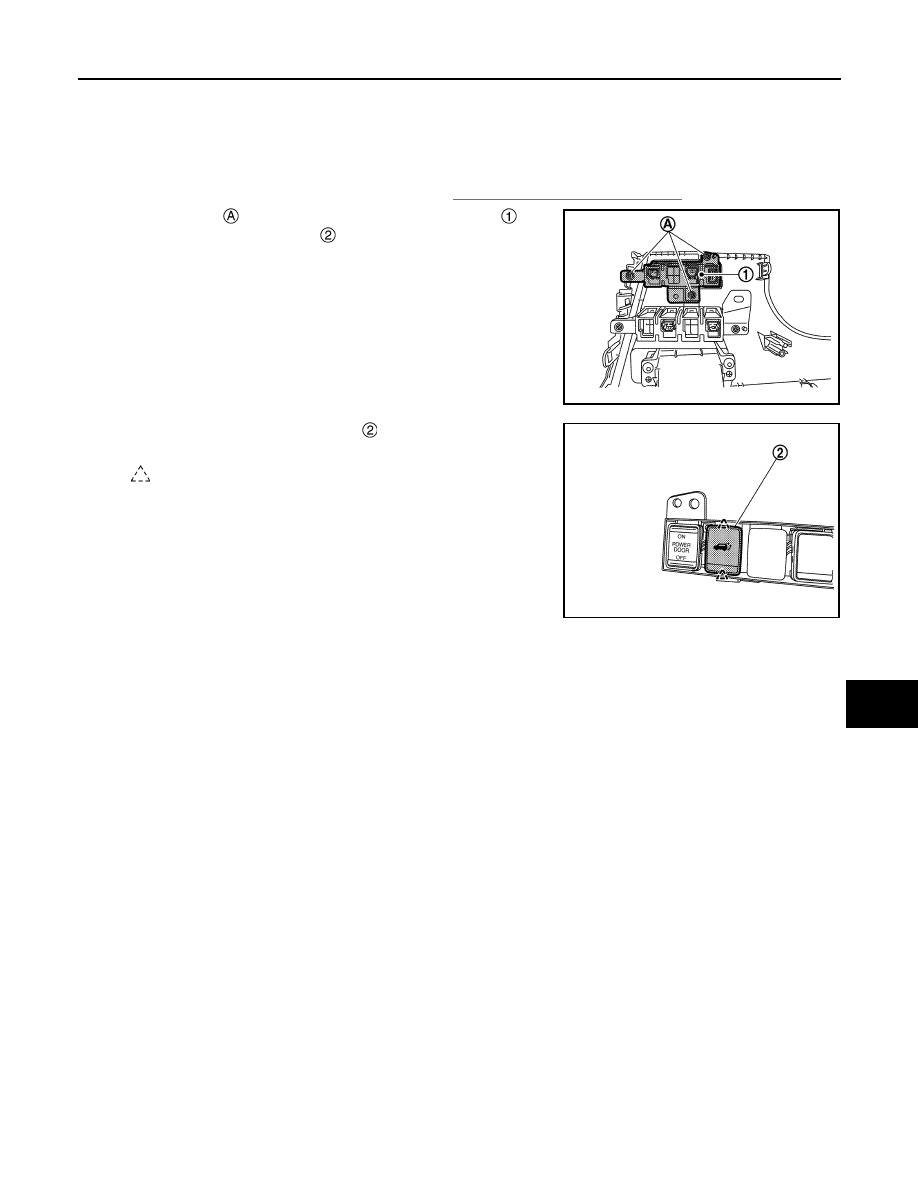

Remove automatic back door close switch and switch finisher
using a remover tool.

CAUTION:

Apply protective tape on the part to protect it from damage.

2.

Disconnect automatic back door close switch harness connector.

3.

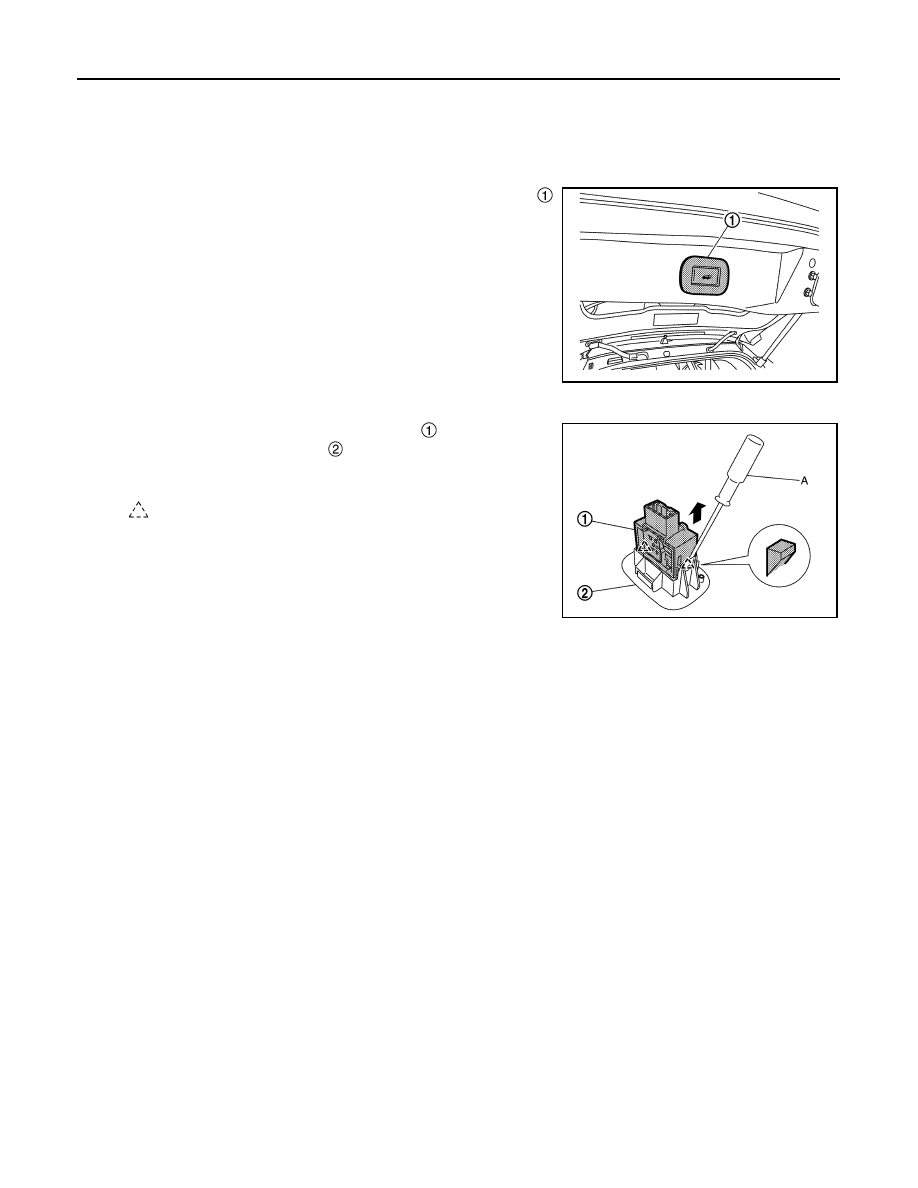

Remove automatic back door close switch

 from automatic

back door close switch finisher

 using flat-bladed screwdriver

(A).

INSTALLATION

Install in the reverse order of removal.

JMKIB2761ZZ

: Pawl

JMKIA6045ZZ

AUTOMATIC BACK DOOR WARNING BUZZER

DLK-331

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR WARNING BUZZER

Removal and Installation

INFOID:0000000010708326

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Disconnect automatic back door warning buzzer harness connector.

3.

Remove the automatic back door warning buzzer mounting
nuts

, and then remove automatic back door warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2784ZZ

DLK-332
