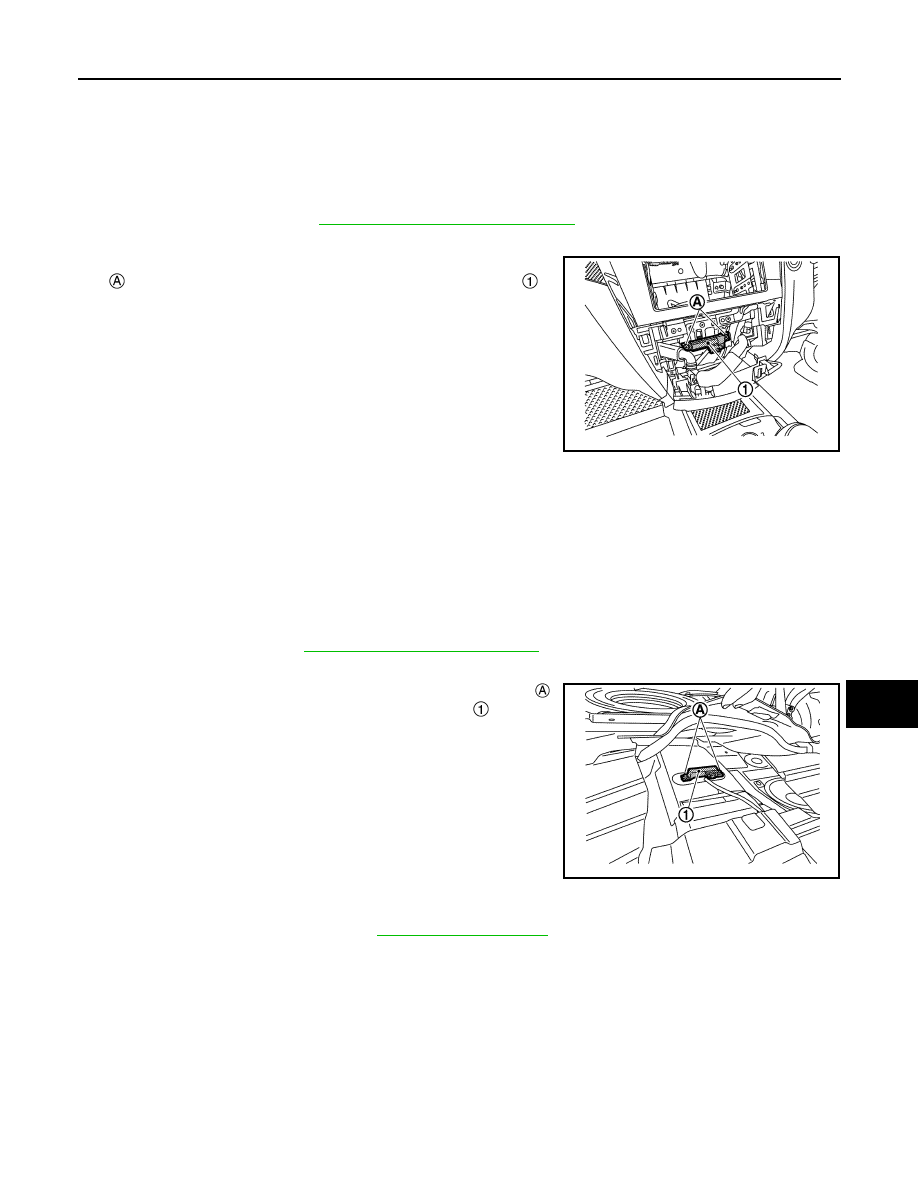

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000010708315

REMOVAL

1.

Remove A/C control. Refer to

HAC-125, "Removal and Installation"

.

2.

Disconnect inside key antenna (instrument center) harness connector.

3.

Remove inside key antenna (instrument center) mounting clip

, and then remove inside key antenna (instrument center)

.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Removal and Installation

INFOID:0000000010708316

REMOVAL

3 Seat Rows

1.

Remove rear seat. Refer to

SE-54, "Removal and Installation"

.

2.

Disconnect inside key antenna (luggage room) harness connector.

3.

Remove inside key antenna (luggage room) mounting clip

,

and then remove inside key antenna (luggage room)

.

2 Seat Rows

1.

Remove luggage floor board. Refer to

INT-40, "Exploded View"

.

2.

Disconnect inside key antenna (luggage room) harness connector.

JMKIB2755ZZ

JMKIB2756ZZ

DLK-322

< REMOVAL AND INSTALLATION >

[TYPE 1]

INSIDE KEY ANTENNA

3.

Remove inside key antenna (luggage room) mounting clip

,

and then remove inside key antenna (luggage room)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB3602ZZ

OUTSIDE KEY ANTENNA

DLK-323

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

FRONT DOOR

FRONT DOOR : Removal and Installation

INFOID:0000000010708317

REMOVAL

Remove outside handle grip. Refer to

DLK-304, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

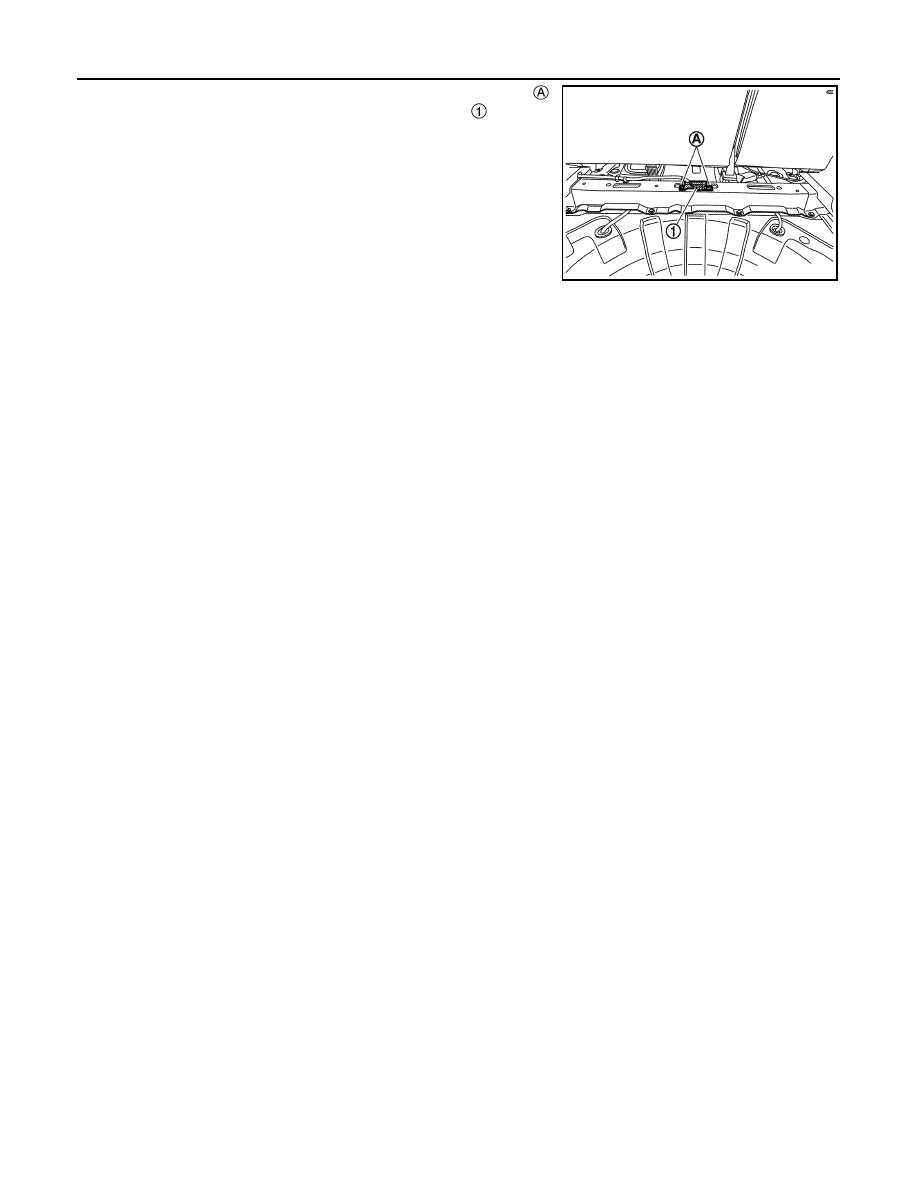

REAR BUMPER

REAR BUMPER : Removal and Installation

INFOID:0000000010708318

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Disconnect outside key antenna (rear bumper) harness connector.

3.

Remove the outside key antenna (rear bumper) mounting clip

,

and then remove outside key antenna (rear bumper)

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2757ZZ

DLK-324

< REMOVAL AND INSTALLATION >

[TYPE 1]

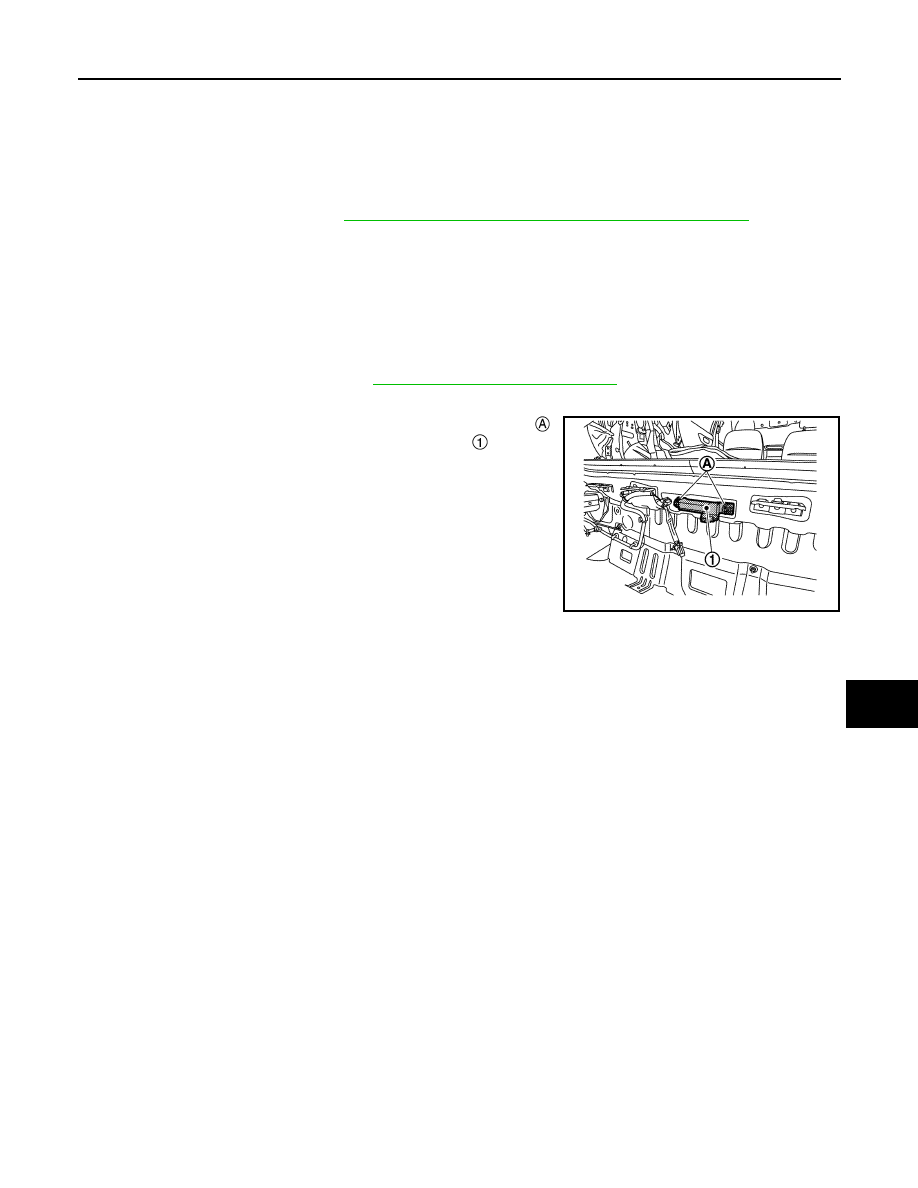

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000010708319

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect Intelligent Key warning buzzer harness connector.

3.

Remove Intelligent Key warning buzzer mounting bolt

, and

then remove Intelligent Key warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2758ZZ
