RADIATOR CORE SUPPORT

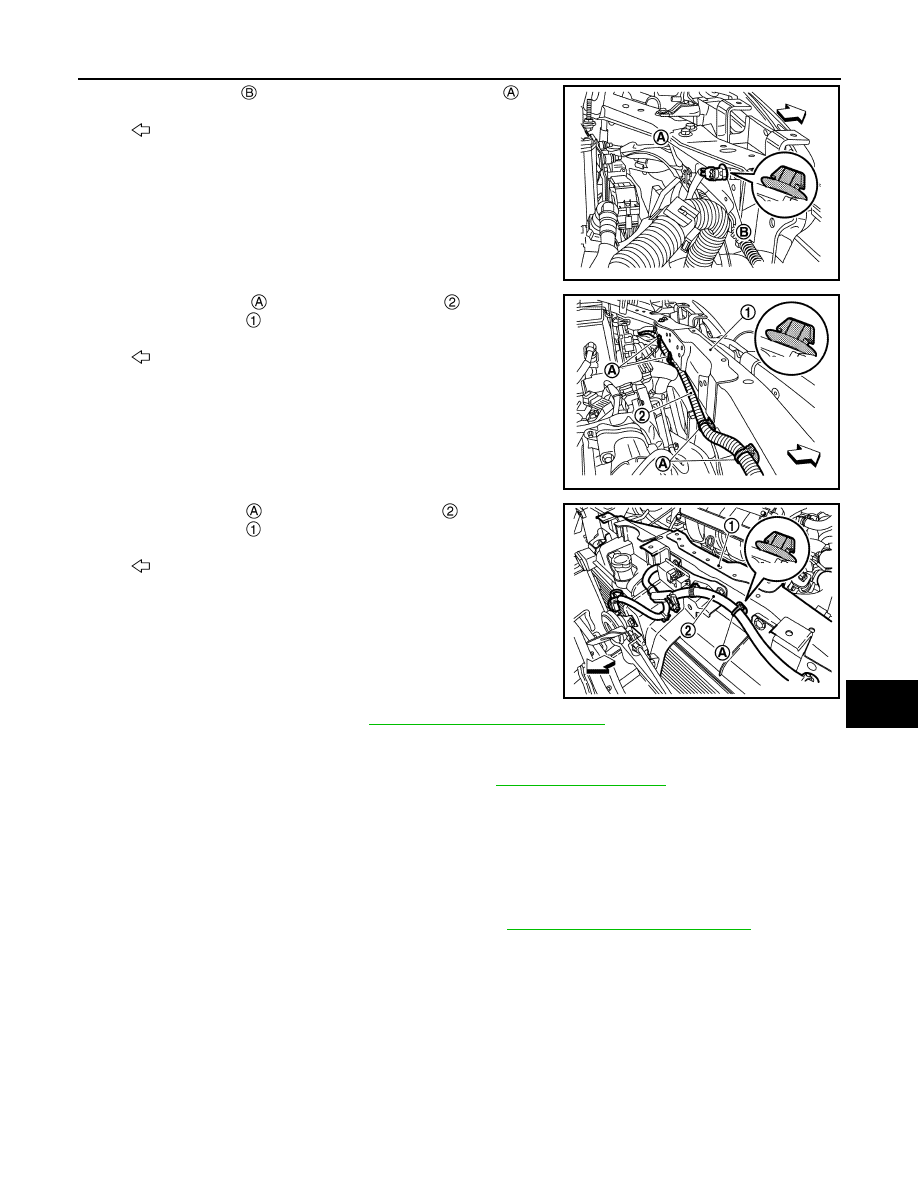

DLK-269

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove fixing clip

 of engine room harness connector

.

6.

Remove fixing clips

 of engine room harness

 from radiator

core support upper

.

7.

Remove fixing clip

 of engine room harness

 from radiator

core support upper

.

8.

Remove crash zone sensor. Refer to

SR-31, "Removal and Installation"

.

9.

Remove hood lock support stay mounting bolts, and then move hood lock support stay to a location where
it does not inhibit work.

10. Remove radiator mounting bracket fixing clips. Refer to

CO-70, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

Installation

Install in the reverse order of removal.

RADIATOR CORE SUPPORT LOWER

Removal

1.

Remove front bumper fascia and apron bracket. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove air lower guide fixing clips, and then remove air lower guide.

: Vehicle front

JMKIB3661ZZ

: Vehicle front

JMKIB3662ZZ

: Vehicle front

JMKIB3005ZZ

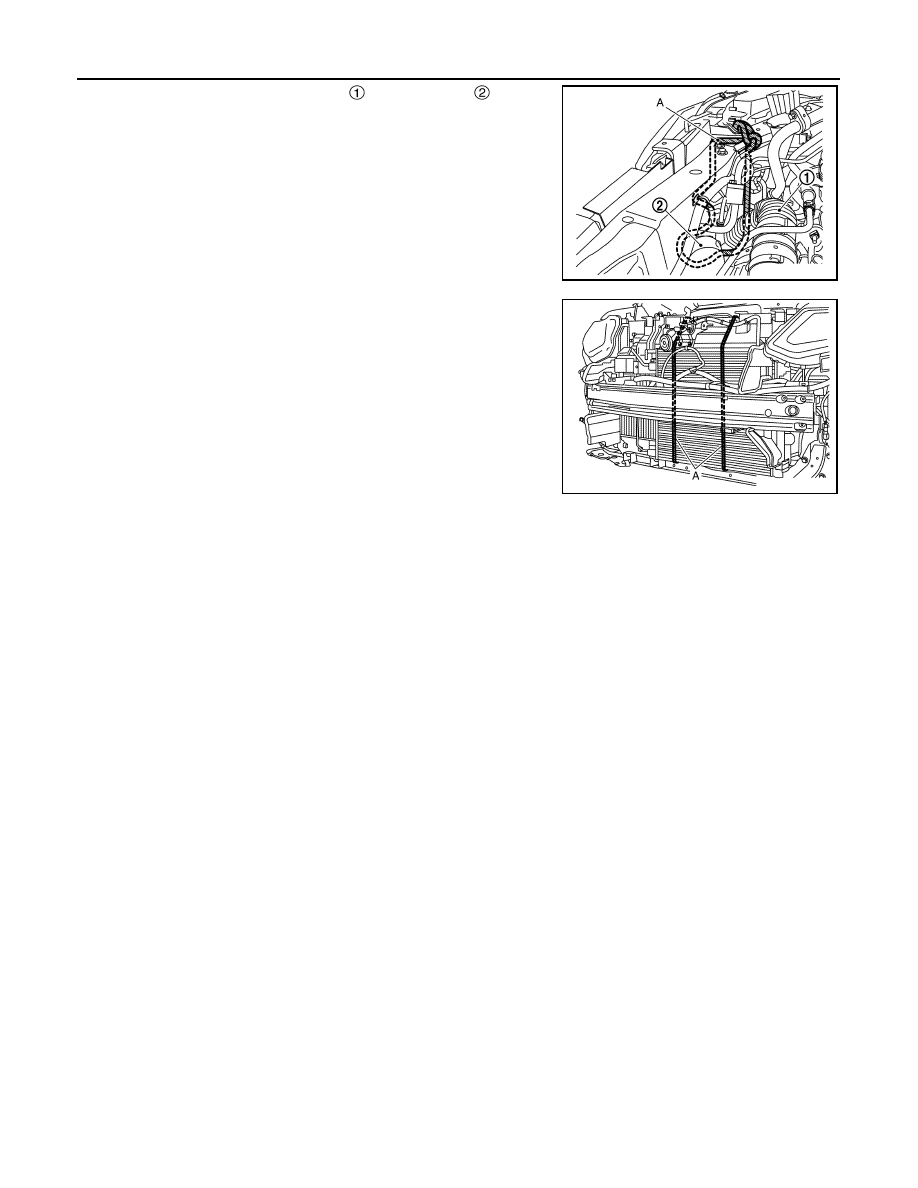

DLK-270

< REMOVAL AND INSTALLATION >

[TYPE 1]

RADIATOR CORE SUPPORT

3.

Using strings (A), hang inlet hose

 and inlet hose

 together

with charge air cooler.

CAUTION:

Never damage inlet hoses and charge air cooler.

4.

Use belts (A) to suspend radiator and condenser to prevent
them from falling as shown in the figure.

CAUTION:

Never damage radiator and condenser.

5.

Remove radiator core support lower mounting bolts, and then remove radiator core support lower.

Installation

Install in the reverse order of removal.

JMKIB3663ZZ

JMKIB3664ZZ

FRONT FENDER

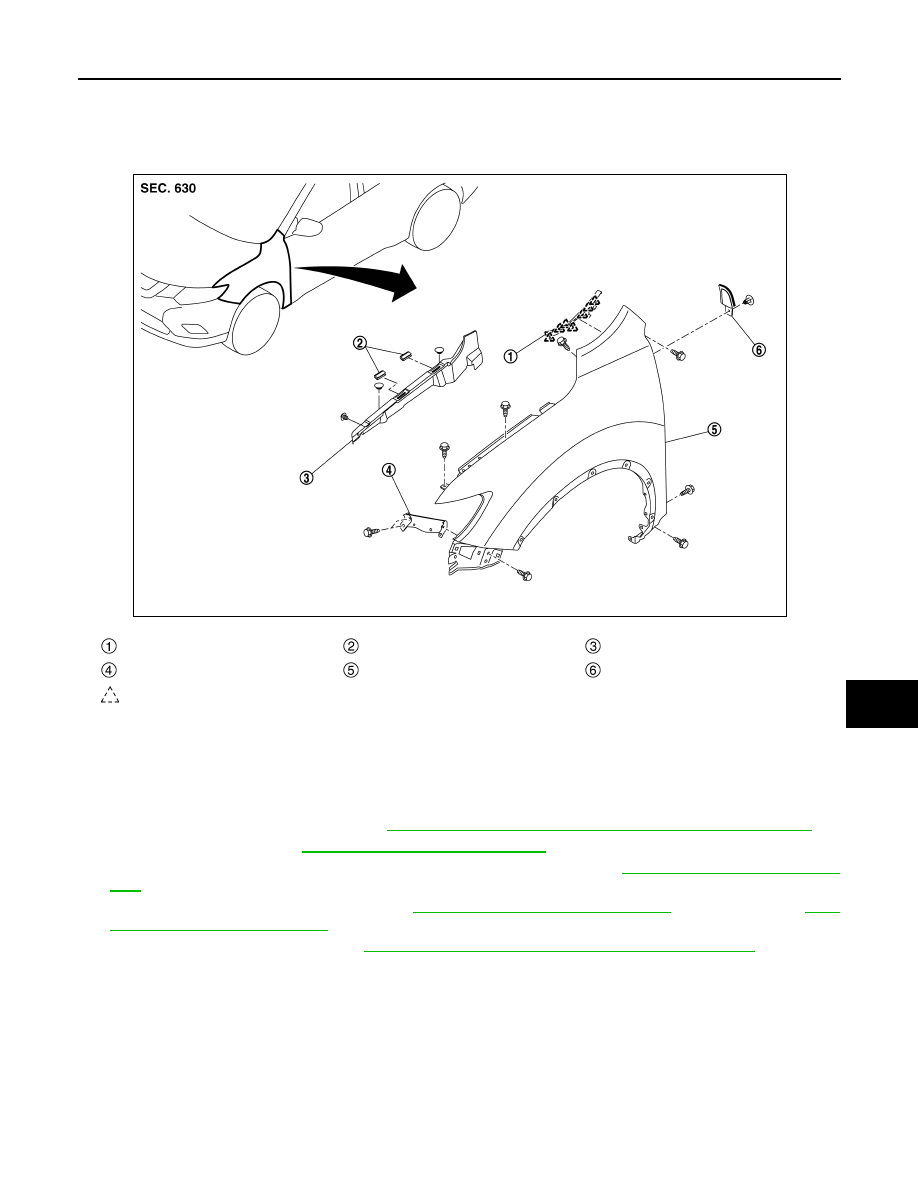

DLK-271

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER

Exploded View

INFOID:0000000010708260

FRONT FENDER

FRONT FENDER : Removal and Installation

INFOID:0000000010708261

REMOVAL

1.

Remove front fender protector. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

2.

Remove sill cover. Refer to

EXT-62, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-15, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-191, "Removal and Installation"

 (LED headlamp),

EXL-

376, "Removal and Installation"

 (halogen headlamp).

5.

Remove front fender cover. Refer to

DLK-272, "FENDER COVER : Removal and Installation"

.

Front fender cover

Front fender spacer

Front hood seal

Front fender bracket

Front fender assembly

Front fender seal

: Pawl

JMKIB3665ZZ

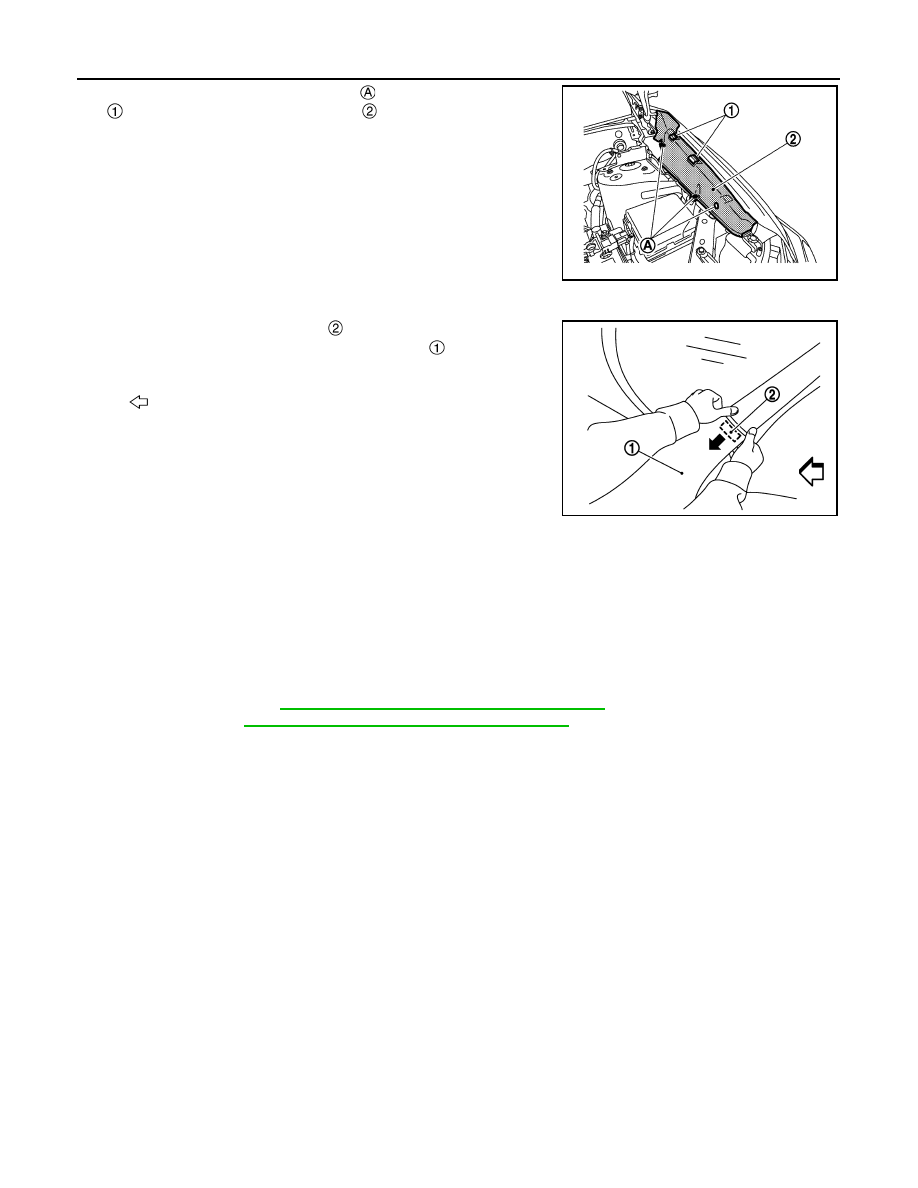

DLK-272

< REMOVAL AND INSTALLATION >

[TYPE 1]

FRONT FENDER

6.

Remove front hood seal fixing clips

 and front fender spacers

, and then remove front hood seal

.

7.

Remove mounting bolts of front fender assembly.

8.

Remove front fender stiffener

 from the vehicle body while

carefully pulling upper portion of front fender

 toward vehicle

outside.

9.

Remove front fender assembly.

CAUTION:

A viscous urethane foam is installed on the back surface of front fender. When removing the front
fender, be careful to not deform the front fender while performing the procedure and removing the
viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-263, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-276, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

FENDER COVER

FENDER COVER : Removal and Installation

INFOID:0000000010708262

REMOVAL

1.

Fully open hood assembly.

JMKIB3666ZZ

: Vehicle front

JMKIA5633ZZ
