Nissan X-Trail 32. Manual - part 322





DAS

SYSTEM

DAS-29

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

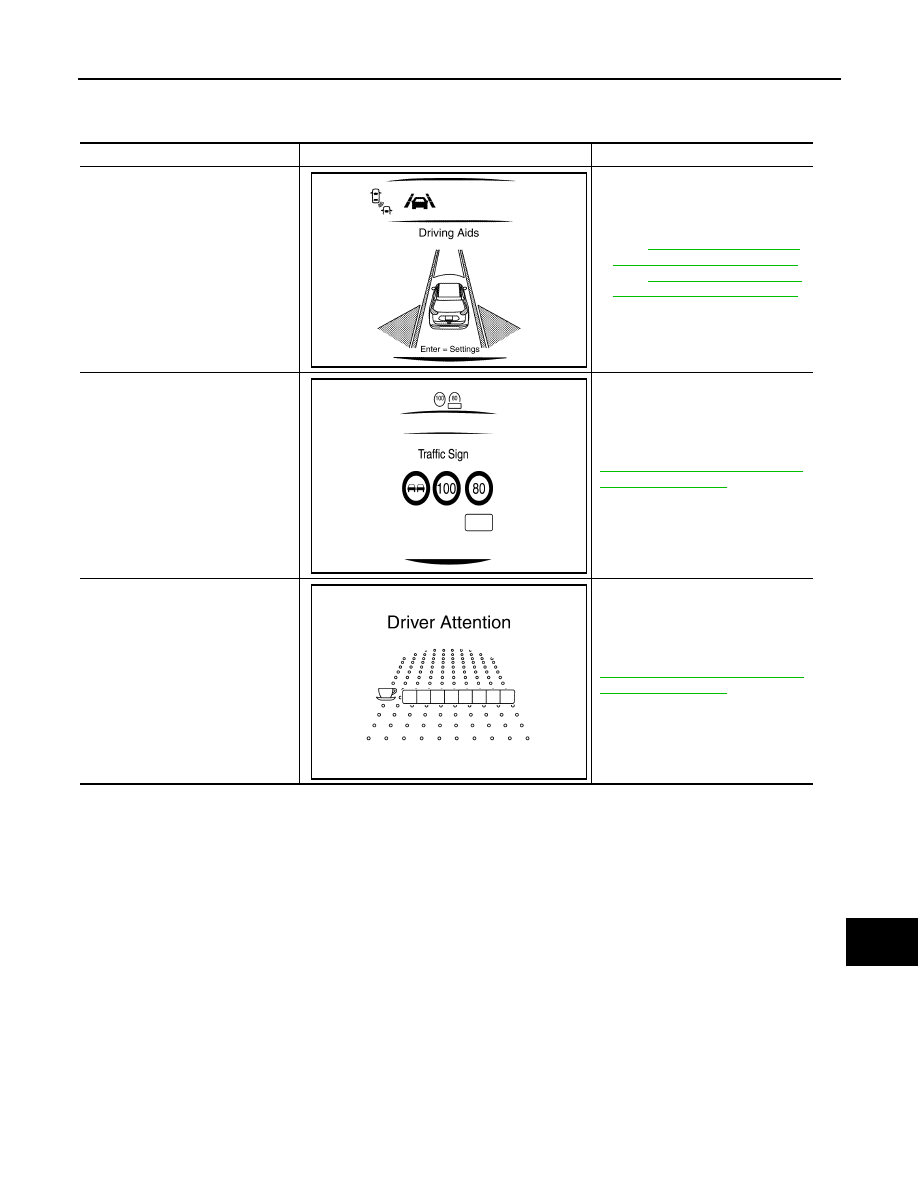

tion Display)

INFOID:0000000010727894

Name

Design

Function

• LDW
• BSW

• LDW:

DAS-30, "LDW : Menu Dis-

played by Pressing Each Switch"

• BSW:

DAS-33, "BSW : Menu Dis-

played by Pressing Each Switch"

TSR

DAS-36, "TSR : Menu Displayed by
Pressing Each Switch"

DAA

DAS-38, "DAA : Menu Displayed by
Pressing Each Switch"

JSOIA1586ZZ

JSOIA1588ZZ

JSOIA1587ZZ

DAS-30

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

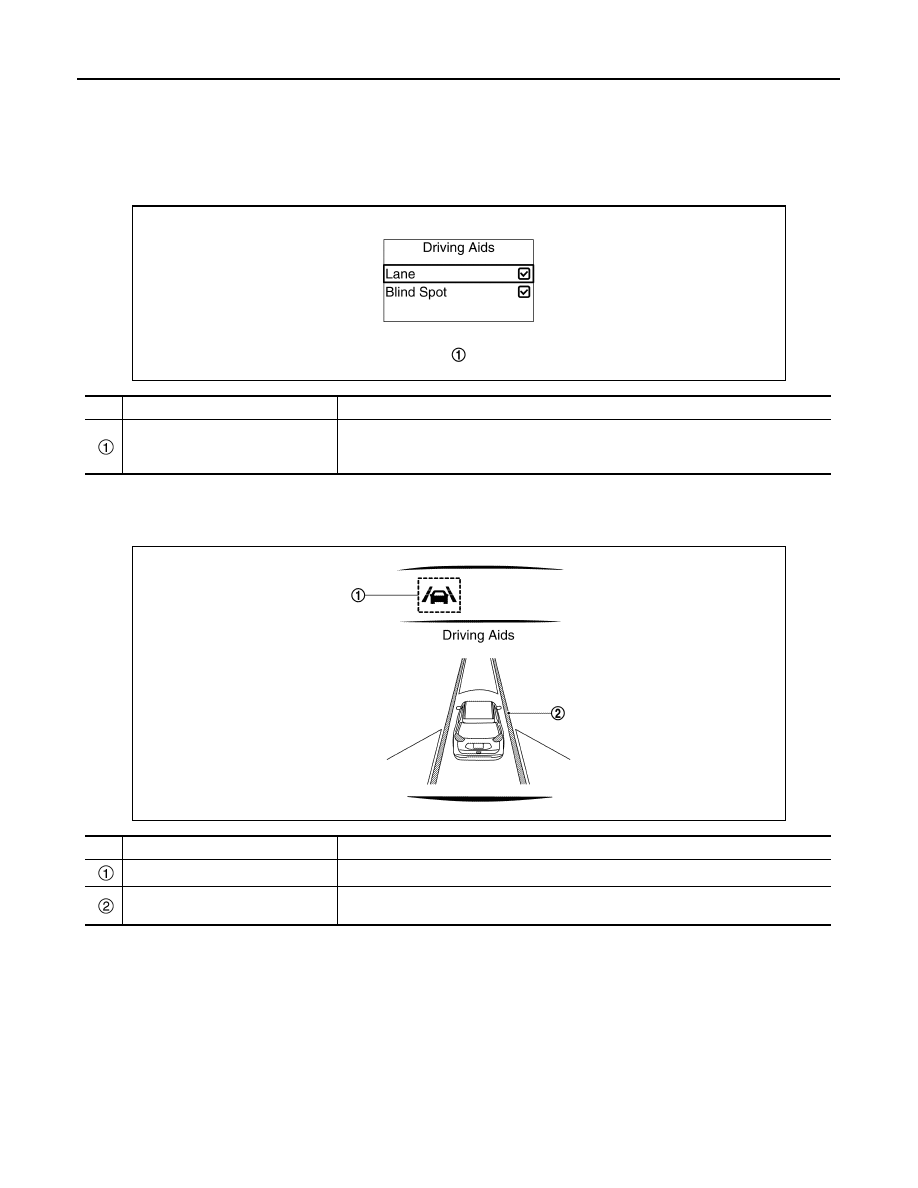

OPERATION

OPERATION

LDW

LDW : Switch Name and Function

INFOID:0000000010727895

LDW

LDW : Menu Displayed by Pressing Each Switch

INFOID:0000000010727896

SYSTEM DISPLAY

DISPLAY AND WARNING

System Display

The LDW systems operate when ON is selected with the combination meter.

JSOIA1589ZZ

No.

Switch name

Description

LDW system setting screen
(Combination meter settings
screen)

The setting of LDW system can be switched between ON and OFF

JSOIA1590ZZ

No.

Display item

Description

Warning systems indicator (LDW)

Indicates that LDW system is ON

Warning systems indicator “Lane”
position

Indicates that LDW system is ON

DAS

OPERATION

DAS-31

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

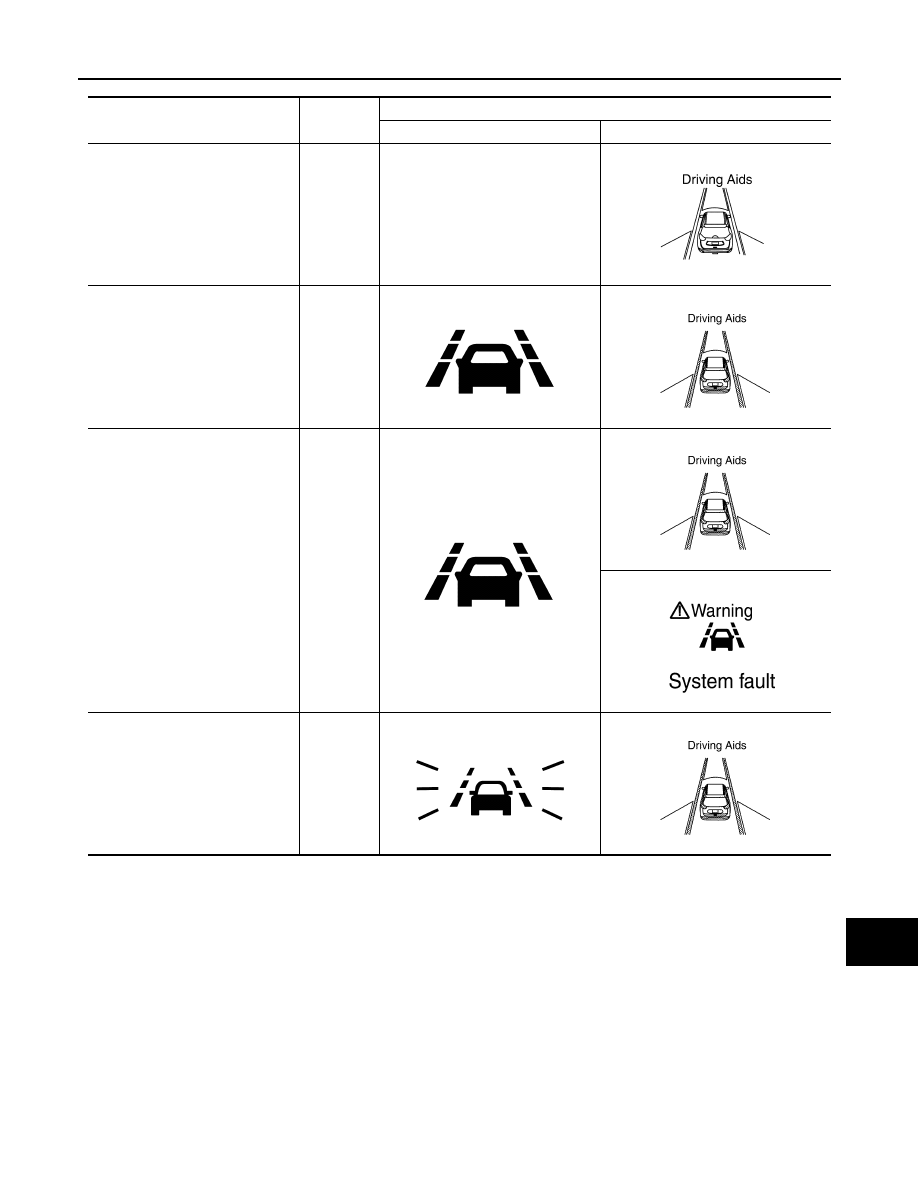

Display And Warning Operation

System status

Condition

Display on combination meter

Upper part

Middle part

LDW OFF

White

LDW ON

System ON

White

White

LDW is malfunction

The LDW
system is
automati-
cally can-

celed.

Orange

Orange

Front camera unit high temperature

The LDW
system is
automati-
cally can-
celed.

White (Blink)

White

JSOIA1591ZZ

JSOIA1422ZZ

JSOIA1592ZZ

JSOIA1422ZZ

JSOIA1592ZZ

JSOIA1593ZZ

JSOIA1367ZZ

JSOIA1592ZZ

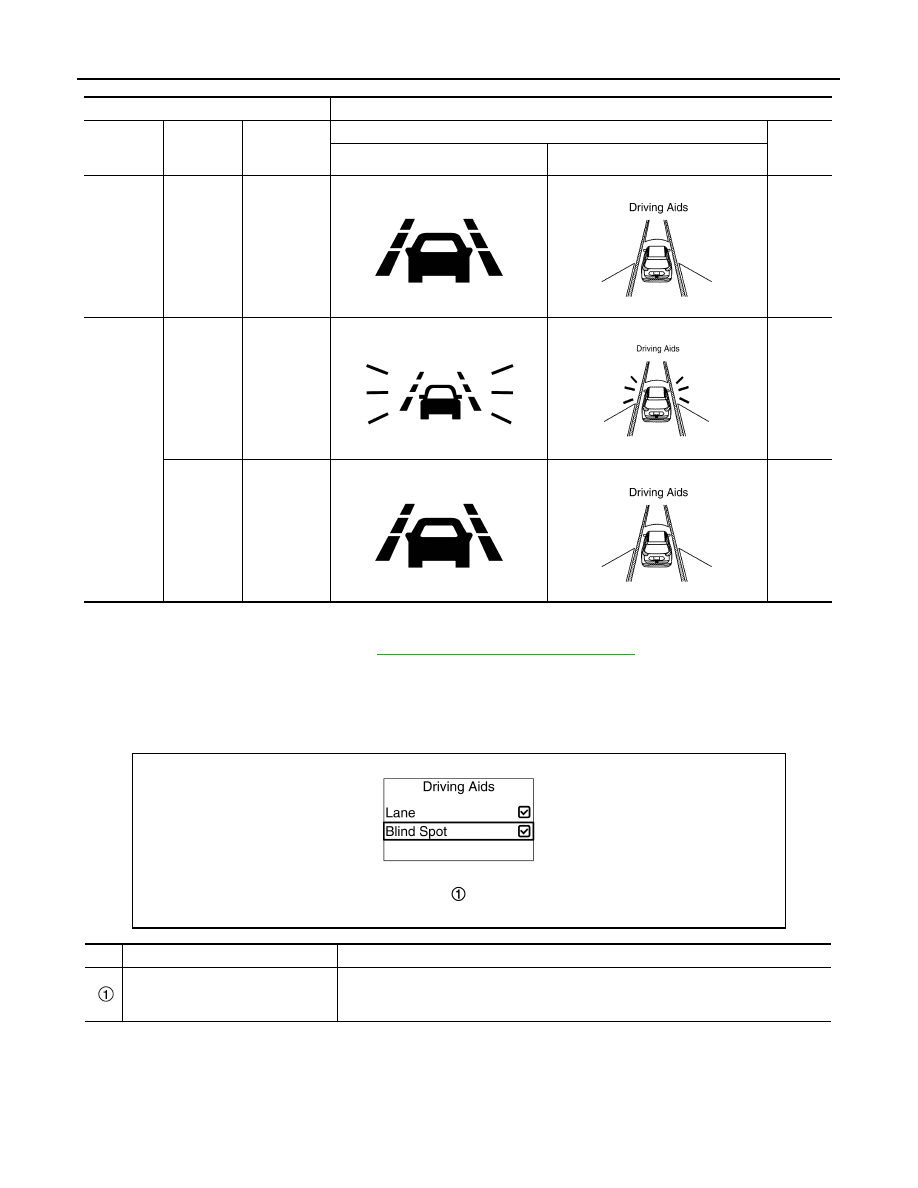

DAS-32

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches
approximately 55 km/h (34 MPH). Refer to

DAS-16, "LDW : System Description"

.

BSW

BSW : Switch Name and Function

INFOID:0000000010784380

BSW

Vehicle condition/ Driver's operation

Action

Vehicle

speed

(Approx.)

Turn signal

condition

Status of ve-

hicle close to

lane marker

Indication on the combination meter

Buzzer

Upper part

Middle part

Less than
55 km/h (34
MPH)

Close to lane
marker

White

White

OFF

60 km/h (37
MPH) or
more

• OFF
• ON  (Op-

posite to
the devi-
ate side)

Close to lane
marker

Orange (Blink)

Orange (Blink)

Short

continu-

ous

beeps

ON (Devi-
ate side)

Close to lane
marker

White

White

OFF

JSOIA1422ZZ

JSOIA1592ZZ

JSOIA1367ZZ

JSOIA1594ZZ

JSOIA1422ZZ

JSOIA1592ZZ

JSOIA1595ZZ

No.

Switch name

Description

BSW system setting screen
(Combination meter settings
screen)

The setting of BSW system can be switched between ON and OFF
