DAS

PRECAUTIONS

DAS-9

< PRECAUTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Precaution for DAA System Service

INFOID:0000000010842482

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

Never change DAA initial state ON

⇒

 OFF without the consent of the customer.

DAS-10

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010727880

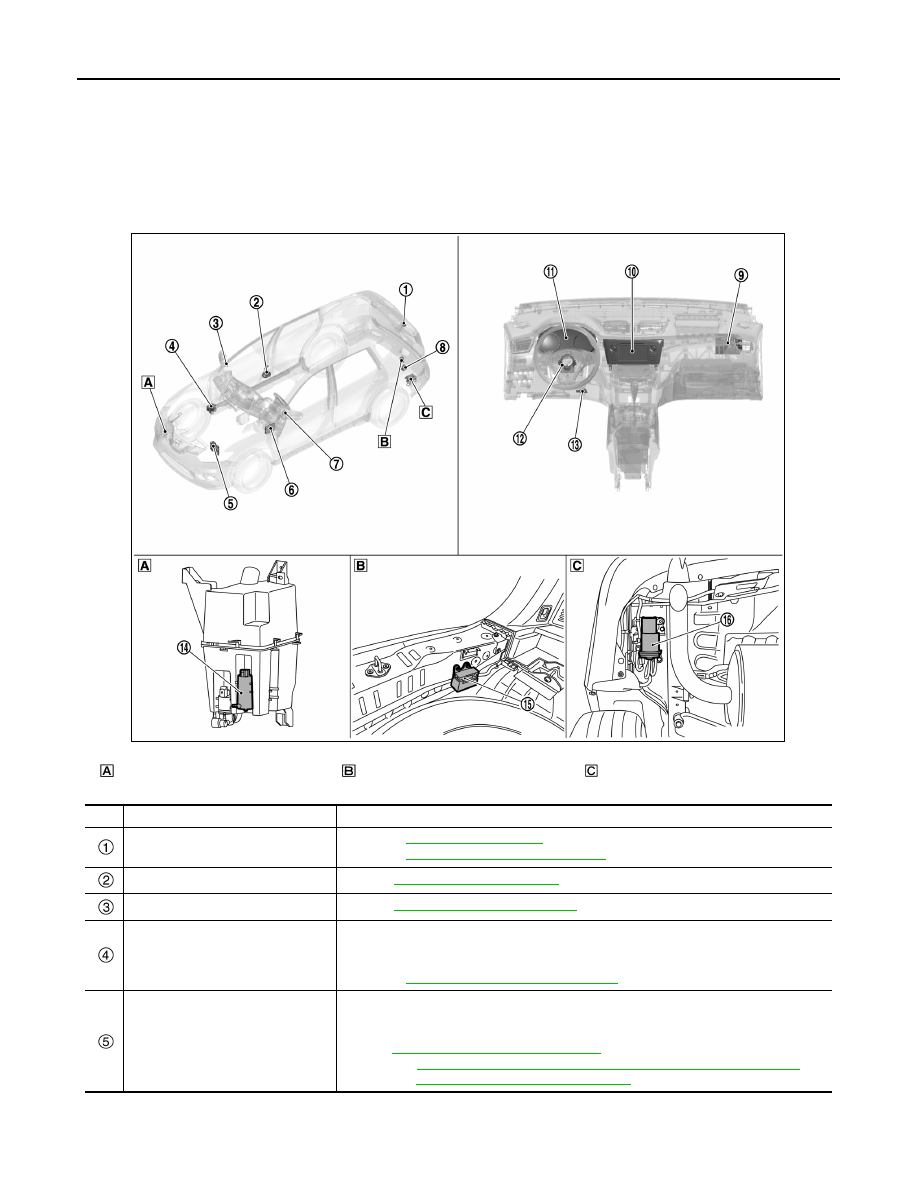

LHD MODELS

Behind front fender protector (RH)

Luggage room rear

Rear under body (LH)

No.

Component

Function

Rear camera

• Refer  to

DAS-13, "Rear Camera"

• Refer  to

AV-64, "Component Parts Location"

 for detailed installation location

Front camera unit

Refer to

DAS-15, "Front Camera Unit"

BSW indicator RH

Refer to

DAS-13, "BSW Indicator LH/RH"

ABS actuator and electric unit (con-
trol unit)

• ABS actuator and electric unit (control unit) transmits the vehicle speed signal (ABS)

and VDC/TCS/ABS system operation condition to around view monitor control unit
via CAN communication

• Refer  to

BRC-14, "Component Parts Location"

 for detailed installation location

ECM

• Transmits the accelerator pedal position signal, etc. to around view monitor control

unit via CAN communication

• Refer to following for detailed installation location
- R9M:

EC-812, "Component Parts Location"

- MR20DD:

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"

- QR25DE:

EC-440, "Component Parts Location"

JSOIA1654ZZ

DAS

COMPONENT PARTS

DAS-11

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

*: For vehicles without sonar system, meter buzzer is used.

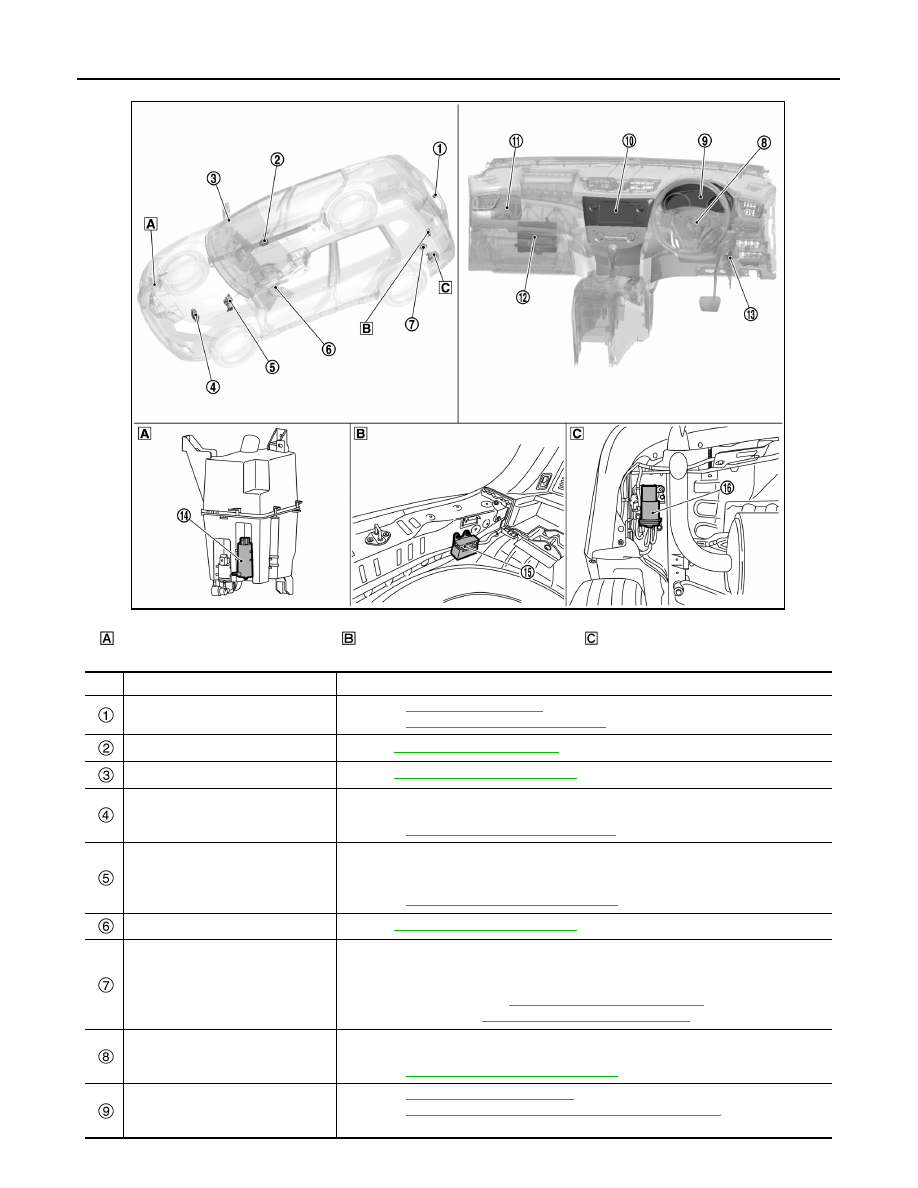

RHD MODELS

BCM

• Transmits the turn indicator signal and position light request signal to around view

monitor via CAN communication

• Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location

BSW indicator LH

Refer to

DAS-13, "BSW Indicator LH/RH"

Sonar control unit

• Operates the buzzer using the buzzer output signal from around view monitor control

unit

*

• Refer to following for detailed installation location
- WITHOUT PARK ASSIST:

SN-8, "Component Parts Location"

- WITH PARK ASSIST:

SN-119, "Component Parts Location"

Around view monitor control unit

• Refer to

DAS-13, "Around View Monitor Control Unit"

• Refer to

AV-64, "Component Parts Location"

 for detailed installation location

NAVI control unit

• Transmits the speed limit information signal to the front camera unit via CAN commu-

nication

• Refer to

AV-64, "Component Parts Location"

 for detailed installation location

Combination meter

• Refer to

DAS-13, "Combination Meter"

• Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location

Steering angle sensor

• Transmits the steering angle sensor signal to around view monitor control unit via

CAN communication

• Refer to

BRC-14, "Component Parts Location"

 for detailed installation location

Buzzer

• The warning buzzer sounds with the signal from the sonar control unit

*

• Refer to following for detailed installation location
- WITHOUT PARK ASSIST:

SN-8, "Component Parts Location"

- WITH PARK ASSIST:

SN-119, "Component Parts Location"

Rear camera washer pump

Refer to

DAS-15, "Rear Camera Washer Pump"

Pump control unit

Refer to

DAS-14, "Pump Control Unit"

Air pump

Refer to

DAS-15, "Air Pump"

No.

Component

Function

DAS-12

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

COMPONENT PARTS

Behind front fender protector (RH)

Luggage room rear

Rear under body (LH)

No.

Component

Function

Rear camera

• Refer  to

DAS-13, "Rear Camera"

• Refer  to

AV-64, "Component Parts Location"

 for detailed installation location

Front camera unit

Refer to

DAS-15, "Front Camera Unit"

BSW indicator RH

Refer to

DAS-13, "BSW Indicator LH/RH"

ECM

• Transmits the accelerator pedal position signal, etc. to around view monitor control

unit via CAN communication

• Refer  to

EC-812, "Component Parts Location"

 for detailed installation location

ABS actuator and electric unit (con-
trol unit)

• ABS actuator and electric unit (control unit) transmits the vehicle speed signal (ABS)

and VDC/TCS/ABS system operation condition to around view monitor control unit
via CAN communication

• Refer  to

BRC-14, "Component Parts Location"

 for detailed installation location

BSW indicator LH

Refer to

DAS-13, "BSW Indicator LH/RH"

Sonar control unit

• Operates the buzzer using the buzzer output signal from around view monitor control

unit

*

• Refer to following for detailed installation location
- WITHOUT PARK ASSIST:

SN-8, "Component Parts Location"

- WITH PARK ASSIST:

SN-119, "Component Parts Location"

Steering angle sensor

• Transmits the steering angle sensor signal to around view monitor control unit via

CAN communication

• Refer  to

BRC-14, "Component Parts Location"

 for detailed installation location

Combination meter

• Refer  to

DAS-13, "Combination Meter"

• Refer  to

MWI-7, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location

JSOIA1655ZZ
