Nissan X-Trail 32. Manual - part 289





CL-24

< REMOVAL AND INSTALLATION >

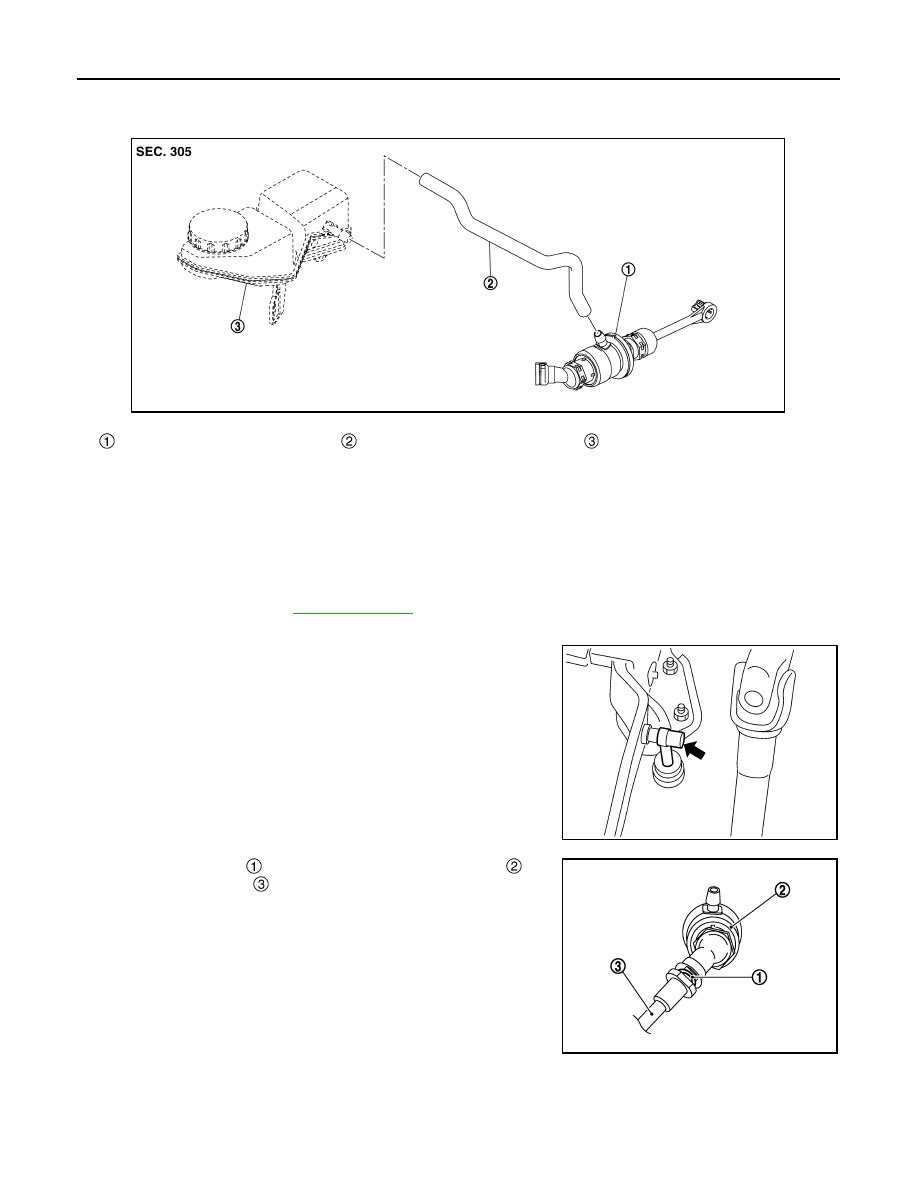

CLUTCH MASTER CYLINDER

RHD : Exploded View

INFOID:0000000010745334

RHD : Removal and Installation

INFOID:0000000010745335

REMOVAL

CAUTION:

• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

• Never disassemble clutch master cylinder.
1.

Drain clutch fluid. Refer to

CL-11, "Draining"

.

2.

Remove reservoir hose from reservoir tank and master cylinder.

3.

Remove master cylinder rod end from clutch pedal.

4.

Pull up the lock pin

 from connector of master cylinder

 and

separate clutch tube

.

5.

Rotate master cylinder clockwise by 45 degrees, and then
remove master cylinder from the vehicle.

INSTALLATION

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

Master cylinder

Reservoir hose

Reservoir tank

JSDIA5572ZZ

PCIB1491E

JPDIB0169ZZ

CLUTCH MASTER CYLINDER

CL-25

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

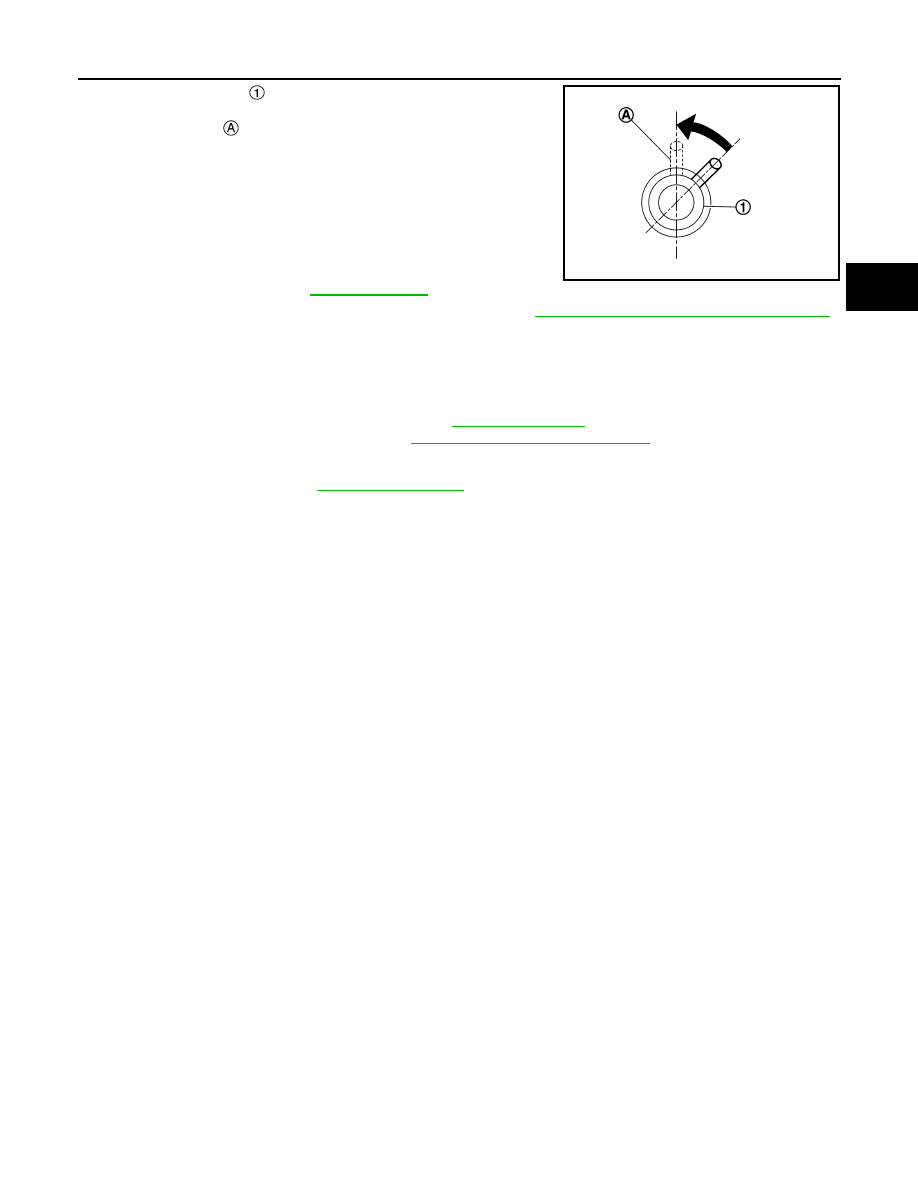

1.

Tilt master cylinder

 clockwise by 45 degrees and insert it to

the mounting hole. Rotate counterclockwise and secure it. At
this time, nipple

 is upward of the vehicle.

2.

Install master cylinder rod end to clutch pedal.

CAUTION:

Press master cylinder rod end to clutch pedal until it stops.

3.

Install reservoir hose to reservoir tank and master cylinder.

4.

Press down the lock pin into connector of master cylinder until it
stops.

5.

Install clutch tube into connector of master cylinder until it stops.

6.

Fill with clutch fluid. Refer to

CL-12, "Refilling"

.

7.

Perform inspection and adjustment after installation. Refer to

CL-25, "RHD : Inspection and Adjustment"

.

8.

For the next step and after, install in the reverse order of removal.

RHD : Inspection and Adjustment

INFOID:0000000010745336

INSPECTION AFTER INSTALLATION

• Check the fluid leakage and the fluid level. Refer to

CL-11, "Inspection"

.

• Check for the clutch pedal condition. Refer to

CL-9, "Inspection and Adjustment"

.

ADJUSTMENT AFTER INSTALLATION

Perform the air bleeding. Refer to

CL-13, "Air Bleeding"

.

JSDIA5573ZZ

CL-26

< REMOVAL AND INSTALLATION >

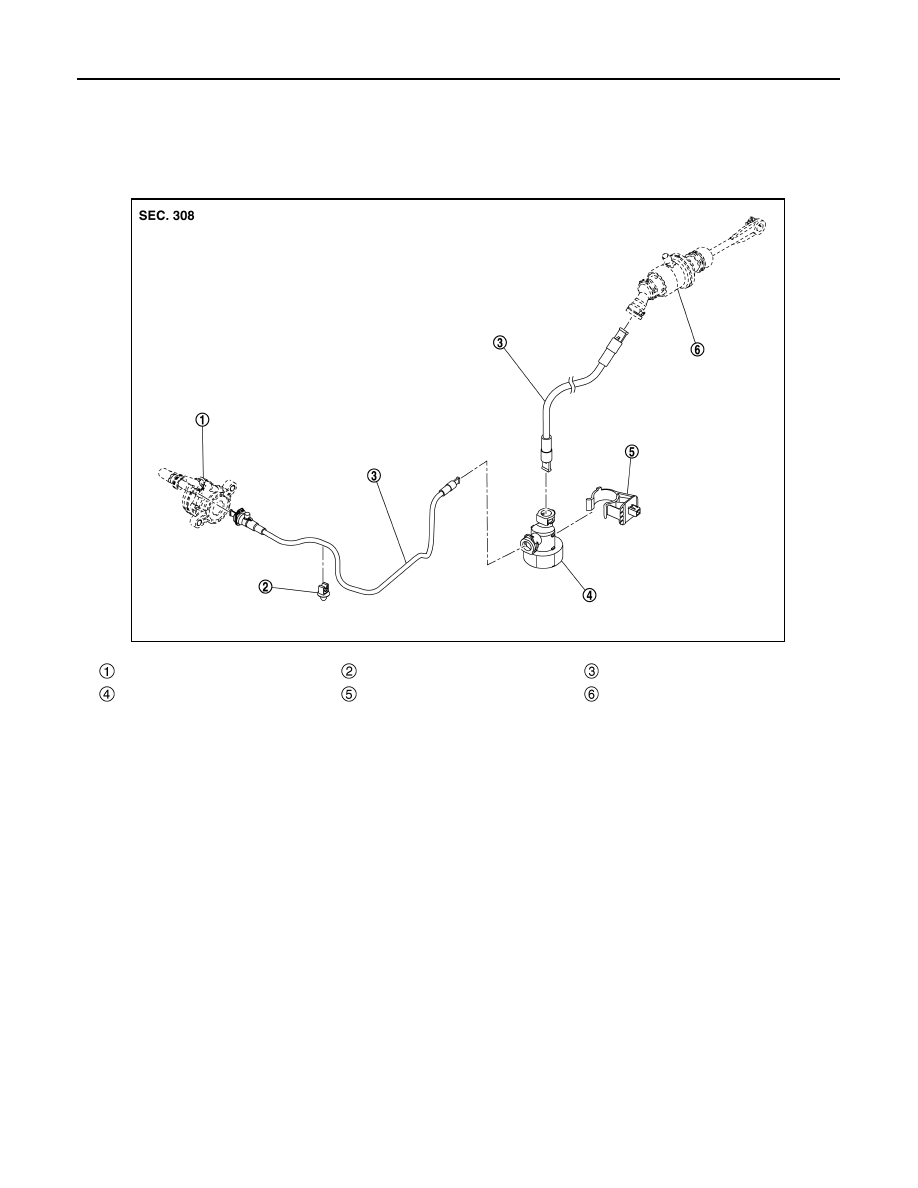

CLUTCH PIPING

CLUTCH PIPING

Exploded View

INFOID:0000000010745337

MR20DD

R9M

CSC (Concentric Slave Cylinder)

Clip

Clutch tube

Clutch damper

Bracket

Master cylinder

JSDIA5583ZZ

CLUTCH PIPING

CL-27

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

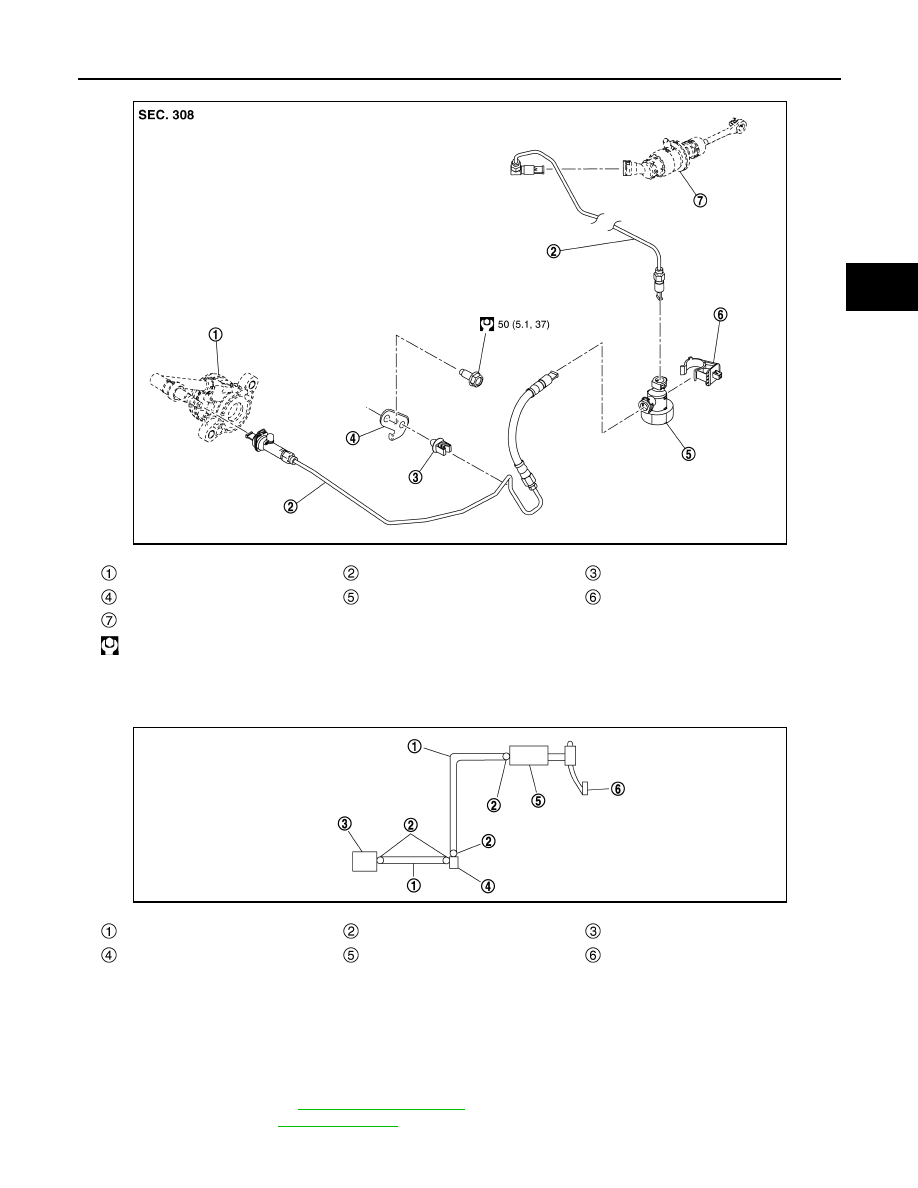

Hydraulic Piping

INFOID:0000000010745338

Removal and Installation

INFOID:0000000010745339

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

REMOVAL

Note the following, and refer to

CL-26, "Exploded View"

 for removal procedure.

• Drain clutch fluid. Refer to

CL-11, "Draining"

.

CSC (Concentric Slave Cylinder)

Clutch tube

Clip

Bracket

Clutch damper

Bracket

Master cylinder

: N·m (kg-m, ft-lb)

JSDIA6097GB

Clutch tube

Lock pin

CSC (Concentric Slave Cylinder)

Clutch damper

Master cylinder

Clutch pedal

PCIB1499E
