Nissan X-Trail 32. Manual - part 286

CL-12

< PERIODIC MAINTENANCE >

CLUTCH FLUID

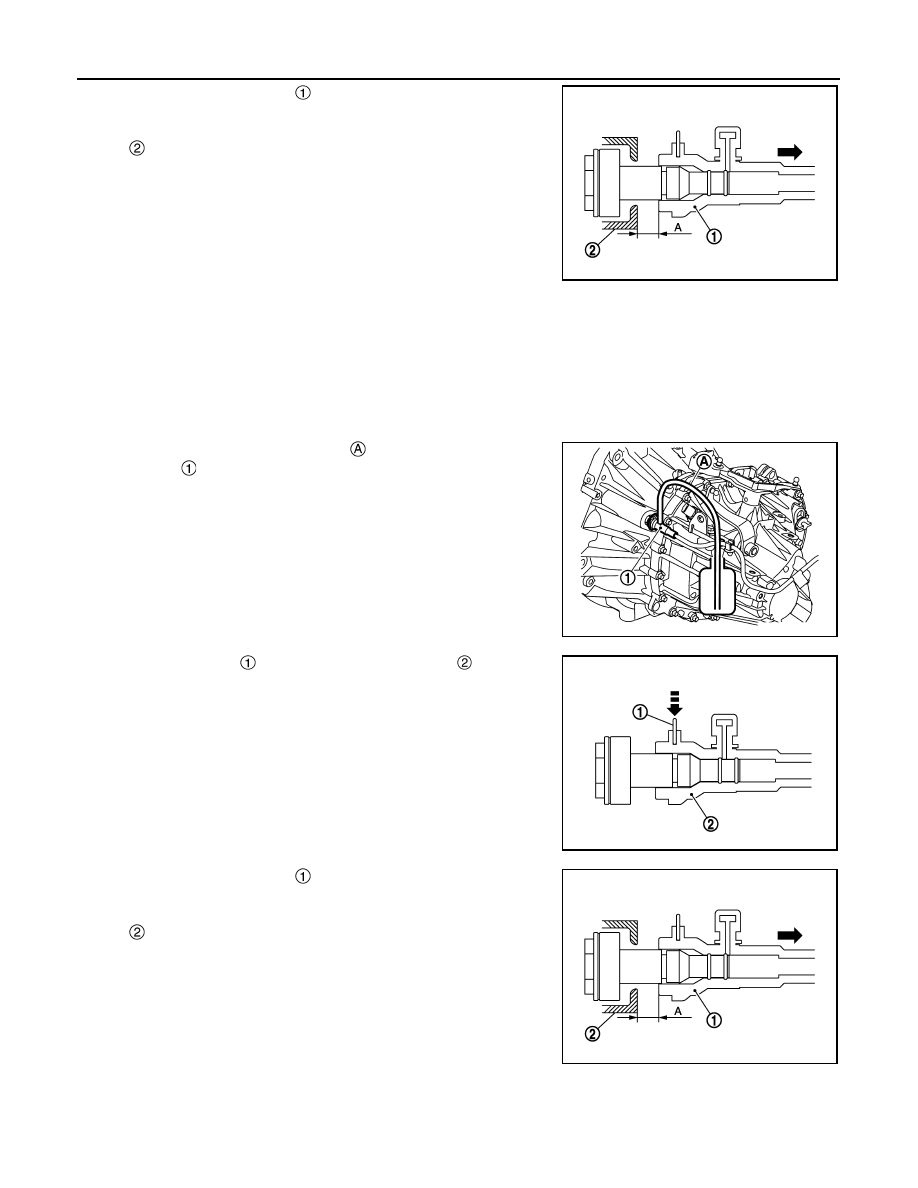

3.

Slide bleeding connector

 in the direction of the arrow as

shown in the figure.

4.

Depress clutch pedal to gradually discharge clutch fluid.

CAUTION:

Since the inside of clutch tube is under hydraulic pressure,
hold the tube to prevent it from getting disconnected.

Refilling

INFOID:0000000010745323

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

1.

Check that there is no foreign material in reservoir tank, and then fill with new clutch fluid.

CAUTION:

Never reuse drained clutch fluid.

2.

Connect a transparent vinyl hose

 to air bleeder of bleeding

connector .

3.

Press the lock pin

 into the bleeding connector

, and main-

tain the position.

4.

Slide bleeding connector

 in the direction of the arrow as

shown in the figure.

5.

Slowly depress clutch pedal to the full stroke position, and then
release the pedal.

CAUTION:

Since the inside of clutch tube is under hydraulic pressure,
hold the tube to prevent it from getting disconnected.

6.

Repeat step 5 at intervals of 2 or 3 seconds until new clutch fluid is discharged.

CAUTION:

Monitor clutch fluid level in reservoir tank so as not to empty the tank.

: Clutch housing

Dimension (A)

: 10 mm (0.39 in)

JPDIB0042ZZ

JSDIA5568ZZ

JPDIB0041ZZ

: Clutch housing

Dimension (A)

: 10 mm (0.39 in)

JPDIB0042ZZ

CLUTCH FLUID

CL-13

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

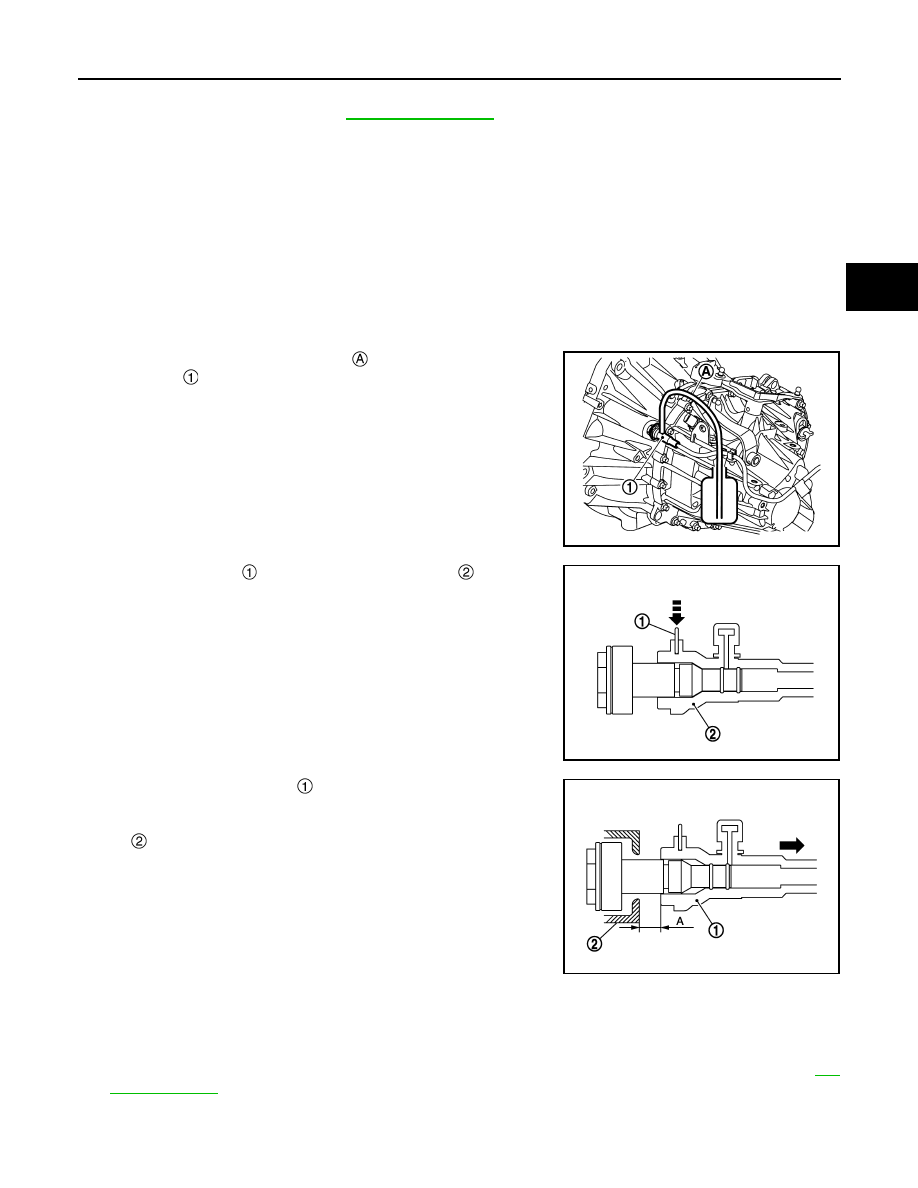

7.

Return clutch tube and lock pin in their original positions while clutch pedal is depressed.

8.

Perform the air bleeding. Refer to

CL-13, "Air Bleeding"

.

Air Bleeding

INFOID:0000000010745324

CAUTION:

• Monitor clutch fluid level in reservoir tank so as not to empty the tank.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

NOTE:
Do not use a vacuum assist or any other type of power bleeder on this system. Use of a vacuum assist or
power bleeder will not purge all the air from the system.

1.

Fill reservoir tank with new clutch fluid.

CAUTION:

Never reuse drained clutch fluid.

2.

Connect a transparent vinyl hose

 to air bleeder of bleeding

connector .

3.

“Depress” and “Release” the clutch pedal slowly and fully 15
times at an interval of 2 to 3 seconds and release the clutch
pedal.

4.

Press the lock pin

 into the bleeding connector

, and main-

tain the position.

CAUTION:

Since the inside of clutch tube is under hydraulic pressure,
hold the tube to prevent it from getting disconnected.

5.

Slide bleeding connector

 in the direction of the arrow as

shown in the figure.

6.

Depress the clutch pedal soon and hold it, and then bleed the air
from the piping.

CAUTION:

Since the inside of clutch tube is under hydraulic pressure,
hold the tube to prevent it from getting disconnected.

7.

Return clutch tube and lock pin in their original positions.

8.

Release clutch pedal and wait for 5 seconds.

9.

Repeat steps 3 to 8 until no bubbles are observed in the clutch fluid.

10. Check that the fluid level in the reservoir tank is within the specified range after air bleeding. Refer to

CL-

11, "Inspection"

.

JSDIA5568ZZ

JPDIB0041ZZ

: Clutch housing

Dimension (A)

: 10 mm (0.39 in)

JPDIB0042ZZ

CL-14

< REMOVAL AND INSTALLATION >

CLUTCH PEDAL

REMOVAL AND INSTALLATION

CLUTCH PEDAL

LHD

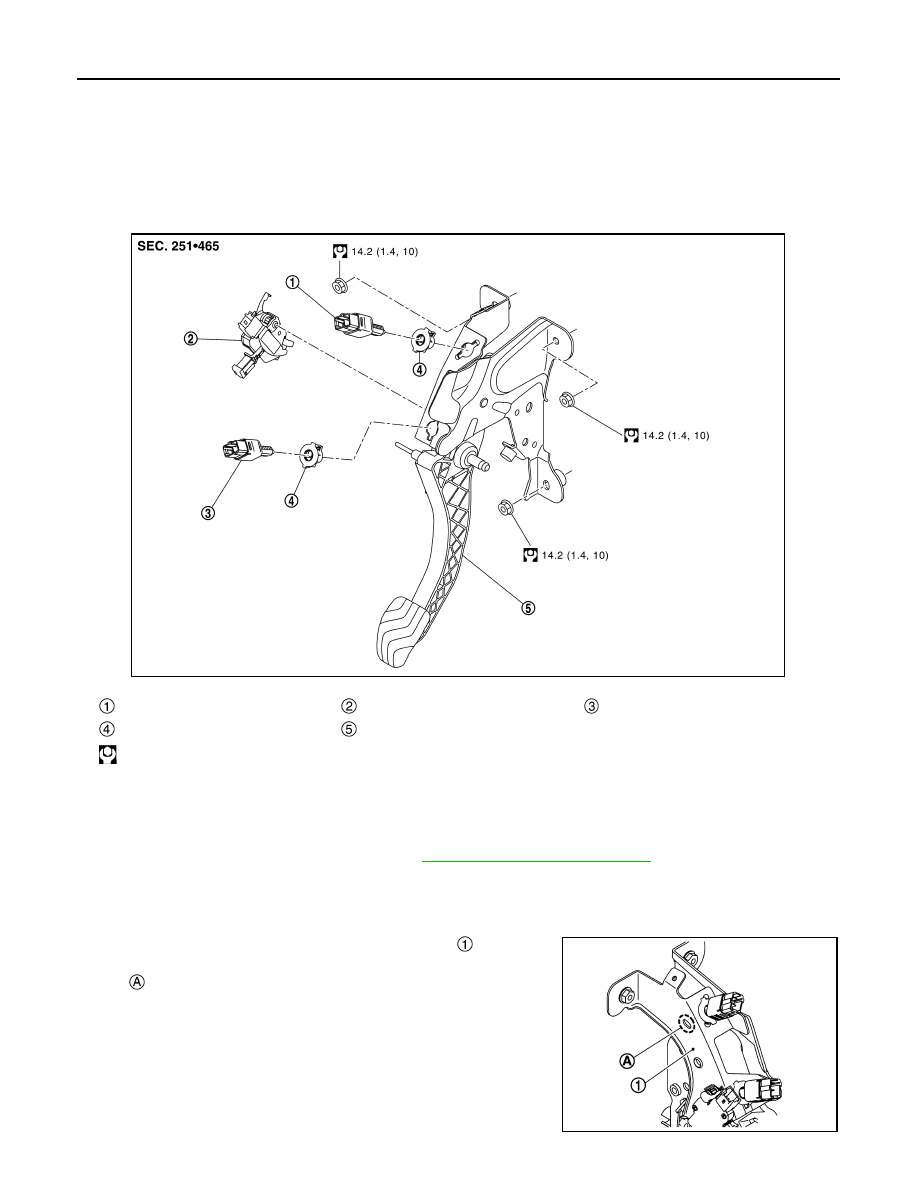

LHD : Exploded View

INFOID:0000000010745325

LHD : Removal and Installation

INFOID:0000000010745326

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect clutch pedal position switch harness connector.

3.

Disconnect clutch interlock switch harness connector.

4.

Disconnect clutch pedal stroke sensor harness connector.

5.

Disconnect harness clip from clutch pedal bracket

.

Clutch interlock switch

Clutch pedal stroke sensor

Clutch pedal position switch

Clip

Clutch pedal assembly

: N·m (kg-m, ft-lb)

JSDIA6100GB

: Hole for harness clip

JSDIA6104ZZ

CLUTCH PEDAL

CL-15

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

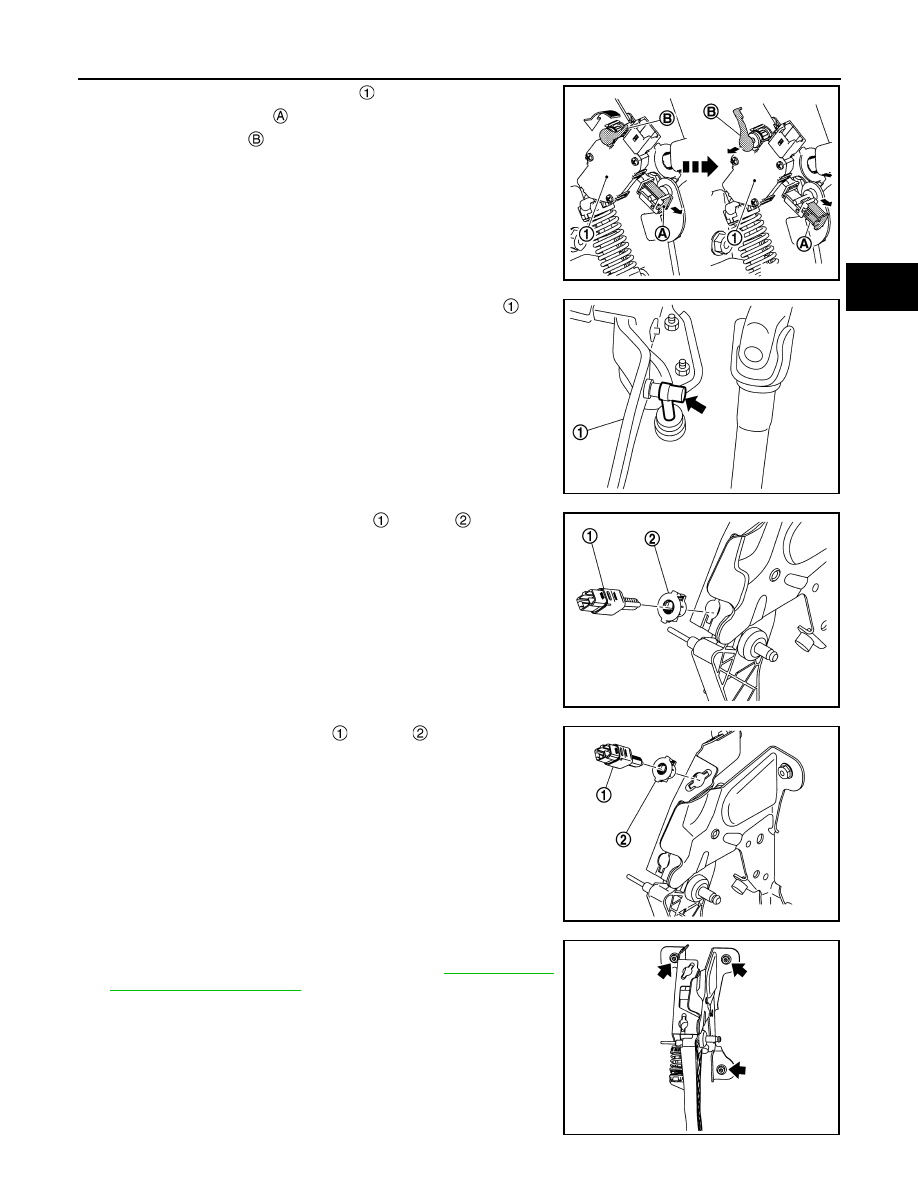

6.

Remove clutch pedal stroke sensor

.

a.

Pull sensor lever cover



b.

While turn lever pin

 and pull it.

c.

Remove clutch pedal stroke sensor.

7.

Remove master cylinder rod end from clutch pedal lever

.

8.

Remove clutch pedal position switch

 and clip

 from clutch

pedal bracket.

9.

Remove clutch interlock switch

 and clip

 from clutch pedal

bracket.

10. Remove clutch pedal assembly.
11. Perform inspection after removal. Refer to

CL-16, "LHD :

Inspection and Adjustment"

.

JSDIA5591ZZ

JSDIA6109ZZ

JSDIA6105ZZ

JSDIA6106ZZ

JSDIA5589ZZ
