Nissan X-Trail 32. Manual - part 284





CL-4

< PRECAUTION >

PRECAUTIONS

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

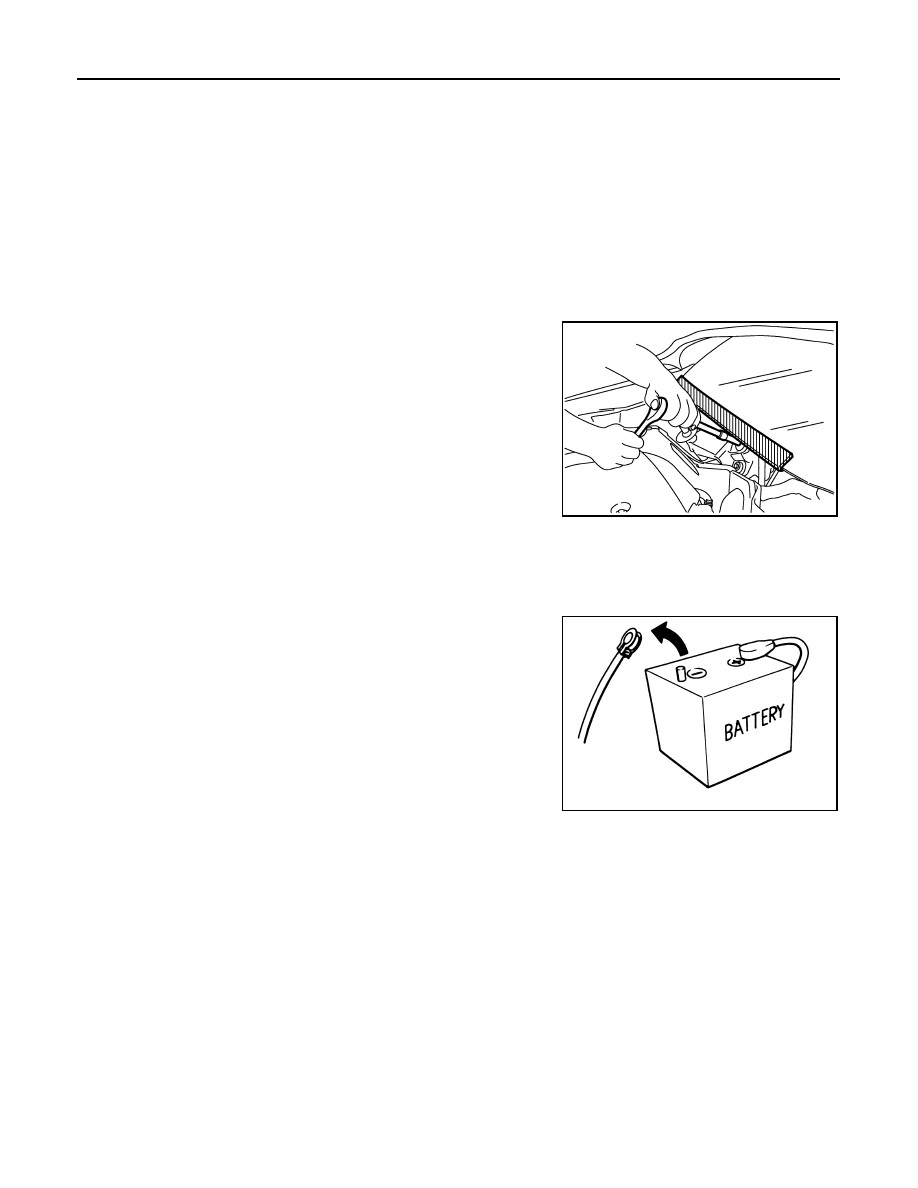

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010745313

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010745361

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

PIIB3706J

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

PRECAUTIONS

CL-5

< PRECAUTION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Stop/Start System Service

INFOID:0000000011045986

CAUTION:

When performing an inspection and its related work with the engine at idle, always turn the stop/start
OFF switch ON or open the hood to release the stop/start system.

Service Notice or Precautions for Clutch

INFOID:0000000010745315

WARNING:

After cleaning clutch disc, wipe it with a dust collector. Never use compressed air.

CAUTION:

Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position every
time when removing transaxle assembly. At this timing, dust on the sliding parts may damage a seal of
CSC and may cause clutch fluid leakage. Refer to

CL-30, "Removal and Installation"

.

• Use recommended clutch fluid only, refer to

MA-23, "Fluids and Lubricants"

.

• Never reuse drained clutch fluid.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash

the affected area with water.

• Never use mineral oils such as gasoline or kerosene. It will ruin the rubber parts of the hydraulic system.
• Never disassemble clutch master cylinder and CSC.

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

CL-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

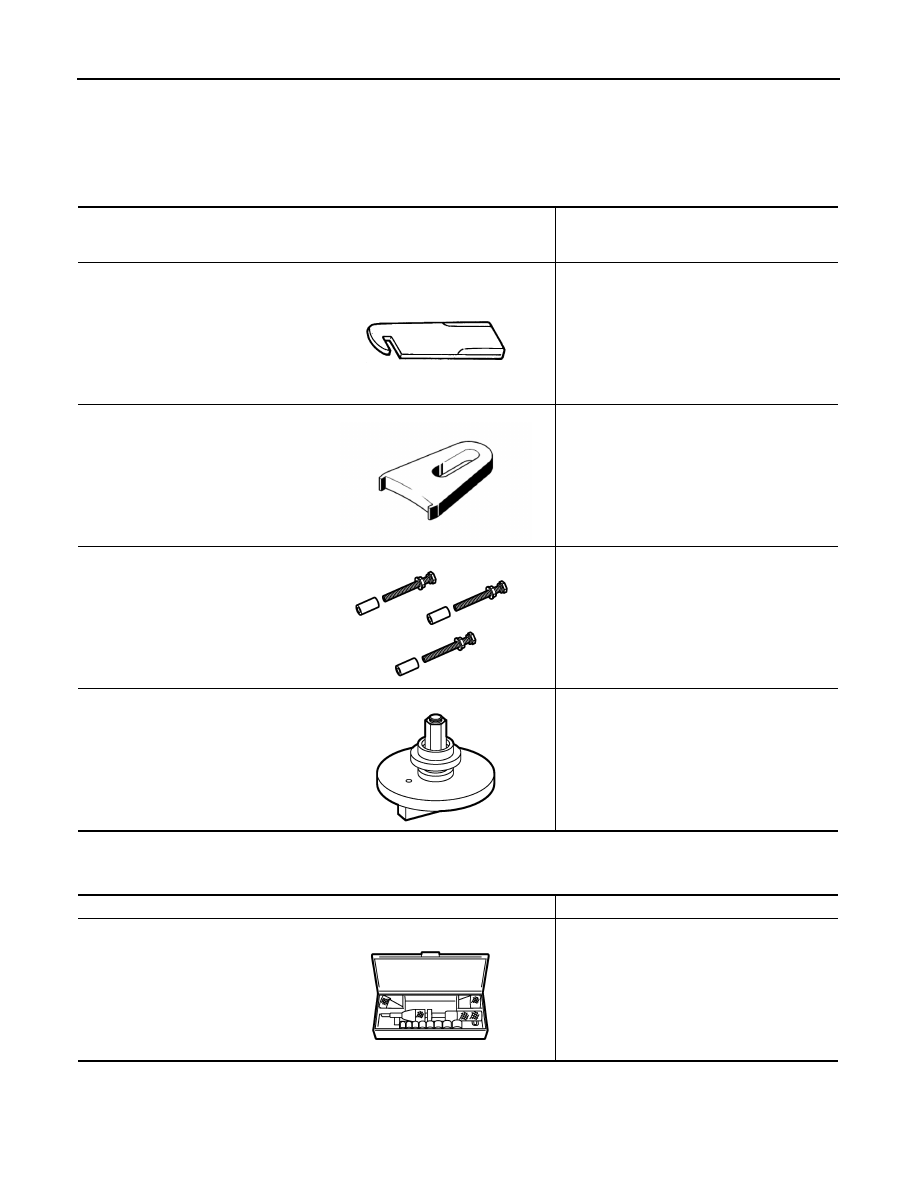

Special Service Tools

INFOID:0000000010745316

Commercial Service Tools

INFOID:0000000010745317

Lubricant or/and Sealant

INFOID:0000000010745318

Tool number
(RENAULT tool No.)
Tool name

Description

ST20050240
(

)

Diaphragm adjusting wrench

Adjusting unevenness of diaphragm spring le-
ver

(Mot.1431)
Flywheel locking tool

Locking flywheel

(Emb.1761)
Tool kit for clutch cover removal and
installation

Holding clutch cover

(Emb.1604)
Clutch compression tool

Rearming clutch cover compensation system

ZZA0508D

JMAIA0431ZZ

E1BIA0775ZZ

E1BIA0778ZZ

Tool name

Description

Clutch aligner

Installing clutch disc

MCIB0404E

PREPARATION

CL-7

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

Item

Use

Lithium-based grease including molybdenum disulphide

Application to clutch disc and input shaft splines area
