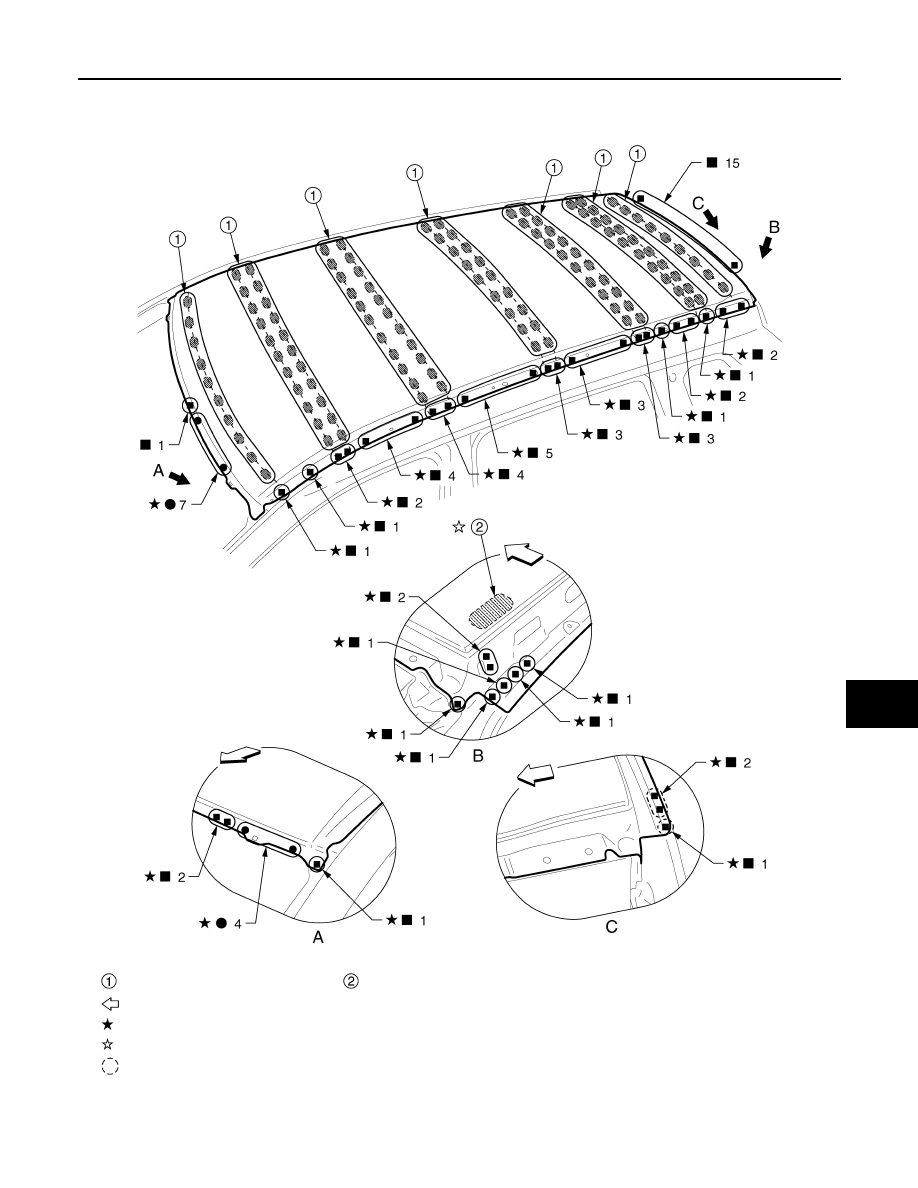

Roof (Normal Roof Models)

INFOID:0000000011005186

Body sealing

adhesive

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Adhesive portion apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

Replacement part

z

Roof

z

Roof bow No.1

z

Roof bow No.2

z

Roof bow No.3

z

Roof bow No.4

z

Roof bow No.5

JSKIA3873ZZ

BRM-66

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

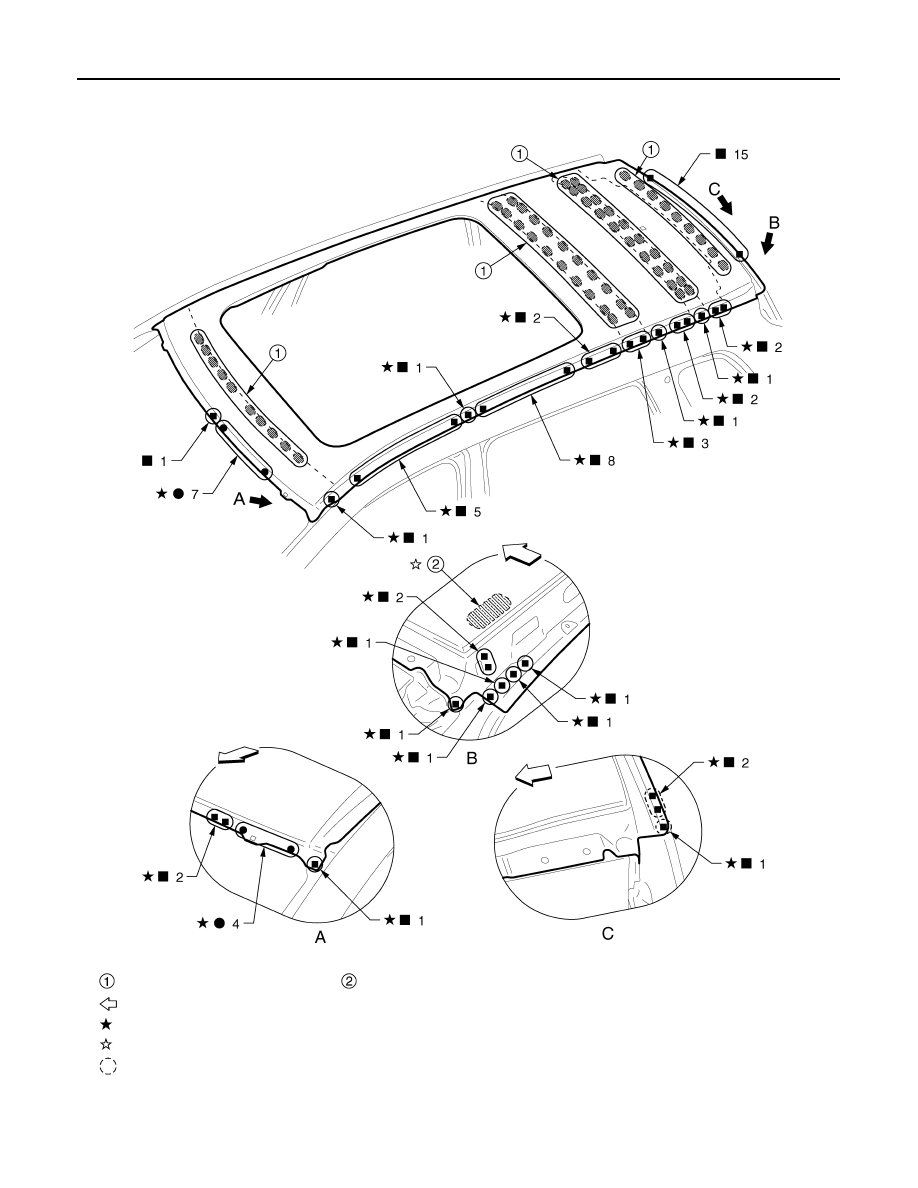

Roof (Sunroof Models)

INFOID:0000000011005188

Body sealing

adhesive

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Adhesive portion apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

Replacement part

z

Roof

z

Roof bow No.4

z

Roof bow No.5

JSKIA4935ZZ

REPLACEMENT OPERATIONS

BRM-67

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

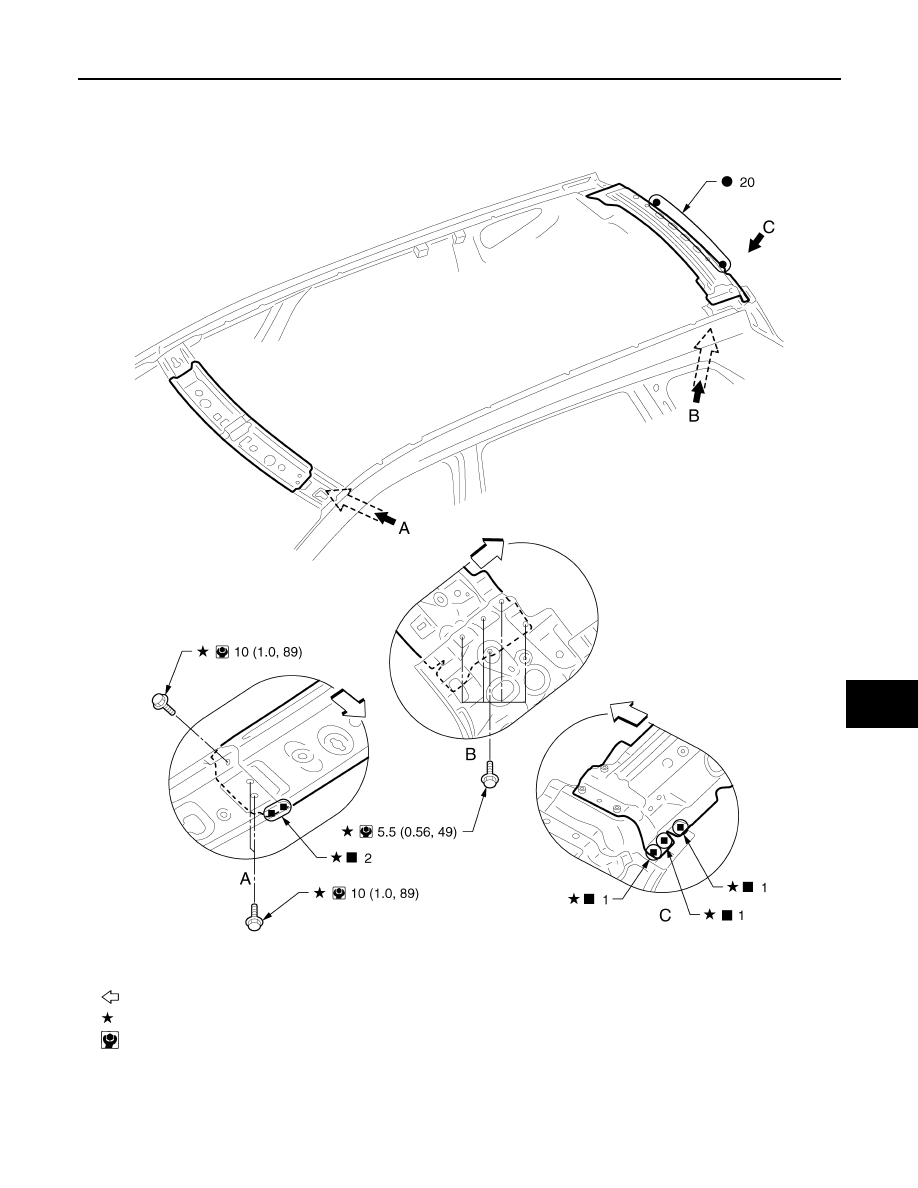

Roof Rail

INFOID:0000000011005189

Work after roof is removed.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: N·m (kg-m, in-lb)

Replacement part

z

Front roof rail

z

Rear roof rail

JSKIA4936GB

BRM-68

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

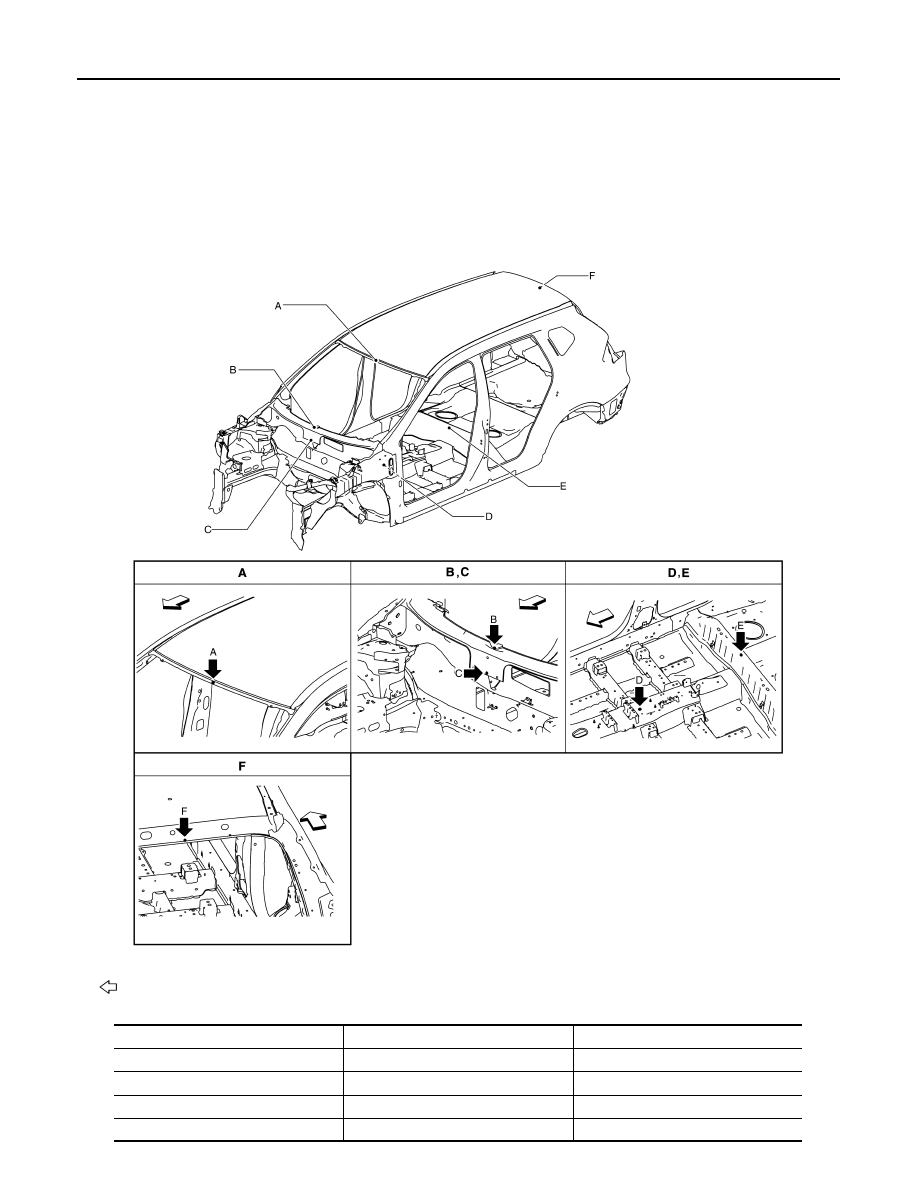

Body Center Marks

INFOID:0000000010860042

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

Indent

C

Cowl top

Hole

φ

8 (0.31)

D

Trans control reinforcement

Hole 14

×

12 (0.55

×

0.47)

JSKIA4708ZZ
