Rear Panel

INFOID:0000000010843440

: Vehicle front

: Welding method, the number of welding points, and the tightening torque apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement part

z

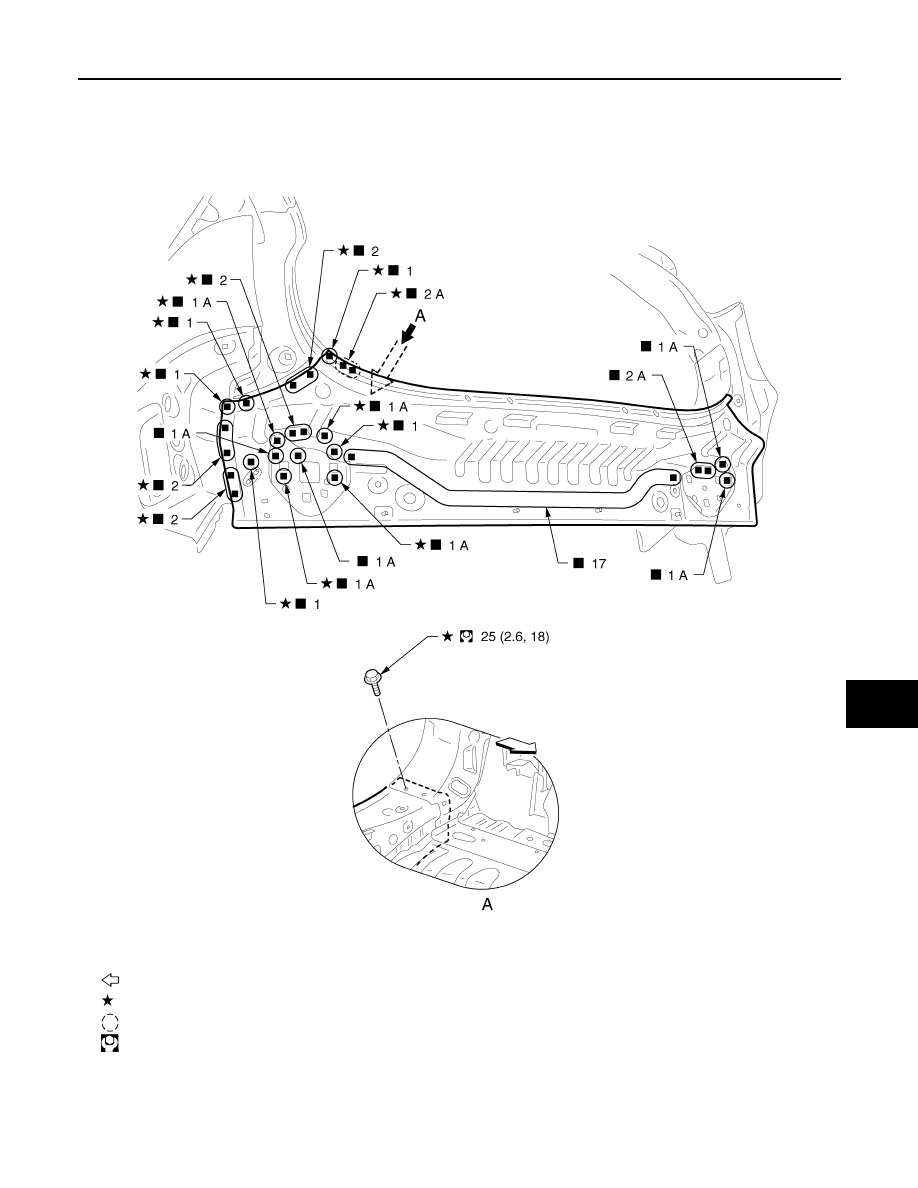

Upper rear panel

JSKIA4614GB

BRM-62

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Rear Floor Rear

INFOID:0000000010843441

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

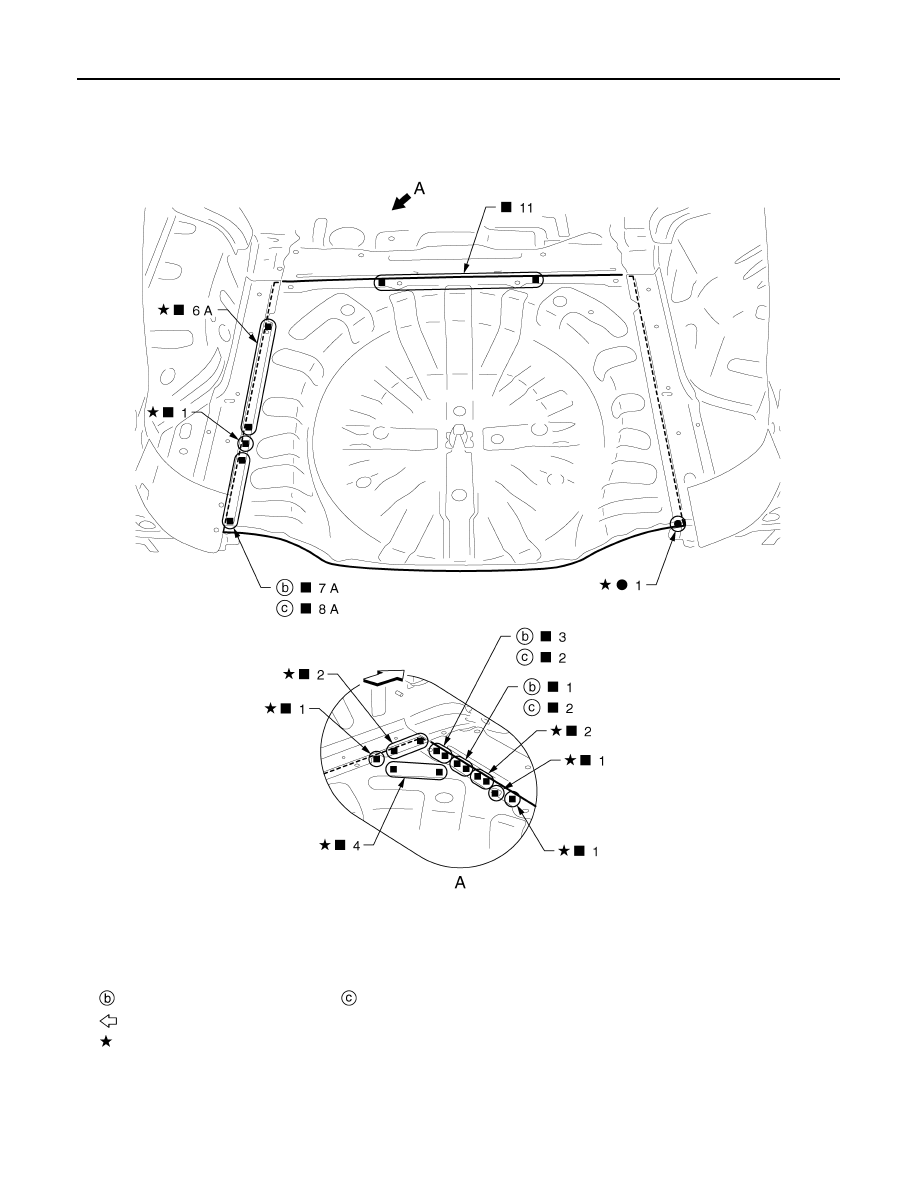

Rear floor rear

JSKIA3869ZZ

REPLACEMENT OPERATIONS

BRM-63

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Side Member Extension (SUV Models)

INFOID:0000000010843442

Work after rear panel is removed.

Rear Side Member Extension (Wagon Models)

INFOID:0000000010843443

Work after rear panel is removed.

: Vehicle front

Replacement part

z

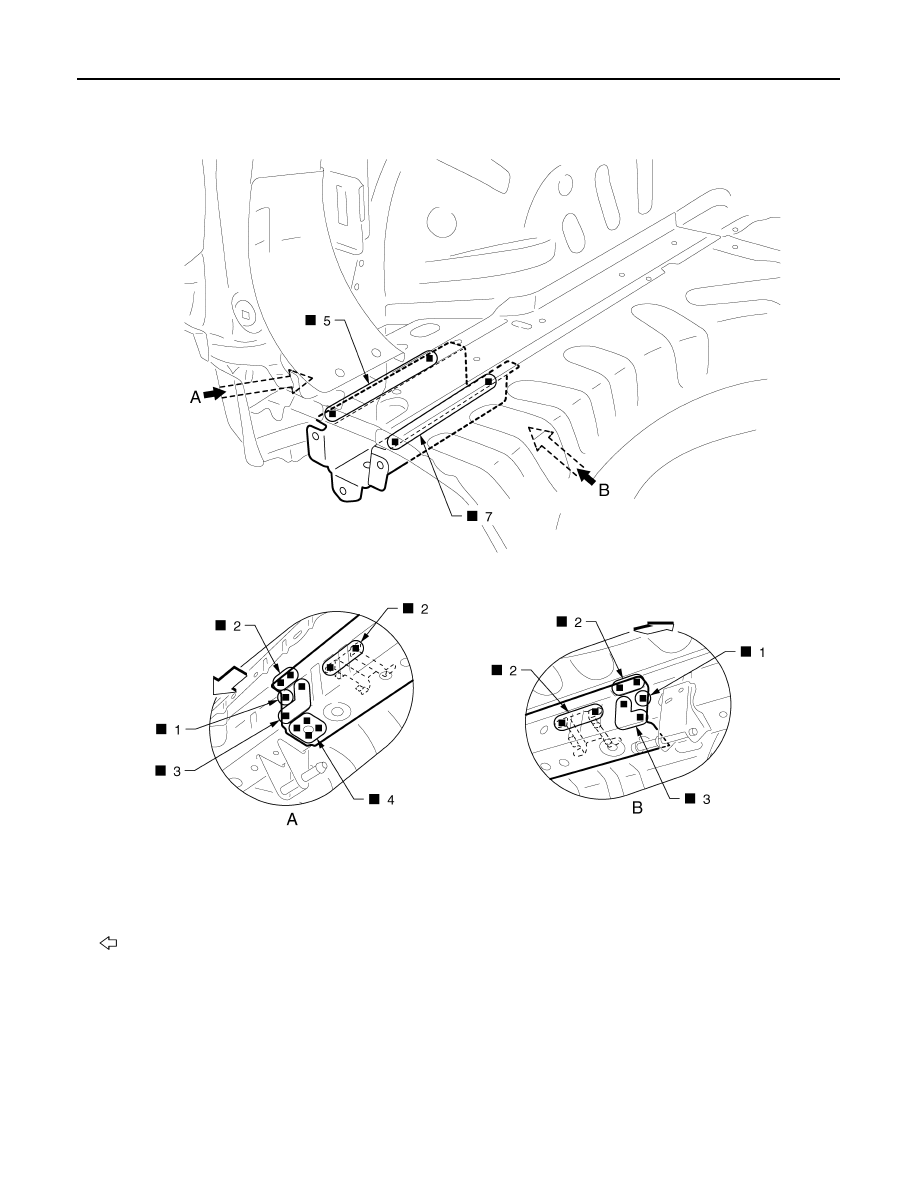

Rear side member extension

JSKIA3872ZZ

BRM-64

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

: Vehicle front

Replacement part

z

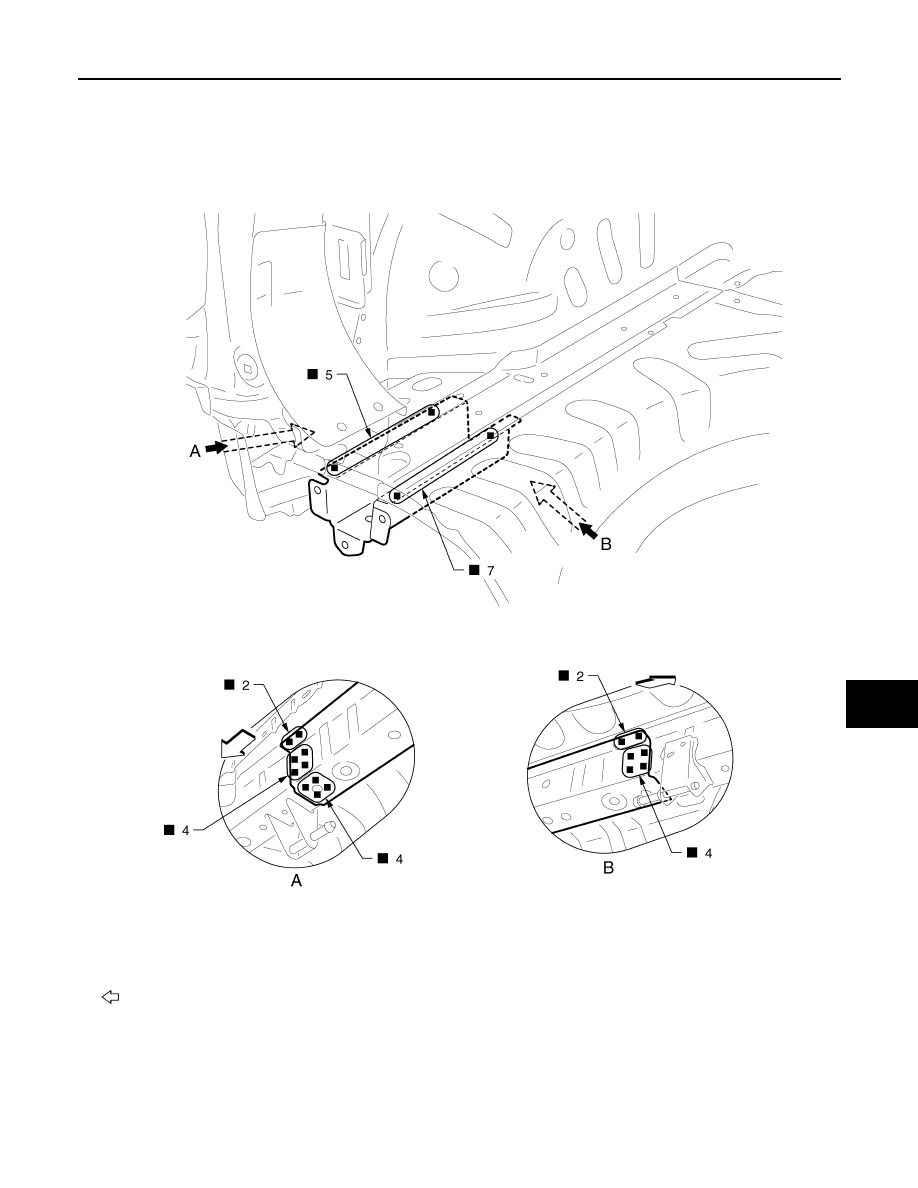

Rear side member extension

z

Rear 3rd seat mounting bracket as-
sembly

JSKIA4034ZZ
