REPLACEMENT OPERATIONS

BRM-57

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Inner Rear Wheelhouse

INFOID:0000000011005182

Work after rear fender and outer rear wheelhouse are removed.

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement part

z

Outer rear wheelhouse

JSKIA4931GB

BRM-58

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

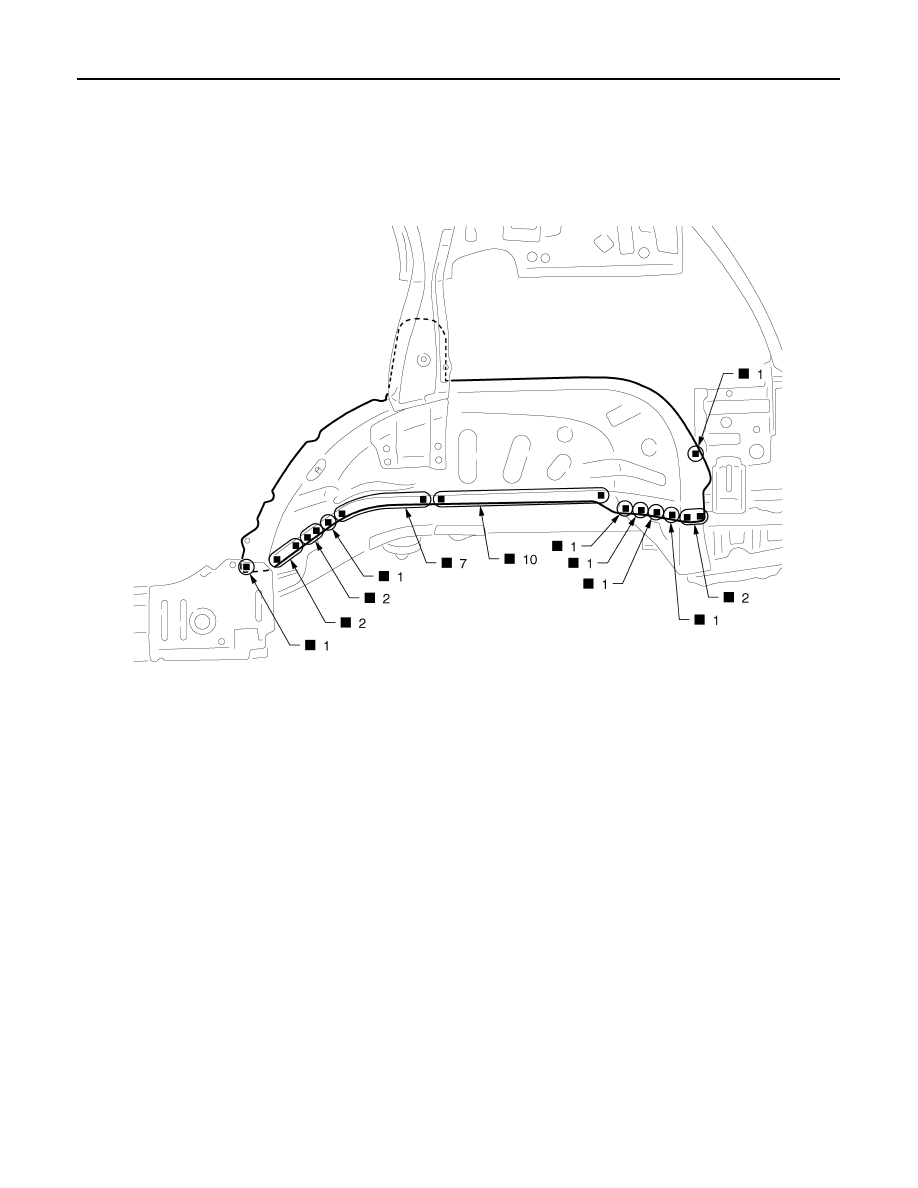

Inner Rear Pillar Reinforcement

INFOID:0000000011005184

Work after rear fender is removed.

Replacement part

z

Inner rear wheelhouse

JSKIA4932ZZ

REPLACEMENT OPERATIONS

BRM-59

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

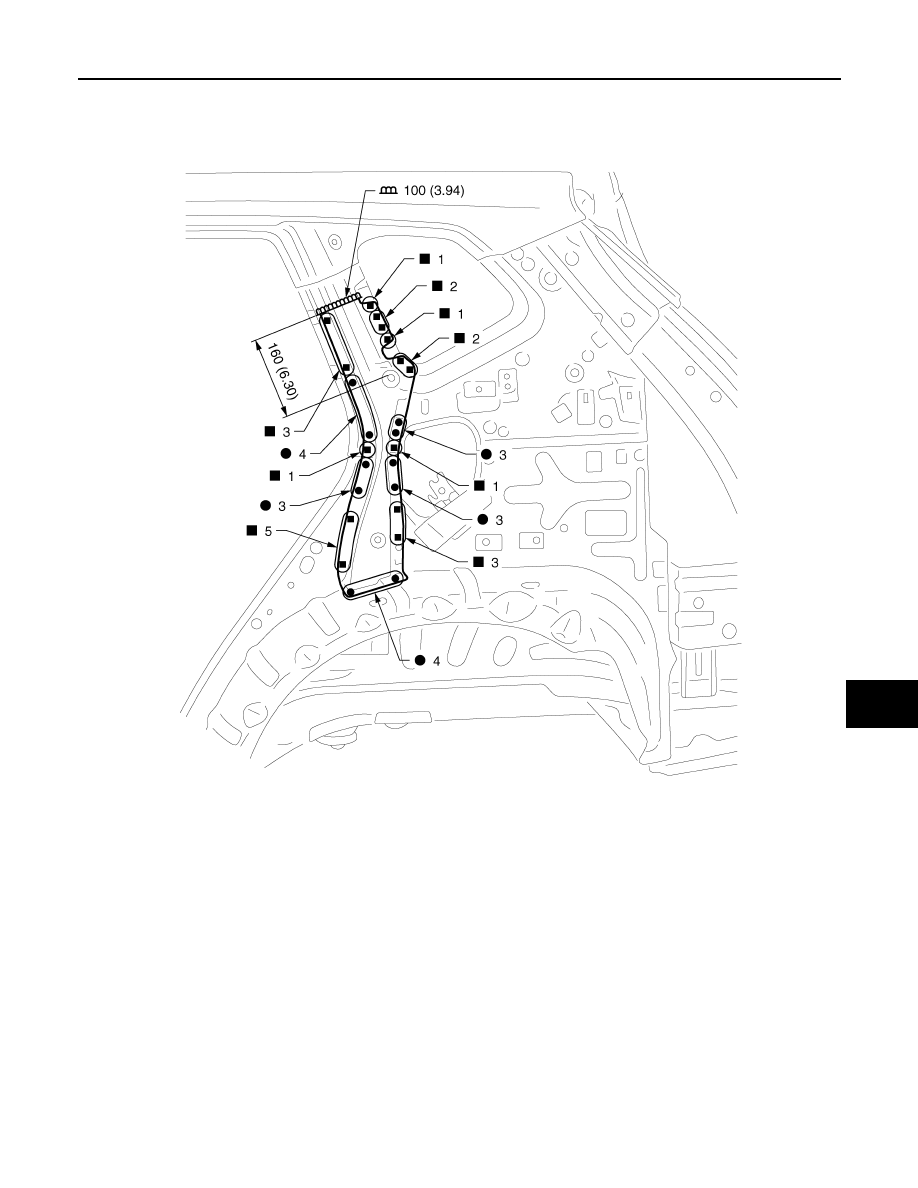

Inner Rear Pillar

INFOID:0000000011005185

Work after rear fender is removed.

Unit: mm (in)

Replacement part

z

Upper rear pillar reinforcement

JSKIA4933GB

BRM-60

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Urethane foam

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, in-lb)

Replacement part

z

Inner rear pillar

z

Upper rear pillar reinforcement

JSKIA4934GB
