VTL-8

< REMOVAL AND INSTALLATION >

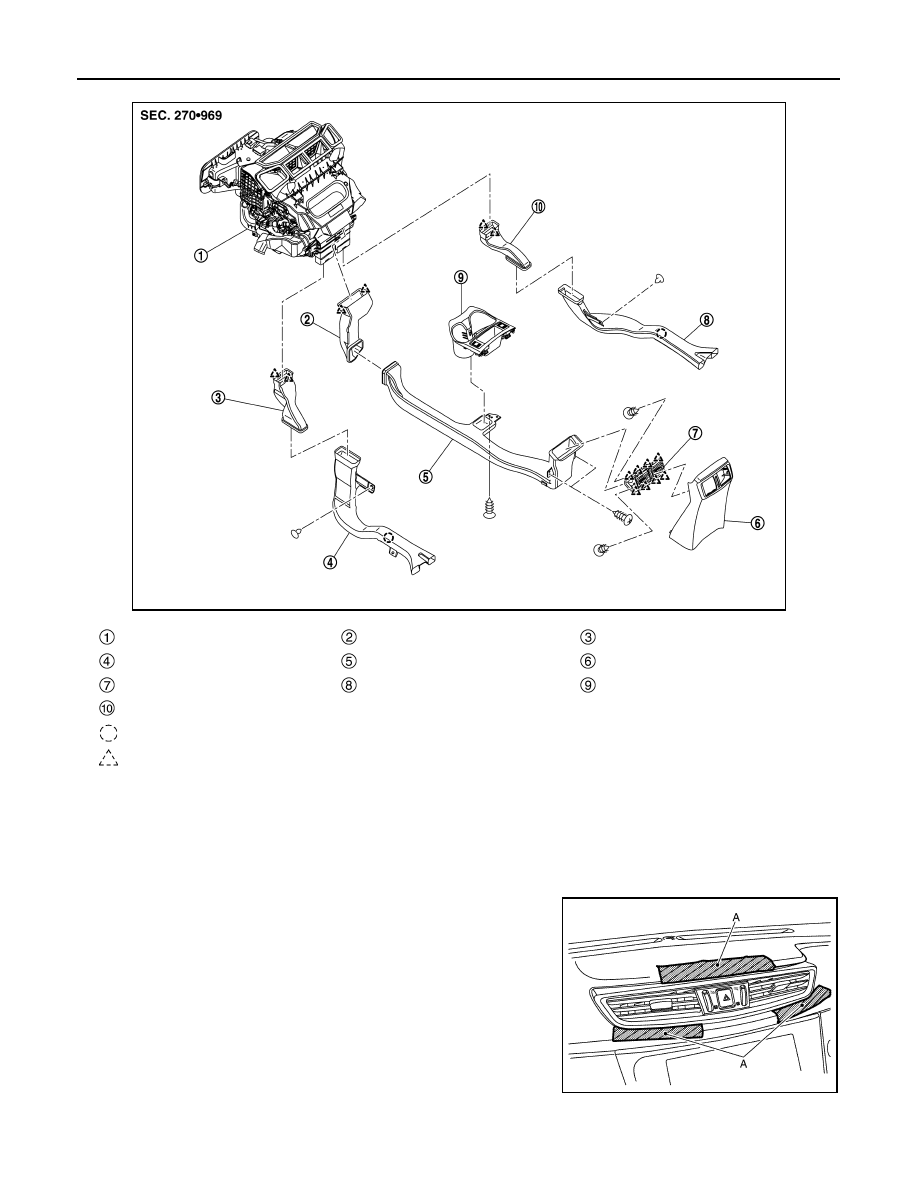

DUCT AND GRILLE

Rear (RHD models)

*: with rear ventilator models

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010981803

REMOVAL

1.

Apply protective tapes (A) on instrument panel assembly to pro-
tect from damage.

JMIIA3377ZZ

A/C unit assembly

Rear ventilator duct 1

*

Rear floor duct 1 LH

Rear floor duct 2 LH

Rear ventilator duct 2

*

Console rear finisher

*

Rear ventilator grille

*

Rear floor duct 2 RH

Console switch finisher

*

Rear floor duct 1 RH

: Clip

: Pawl

JMIIA3341ZZ

DUCT AND GRILLE

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

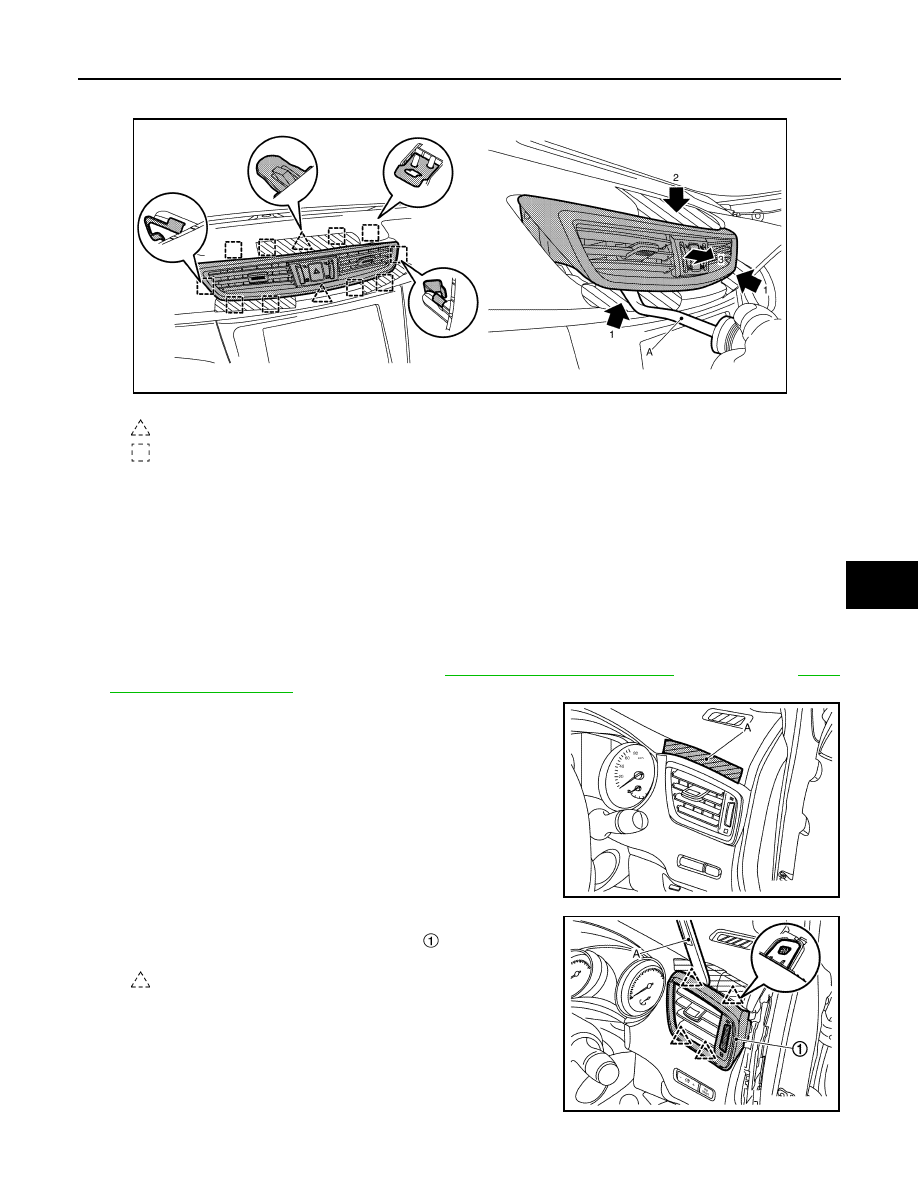

2.

Disengage fixing metal clips and pawls using remover tool (A), and then remove center ventilator grille
according to numerical order 1

→

3 indicated arrows as shown in the figure.

3.

Disconnect harness connector from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010981804

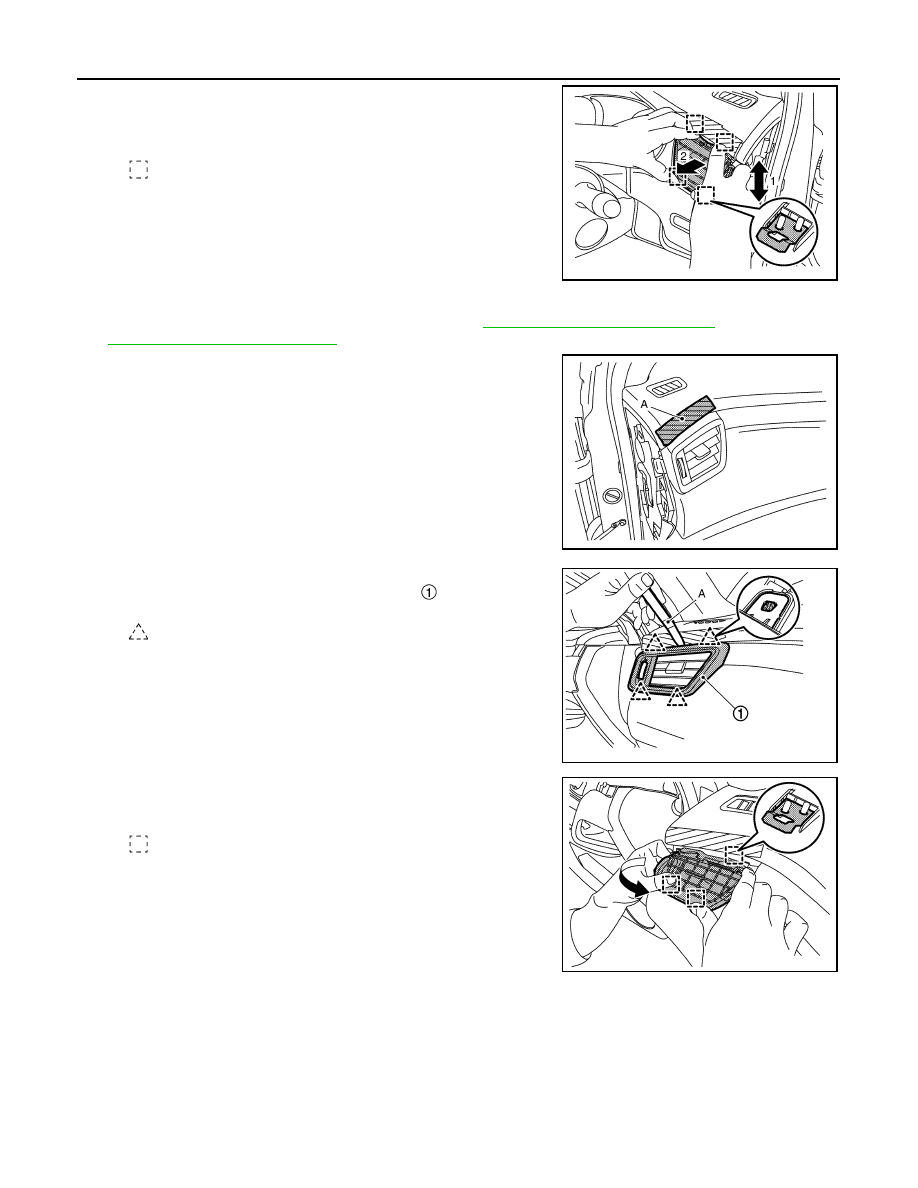

REMOVAL

Driver Side

1.

Remove instrument mask (driver side). Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

3.

Disengage fixing pawls using a remover tool (A), and then
remove side ventilator grille (finisher portion)

.

: Pawl

: Metal clip

JMIIA3417ZZ

JMIIA3343ZZ

: Pawl

JMIIA3374ZZ

VTL-10

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

4.

Disengage fixing metal clips, and then remove side ventilator
grille (case portion) according to numerical order 1

→

2 indicated

by arrows as shown in the figure.

Passenger Side

1.

Remove instrument mask (passenger side). Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

2.

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

3.

Disengage fixing pawls using a remover tool (A), and then
remove side ventilator grille (finisher portion)

.

4.

Disengage fixing metal clips, and then remove side ventilator
grille (case portion) by arrows as shown in the figure.

INSTALLATION

Install in the reverse order of removal.

CENTER VENTILATOR DUCT

CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000010981805

REMOVAL

: Metal clip

JMIIA3375ZZ

JMIIA3342ZZ

: Pawl

JMIIA3378ZZ

: Metal clip

JMIIA3379ZZ

DUCT AND GRILLE

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

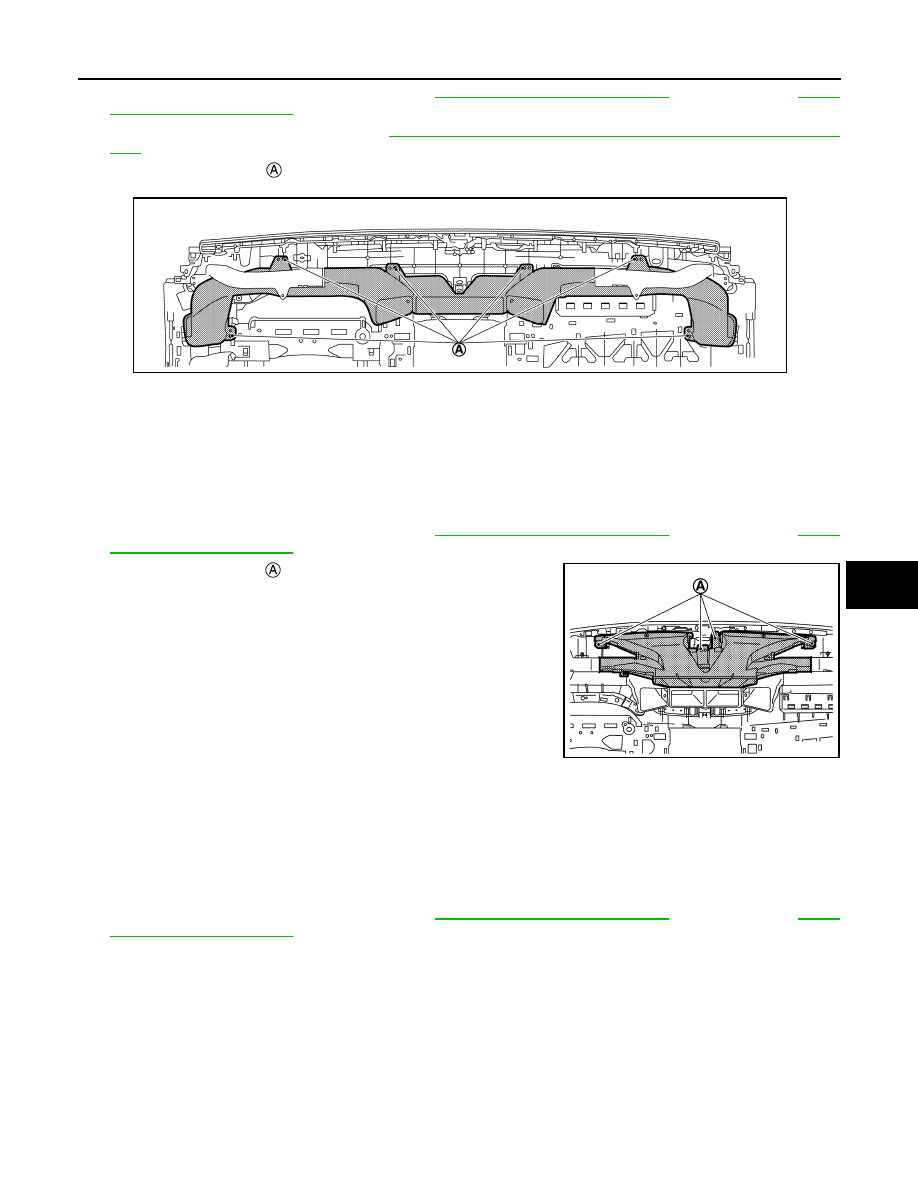

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Remove front defroster nozzle. Refer to

VTL-11, "FRONT DEFROSTER NOZZLE : Removal and Installa-

tion"

.

3.

Remove fixing screws

, and then remove center ventilator duct assembly from instrument panel assem-

bly.

INSTALLATION

Install in the reverse order of removal.

FRONT DEFROSTER NOZZLE

FRONT DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000010981806

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Remove fixing screws

, and then remove center defroster noz-

zle from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER NOZZLE

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000010981807

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).
