CVT FLUID COOLER SYSTEM

CVT FLUID COOLER SYSTEM

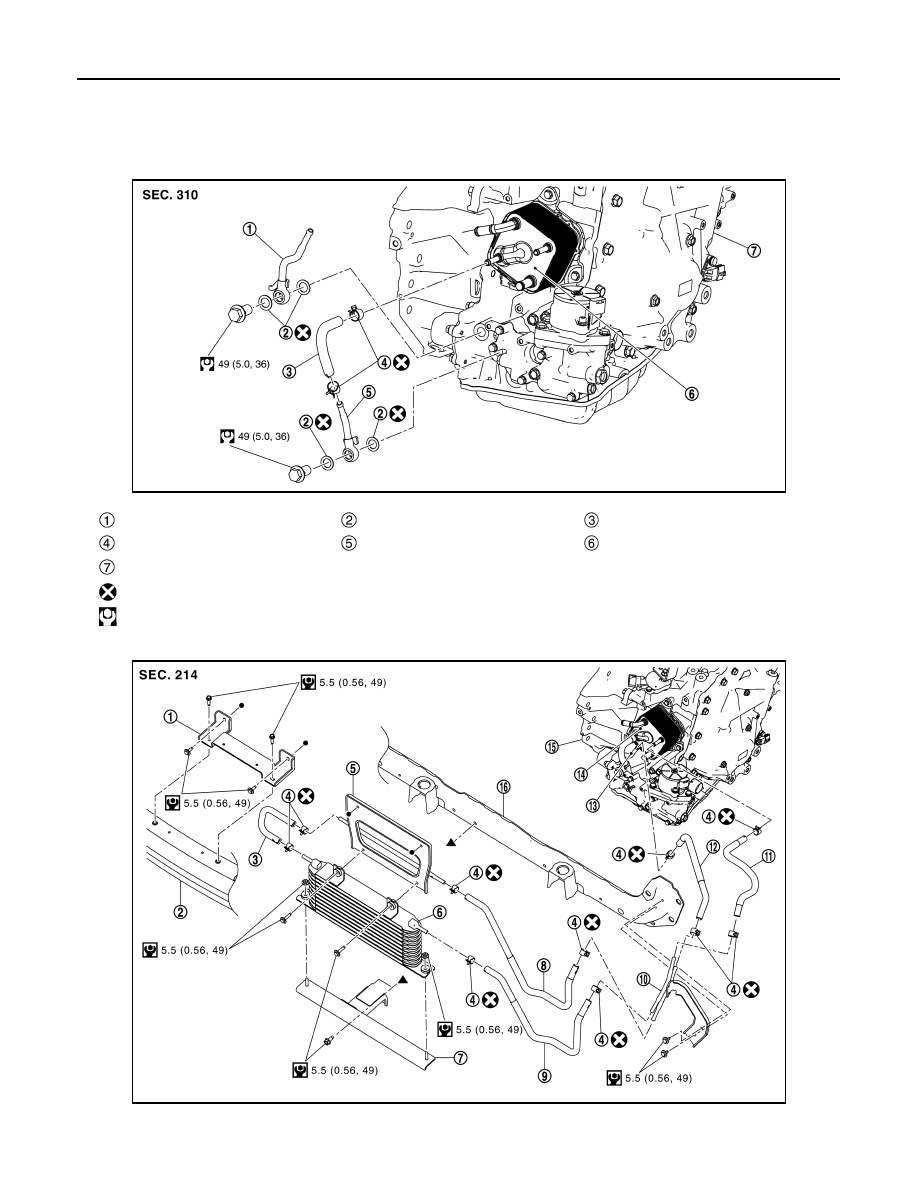

Exploded View

INFOID:0000000010622910

Transaxle side

Vehicle side

JSDIA5222GB

Fluid cooler tube A

Copper washer

Fluid cooler hose A

Hose clamp

Fluid cooler tube B

CVT oil warmer

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA6024GB

CVT FLUID COOLER SYSTEM

TM-695

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Removal and Installation

INFOID:0000000010622911

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

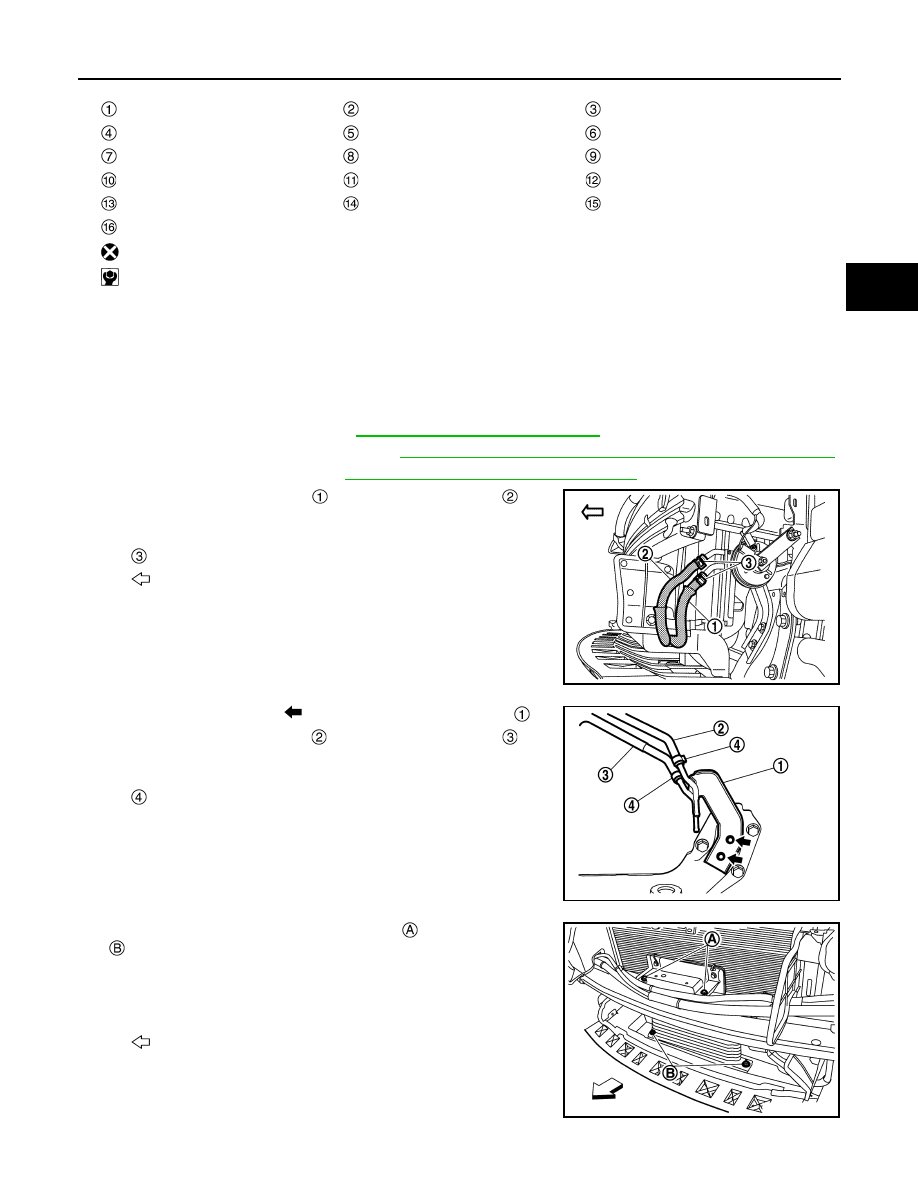

1.

Remove the front bumper. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove the engine under cover. Refer to

EXT-40, "ENGINE UNDER COVER : Removal and Installation"

.

3.

Remove the battery tray. Refer to

PG-143, "R9M : Removal and Installation"

.

4.

Remove fluid cooler hose C

 and fluid cooler hose E

 from

fluid cooler tube assembly.

5.

Remove mounting bolts (

) of fluid cooler tube assembly

.

6.

Remove fluid cooler hose F

 and fluid cooler hose B

 from

fluid cooler tube assembly.

7.

Remove CVT fluid cooler mounting bolts

 and mounting nuts

 and take out the CVT fluid cooler.

CAUTION:

Be careful not to damage the radiator fins while taking out
the CVT fluid cooler.

Bracket

Bumper reinforcement

Fluid cooler hose D

Hose clamp

Fluid cooler bracket (with tube)

CVT fluid cooler

Bracket

Fluid cooler hose C

Fluid cooler hose E

Fluid cooler tube assembly

Fluid cooler hose F

Fluid cooler hose B

Fluid cooler tube A

CVT oil warmer

Transaxle assembly

Bumper reinforcement lower

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Hose clamp

: Vehicle front

JSDIA5376ZZ

: Hose clamp

JSDIA6084ZZ

: Vehicle front

JSDIA5378ZZ

TM-696

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

CVT FLUID COOLER SYSTEM

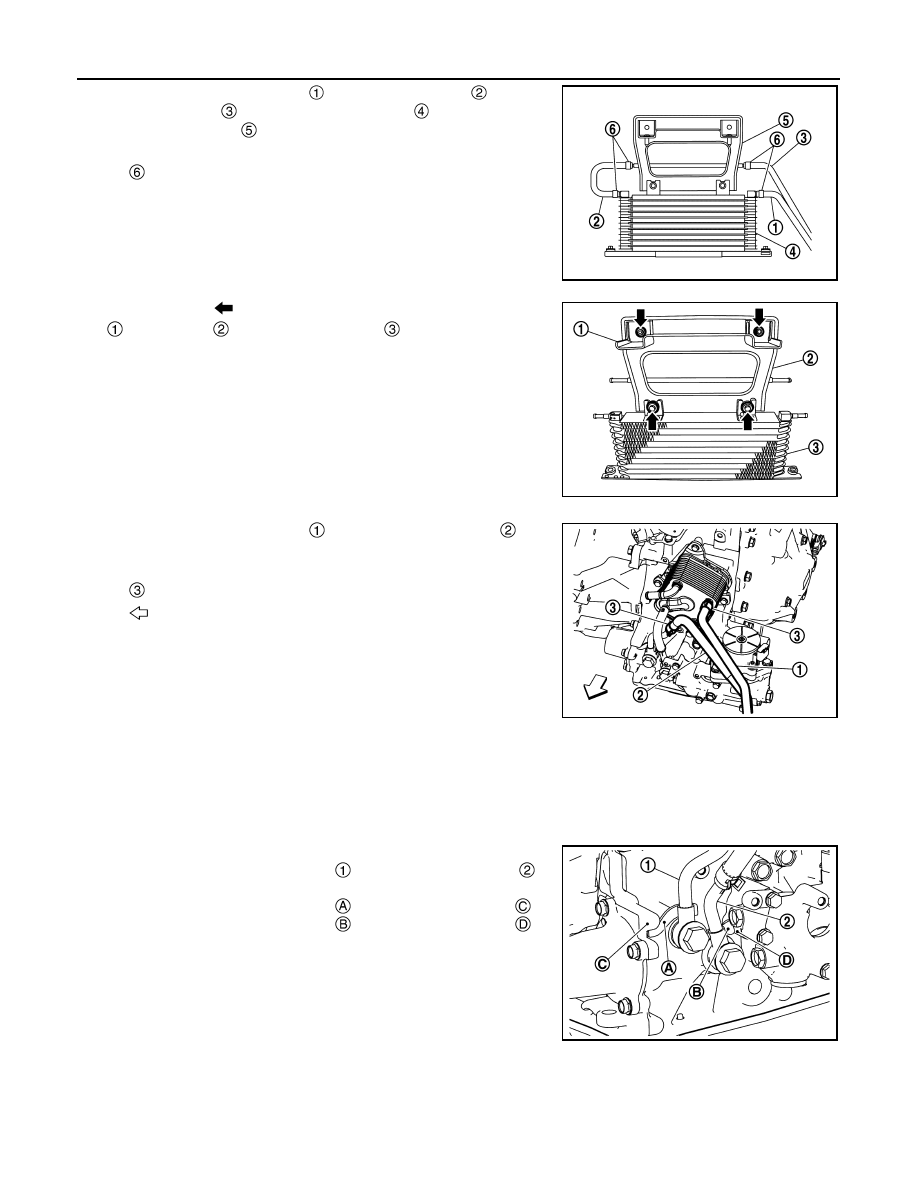

8.

Remove fluid cooler hose E

, fluid cooler hose D

 and fluid

cooler hose C

 from CVT fluid cooler

 and fluid cooler

bracket (with tube)

.

9.

Remove bolts (

) and separate fluid cooler bracket (with tube)

 and bracket

 from CVT fluid cooler

.

10. Remove fluid cooler hose F

 and fluid cooler hose B

 from

CVT oil warmer.

11. Remove fluid cooler tube A and fluid cooler tube B.

INSTALLATION

Note the followings and Installation is in the reverse order of removal.

CAUTION:

• Be careful not to damage CVT fluid cooler.
• Never reuse hose clamps.

Transaxle side

Refer to the followings when installing fluid cooler tubes.
• When installing fluid cooler tube A

 and fluid cooler tube B

 to

transaxle assembly.

- Contact fluid cooler tube A stopper

 to transaxle case boss

.

- Contact fluid cooler tube B stopper

 to transaxle case boss

.

• Refer to the followings when installing fluid cooler hose.

: Hose clamp

JSDIA5379ZZ

JSDIA5380ZZ

: Hose clamp

: Vehicle front

JSDIA6083ZZ

JSDIA5425ZZ

CVT FLUID COOLER SYSTEM

TM-697

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Vehicle side

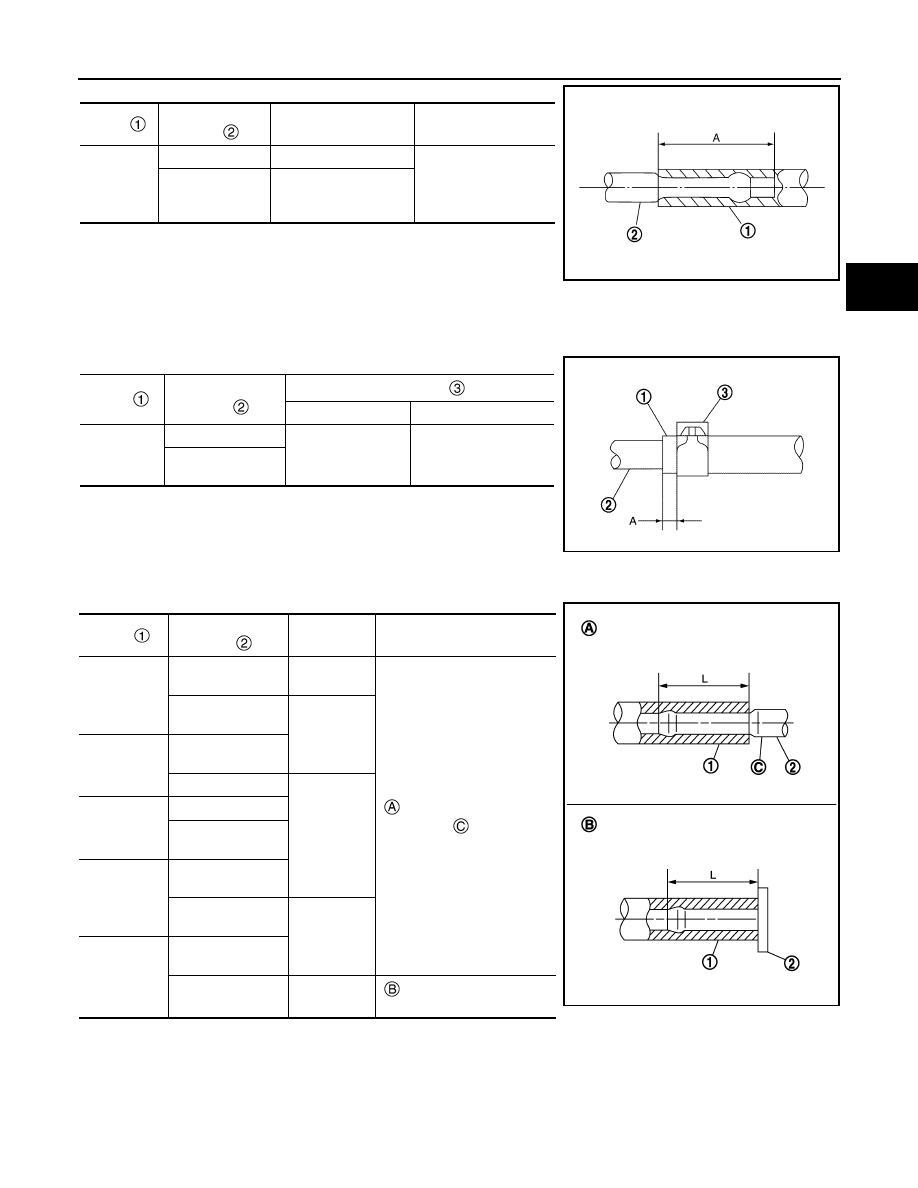

• Refer to the followings when installing fluid cooler hoses.

• Refer to the followings when installing hose clamps.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Hose

Installation side

tube

Direction of paint mark

Hose insertion depth

(A)

Fluid cooler
hose A

CVT oil warmer

Frontward

 Hose end reaches the
end of tube.

CVT fluid cooler
tube B

Align with the paint
marks on the CVT fluid
cooler tube B

SCIA7203E

Hose

Installation side

tube

Hose clamp

Direction of tab

Clamping position

Fluid cooler
hose A

CVT oil warmer

Frontward

5 – 9 mm (0.20 – 0.35
in) (A) from hose end

CVT fluid cooler
tube B

JSDIA2424ZZ

Hose

Installation side

tube

Direction of

paint mark

Hose insertion depth (L)

Fluid cooler
hose B

CVT fluid cooler
tube A

Frontward

: Hose end reaches the 2-

stage bulge

.

Fluid cooler tube
assembly

Leftward

Fluid cooler
hose C

Fluid cooler tube
assembly

CVT fluid cooler

Frontward

Fluid cooler
hose D

CVT fluid cooler

Fluid cooler brack-
et (with tube)

Fluid cooler
hose E

Fluid cooler brack-
et (with tube)

Fluid cooler tube
assembly

Leftward

Fluid cooler
hose F

Fluid cooler tube
assembly

CVT oil warmer

Upward

: Hose end reaches the end

of CVT oil warmer tube.

JSDIA1640ZZ
