Nissan X-Trail 32. Manual - part 2182

TM-686

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

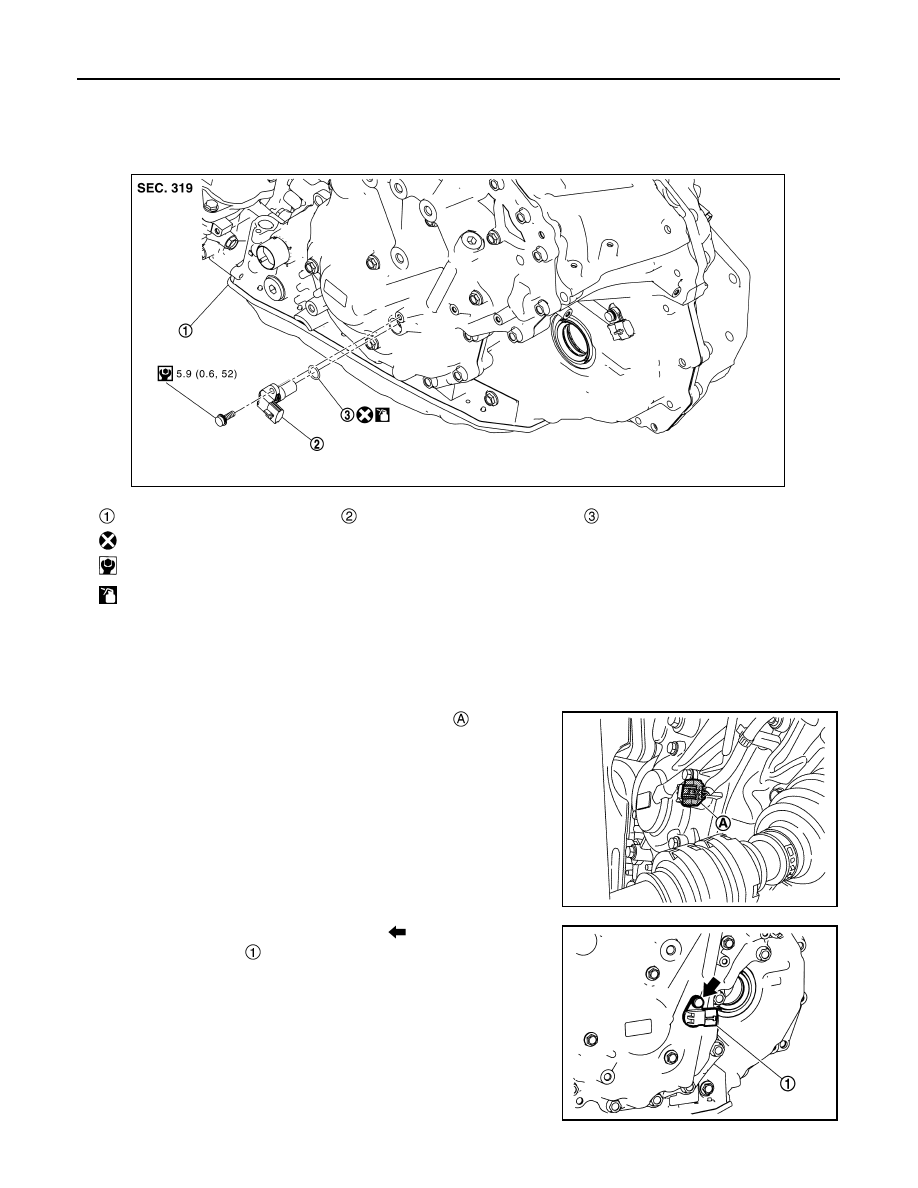

Exploded View

INFOID:0000000010622895

Removal and Installation

INFOID:0000000010622896

REMOVAL

1.

Turn ignition switch OFF.

2.

Disconnect the primary speed harness connector

.

3.

Remove the primary speed sensor bolt (

) and remove the pri-

mary speed sensor

.

Transaxle assembly

Primary speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5132GB

JSDIA5197ZZ

JSDIA5198ZZ

PRIMARY SPEED SENSOR

TM-687

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

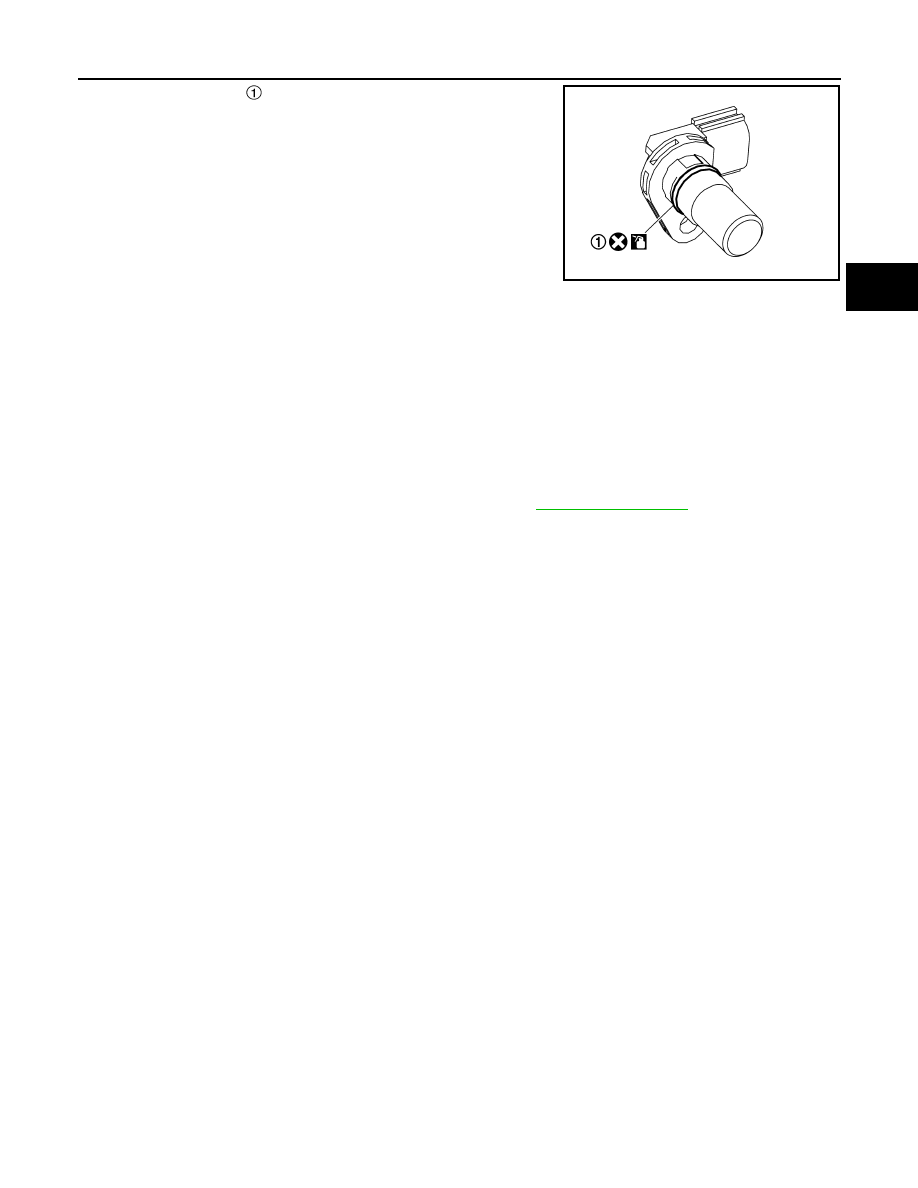

4.

Remove the O-ring

 from the primary speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010622897

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-665, "Adjustment"

.

JSDIA5199ZZ

TM-688

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

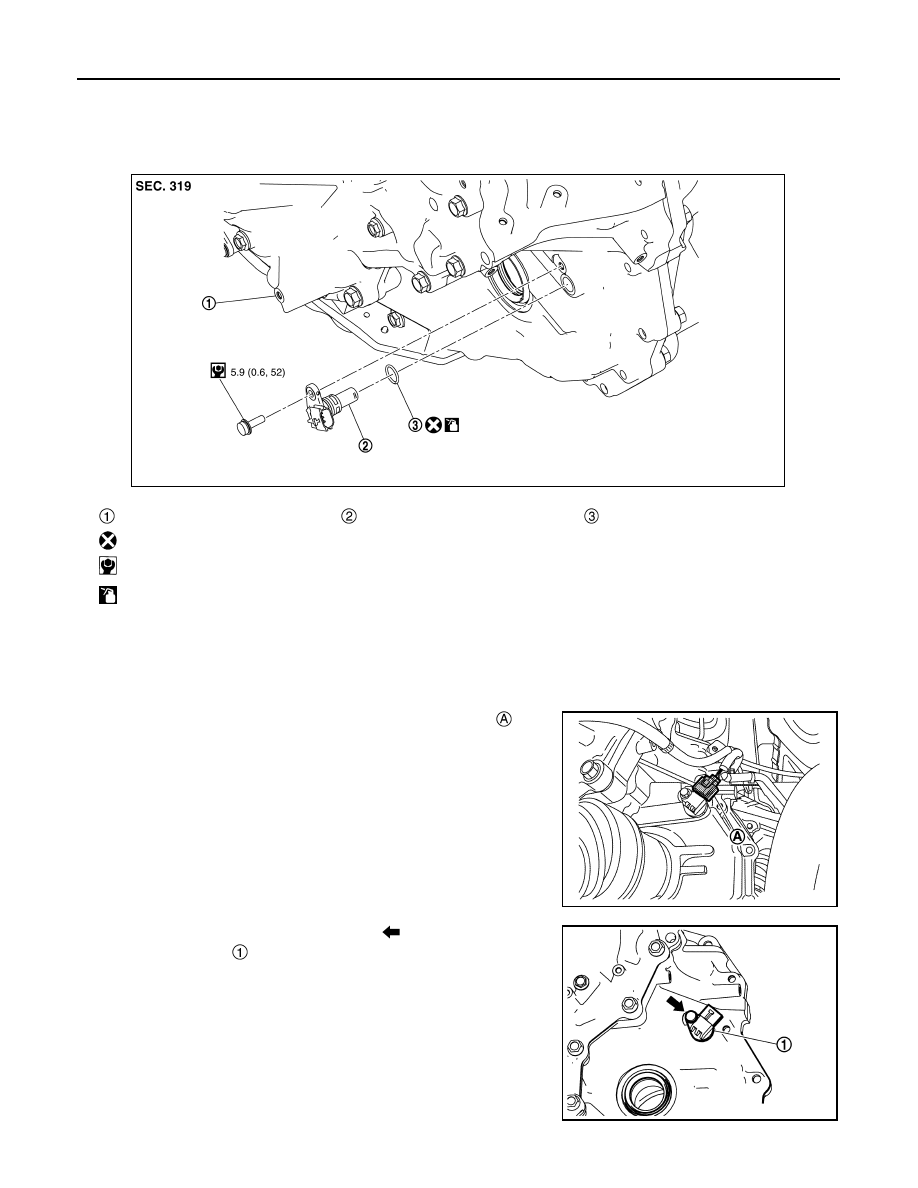

Exploded View

INFOID:0000000010622898

Removal and Installation

INFOID:0000000010622899

REMOVAL

1.

Turn ignition switch OFF.

2.

Disconnect the output speed sensor harness connector

.

3.

Remove the output speed sensor bolt (

) and remove the out-

put speed sensor

.

Transaxle assembly

Output speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5033GB

JSDIA5200ZZ

JSDIA5201ZZ

OUTPUT SPEED SENSOR

TM-689

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Remove the O-ring

 from the output speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010622900

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-665, "Adjustment"

.

JSDIA5199ZZ
