TM-266

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

SELECT CONTROL

SELECT CONTROL : System Description

INFOID:0000000010622457

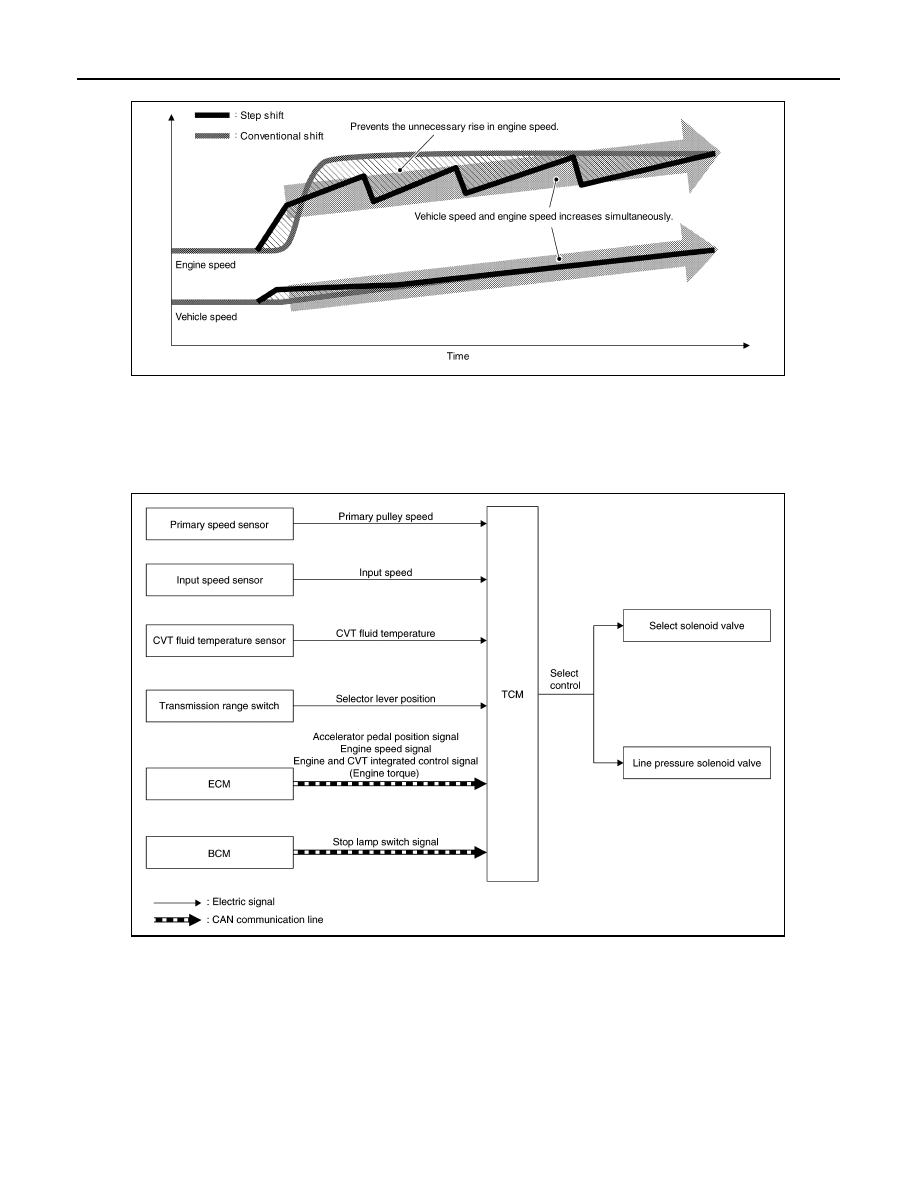

SYSTEM DIAGRAM

DESCRIPTION

Based on accelerator pedal angle, engine speed, primary pulley speed, and the input speed, the optimum
operating pressure is set to reduce impact of a selector lever operation while shifting from “N” (“P”) to “D” (“R”)
position.

LOCK-UP CONTROL

JSDIA5273GB

JSDIA3711GB

SYSTEM

TM-267

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

LOCK-UP CONTROL : System Description

INFOID:0000000010622458

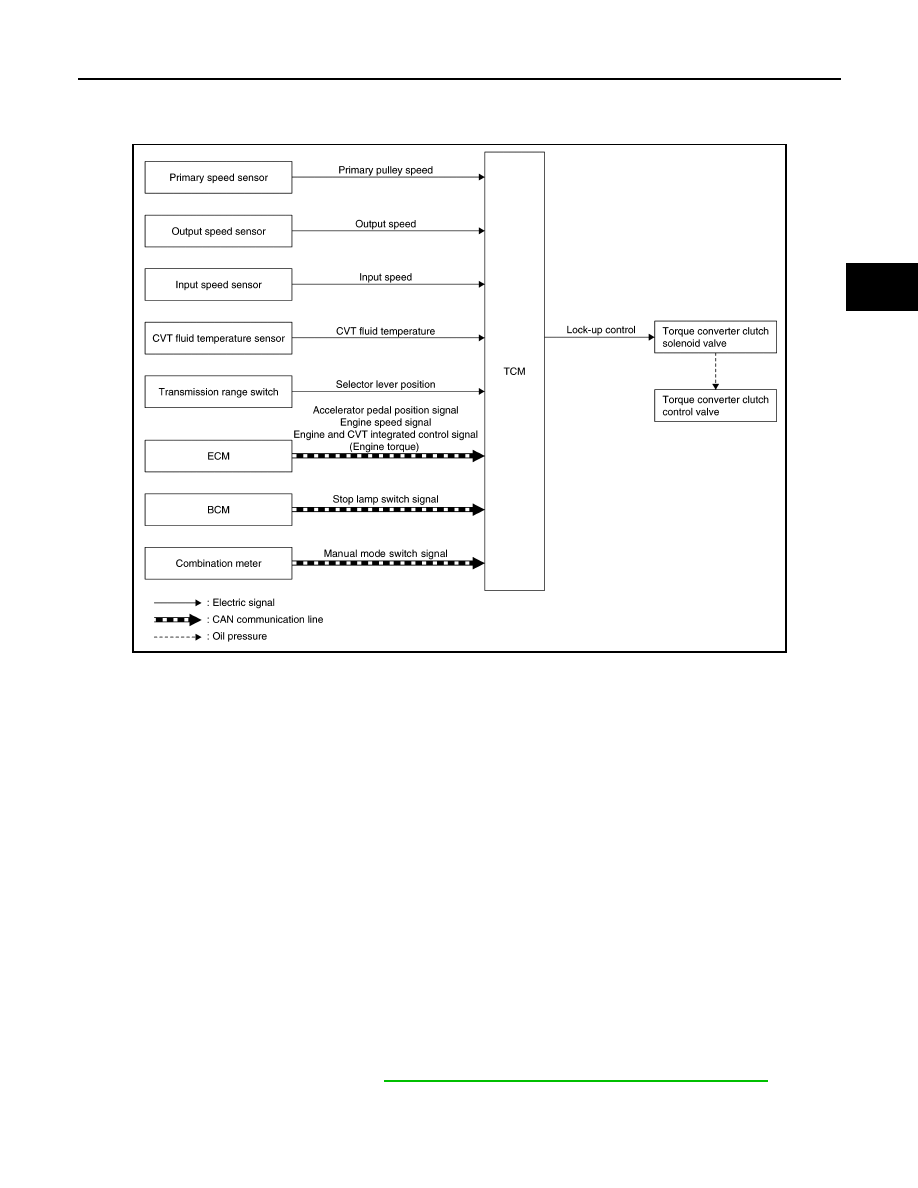

SYSTEM DIAGRAM

DESCRIPTION

• Controls for improvement of the transmission efficiency by engaging the torque converter clutch in the

torque converter and eliminating slip of the converter. Achieves comfortable driving with slip control of the
torque converter clutch.

• The oil pressure feed circuit for the torque converter clutch piston chamber is connected to the torque con-

verter clutch control valve. The torque converter clutch control valve is switched by the torque converter
clutch solenoid valve with the signal from TCM. This controls the oil pressure circuit, which is supplied to the
torque converter clutch piston chamber, to the release side or engagement side.

• If the CVT fluid temperature is low or the vehicle is in fail-safe mode due to malfunction, lock-up control is

prohibited.

Lock-up engagement

In lock-up engagement, the torque converter clutch solenoid valve makes the torque converter clutch control
valve locked up to generate the lock-up apply pressure. This pushes the torque converter clutch piston for
engagement.

Lock-up release condition

In lock-up release, the torque converter clutch solenoid valve makes the torque converter clutch control valve
non-locked up to drain the lock-up apply pressure. This does not engage the torque converter clutch piston.

ECO MODE SYSTEM

ECO MODE SYSTEM : System Description

INFOID:0000000010622459

• Driving mode that selects the shift schedule with priority on fuel economy which gives low engine revolution.
• For details on ECO mode control, refer to

DMS-7, "ECO MODE CONTROL : System Description"

.

• The gear shift line is not changed with the control mode change for the following conditions:
- When the selector lever is in “M” position.

FAIL-SAFE

JSDIA5314GB

TM-268

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

If a malfunction occurs in the system of CVT during ECO mode, the ECO mode indicator turns OFF and the
control switches to the normal mode control.

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Shift Position Indicator

INFOID:0000000010622460

PURPOSE

The shift position indicator displays the shift position of transmission.

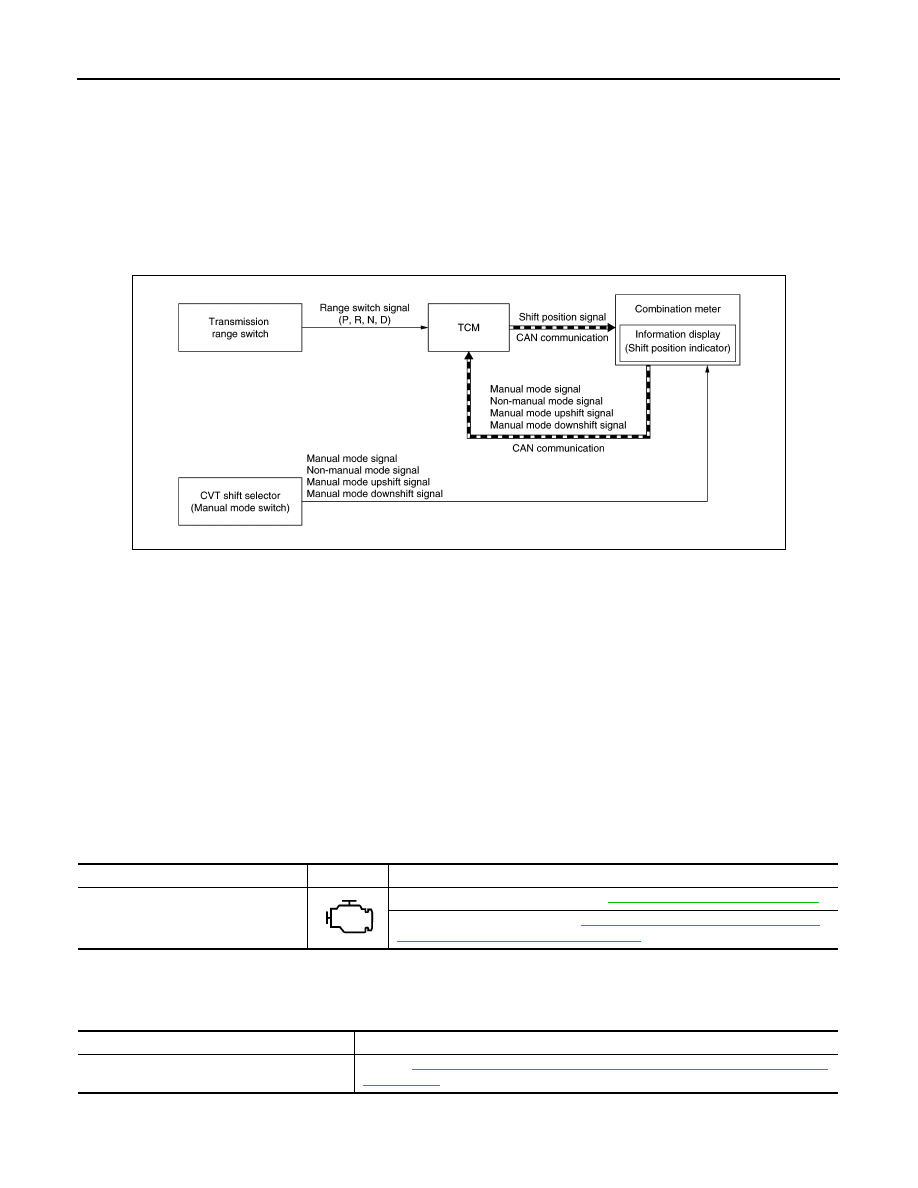

SYSTEM DIAGRAM

NOTE:
Paddle shifter is applied to vehicle with paddle shifter.

SIGNAL PATH

• The TCM judges the shift position by the transmission range switch signal, manual mode switch signal, non-

manual mode switch signal, manual mode upshift signal, and manual mode downshift signal.

• The TCM transmits the shift position signal to the combination meter via CAN communication. The combina-

tion meter shows the shift position indicator on the information display, according to the signal.

LIGHTING CONDITION

Ignition switch: ON

SHUTOFF CONDITION

Ignition switch: Other than ON

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010622461

WARNING/INDICATOR/CHIME LIST : Warning/Indicator (On Information Display)

INFOID:0000000010622462

JSDIA6078GB

Name

Design

Arrangement/Function

Malfunction indicator lamp (MIL)

Regarding the arrangement. Refer to

MWI-10, "METER SYSTEM : Design"

.

Regarding the function. Refer to

MWI-50, "WARNING LAMPS/INDICATOR

LAMPS : Malfunction Indicator Lamp (MIL)"

.

Item

Reference

Shift position indicator

Refer to

TM-268, "INFORMATION DISPLAY (COMBINATION METER) : Shift Posi-

tion Indicator"

.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

TM-269

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Description

INFOID:0000000010622463

This system is an on board diagnostic system that records exhaust emission-related diagnostic information
and detects a sensors/actuator-related malfunction. A malfunction is indicated by the malfunction indicator
lamp (MIL) and stored in ECU memory as a DTC. The diagnostic information can be obtained with the diag-
nostic tool (GST: Generic Scan Tool).

GST (Generic Scan Tool)

INFOID:0000000010622464

When GST is connected with a data link connector equipped on the vehicle side, it will communicate with the
control module equipped in the vehicle and then enable various kinds of diagnostic tests. Refer to

GI-52,

"Description"

.

NOTE:
Service $0A is not applied for regions where it is not mandated.
