TM-230

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for TCM and Transaxle Assembly Replacement

INFOID:0000000010622418

CAUTION:

• To replace TCM, refer to

TM-301, "Description"

.

• To replace transaxle assembly, refer to

TM-303, "Description"

.

• To replace TCM and transaxle assembly simultaneously, refer to

TM-305, "Description"

.

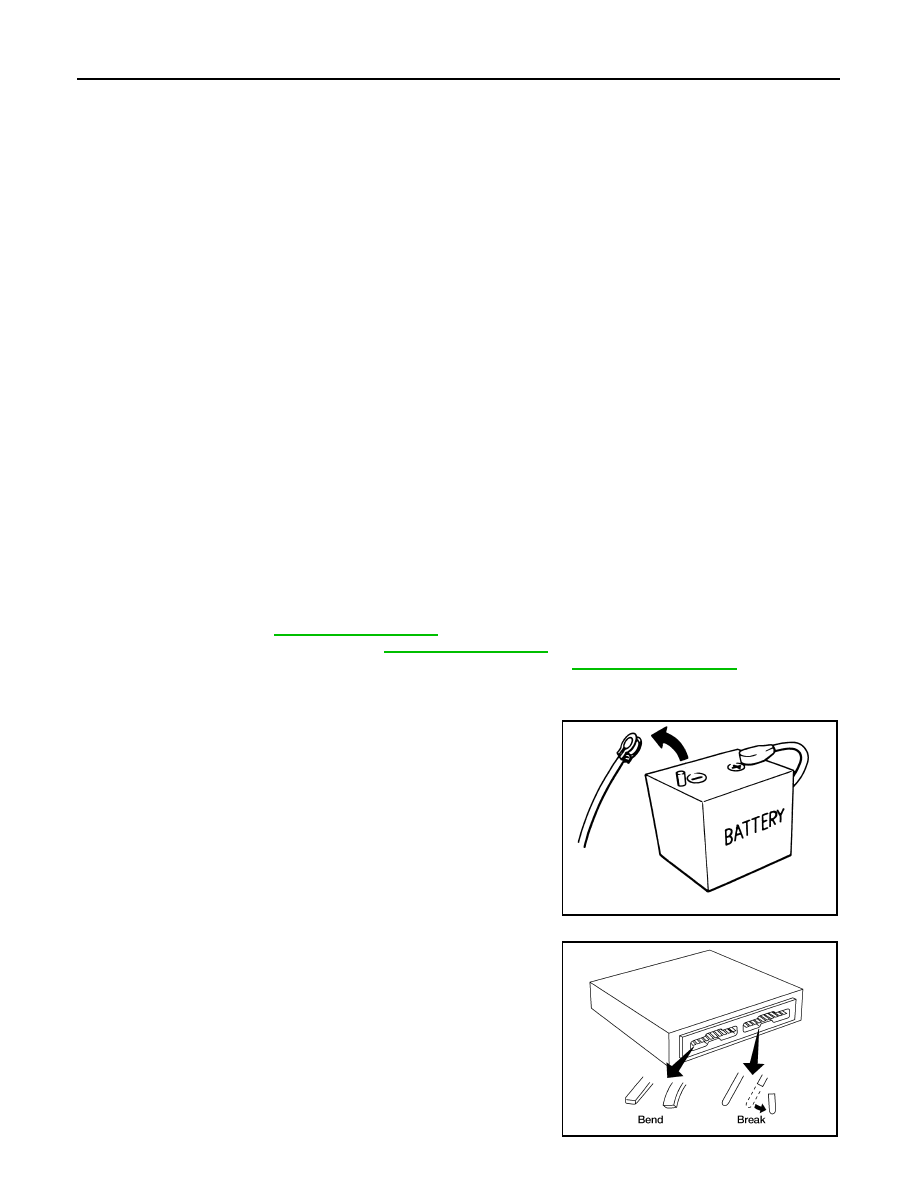

General Precautions

INFOID:0000000010622419

• Turn ignition switch OFF and disconnect the battery cable

from the negative terminal before connecting or disconnect-
ing the CVT assembly harness connector. Because battery
voltage is applied to TCM even if ignition switch is turned
OFF.

• When connecting or disconnecting pin connectors into or

from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connecting pin connectors.

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SEF289H

AAT470A

PRECAUTIONS

TM-231

< PRECAUTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

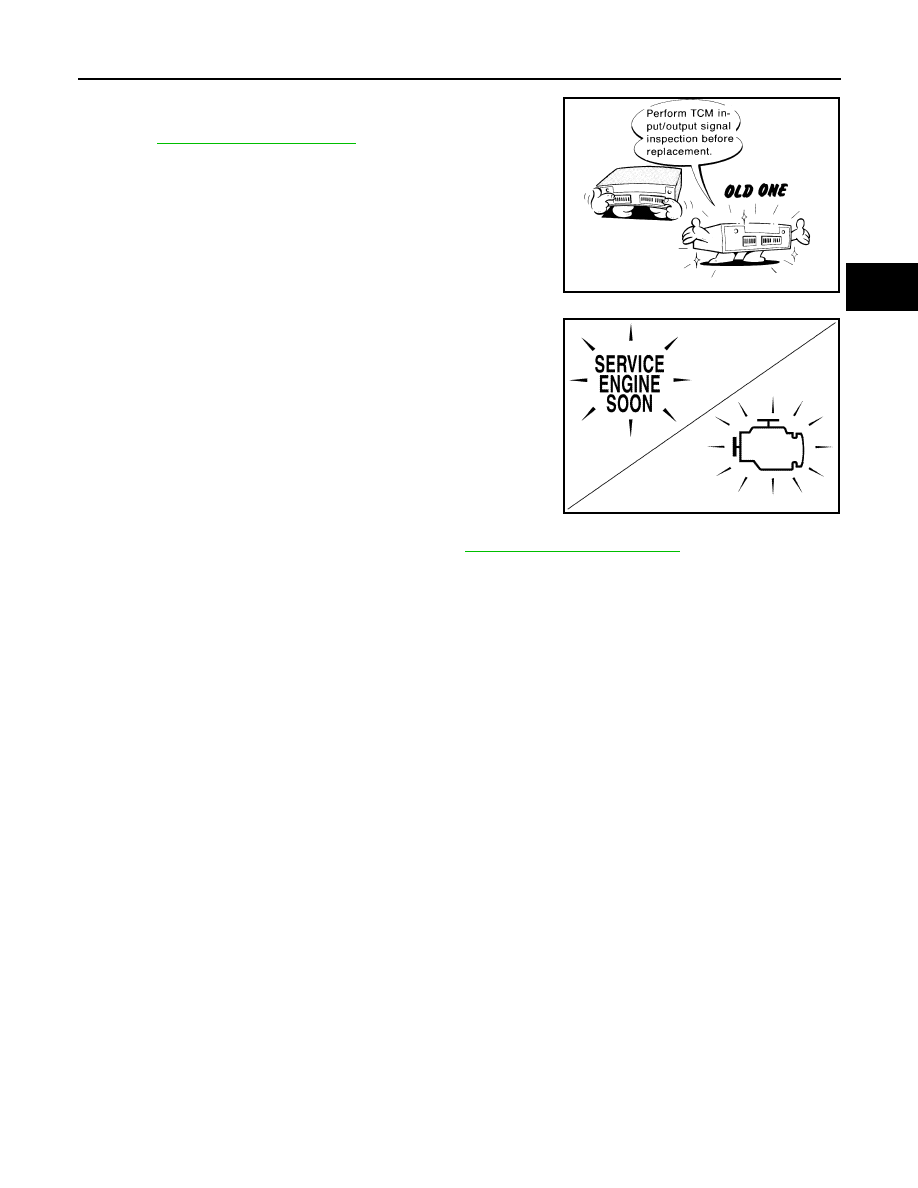

• Perform TCM input/output signal inspection and check

whether TCM functions normally or not before replacing TCM.
Refer to

TM-277, "Reference Value"

.

• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION

PROCEDURE”.
If the repair is completed DTC should not be displayed in the
“DTC CONFIRMATION PROCEDURE”.

• Always use the specified brand of CVT fluid. Refer to

MA-23, "Fluids and Lubricants"

.

• Use lint-free paper not cloth rags during work.
• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.

On Board Diagnosis (OBD) System of CVT and Engine

INFOID:0000000010622420

The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to
warn the driver of a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal

before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

• Be sure to route and secure the harnesses properly after work. Interference of the harness with a

bracket, etc. may cause the MIL to light up due to a short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and

ECM before returning the vehicle to the customer.

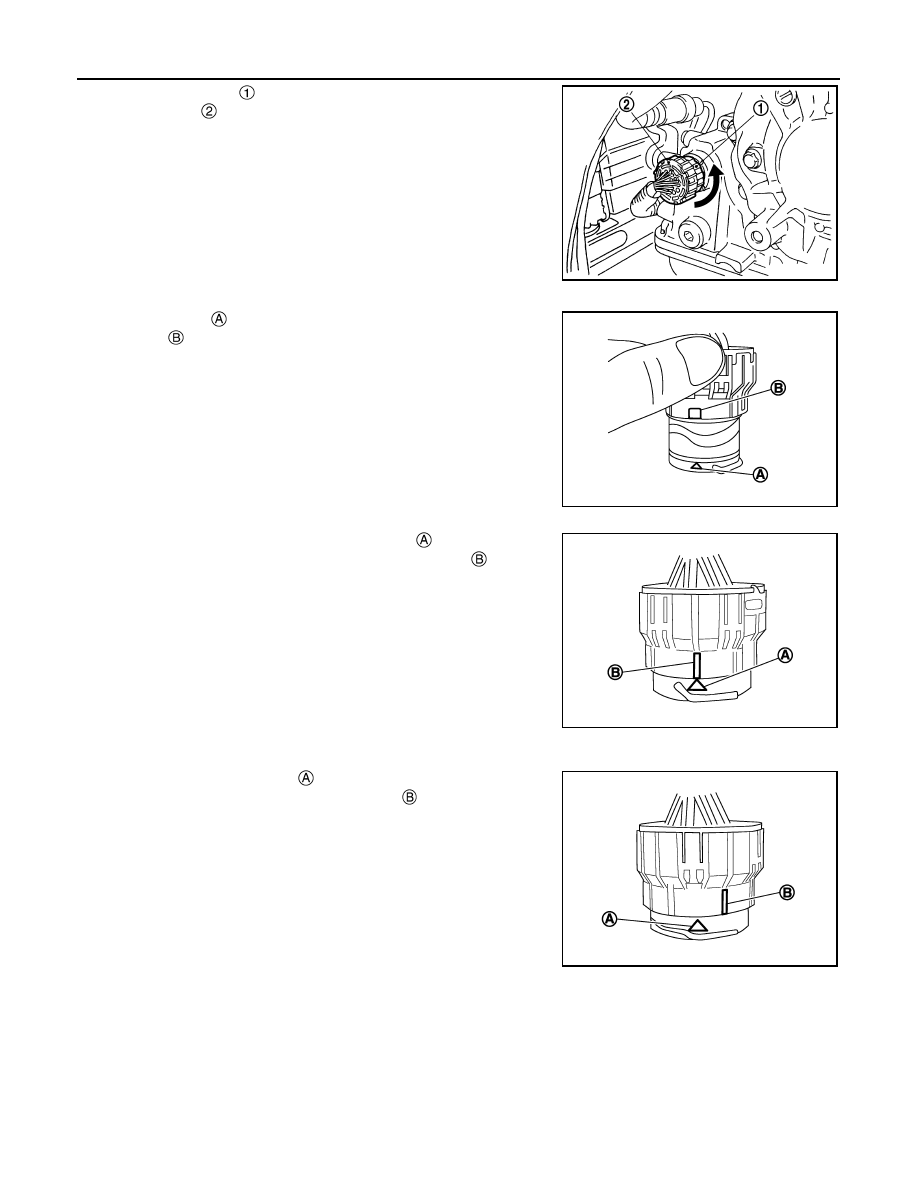

Removal and Installation Procedure for CVT Unit Connector

INFOID:0000000010622421

REMOVAL

MEF040DA

JSBIA1315ZZ

TM-232

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

• Rotate bayonet ring

 counterclockwise. Pull out CVT unit har-

ness connector

 upward and remove it.

INSTALLATION

1.

Align marking

 on CVT unit harness connector terminal with

marking

 on bayonet ring. Insert CVT unit harness connector.

2.

Rotate bayonet ring clockwise.

3.

Rotate bayonet ring clockwise until marking

 on CVT unit har-

ness connector terminal body is aligned with the slit

 on bayo-

net ring as shown in the figure (correctly fitting condition).

CAUTION:

• Securely align marking

 on CVT unit harness connector

terminal body with bayonet ring slit

. Then, be careful

not to make a half fit condition as shown in the figure.

• Never mistake the slit of bayonet ring for other dent por-

tion.

SCIA6685J

JPDIA0294ZZ

JPDIA0295ZZ

JPDIA0296ZZ

PREPARATION

TM-233

< PREPARATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

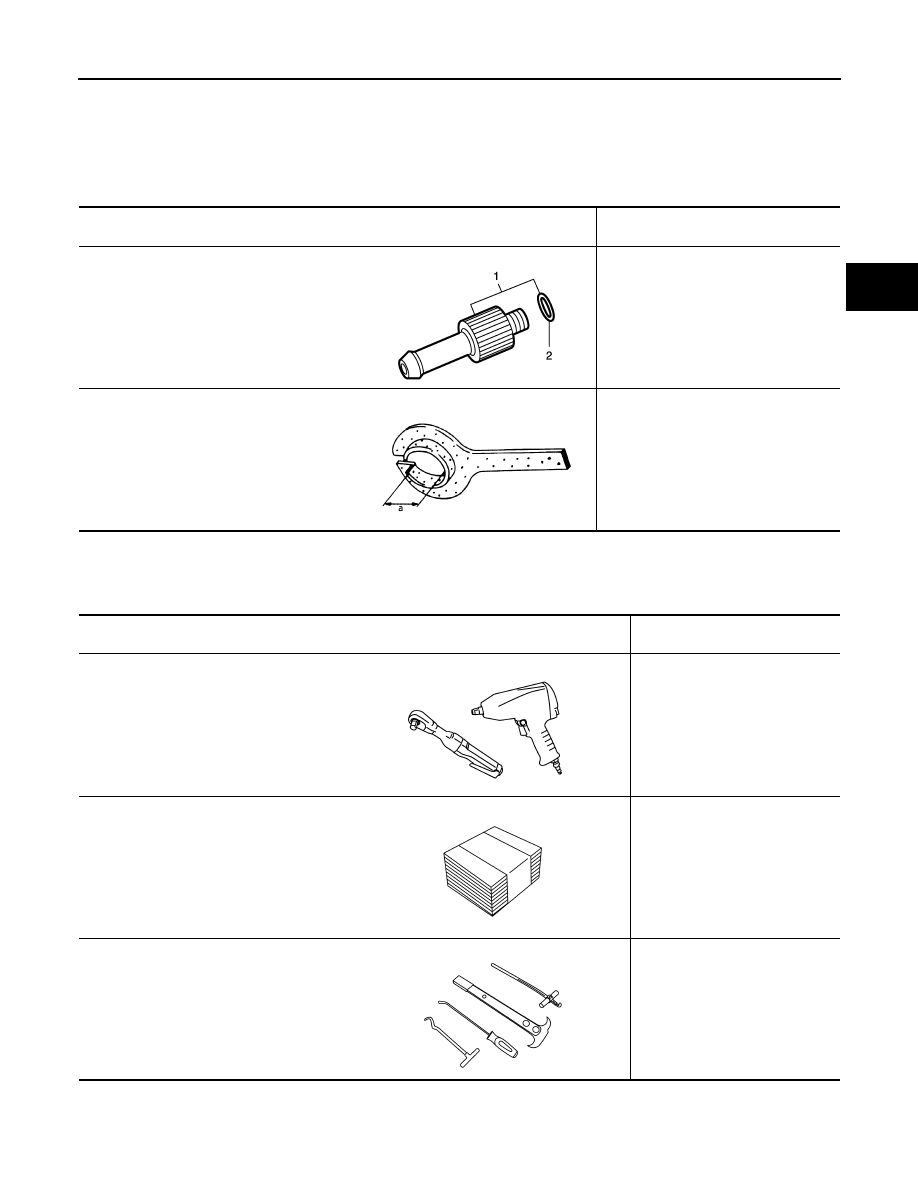

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010622422

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

INFOID:0000000010622423

Tool number
Tool name

Description

1.

KV311039S0
Charging pipe set

2.

KV31103920*
O-ring

CVT fluid changing and adjustment

KV38107900
Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

JSDIA1844ZZ

PDIA1183J

Tool number
Tool name

Description

Power tool

Loosening nuts and bolts

Lint-free paper

Cleaning transaxle

Oil seal remover

Removing each oil seal

PBIC0190E

JSDIA4746ZZ

JSDIA4998ZZ
