[6MT: RS6F52A]

FINAL DRIVE

Gear, Washer, Shaft, and Case

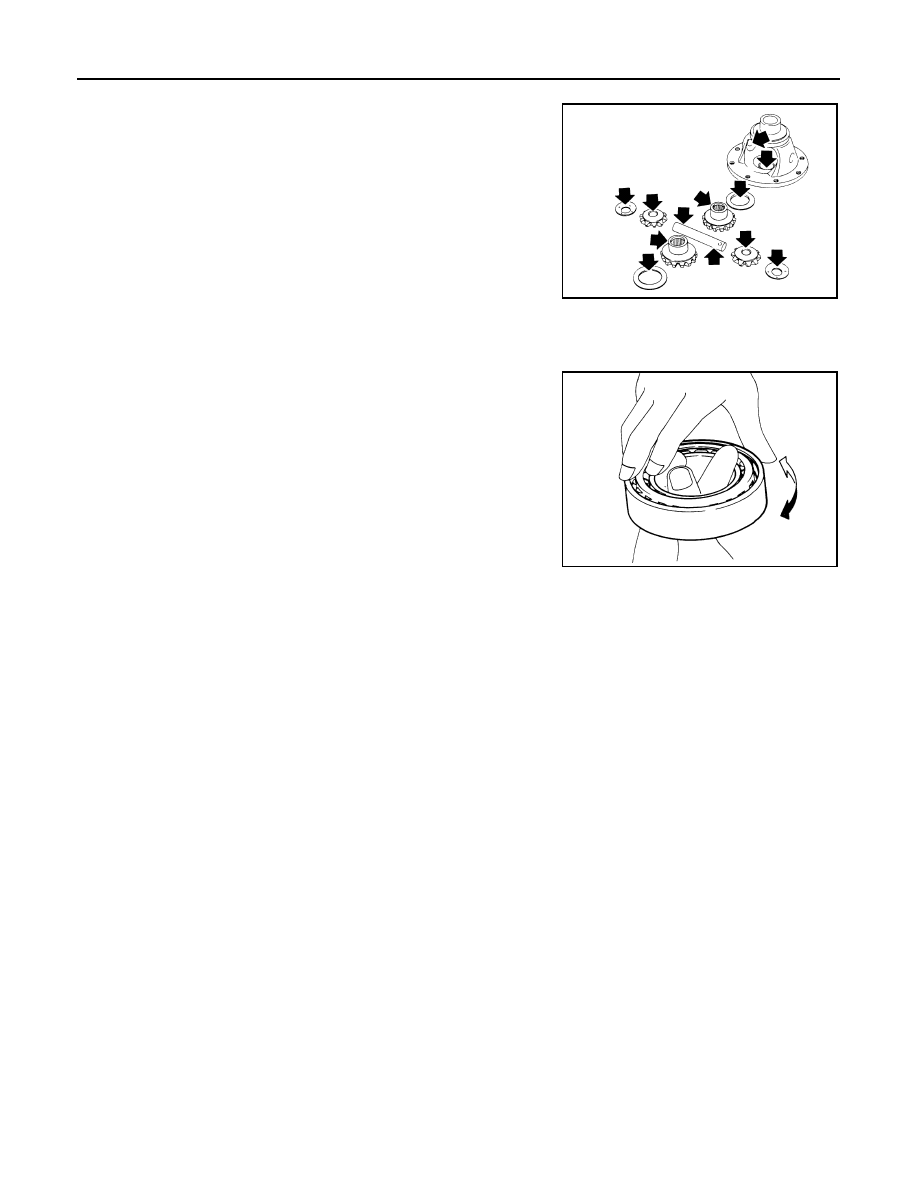

Check side gears, side gear thrust washers, pinion mate shaft, pin-
ion mate gears, pinion mate thrust washers and differential case. If
necessary, replace with a new one.

Output Gear and Reduction Gear

Check output gear and reduction gear. If necessary, replace with a new one.

Bearing

Check for bearings damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

MTK0135D

SPD715

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-223

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010921117

Applied model

Axle

2WD

4WD

Engine

R9M

Transaxle model

RS6F52A

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.043

3rd

1.322

4th

0.947

5th

0.723

6th

0.596

Reverse

3.641

Final gear

4.428

Number of teeth

Input gear

1st

11

2nd

23

3rd

31

4th

38

5th

47

6th

52

Reverse

11

Main gear

1st

41

2nd

47

3rd

41

4th

36

5th

34

6th

31

Reverse

39

Reverse idler gear

Front/Rear (Input/Output)

37/38

Final gear

Final gear/Pinion

62/14

Side gear/Pinion mate gear

13/10

Oil level

43.0 – 48.0 mm

(1.693 – 1.890 in)

87.0 – 92.0 mm

(3.425 – 3.622 in)

Oil capacity (Reference)

Refer to

MA-23, "Fluids and Lubricants"

.

PCIB1769E

TM-224

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

SERVICE DATA AND SPECIFICATIONS (SDS)

End Play

INFOID:0000000010919435

Unit: mm (in)

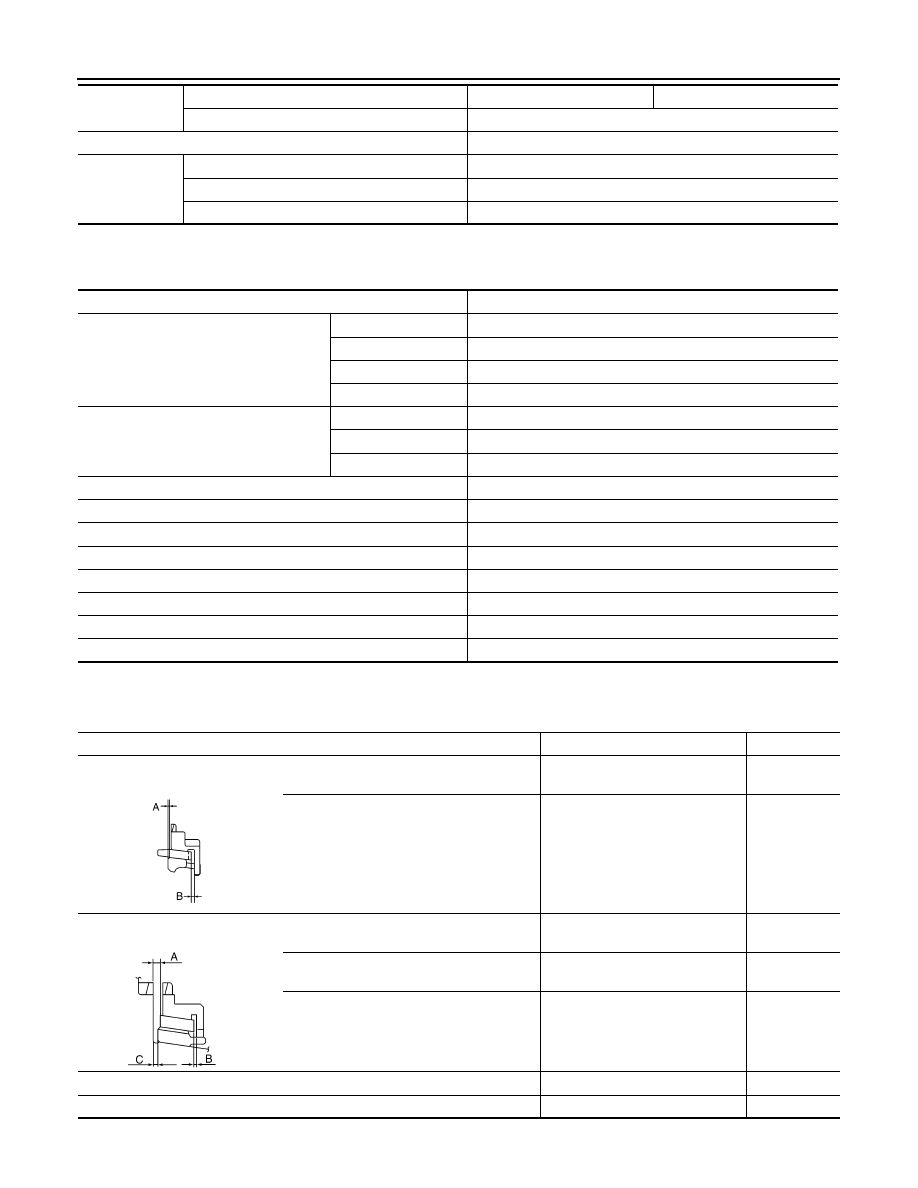

Baulk Ring Clearance

INFOID:0000000010919436

Unit: mm (in)

Remarks

Reverse synchronizer

Installed

Double-cone synchronizer

3rd

Triple-cone synchronizer

1st and 2nd

Applied model

Axle

2WD

4WD

Engine

R9M

Transaxle model

RS6F52A

Item

Standard

Input gear

3rd

0.18 – 0.31 (0.0071 – 0.0122)

4th

0.20 – 0.30 (0.0079 – 0.0118)

5th

0.06 – 0.16 (0.0024 – 0.0063)

6th

0.06 – 0.16 (0.0024 – 0.0063)

Main gear

1st

0.20 – 0.30 (0.0079 – 0.0118)

2nd

0.06 – 0.16 (0.0024 – 0.0063)

6th

0 – 0.1 (0 – 0.004)

Reverse idler gear

0.04 – 0.10 (0.0016 – 0.0039)

6th input gear bushing

0 – 0.1 (0 – 0.004)

Input shaft

0 – 0.06 (0 – 0.0024)

Mainshaft

0 – 0.06 (0 – 0.0024)

Mainshaft C-ring

0 – 0.06 (0 – 0.0024)

Striking rod

0.05 – 0.152 (0.0020 – 0.0060)

Output gear bearing (For 4WD only)

0 – 0.06 (0 – 0.0024)

Output gear assembly (For 4WD only)

0 – 0.06 (0 – 0.0024)

Measurement point

Standard

Limit

3rd
(Double-cone synchronizer)

Clearance (A) between synchronizer cone
and inner baulk ring end face

0.6 – 0.8 (0.024 – 0.031)

0.2 (0.008)

Clearance (B) between outer baulk ring
pawl and synchronizer cone

0.6 – 1.1 (0.024 –0.043)

0.2 (0.008)

1st and 2nd
(Triple-cone synchronizer)

Clearance (A) between synchronizer cone
and clutch gear end face

0.6 – 1.2 (0.024 – 0.047)

0.3 (0.012)

Clearance (B) between outer baulk ring
pawl and synchronizer cone

0.6 – 1.1 (0.024 – 0.043)

0.2 (0.008)

Clearance (C) between inner baulk ring and
clutch gear end face

0.7 – 1.1 (0.028 – 0.043)

0.3 (0.012)

4th

0.9 – 1.45 (0.035 – 0.057)

0.7 (0.028)

5th

0.95 – 1.4 (0.037 – 0.055)

0.7 (0.028)

PCIB0249E

PCIB0835J

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-225

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

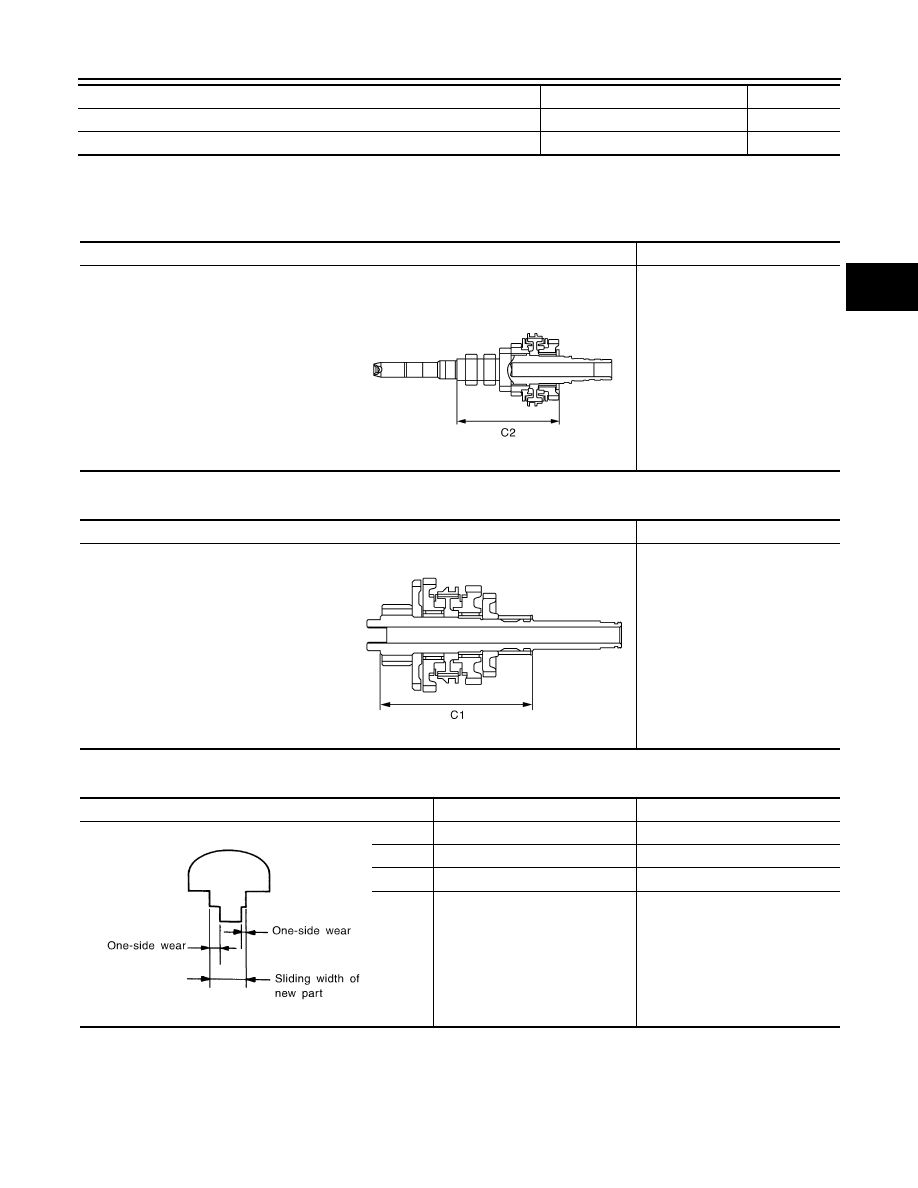

Dimension

INFOID:0000000010919437

INPUT SHAFT

Unit: mm (in)

MAINSHAFT

Unit: mm (in)

SHIFT FORK

Unit: mm (in)

6th

0.95 – 1.4 (0.037 – 0.055)

0.7 (0.028)

Reverse

0.95 – 1.4 (0.037 – 0.055)

0.7 (0.028)

Measurement point

Standard

Limit

Measurement point

Standard

Dimension (C2) between mounting face of
input shaft front bearing and thrust washer
end face

161.8 – 161.9 (6.370 – 6.374)

JPDIC0364ZZ

Measurement point

Standard

Dimension (C1) between mounting face of
mainshaft front bearing and 4th main gear
adjusting shim end face

182.85 – 182.95 (7.199 – 7.203)

JPDIC0363ZZ

Measurement point

One-side wear specification

Sliding width of new part

1st-2nd

0.2 (0.008)

7.80 – 7.93 (0.3071 – 0.3122)

3rd-4th

0.2 (0.008)

7.80 – 7.93 (0.3071 – 0.3122)

5th-6th

0.2 (0.008)

6.10 – 6.23 (0.2402 – 0.2453)

Reverse

0.2 (0.008)

12.80 – 12.93 (0.5039 – 0.5091)

SMT801D
