TM-214

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

FINAL DRIVE

4.

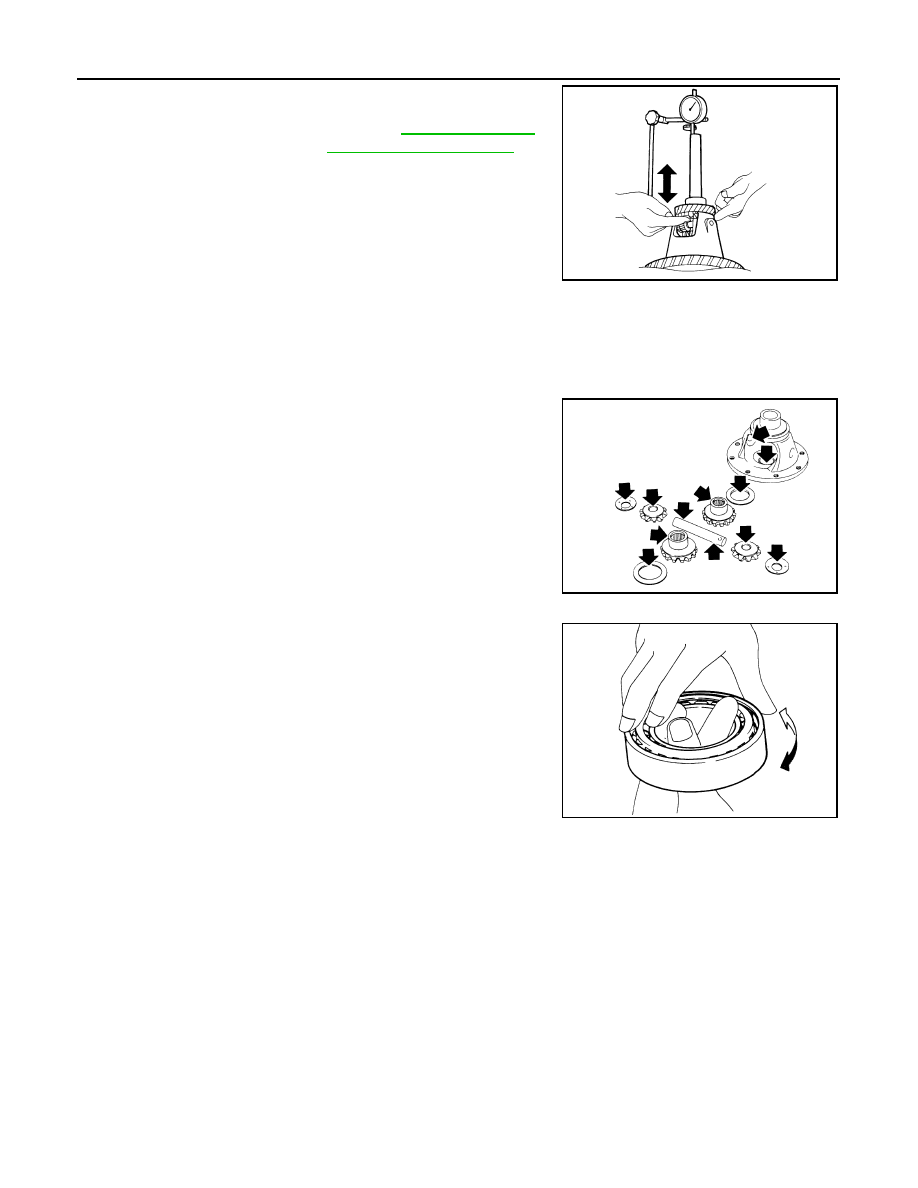

Move side gear up and down, and measure the clearance.

CAUTION:

There should be no resistance and gears should rotate
freely.

5.

If not within specification, adjust the clearance by changing side
gear thrust washer thickness. For selecting side gear thrust
washer, refer to the latest parts information.

6.

Turn differential case upside down and measure the clearance between side gear and differential case on
the other side in the same way.

INSPECTION AFTER DISASSEMBLY

Gear, Washer, Shaft, and Case

Check side gears, side gear thrust washers, pinion mate shaft, pin-
ion mate gears, pinion mate thrust washers and differential case. If
necessary, replace with a new one.

Bearing

Check for bearing damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

4WD

Allowable Clearance be-
tween side gear and dif-
ferential case with thrust
washer

: Refer to

TM-226, "Differen-

tial Side Gear Clearance"

.

SMT611A

MTK0135D

SPD715

FINAL DRIVE

TM-215

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

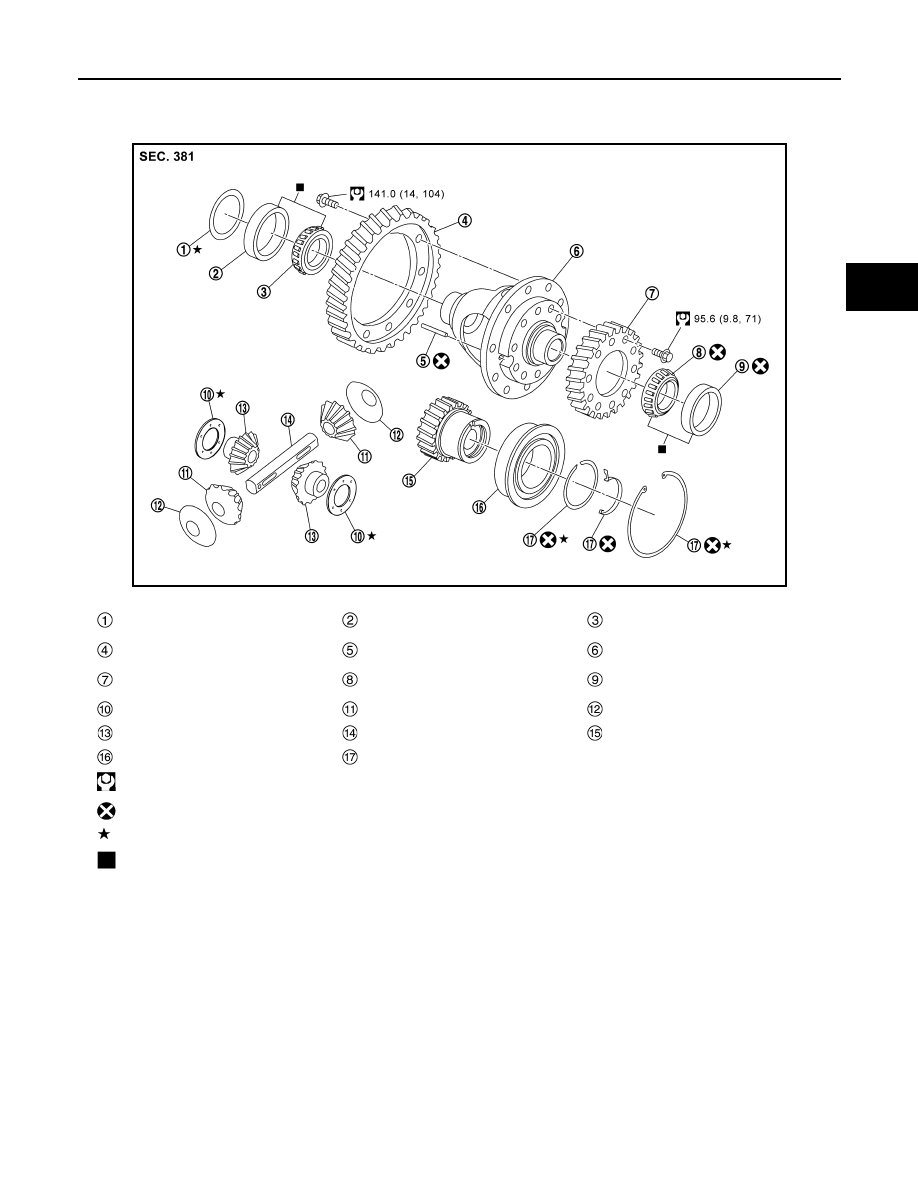

4WD : Exploded View

INFOID:0000000010957989

CAUTION:

Apply gear oil to gears, shafts, and bearings when assembly.

4WD : Disassembly and Assembly

INFOID:0000000010919427

DISASSEMBLY

Differential Case

1.

Remove final gear mounting bolts and then separate the final gear from differential case.

JSDIA6362GB

Differential side bearing adjusting
shim

Differential side bearing outer race
(transaxle case side)

Differential side bearing (transaxle
case side)

Final gear

Retaining pin

Differential case

Reduction gear

Differential side bearing (clutch hous-
ing side)

Differential side bearing outer race
(clutch housing side)

Side gear thrust washer

Pinion mate gear

Pinion mate thrust washer

Side gear

Pinion mate shaft

Output gear

Output gear bearing

Snap ring

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

TM-216

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

FINAL DRIVE

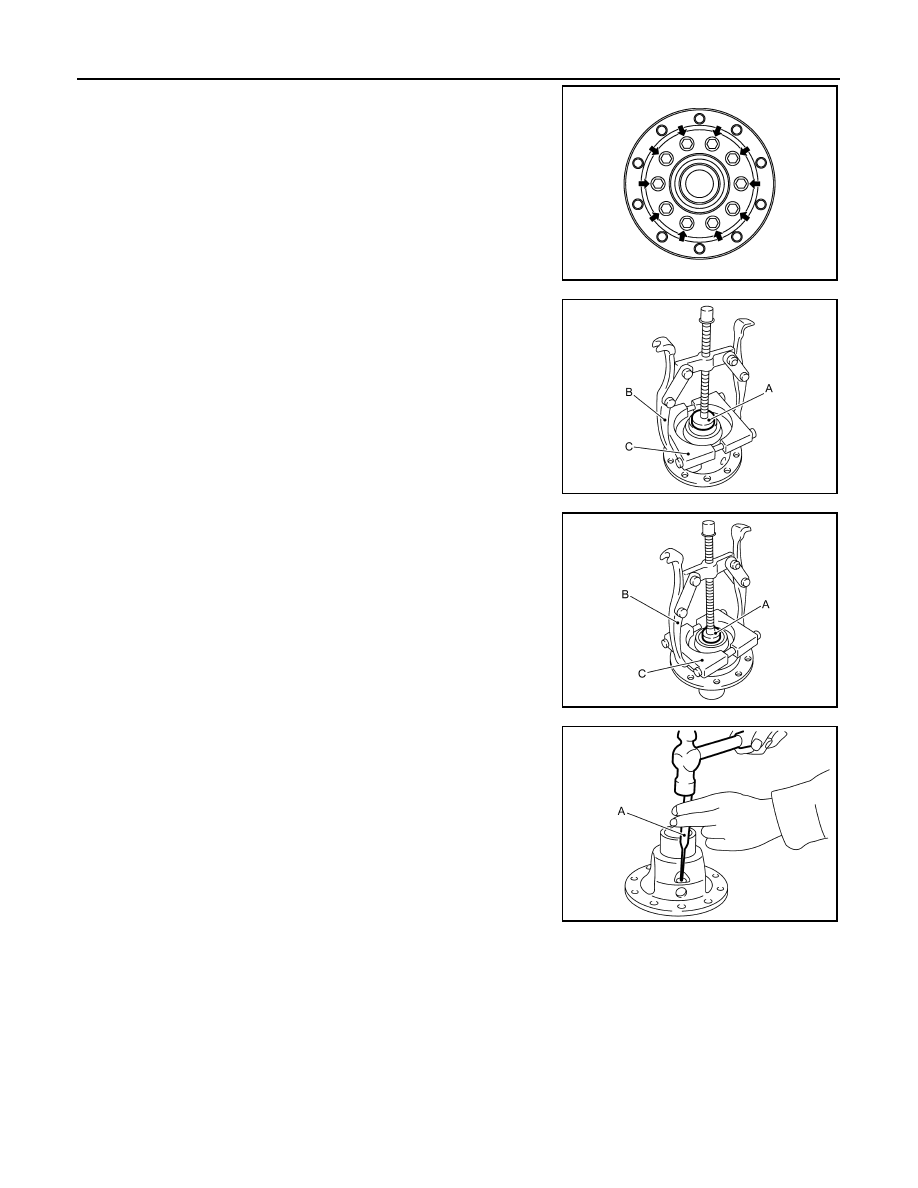

2.

Remove reduction gear mounting bolts.

3.

Remove differential side bearing (clutch housing side) using the
drift (A), puller (B), and separator (C).

CAUTION:

Hook a separator on the inner race of differential side bear-
ing.

4.

Remove reduction gear.

5.

Remove differential side bearing (transaxle case side) using drift
(A), puller (B), and separator (C).

CAUTION:

• Hook a separator on the inner race of differential side

bearing.

• Never damage differential side bearing.

6.

Remove retaining pin from differential case using a pin punch
(A) (commercial service tool) and then remove pinion mate
shaft.

7.

Rotate pinion mate gears and remove pinion mate gears, pinion
mate thrust washers, side gears, and side gear thrust washers
from differential case.

Output Gear

JPDIC0036ZZ

A

: Drift (SST: ST33061000)

B

: Puller (commercial service tool)

C

: Separator (commercial service tool)

JSDIA6495ZZ

A

: Drift (SST: ST33061000)

B

: Puller (commercial service tool)

C

: Separator (commercial service tool)

JSDIA6496ZZ

JSDIA6497ZZ

FINAL DRIVE

TM-217

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

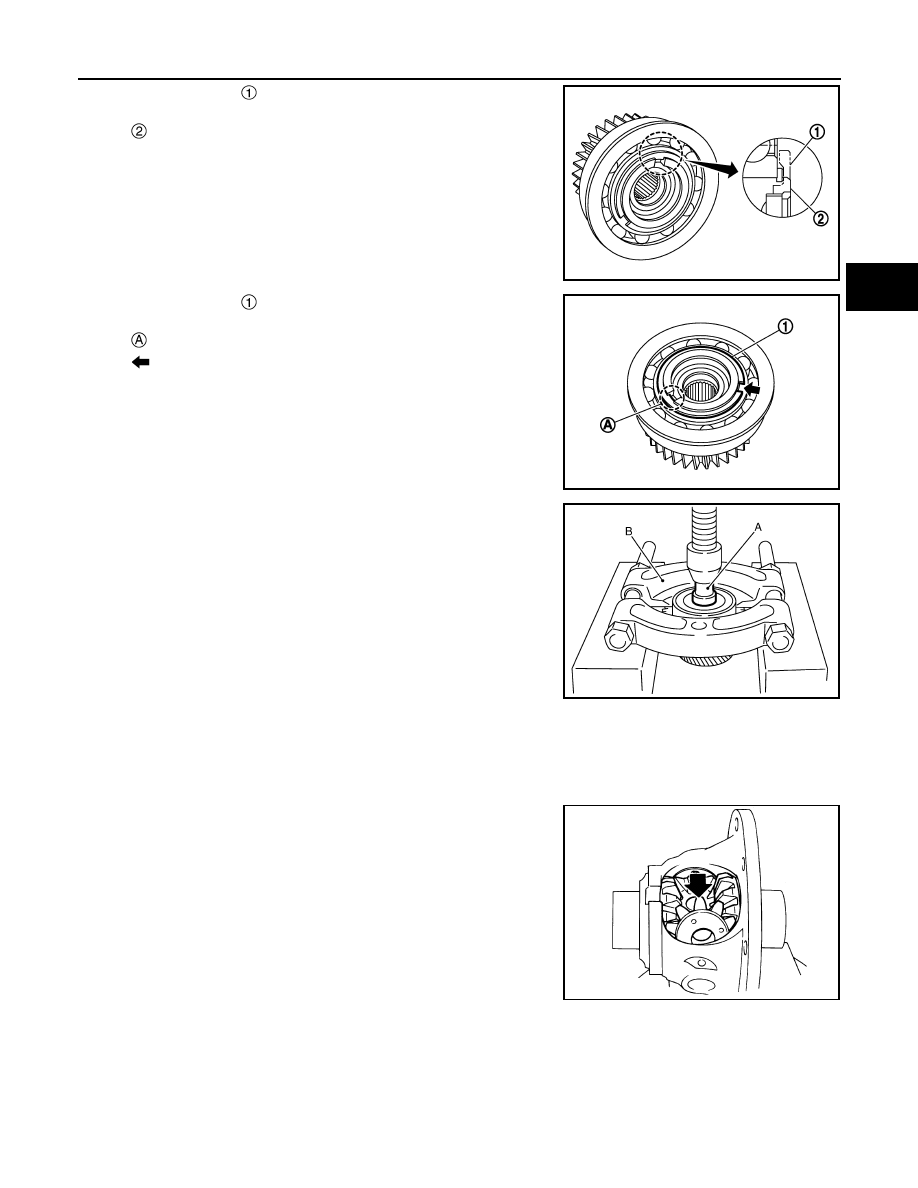

1.

Remove snap ring

.

2.

Remove snap ring

.

3.

Remove output gear bearing using the drift (A) (SST:
ST30612000) and separator (B) (commercial service tool).

ASSEMBLY

Differential Case

1.

Apply gear oil to sliding area of differential case, each gear, and thrust washer.

2.

Install side gear thrust washers and side gears into differential case.

3.

While rotating pinion mate thrust washers and pinion mate
gears, aligning them diagonally, install them into differential
case.

: Output gear

JPDIC0104ZZ

: Output gear groove

: Snap ring notch

JPDIC0040ZZ

JPDIC0038ZZ

SMT839
