TM-206

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

SHIFT FORK AND FORK ROD

SHIFT FORK AND FORK ROD

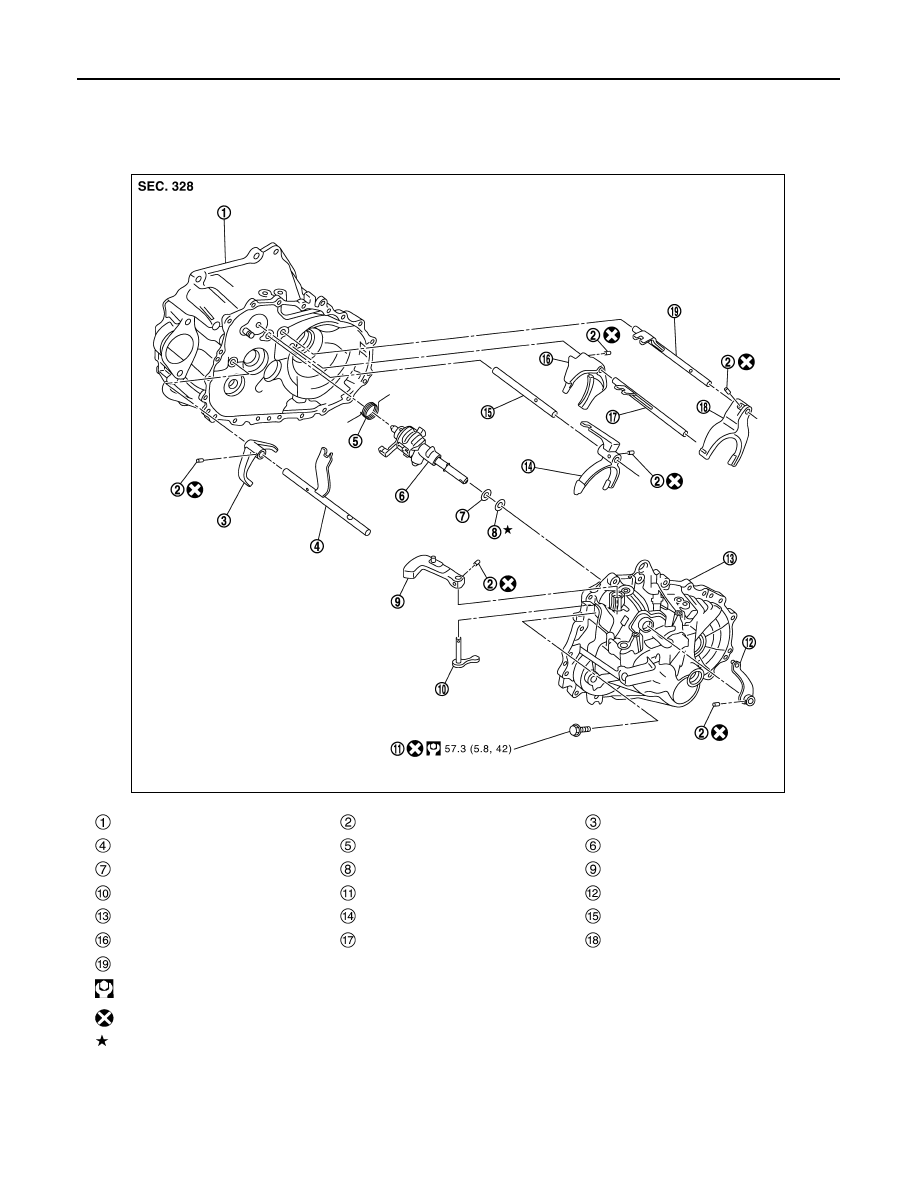

Exploded View

INFOID:0000000010957987

Disassembly and Assembly

INFOID:0000000010919431

DISASSEMBLY

Clutch housing

Retaining pin

Reverse shift fork

Reverse fork rod

Return spring

Striking rod

Striking rod shim

Striking rod adjusting shim

Shift lever (outer)

Shift lever (inner)

Guide bolt

Select lever

Transaxle case

3rd-4th shift fork

3rd-4th fork rod

1st-2nd shift fork

1st-2nd fork rod

5th-6th shift fork

5th-6th fork rod

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

PCIB1806E

SHIFT FORK AND FORK ROD

TM-207

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

For disassembly procedures other than the following items, refer to

TM-129, "2WD : Disassembly and Assem-

bly"

 (2WD) or

TM-159, "4WD : Disassembly and Assembly"

 (4WD).

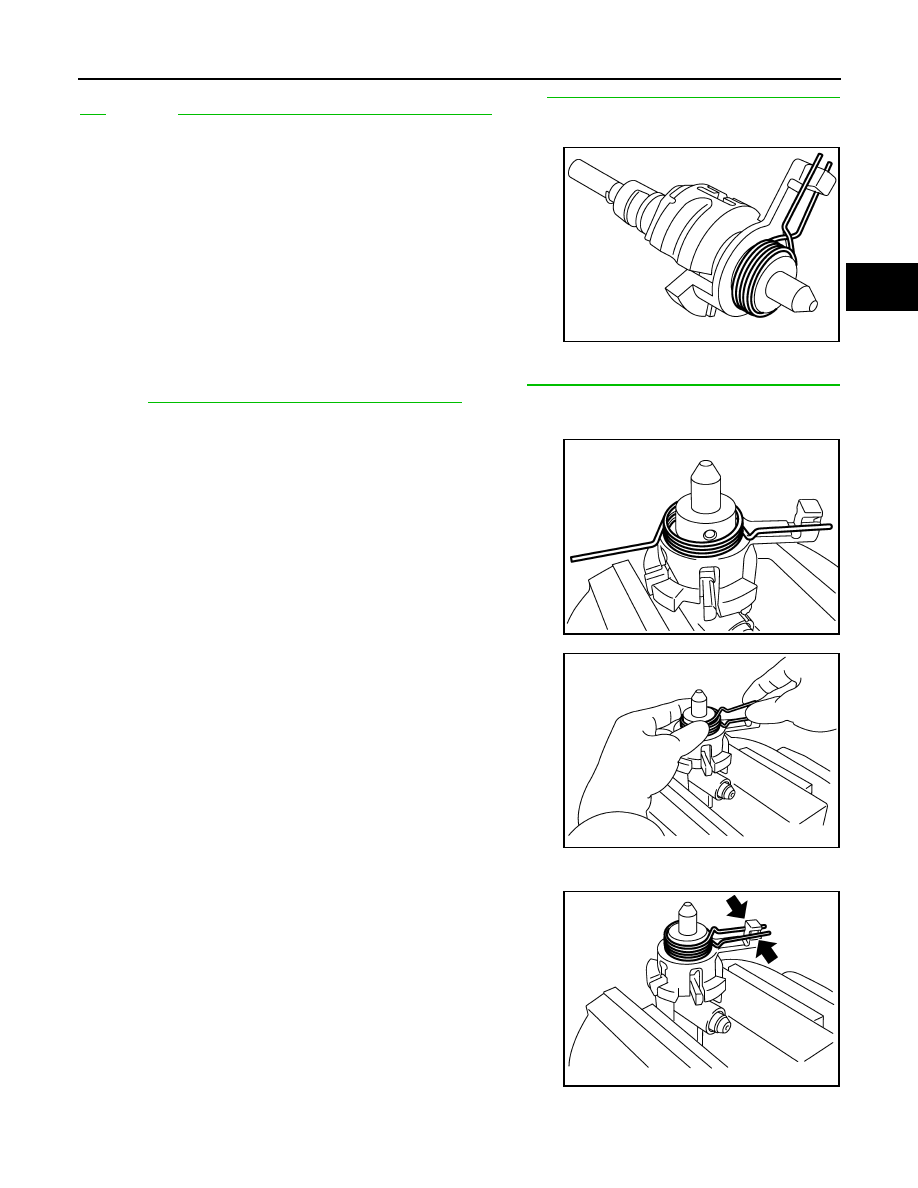

Striking Rod

Remove return spring to striking rod.

ASSEMBLY

For assembly procedures other than the following items, refer to

TM-129, "2WD : Disassembly and Assembly"

(2WD) or

TM-159, "4WD : Disassembly and Assembly"

 (4WD).

Striking Rod

1.

Temporarily install return spring to striking rod.

CAUTION:

Be careful with the orientation of return spring.

2.

Attach one end of the return spring to striking interlock of striking
rod while holding return spring.

CAUTION:

When installing, check that return spring is securely seated
in the groove of striking interlock of striking rod.

PCIB1867E

PCIB1830E

PCIB1831E

PCIB1833E

TM-208

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

SHIFT FORK AND FORK ROD

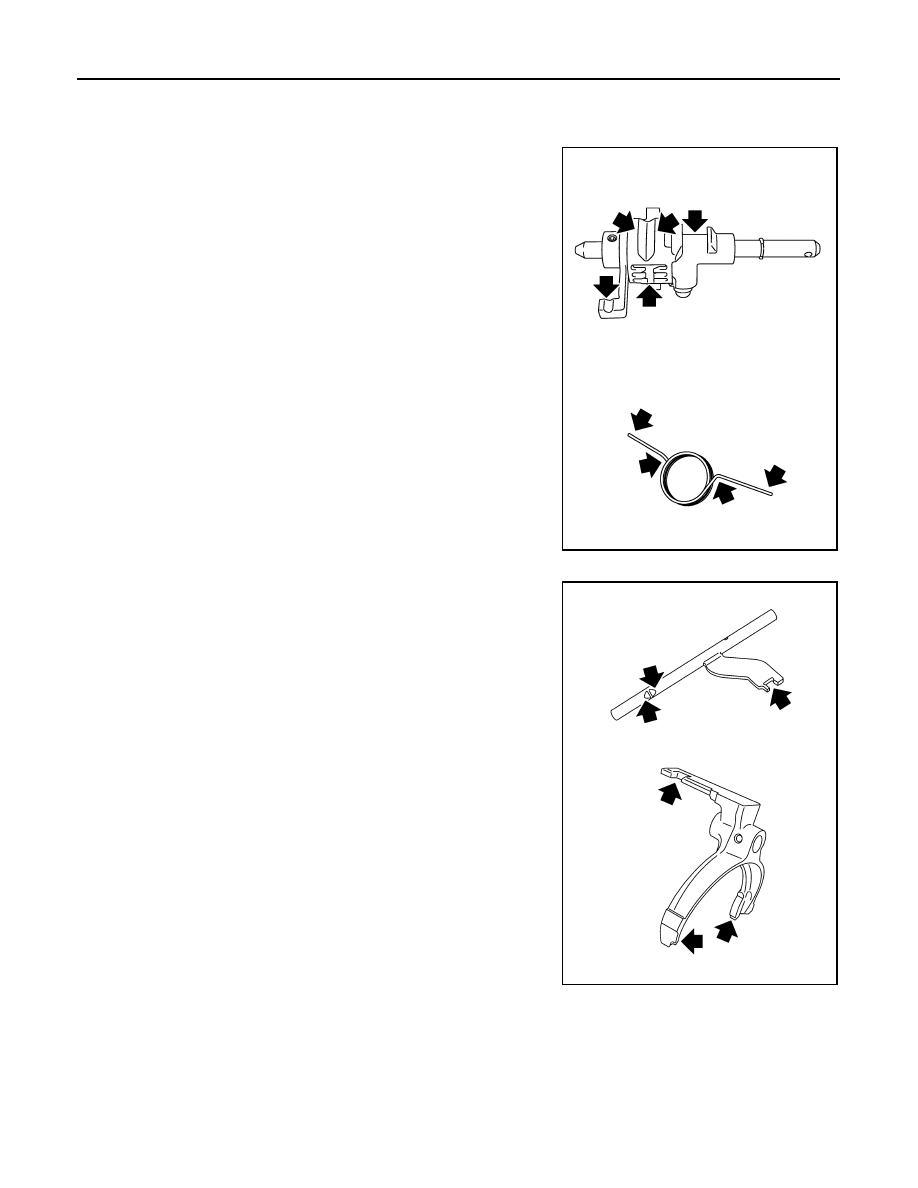

Inspection

INFOID:0000000010919433

STRIKING ROD AND RETURN SPRING

Check contact surfaces and sliding area for wear, damage, bending,
etc. If necessary, replace parts.

FORK ROD AND SHIFT FORK

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

JPDIC0145ZZ

PCIB1869E

SHIFT FORK AND FORK ROD

TM-209

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

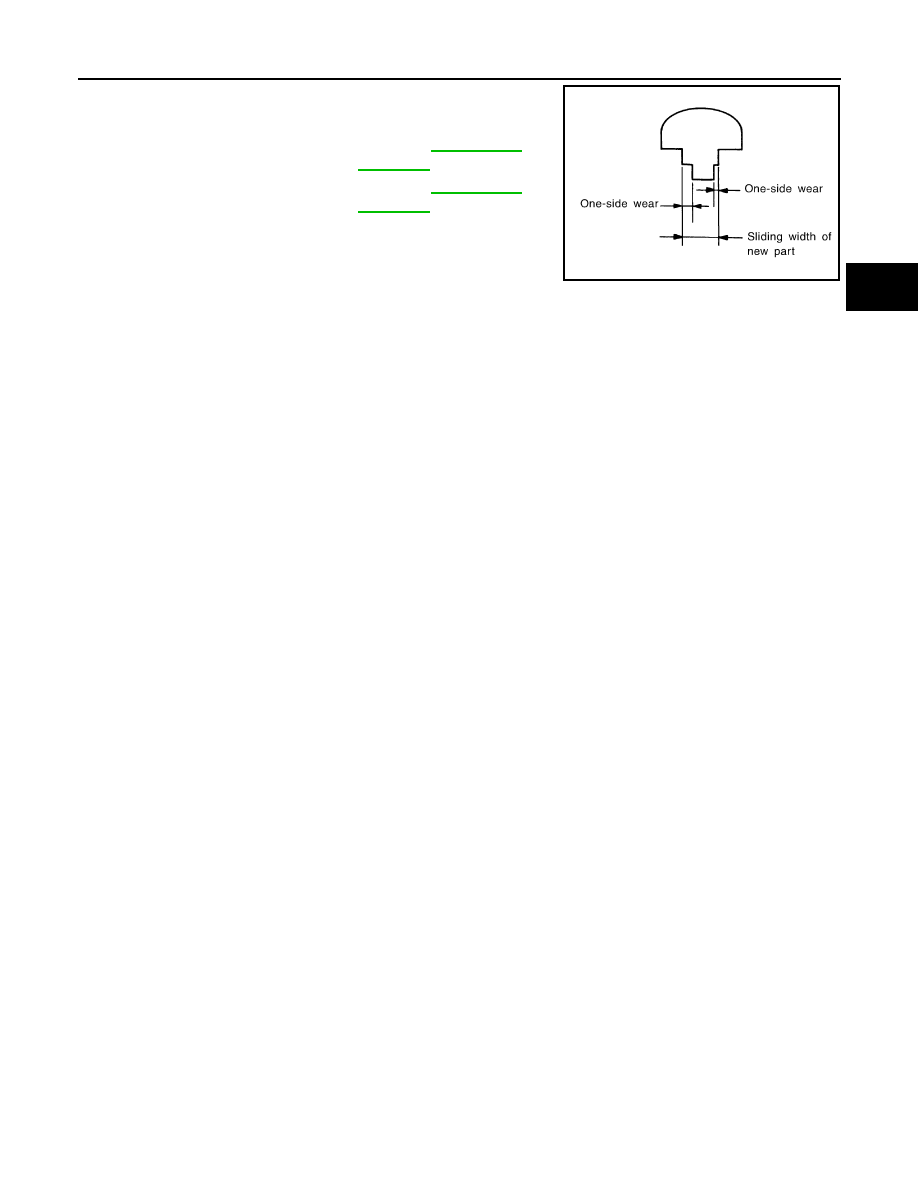

• Check if the width of shift fork hook (sliding area with coupling

sleeve) is within allowable specification below.

One-side wear specification

: Refer to

TM-225, "Di-

mension"

.

Sliding width of new part

: Refer to

TM-225, "Di-

mension"

.

SMT801D
