TM-234

< PREPARATION >

[CVT: RE0F10D]

PREPARATION

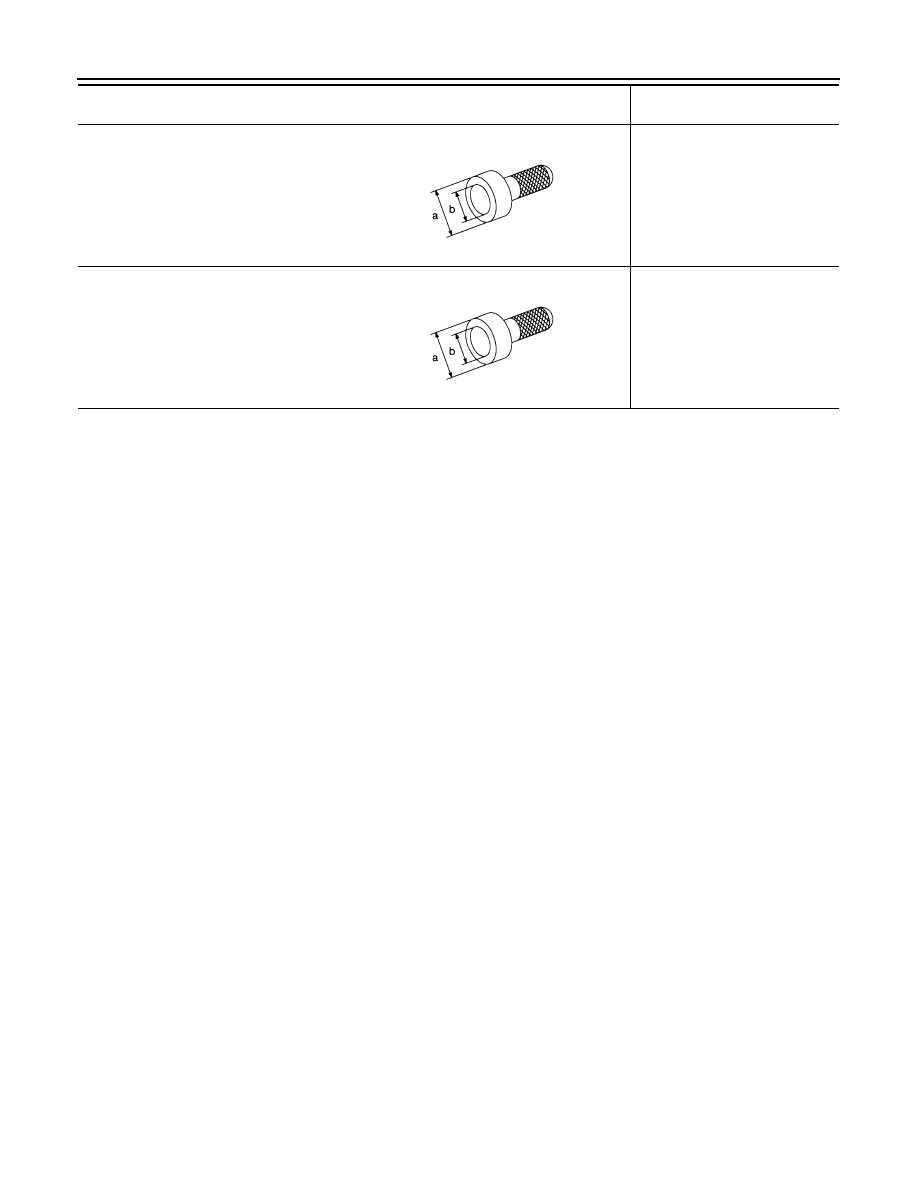

Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal

Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia.

Installing converter housing oil
seal

Tool number
Tool name

Description

NT115

NT115

COMPONENT PARTS

TM-235

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM

CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000010622424

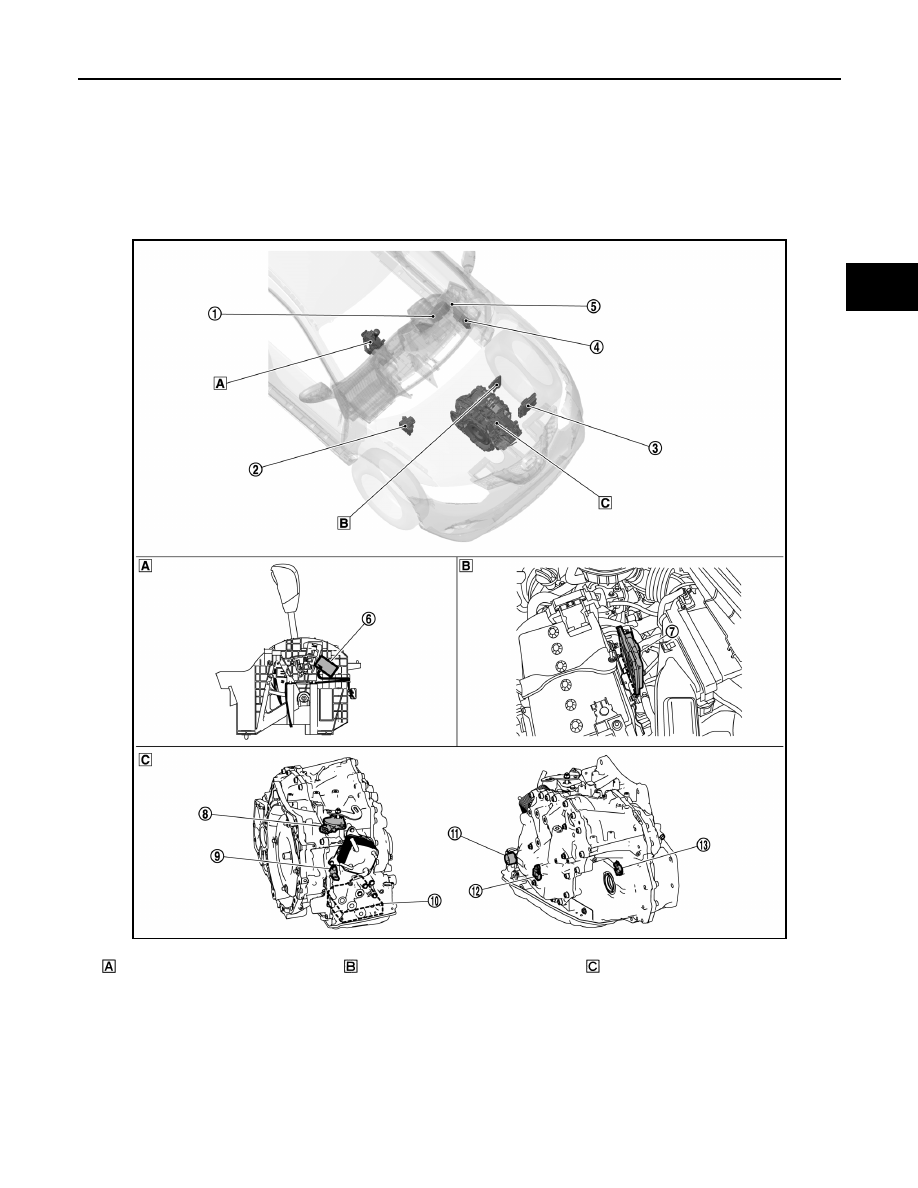

MR20DD Models

JSDIA5624ZZ

CVT shift selector assembly

Engine room, LH

Transaxle assembly

TM-236

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

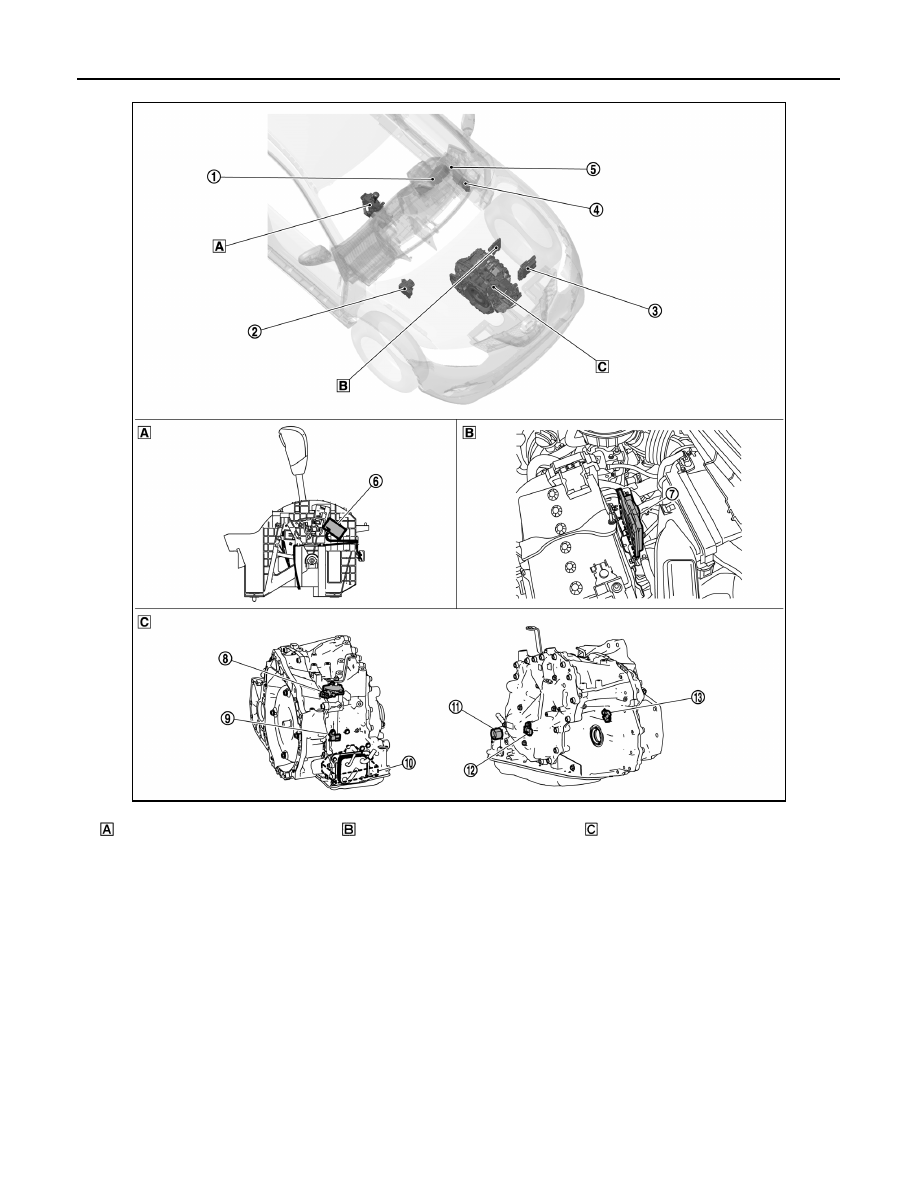

QR25DE Models

JSDIA5625ZZ

CVT shift selector assembly

Engine room, LH

Transaxle assembly

COMPONENT PARTS

TM-237

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

No.

Component

Function

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal
Mainly receives the following signals from TCM via CAN communication.
• Shift position signal
• Manual mode shift refusal signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for de-

tailed installation location.

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
• Vehicle speed signal
• Decel G signal
Refer to

BRC-14, "Component Parts Location"

 for detailed installation loca-

tion.

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
Mainly receives the following signals from TCM via CAN communication.
• Malfunctioning indicator lamp signal
Refer to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Loca-

tion"

 (MR20DD),

EC-440, "Component Parts Location"

 (QR25DE) for de-

tailed installation location.

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

ECO mode switch

DMS-6, "ECO Mode Switch"

Manual mode switch

TM-243, "CVT CONTROL SYSTEM : Manual Mode Switch"

TCM

TM-238, "CVT CONTROL SYSTEM : TCM"

Transmission range switch

TM-238, "CVT CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-239, "CVT CONTROL SYSTEM : Input Speed Sensor"

Control
valve

CVT fluid temperature sensor*

TM-240, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Primary pressure sensor*

TM-241, "CVT CONTROL SYSTEM : Primary Pressure Sensor"

Secondary pressure sensor*

TM-241, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Line pressure solenoid valve*

TM-243, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Primary pressure solenoid valve*

TM-242, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Secondary pressure solenoid valve*

TM-242, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"

Torque converter clutch solenoid
valve*

TM-243, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Select solenoid valve*

TM-242, "CVT CONTROL SYSTEM : Select Solenoid Valve"

CVT unit connector

Primary speed sensor

TM-238, "CVT CONTROL SYSTEM : Primary Speed Sensor"

Output speed sensor

TM-239, "CVT CONTROL SYSTEM : Output Speed Sensor"
