< PREPARATION >

[6MT: RS6F52A]

PREPARATION

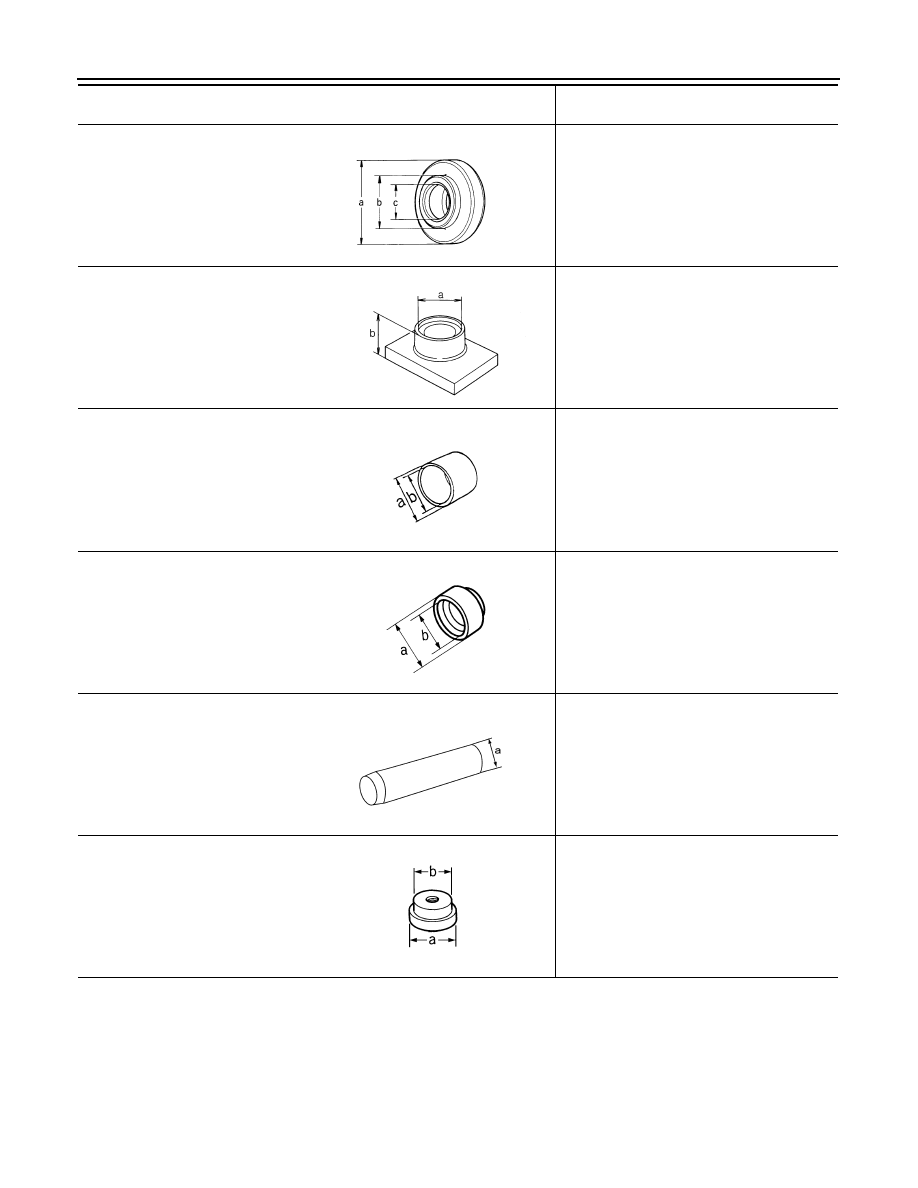

ST30032000

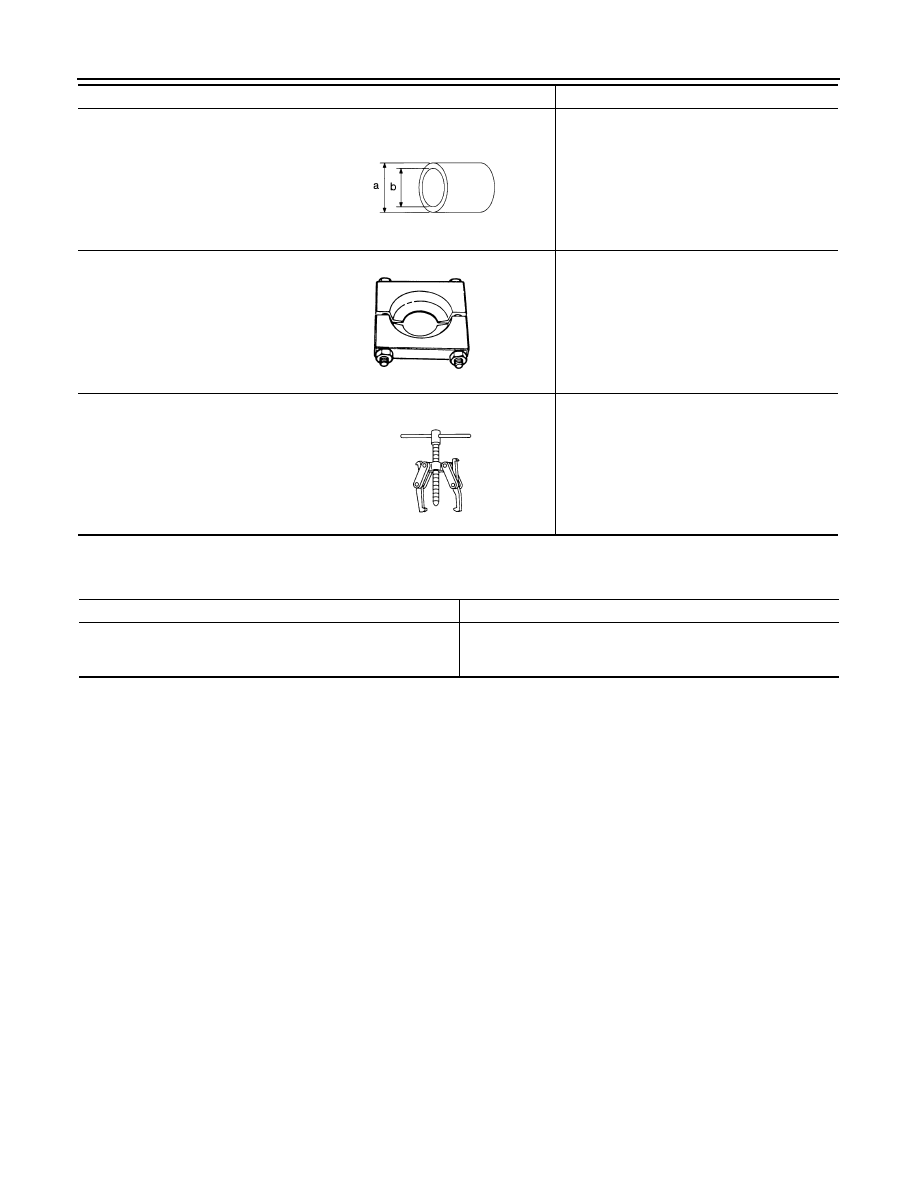

Drift
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.

Installing input shaft front bearing

ST38220000
Press stand
a: 63 mm (2.48 in) dia.
b: 65 mm (2.56 in)

• Installing reverse main gear
• Installing 1st main gear bushing
• Installing 1st-2nd synchronizer hub assem-

bly

KV40101630
Drift
a: 68 mm (2.68 in) dia.
b: 60 mm (2.36 in) dia.

Installing reverse main gear

KV38102510
Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia.

• Installing 1st main gear bushing
• Installing 1st-2nd synchronizer hub assem-

bly

• Installing differential side bearing (transaxle

case side)

ST15243000
Drift
a: 30 mm (1.18 in) dia.

Measuring the clearance of side gear

ST30612000
Drift
b: 62 mm (2.44 in) dia.
b: 40 mm (1.57 in) dia.

Removing output gear bearing

Tool number
Tool name

Description

ZZA0978D

ZZA1058D

ZZA1003D

ZZA0838D

SCIA1088J

ZZA1000D

PREPARATION

TM-87

< PREPARATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Commercial Service Tools

INFOID:0000000010921073

Tool name

Description

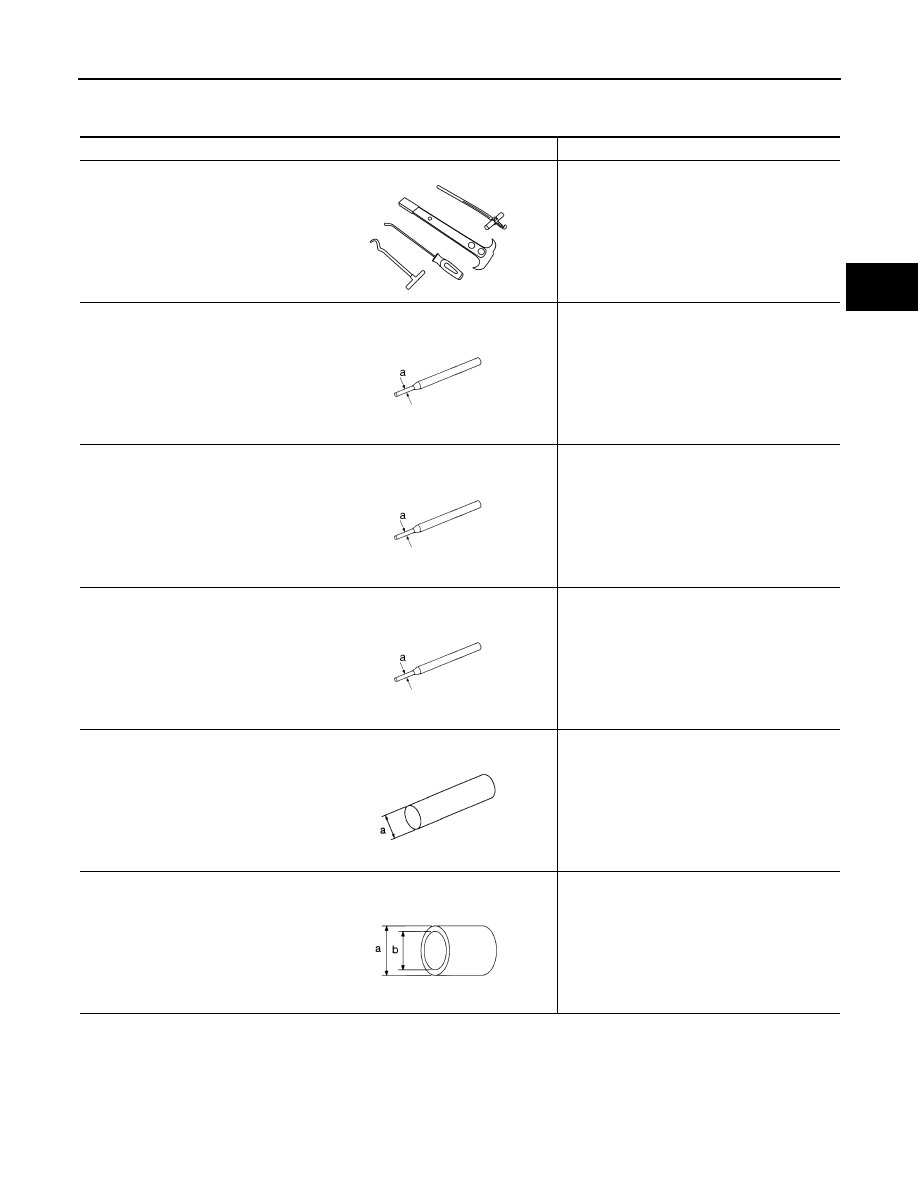

Oil seal remover

• Removing differential side oil seal
• Removing shift lever oil seal
• Removing striking rod oil seal
• Removing input shaft oil seal

Pin punch
a: 4.5 mm (0.177 in) dia.

Removing and installing retaining pin

Pin punch
a: 5.5 mm (0.217 in) dia.

Removing and installing retaining pin of selec-
tor lever

Pin punch
a: 7.5 mm (0.295 in) dia.

Removing and installing retaining pin of each
shift lever

Drift
a: 24.5 mm (0.965 in) dia.

Installing striking rod oil seal and shift lever oil
seal

Drift
a: 57 mm (2.24 in) dia.
b: 51 mm (2.01 in) dia.

Installing differential side bearing (clutch hous-
ing side)

JSDIA4998ZZ

NT410

NT410

NT410

S-NT063

S-NT474

TM-88

< PREPARATION >

[6MT: RS6F52A]

PREPARATION

Lubricant or/and Sealant

INFOID:0000000010921074

Drift
a: 80 mm (3.15 in) dia.
b: 70 mm (2.76 in) dia.

Installing output gear bearing

Separator

Removing each bearing, gear, and bushing

Puller

Removing each bearing, gear, and bushing

Tool name

Description

S-NT474

ZZA0537D

NT077

Item

Use

Genuine Liquid Gasket
(Three Bond 1215 or equivalent)

• Application to threads of back-up lamp switch
• Application to threads of neutral position switch
• Application to mating surface of clutch housing

COMPONENT PARTS

TM-89

< SYSTEM DESCRIPTION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

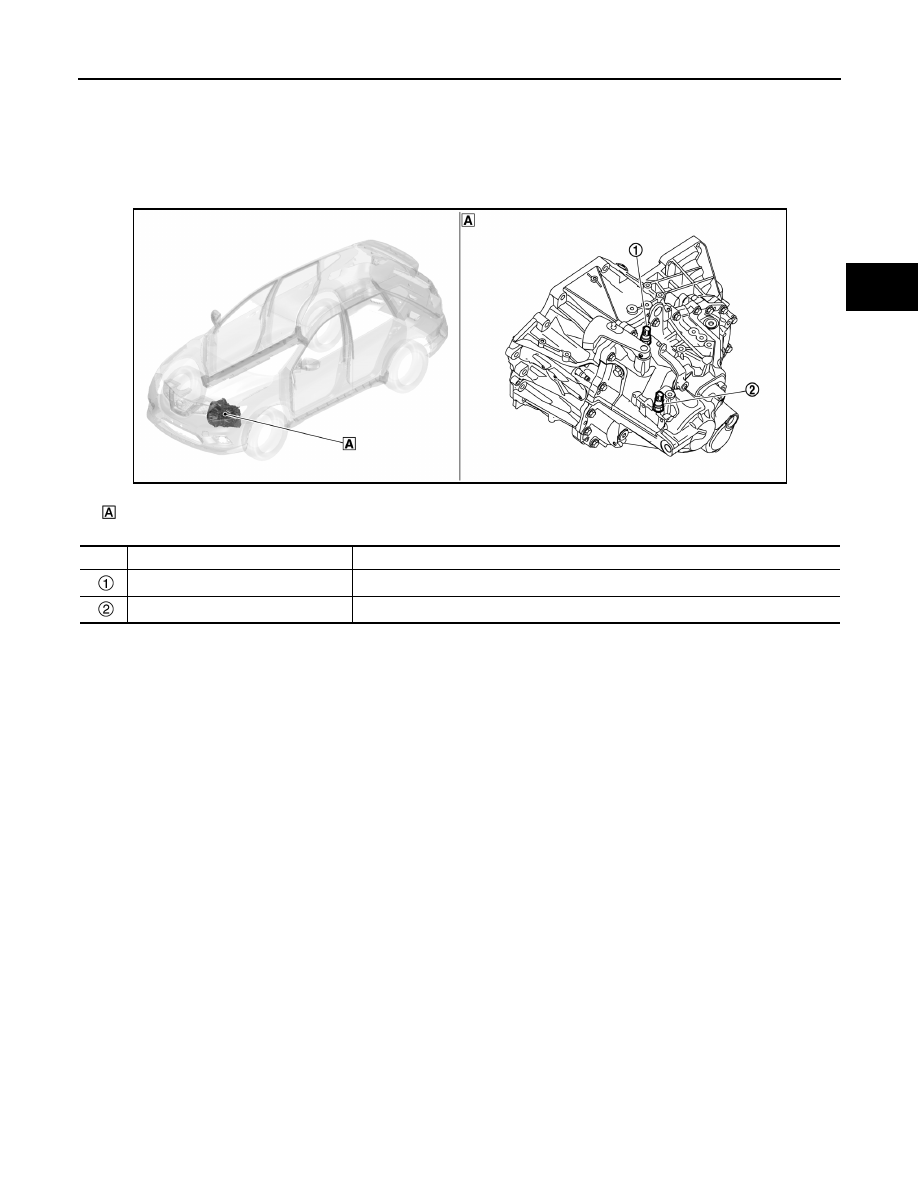

Component Parts Location

INFOID:0000000010921075

Transaxle assembly

No.

Component

Function

Neutral position switch

It detects that the transaxle is in neutral position.

Back-up lamp switch

It detects that the transaxle is in reverse gear position.

JSDIA6185ZZ
