Nissan X-Trail 32. Manual - part 2025





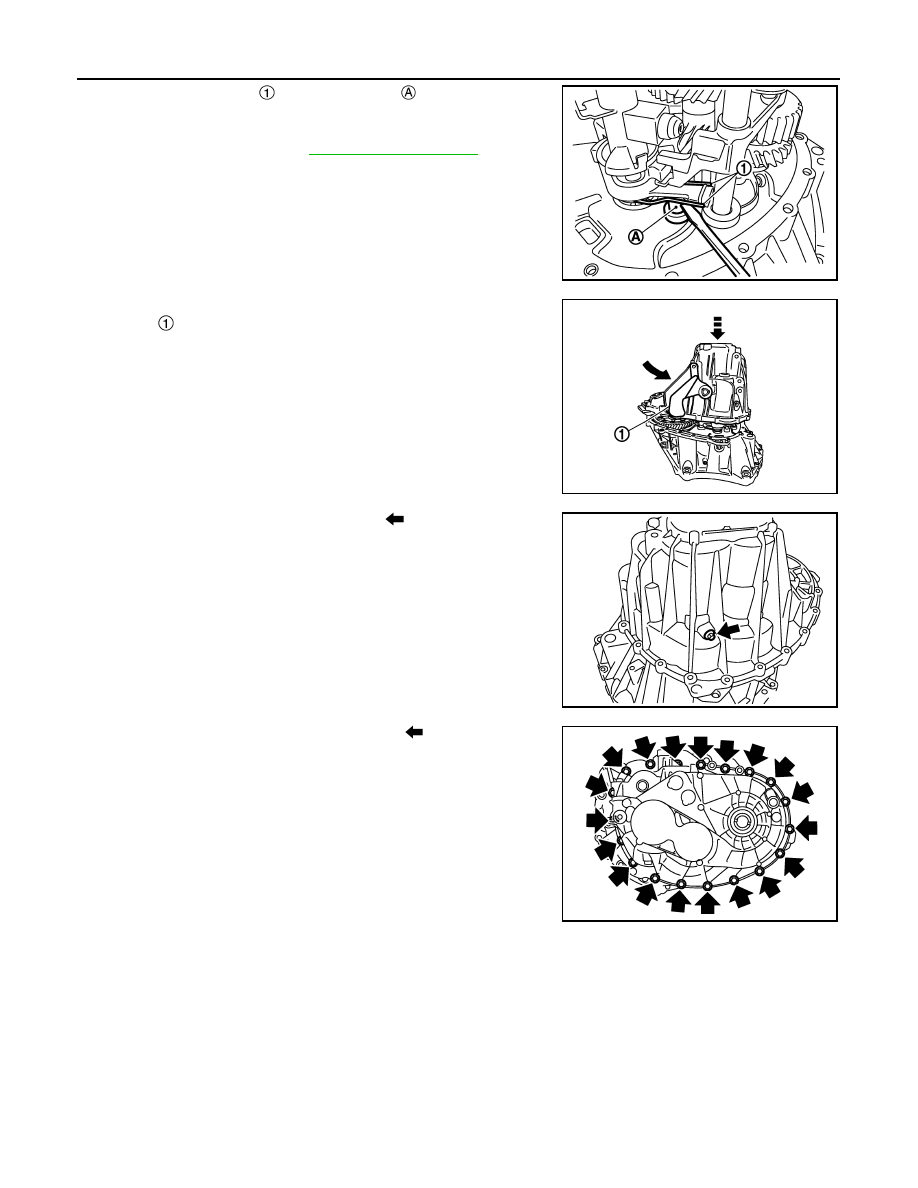

TM-58

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

27. Install selector spring

 to return bushing

.

28. Apply recommended sealant to mounting surface of transaxle

case.
• For sealant to use, refer to

TM-43, "Exploded View"

.

CAUTION:

• Never allow old liquid gasket, moisture, oil, or foreign

matter to remain on mounting surface.

• Check that mounting surface is not damaged.
• Apply sealant bead continuously.

29. Install transaxle case to clutch housing while rotating shift lever

(outer)

 in the direction as shown in the figure.

30. Install reverse idler shaft mounting bolt (

), as per the following

procedure.

a.

Install seal washer to reverse idler shaft mounting bolt, and
install reverse idler shaft mounting bolt to transaxle case.

CAUTION:

Never reuse seal washer.

b.

Tighten reverse idler shaft mounting bolt to the specified torque.

31. Tighten transaxle case mounting bolts (

) to the specified

torque.

32. Install position switch, as per the following procedure.

JPDIC0445ZZ

JPDIC0110ZZ

PCIB1695E

PCIB1694E

TRANSAXLE ASSEMBLY

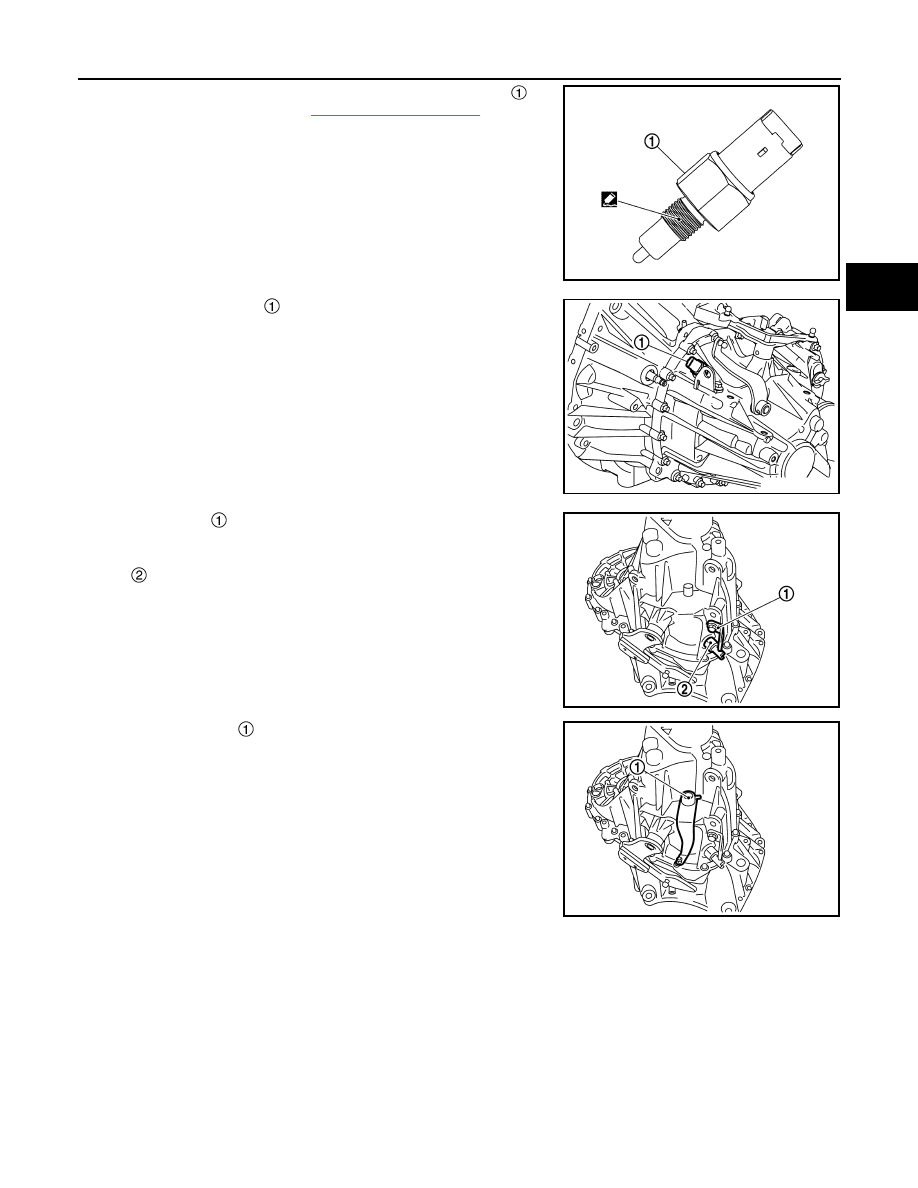

TM-59

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

a.

Apply recommended sealant to threads of position switch

.

• For sealant to use, refer to

TM-43, "Exploded View"

.

CAUTION:

Never allow old liquid gasket, moisture, oil, or foreign mat-
ter to remain on thread.

b.

Install position switch

 to transaxle case, and tighten it to the

specified torque.

33. Install bracket

 to transaxle case, and tighten mounting bolt to

the specified torque.

34. Install select lever

, as per the following procedure.

a.

Install select lever to transaxle case.

CAUTION:

Replace select lever and selector as a set.

b.

Install retaining pin to select lever, using a pin punch.

CAUTION:

Never reuse retaining pin.

35. Install drain plug, as per the following procedure.

a.

Install gasket to drain plug.

CAUTION:

Never reuse gasket.

b.

Install drain plug to clutch housing.

c.

Tighten drain plug to the specified torque.

36. Install filler plug, as per the following procedure.

a.

Install gasket to filler plug, and then install them to transaxle case.

CAUTION:

Never reuse gasket.

b.

Tighten filler plug to the specified torque.

CAUTION:

Fill with gear oil before tightening filler plug to the specified torque.

JSDIA5918ZZ

JSDIA5917ZZ

: Position switch

JSDIA6130ZZ

JSDIA6129ZZ

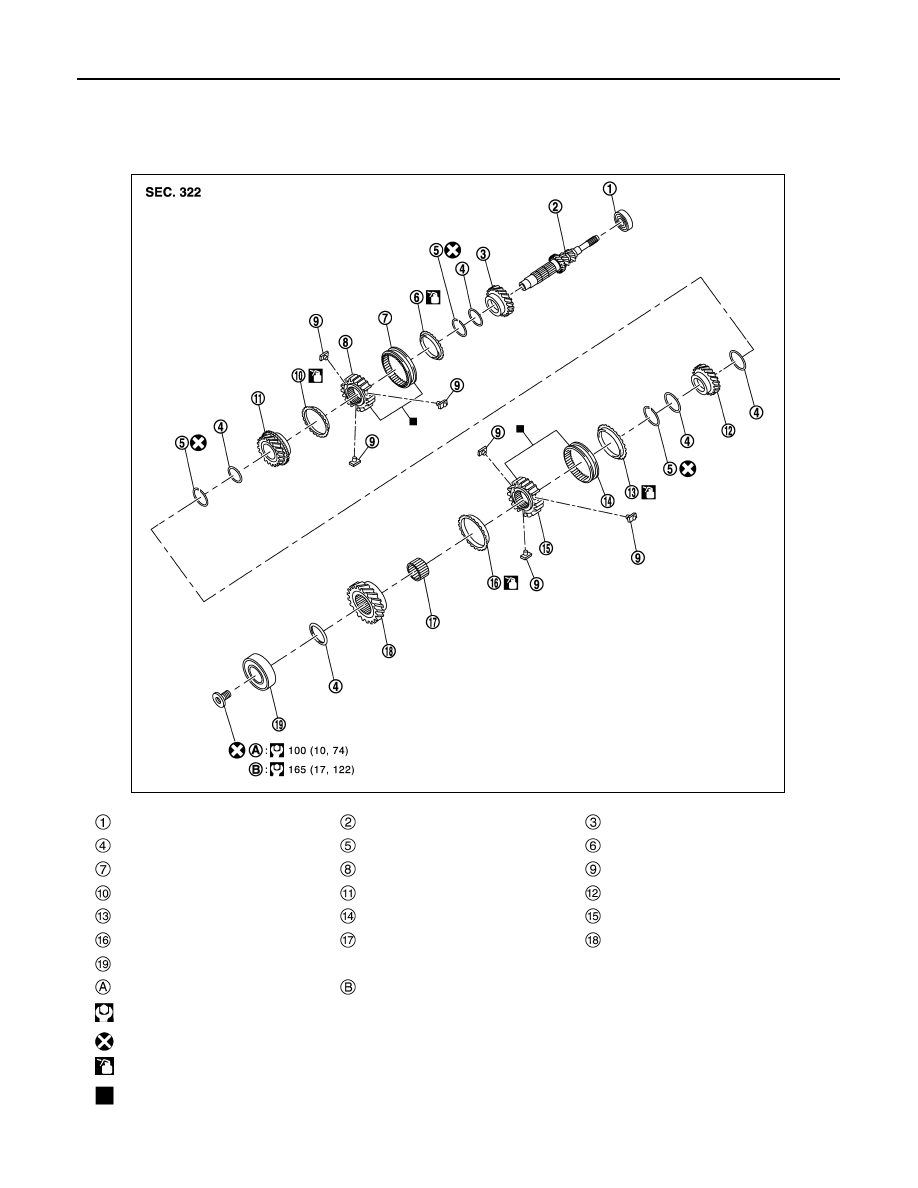

TM-60

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

INPUT SHAFT AND GEAR

INPUT SHAFT AND GEAR

Exploded View

INFOID:0000000010842464

Input shaft front bearing

Input shaft

3rd input gear

Spacer

Snap ring

3rd baulk ring

3rd-4th coupling sleeve

3rd-4th synchronizer hub

Insert key

4th baulk ring

4th input gear

5th input gear

5th baulk ring

5th-6th coupling sleeve

5th-6th synchronizer hub

6th baulk ring

Needle bearing

6th input gear

Input shaft rear bearing

First step

Final step

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Apply gear oil.

: Replace the parts as a set.

JPDIC0407GB

INPUT SHAFT AND GEAR

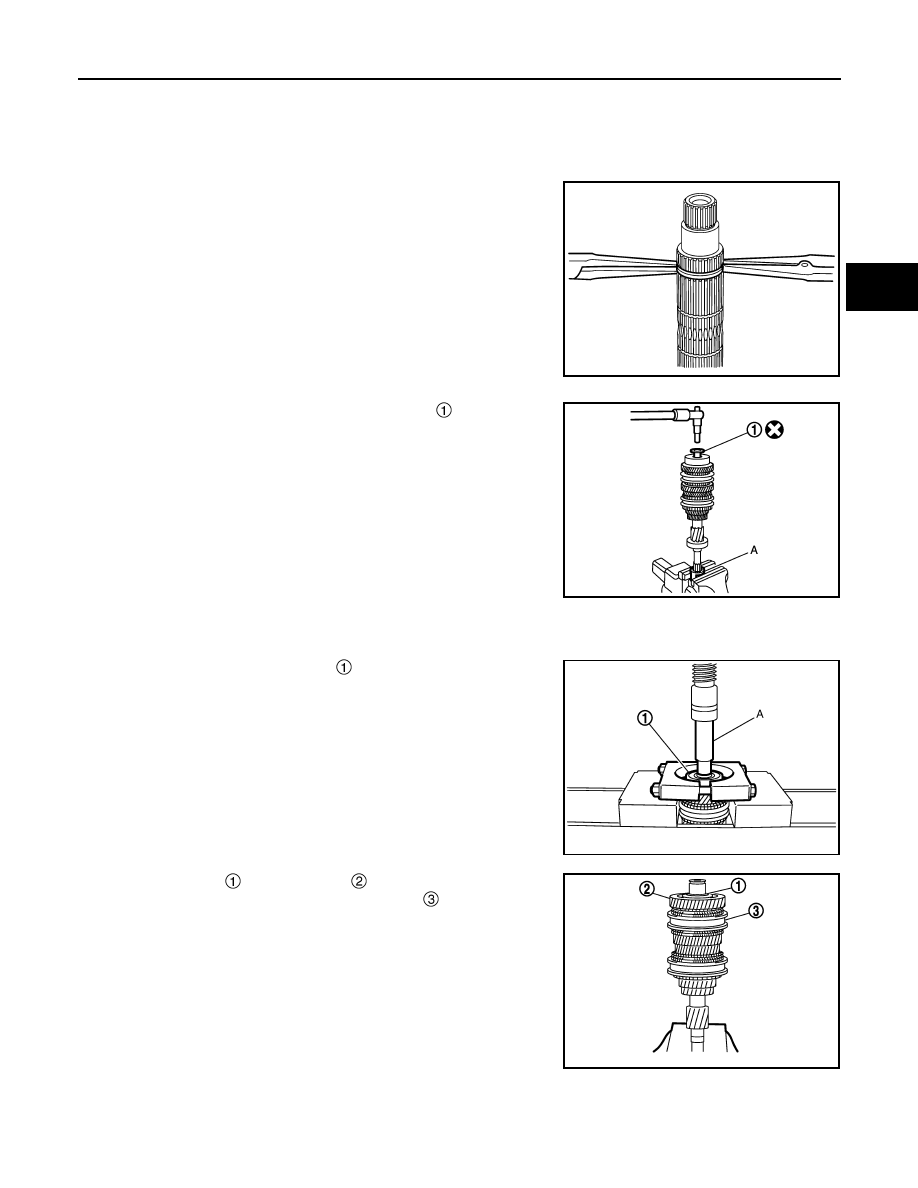

TM-61

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Disassembly and Assembly

INFOID:0000000010842465

DISASSEMBLY

CAUTION:

• Fix input shaft in a vise with back plate, and then remove gears and snap rings.
• For removal of snap ring, set snap ring pliers and flat pliers at

both sides of snap ring. While expanding snap ring with snap
ring pliers, move snap ring with flat pliers.

• Disassemble gear components putting direction marks on the

parts that do not affect any functions.

1.

Remove input shaft rear bearing mounting bolt

, using the drift

(A) (SST: KV32300QAM).

2.

Remove input shaft rear bearing, as per the following procedure.

a.

Set a separator (commercial service tool) to input shaft rear bearing.

b.

Remove input shaft rear bearing

, using a drift (A) (commercial

service tool).

3.

Remove spacer

, 6th input gear

, needle bearing, 6th baulk

ring, and 5th-6th synchronizer hub assembly

.

4.

Remove insert keys and 5th-6th coupling sleeve from 5th-6th
synchronizer hub.

SCIA1755J

JPDIC0449ZZ

JPDIC0111ZZ

PCIB1750E
