TM-30

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

M/T SHIFT SELECTOR

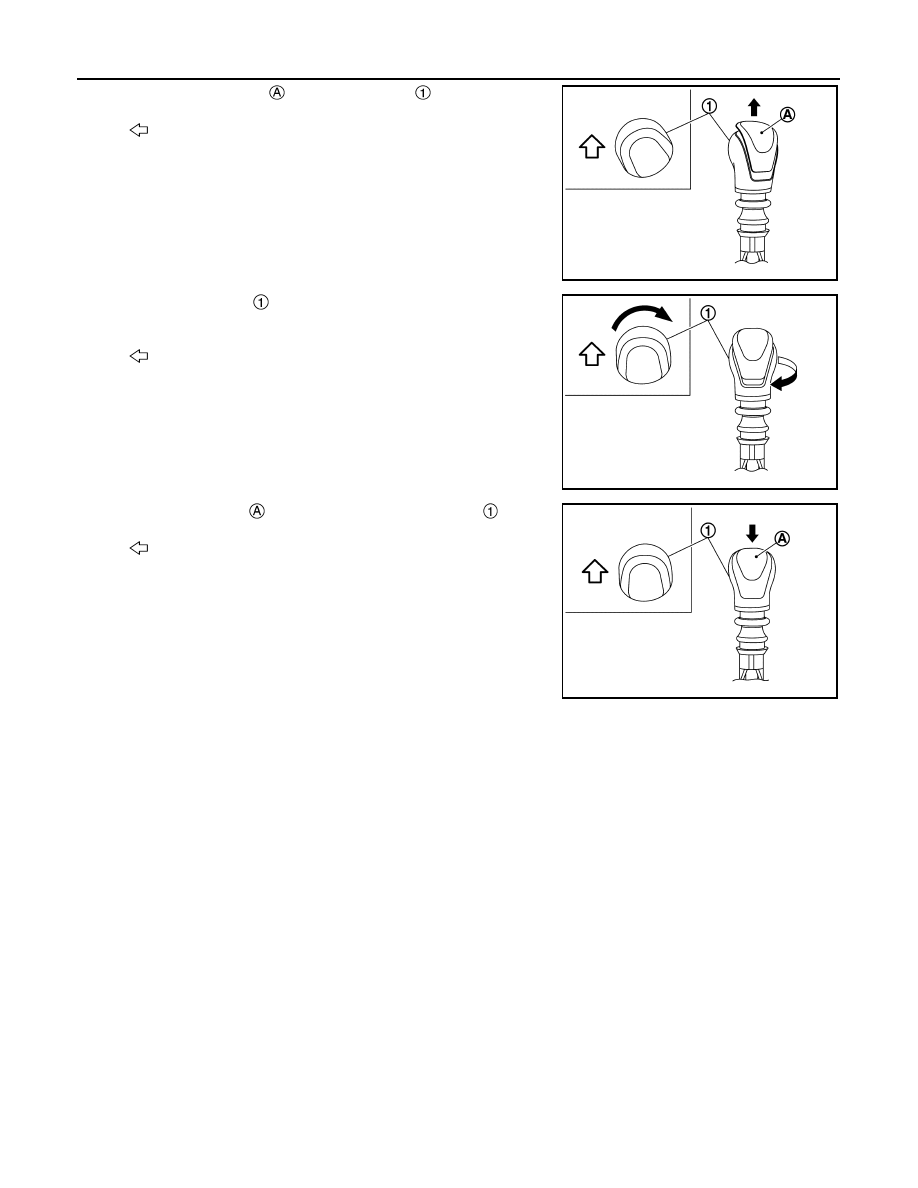

3.

Protrude the ornament

 of shift lever knob

.

4.

Turn shift lever knob

 clockwise (30 degrees) until coming to a

stop.

5.

Press the ornament

 down and lock shift lever knob

.

CAUTION:

Be careful with orientation of shift lever knob.

: Vehicle front

JSDIA6033ZZ

: Vehicle front

JSDIA6034ZZ

: Vehicle front

JSDIA6035ZZ

CONTROL LINKAGE

TM-31

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

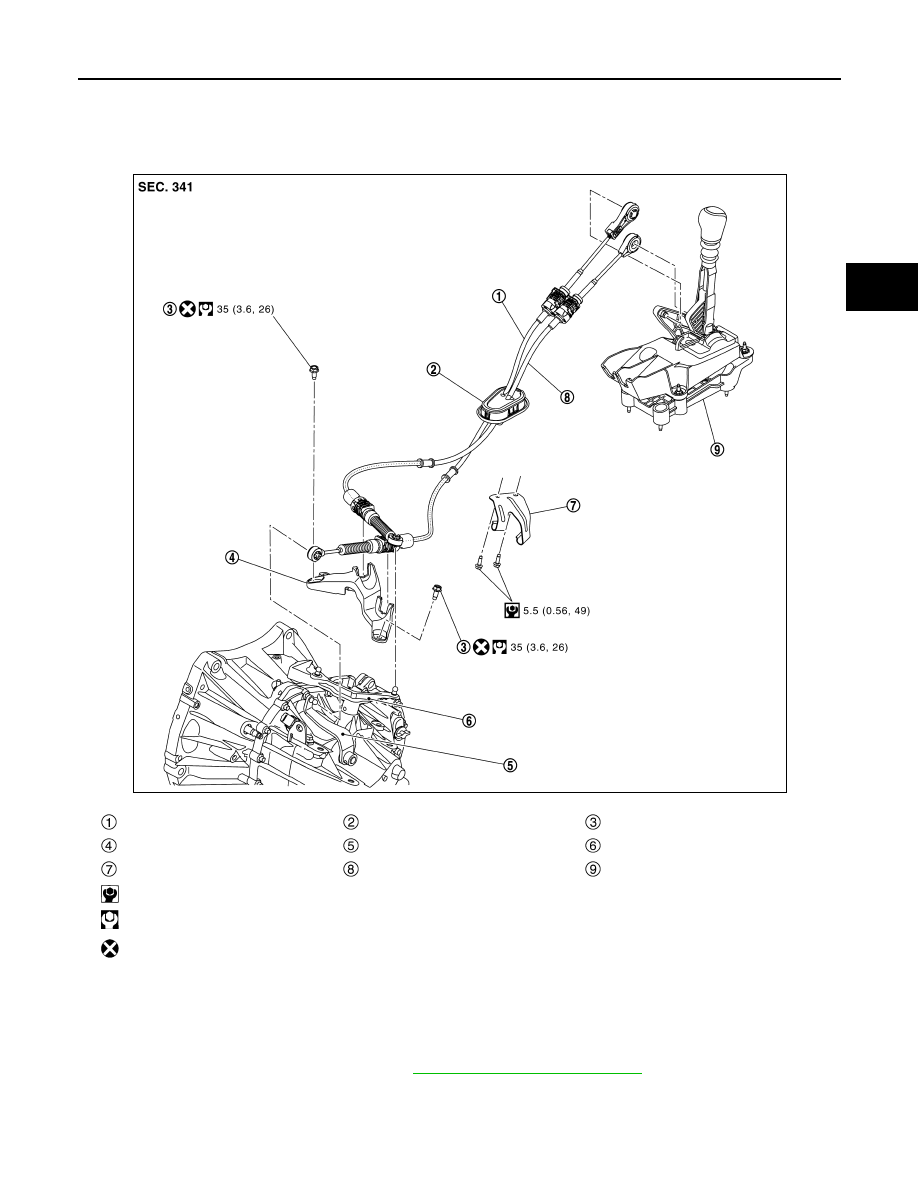

Exploded View

INFOID:0000000010842448

Removal and Installation

INFOID:0000000010842449

REMOVAL

1.

Shift shift lever to the neutral position.

2.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

.

Select cable

Grommet

Tapping bolt

Cable mounting bracket (M/T)

Select lever

Shift lever

Cable mounting bracket (floor)

Shift cable

M/T shift selector assembly

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSDIA5664GB

TM-32

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

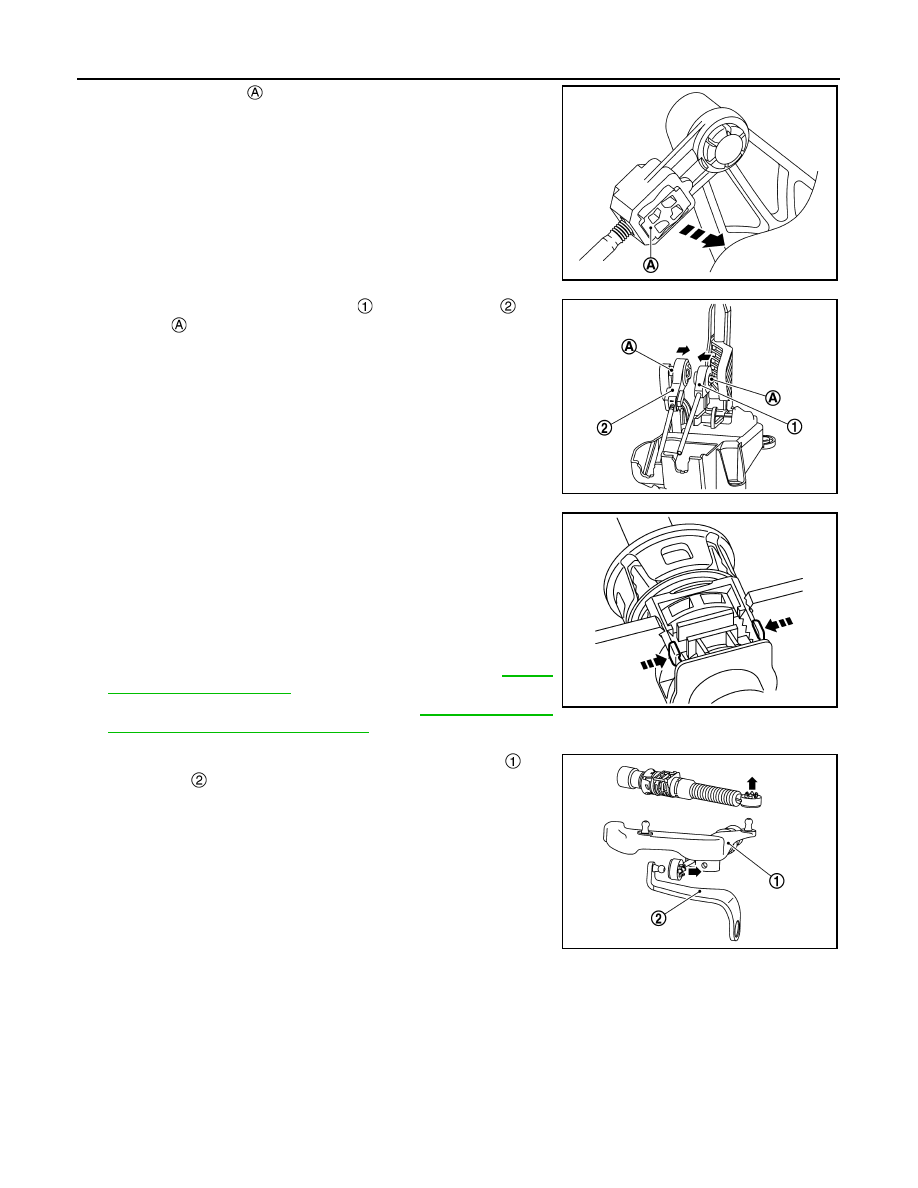

3.

Pull up the stopper

 of the select cable in the direction of the

arrow as shown in the figure.

4.

Pull out and disconnect shift cable

 and select cable

 from

each pin

 of M/T shift selector assembly.

5.

Remove shift cable and select cable from M/T shift selector
assembly, as per the following procedure.

a.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove shift cable from M/T shift
selector assembly.

b.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove select cable from M/T shift
selector assembly.

6.

Remove air duct and air cleaner body. Refer to

EM-31,

"Removal and Installation"

.

7.

Remove battery and battery trays. Refer to

PG-148, "EXCEPT

FOR R9M : Removal and Installation"

.

8.

Pull out and disconnect the each cable from shift lever

 and

select lever

.

JSDIA5762ZZ

JSDIA5763ZZ

JPDIC0793ZZ

JSDIA5761ZZ

CONTROL LINKAGE

TM-33

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

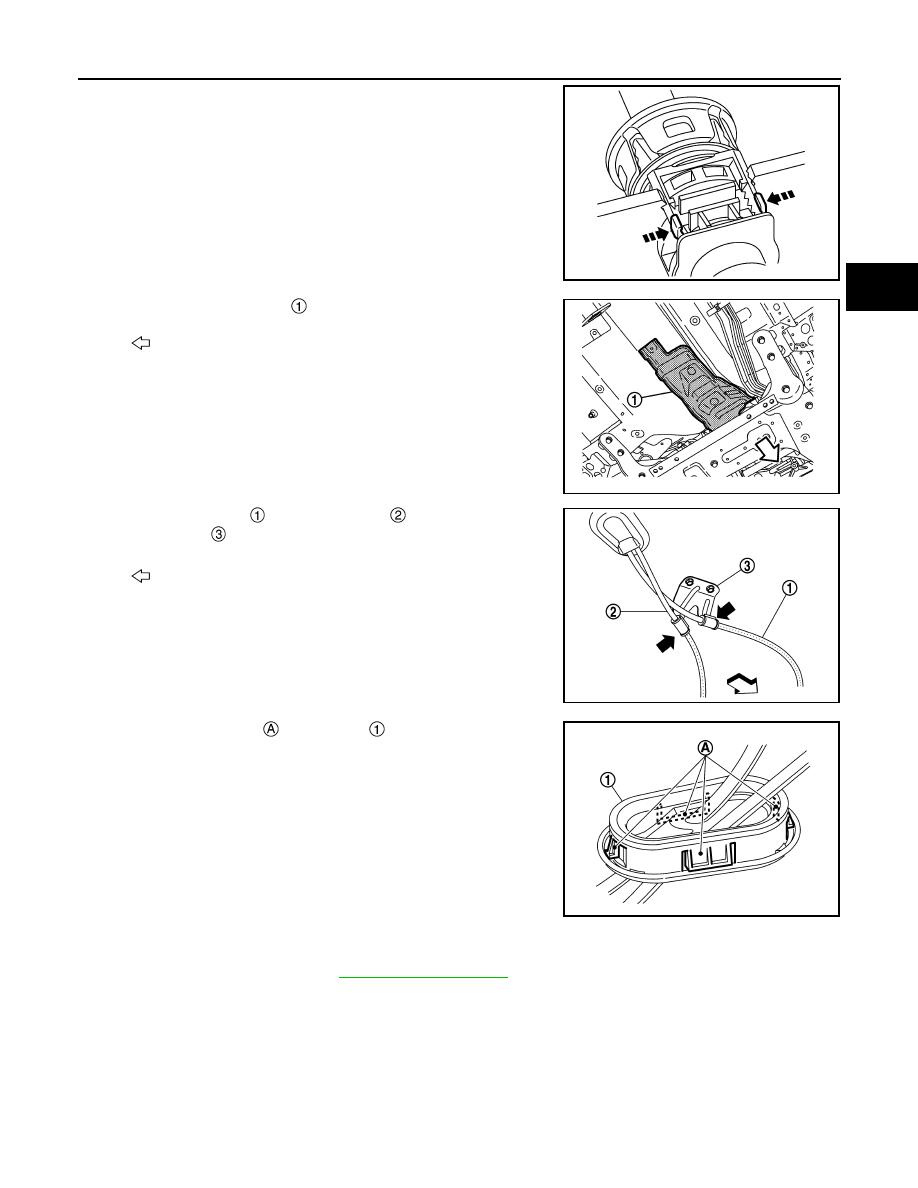

9.

Remove shift cable and select cable from cable mounting
bracket (M/T), as per the following procedure.

a.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove shift cable from cable mount-
ing bracket (M/T).

b.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove select cable from cable
mounting bracket (M/T).

10. Remove cable mounting bracket (M/T) from transaxle assembly.

11. Remove heat shield plate

.

12. Remove shift cable

 and select cable

 from cable mounting

bracket (floor)

.

13. Remove cable mounting bracket (floor).

14. Disengage the pawls

 of grommet

, and pull downwards to

remove.

15. Remove shift cable and select cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• For each tightening torque, refer to

TM-31, "Exploded View"

.

• Before working, set transaxle and M/T shift selector assembly to the neutral position.
• No occurrence of interference between cables and other parts, bent with a radius of 120 mm (4.72 in) or

less, and twist of 180 degrees or more.

• Do not damage the boot of each cable and prevent the occurrence of twist of 90 degrees or more.
• Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other than

screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle case.

CAUTION:

Never reuse tapping bolt.

JPDIC0793ZZ

: Vehicle front

JSDIA5214ZZ

: Vehicle front

JSDIA5764ZZ

JPDIC0844ZZ
