STARTER MOTOR

DISASSEMBLY

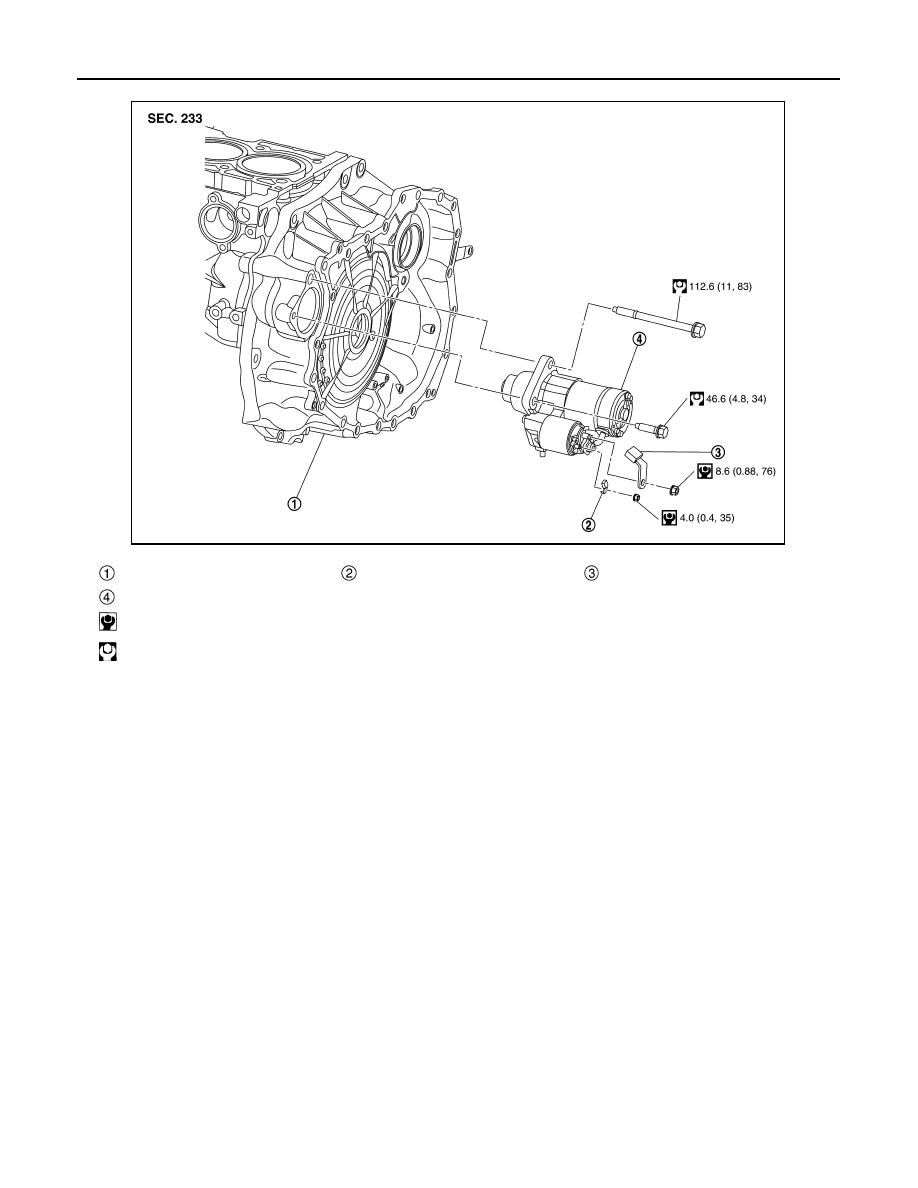

Converter housing

“S” terminal harness

“B” terminal harness

Starter motor

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMBIA4494GB

STARTER MOTOR

STR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

S114-961

JMBIA4495GB

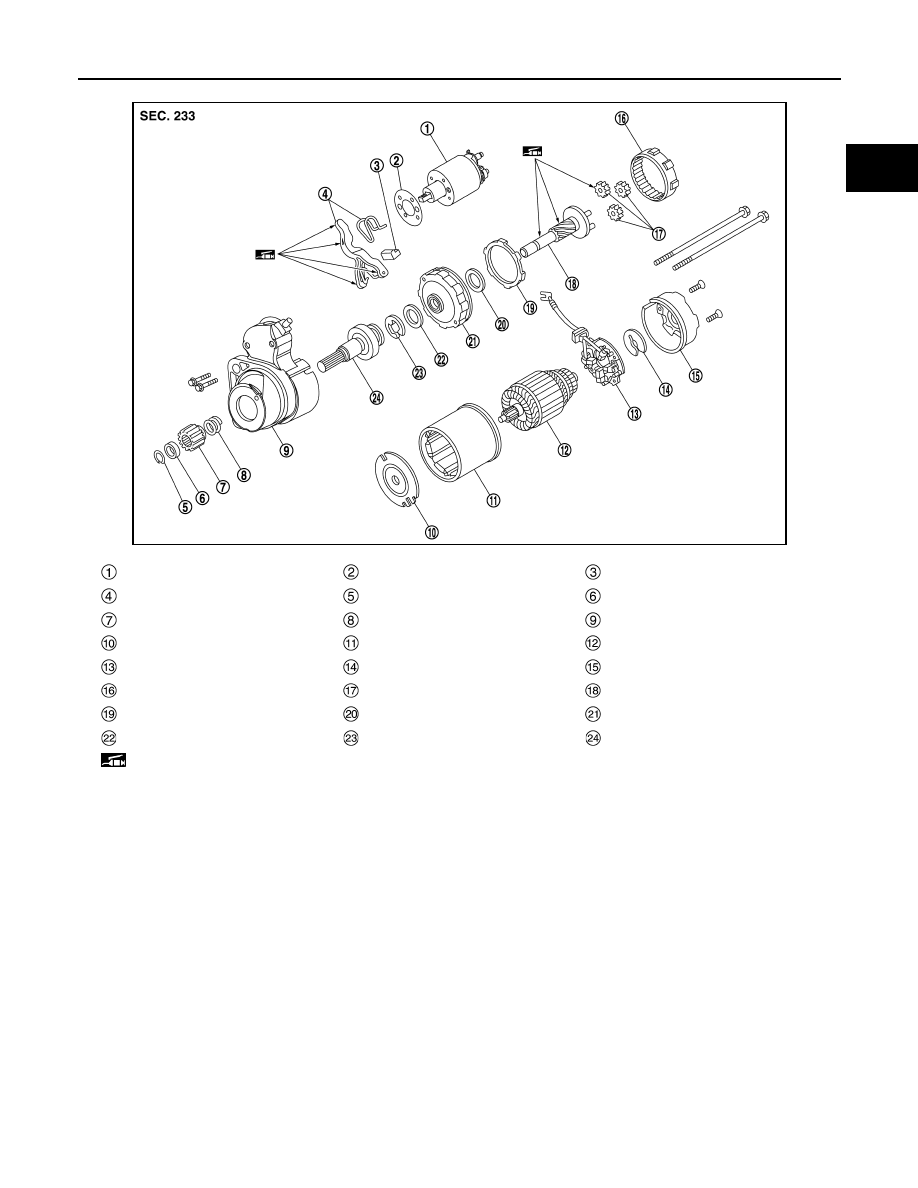

Magnetic switch assembly

Adjusting plate

Dust cover

Shift lever set

Pinion stopper clip

Pinion stopper

Pinion

Pinion spring

Gear case assembly

Center bracket (A)

Yoke assembly

Armature assembly

Brush holder assembly

Thrust washer

Rear cover

Internal gear

Planetary gear

Pinion shaft

Packing

Thrust washer

Center gear assembly

Thrust washer

E-ring

Clutch gear assembly

: High-temperature grease point

STR-34

< REMOVAL AND INSTALLATION >

STARTER MOTOR

M000TB0071

QR25DE : Removal and Installation

INFOID:0000000010728724

REMOVAL

1.

Remove battery. Refer to

PG-142, "EXCEPT FOR R9M : Removal and Installation"

.

2.

Remove air duct. Refer to

EM-175, "Removal and Installation"

.

3.

Disconnect ECM harness connectors

.

JSBIA4204GB

Magnetic switch assembly

Dust cover kit

Gear case assembly

Pinion assembly

Stopper

Ring

Ring

Stopper

Yoke assembly

Armature assembly

Brush holder assembly

Metal

Rear cover

Gear assembly

Shift lever set

Clutch gear assembly

Center bracket

Gear shaft

: N·m (kg-m, in-lb)

: Vehicle front

JMBIA4626ZZ

STARTER MOTOR

STR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

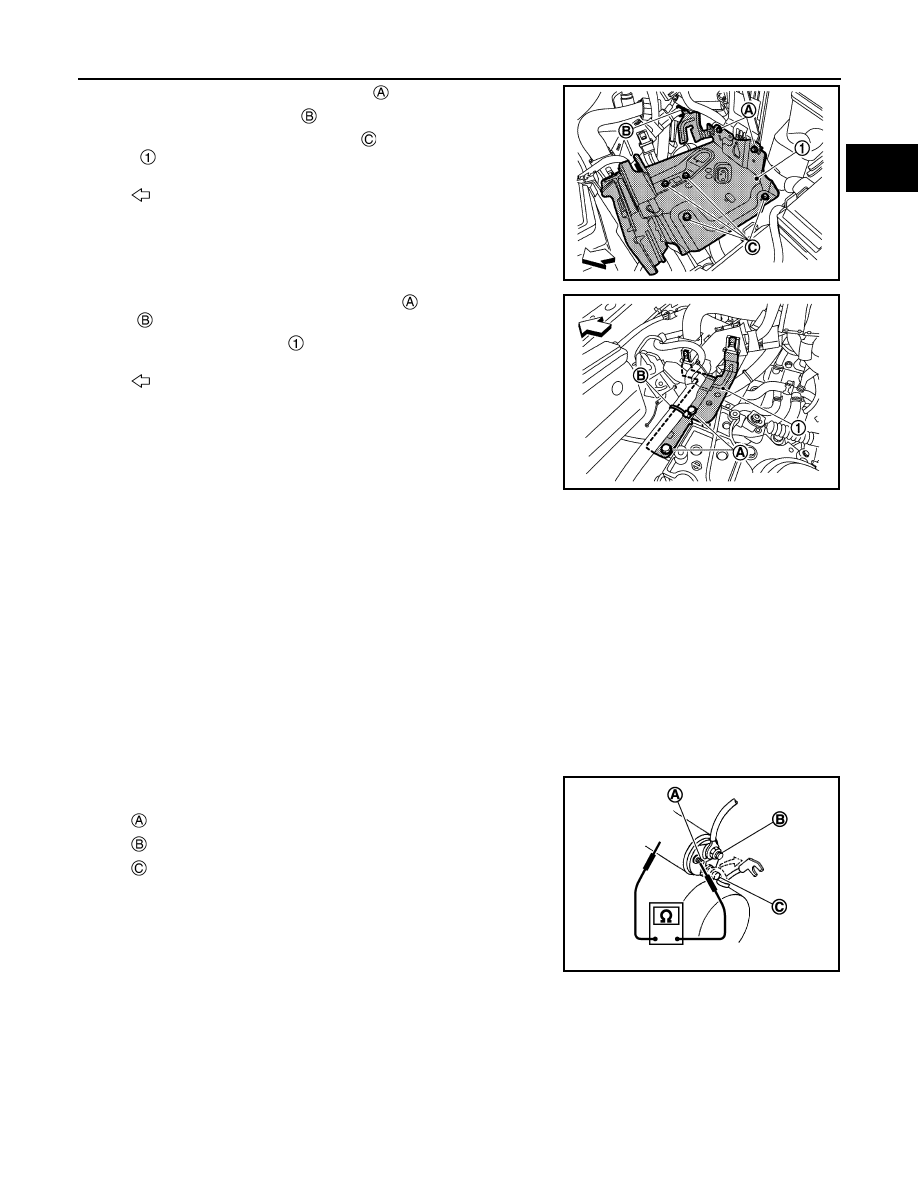

4.

Remove TCM bracket mounting bolts

.

5.

Remove harness fixing clip

.

6.

Remove battery tray mounting bolts

, and then remove battery

tray .

7.

Remove harness bracket mounting bolts

 and harness fixing

clip .

8.

Remove harness bracket

.

9.

Remove “B” terminal nut and “B” terminal harness.

10. Remove “S” terminal nut and “S” terminal harness.

11. Remove starter motor mounting bolts.

12. Remove starter motor upward from the vehicle.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be careful to tighten “B” terminal nut to the specified torque.

QR25DE : Inspection

INFOID:0000000010728725

MAGNETIC SWITCH

• Before starting to check, disconnect the battery cable from the negative terminal.
• Disconnect “M” terminal of starter motor.

1.

Continuity test (between “S” terminal and switch body)

• Replace magnetic switch if continuity does not exist.

: Vehicle front

JMBIA4627ZZ

: Vehicle front

JMBIA4628ZZ

: “S” terminal

: “B” terminal

: “M” terminal

SKIB9002E
