STARTER MOTOR

2.

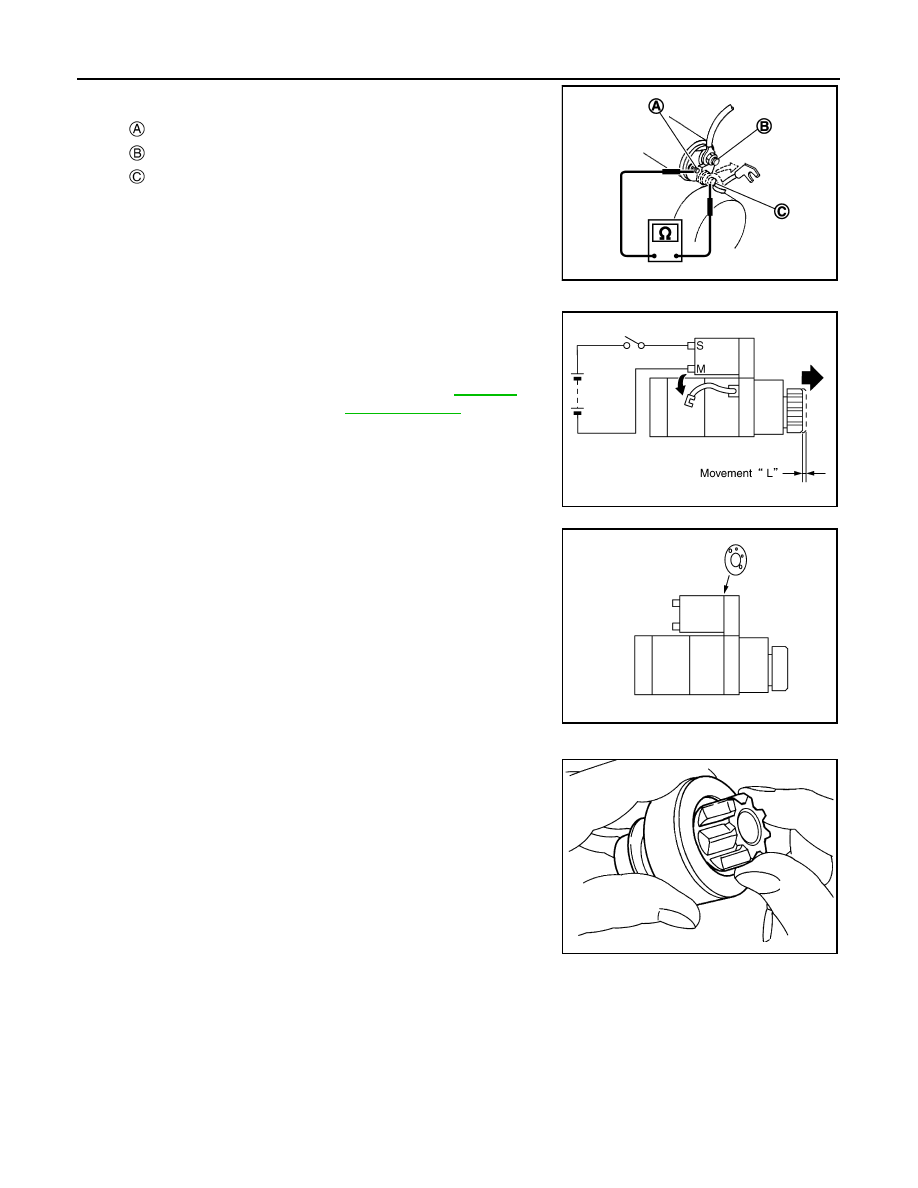

Continuity test (between “S” terminal and “M” terminal)

• Replace magnetic switch if continuity does not exist.

PINION PROTRUSION LENGTH

• Compare movement “L” in height of pinion when it is pushed out

with magnetic switch energized and when it is pulled out by hand
until it touches stopper.

• If the measurement value is not in the specified area, adjust with

the adjusting plate.

PINION ASSEMBLY

1.

Inspect pinion teeth.
• Replace pinion if teeth are worn or damaged. (Also check con-

dition of ring gear teeth.)

2.

Inspect reduction gear teeth.
• Replace reduction gear if teeth are worn or damaged. (Also

check condition of armature shaft gear teeth.)

3.

Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
• Replace pinion assembly if it is locked or rotated in both direc-

tions or unusual resistance is evident.

BRUSH HOLDER ASSEMBLY

Brush

: “S” terminal

: “B” terminal

: “M” terminal

SKIB9003E

Movement “L”

: Refer to SDS

STR-42,

"Starter Motor"

.

SKIB0230E

JPBIA1984ZZ

SEL630BA

STARTER MOTOR

STR-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

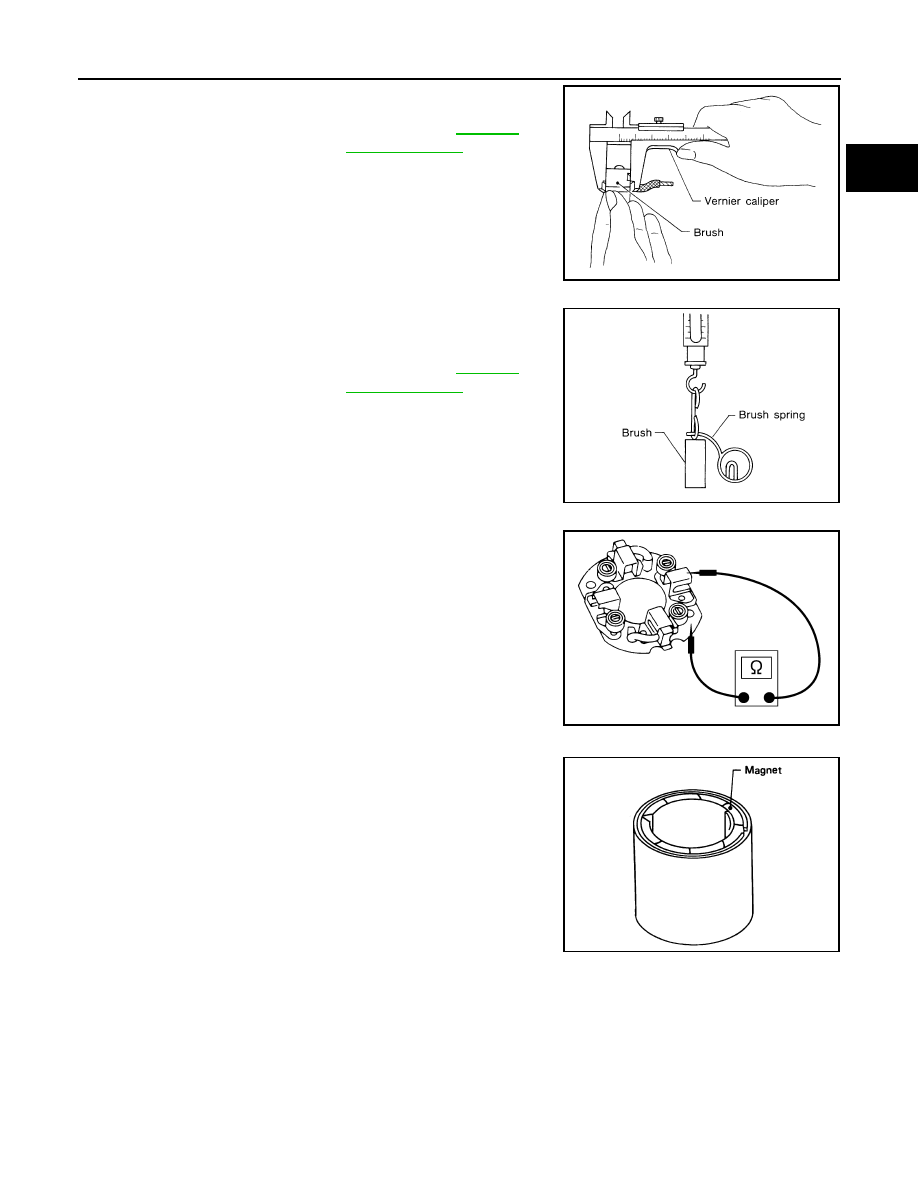

• Check wear of brush.

• Replace brush if the measurement value is less than the specified

value.

Brush Spring

• Check brush spring tension with brush spring detached from

brush.

• Replace brush spring if the measurement value is less than the

specified value.

Brush Holder

1.

Perform insulation test between brush holder (positive side) and
its base (negative side).

-

Replace brush holder assembly if continuity does not exist.

2.

Check brush to see if it moves smoothly.

-

If brush holder is bent, replace it if sliding surface is dirty, clean.

YOKE CHECK

Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunctioning
parts as an assembly.

CAUTION:

Never clamp yoke in a vise or strike it with a hammer.

ARMATURE CHECK

Minimum length of brush

: Refer to SDS

STR-42,

"Starter Motor"

.

SEL014Z

Spring tension (with new
brush)

: Refer to SDS

STR-42,

"Starter Motor"

.

SEL015Z

SKIB0460E

SEL305H

STR-38

< REMOVAL AND INSTALLATION >

STARTER MOTOR

1.

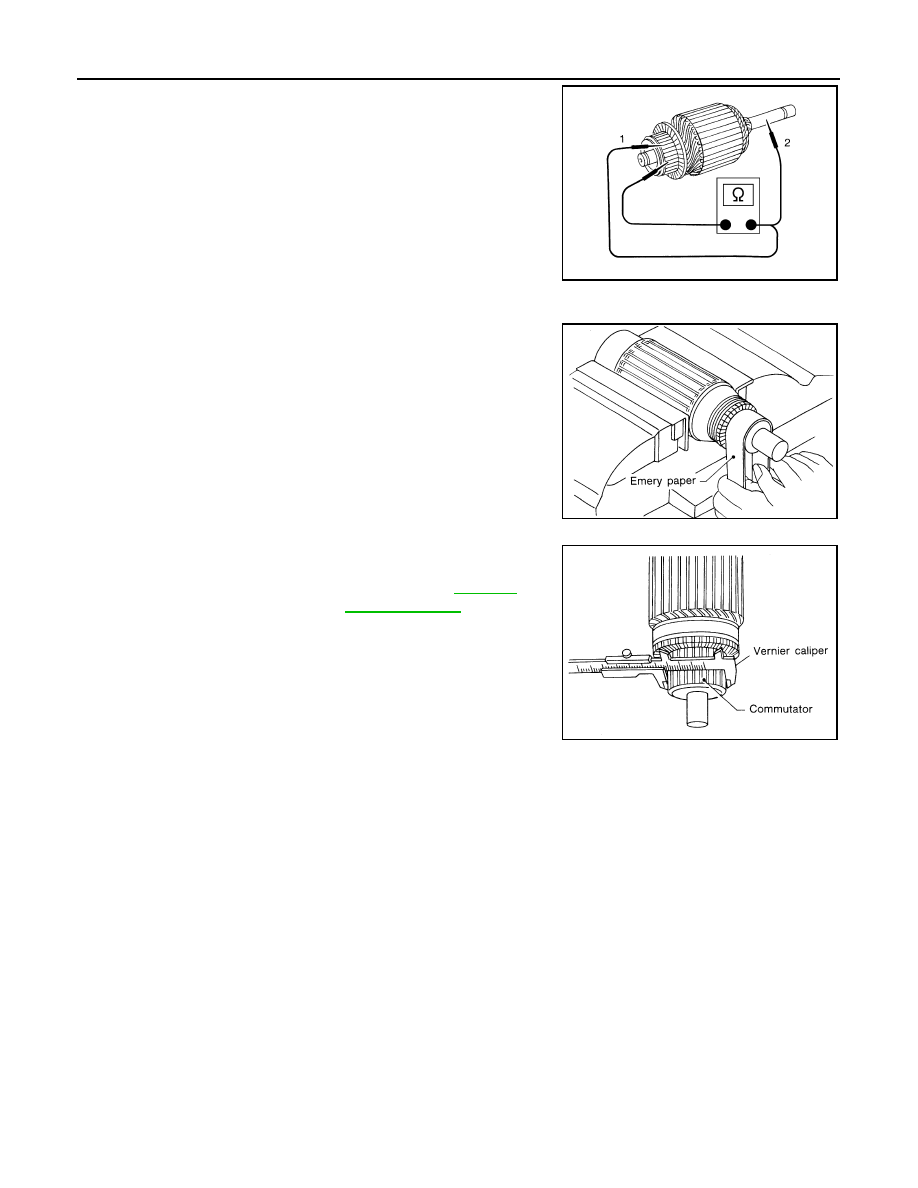

Continuity test (between two segments side by side)

-

Replace if continuity does not exist.

2.

Insulation test (between each commutator bar and shaft)

-

Replace if continuity exists.

3.

Check commutator surface.

-

Grind commutator with No. 500 – 600 emery paper if the surface
is rough.

4.

Check diameter of commutator.

-

Replace armature assembly if the measurement value is less
than the specified value.

SKIB0461E

SEL020Z

Commutator minimum di-
ameter

: Refer to SDS

STR-42,

"Starter Motor"

.

SEL021Z

STARTER MOTOR

STR-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

5.

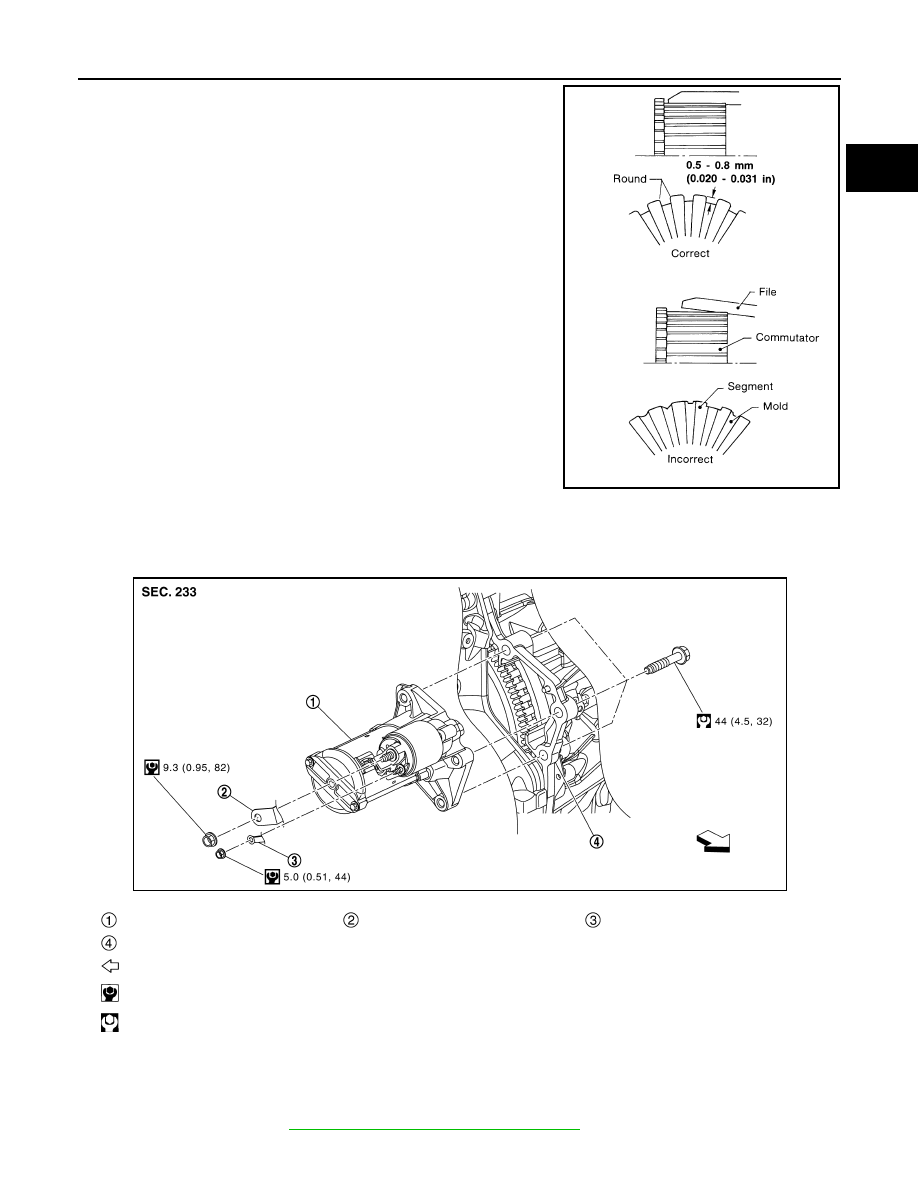

Check depth of insulating mold from commutator surface.

-

Undercut to 0.5 – 0.8 mm (0.020 – 0.031 in) if the depth is 0.2
mm (0.008 in) or less.

R9M

R9M : Exploded View

INFOID:0000000010728730

R9M : Removal and Installation

INFOID:0000000010728731

REMOVAL

1.

Remove battery. Refer to

PG-139, "R9M : Removal and Installation"

.

SEL022Z

Starter motor

“B” terminal harness

“S” terminal harness

Transmission housing

: Vehicle front

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMBIA4638GB
