Nissan X-Trail 32. Manual - part 2002

STR-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

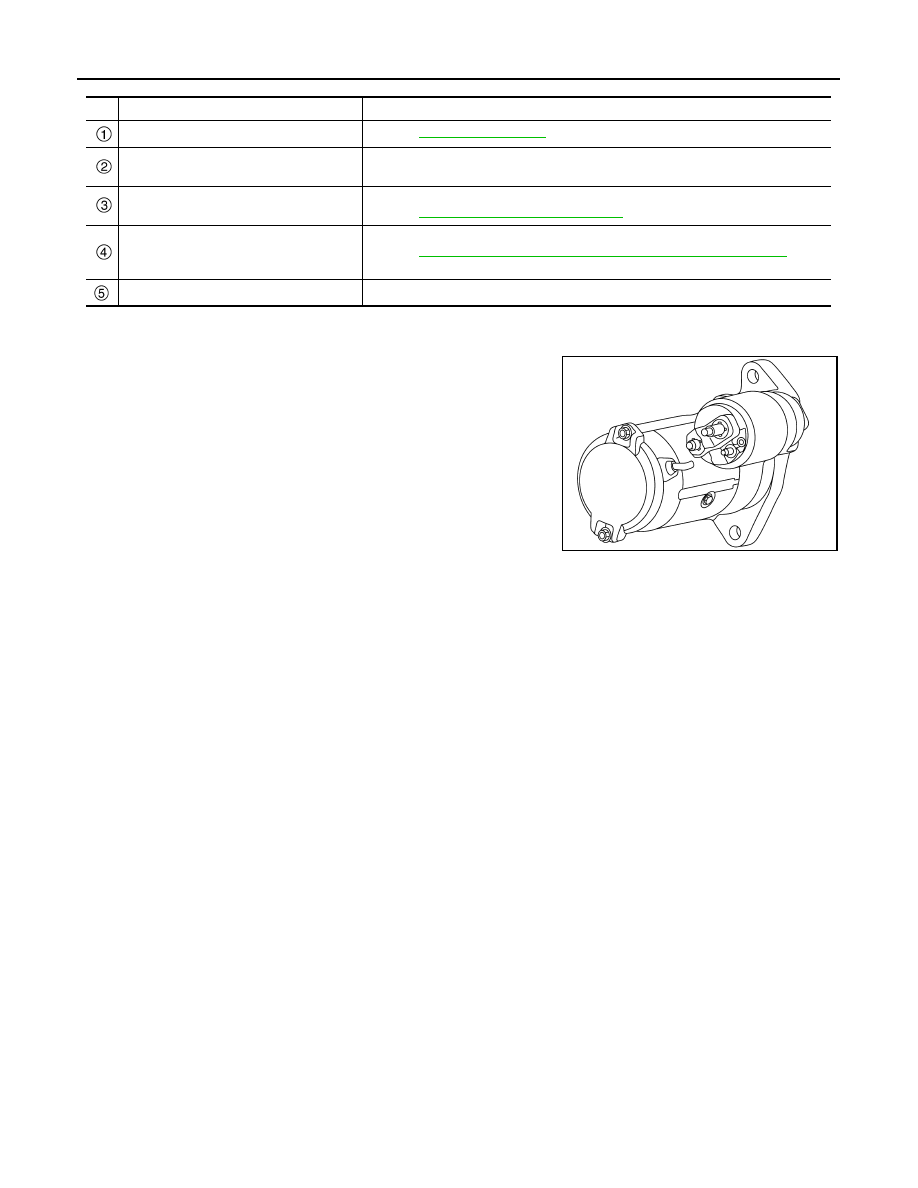

Starter motor

INFOID:0000000010957644

The starter motor plunger closes and the motor is supplied with bat-
tery power, which in turn cranks the engine, when the “S” terminal is
supplied with electric power.

No.

Component

Function

Starter motor

Refer to

STR-8, "Starter motor"

.

Transmission range switch
(For CVT models)

Transmission range switch supplies power to the starter relay inside IPDM E/R
when the selector lever is shifted to the “P” or “N” position.

IPDM E/R

CPU inside IPDM E/R controls starter relay.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

BCM controls starter control relay.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Starter control relay

Power is supplied to the starter control relay with BCM control.

JMBIA4360ZZ

SYSTEM

STR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM

STARTING SYSTEM

STARTING SYSTEM : System Description

INFOID:0000000010957645

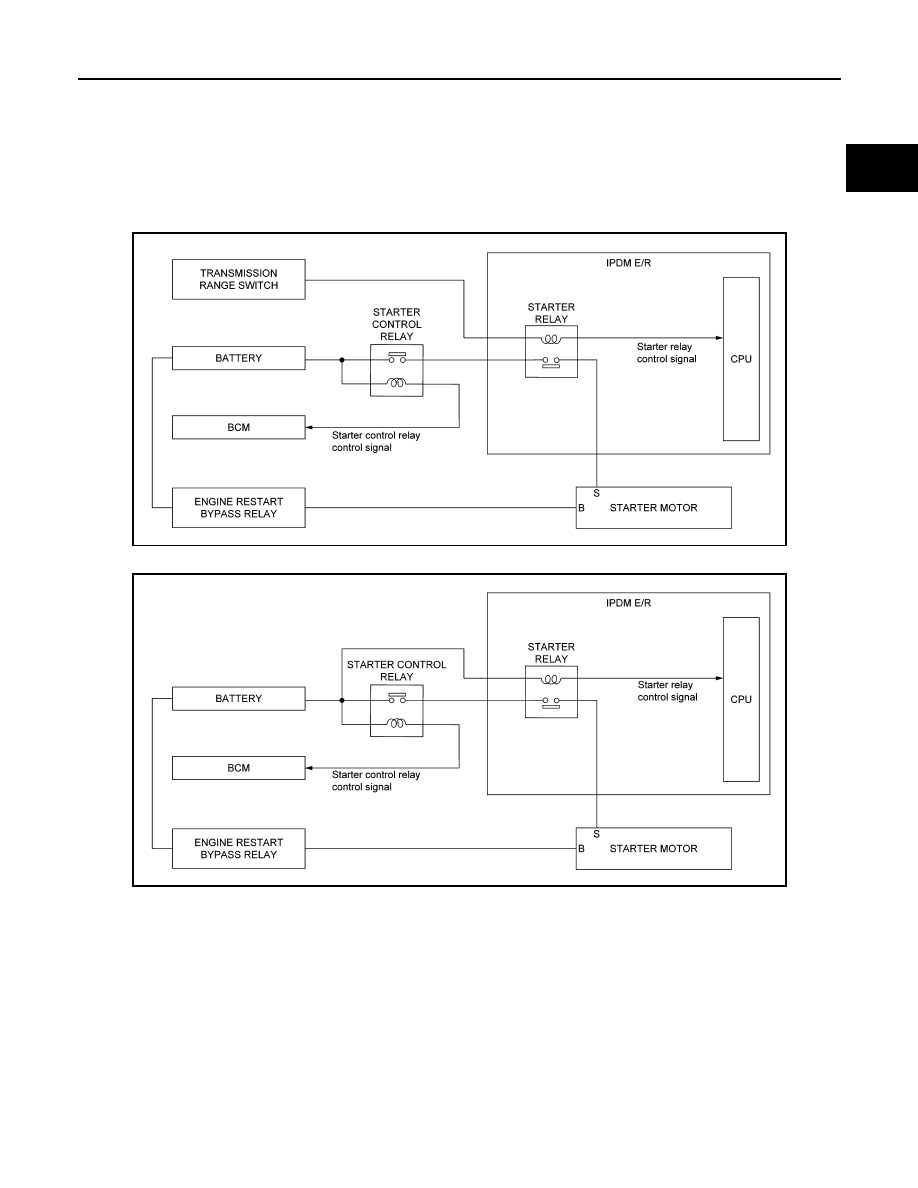

SYSTEM DIAGRAM

CVT Models

MT Models

NOTE:
For models without stop/start system, starter motor “B” terminal is connect to battery directly.

SYSTEM DESCRIPTION

CVT Models

• “B” terminal is constantly supplied with battery power*.
• When selector lever is P or N, power is supplied to starter control relay by transmission range switch.
• When starter operating condition is satisfied, IPDM E/R turns starter relay ON by starter relay control signal.
• When engine cranking condition is satisfied, BCM turns starter control relay ON by starter control relay con-

trol signal.

• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

M/T Models

• “B” terminal is constantly supplied with battery power*.
• When starter operating condition is satisfied, IPDM E/R turns starter relay ON by starter relay control signal.

JMBIA4646GB

JMBIA4647GB

STR-10

< SYSTEM DESCRIPTION >

SYSTEM

• When engine cranking condition is satisfied, BCM turns starter control relay ON by starter control relay con-

trol signal.

• Then battery power is supplied to starter motor (“S” terminal) through starter relay and starter control relay.
*: For models with stop/start system, starter motor “B” terminal receives the battery power via engine restart
bypass relay.

STARTING SYSTEM

STR-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

WIRING DIAGRAM

STARTING SYSTEM

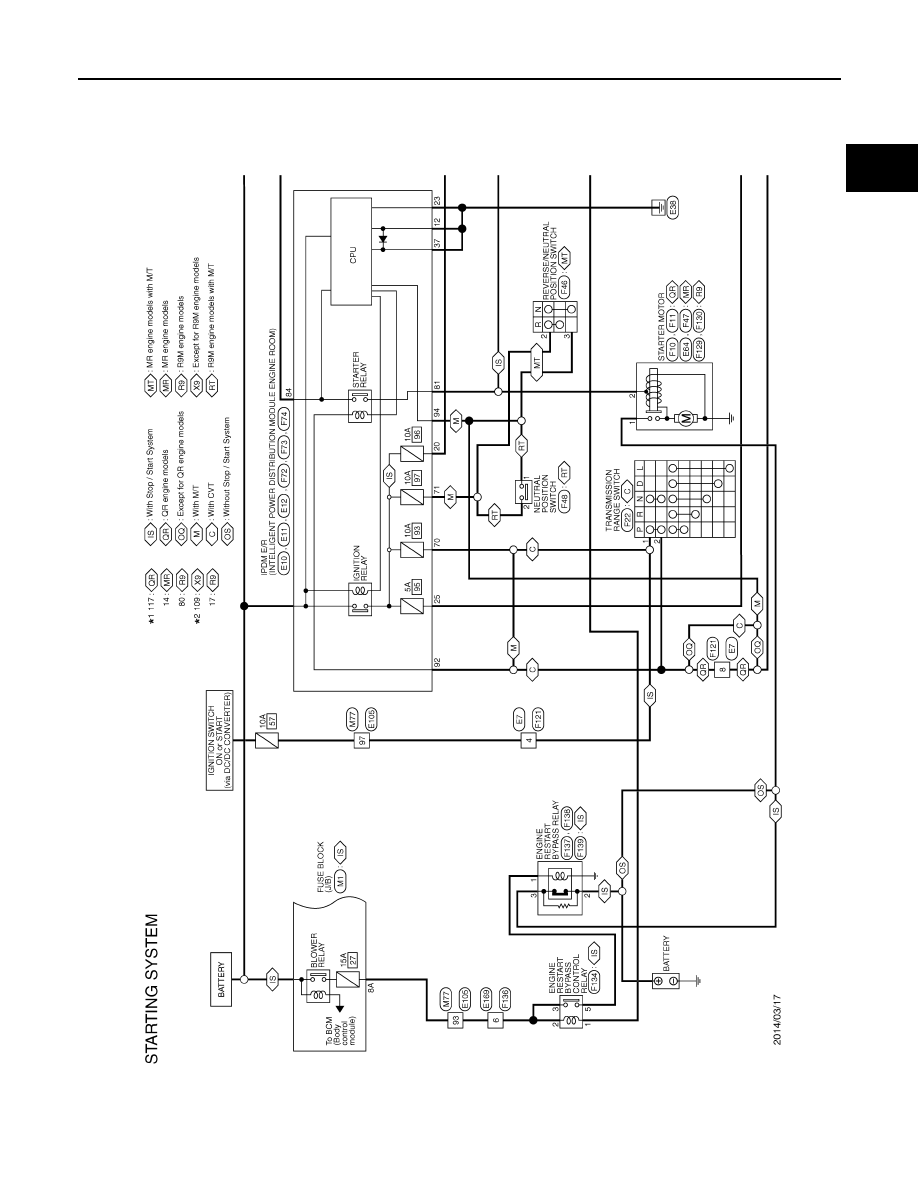

Wiring Diagram

INFOID:0000000010957646

JRBWC7641GB
