STR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

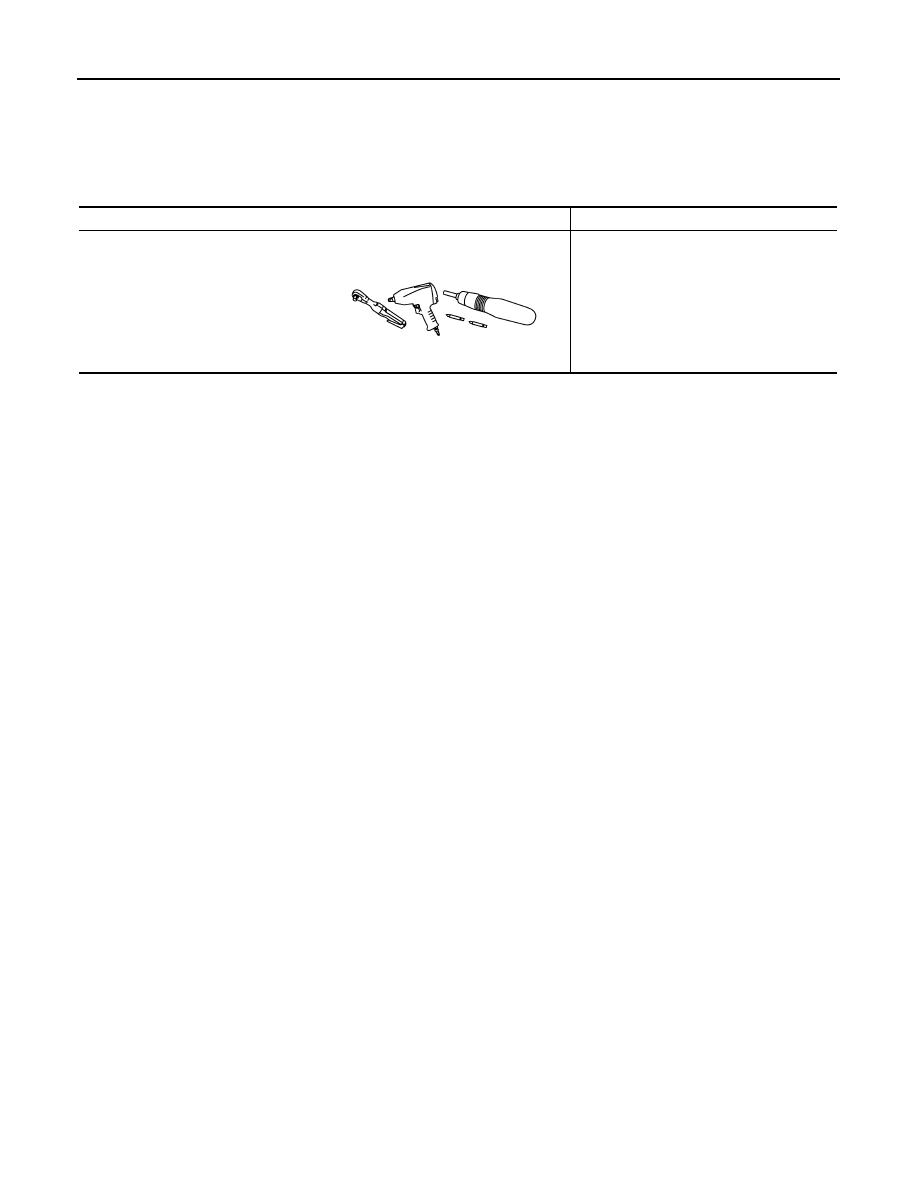

Commercial Service Tools

INFOID:0000000010957642

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

COMPONENT PARTS

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM DESCRIPTION

COMPONENT PARTS

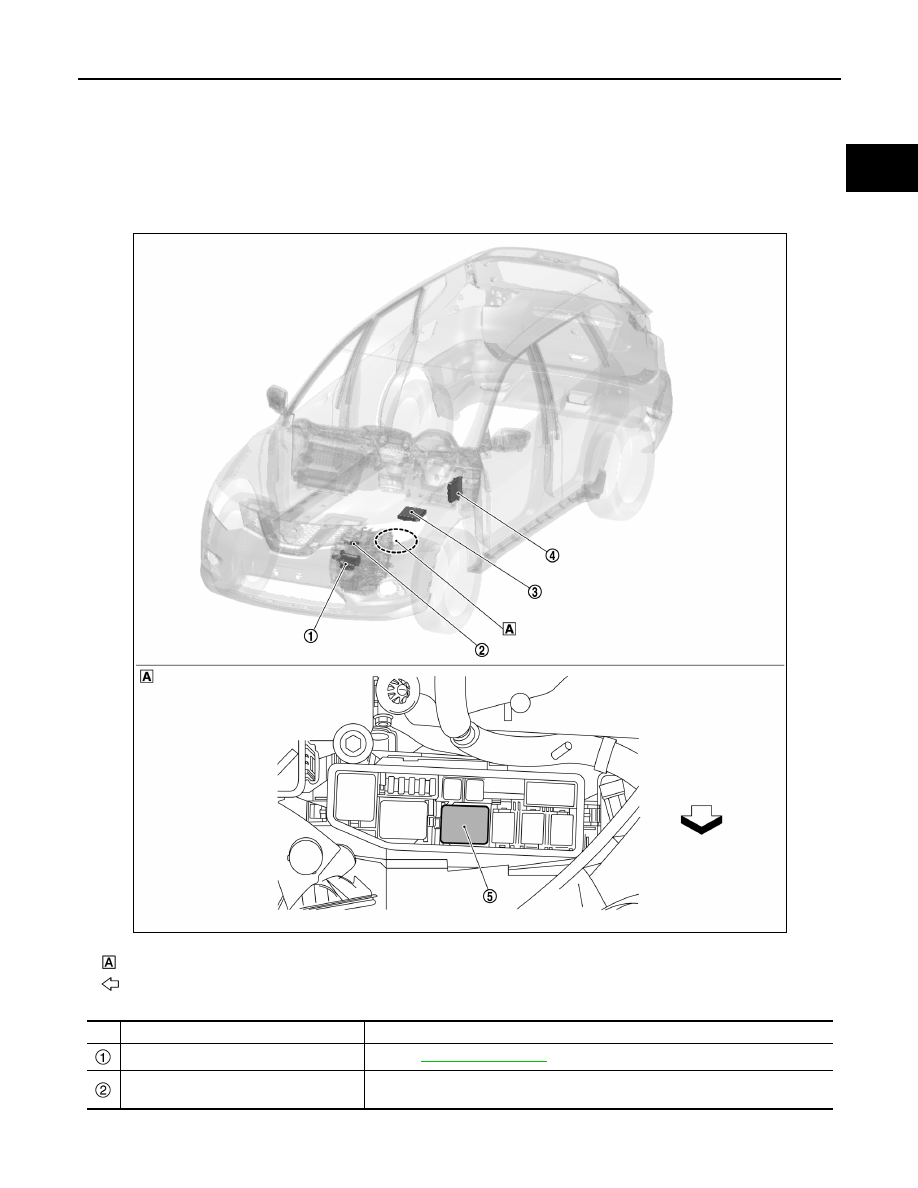

Component Parts Location

INFOID:0000000010957652

QR ENGINE

Front side of IPDM E/R

: Vehicle front

No.

Component

Function

Starter motor

Refer to

STR-8, "Starter motor"

.

Transmission range switch

Transmission range switch supplies power to the starter relay inside IPDM E/R
when the selector lever is shifted to the “P” or “N” position.

JMBIA4648ZZ

STR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

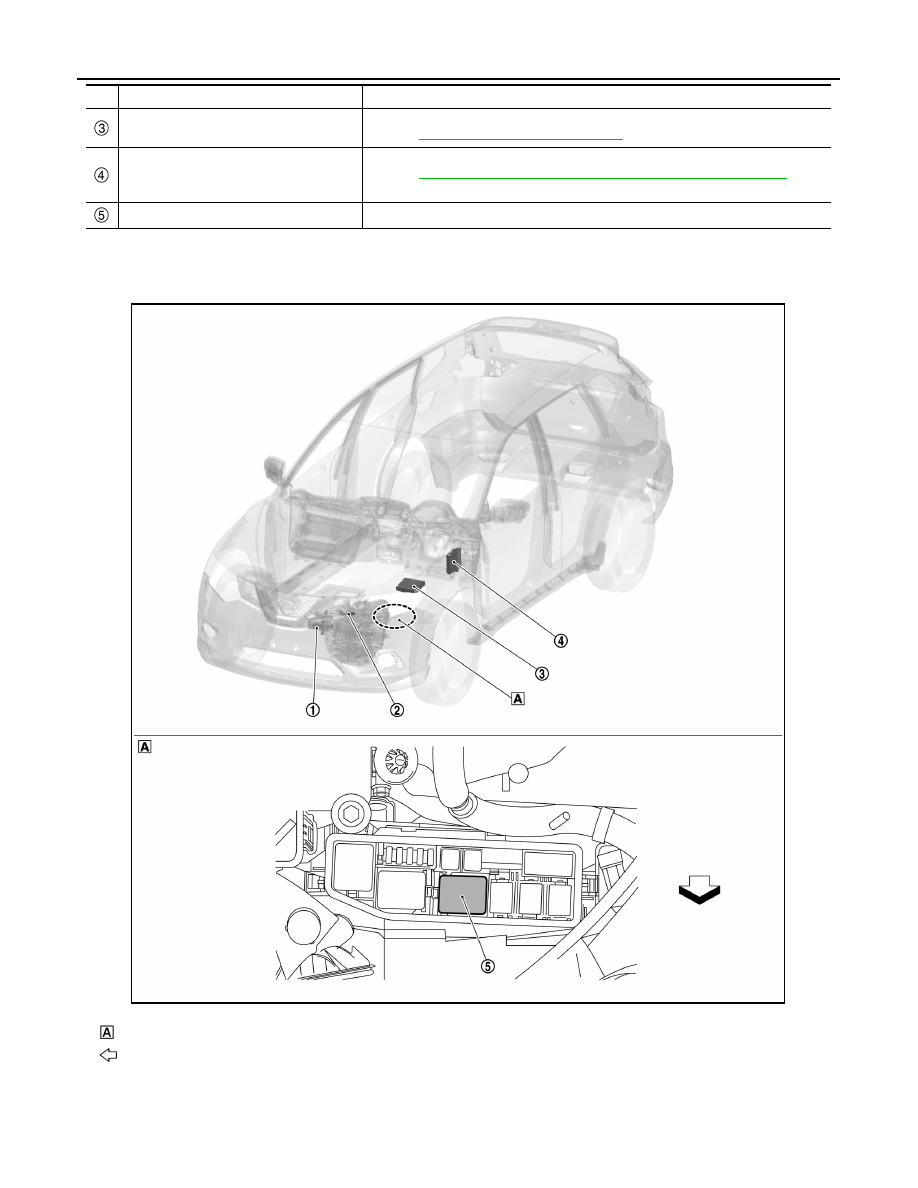

EXCEPT FOR QR ENGINE

For LHD models

IPDM E/R

CPU inside IPDM E/R controls starter relay.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

BCM controls starter control relay.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Starter control relay

Power is supplied to the starter control relay with BCM control.

No.

Component

Function

Front side of IPDM E/R

: Vehicle front

JMBIA4649ZZ

COMPONENT PARTS

STR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

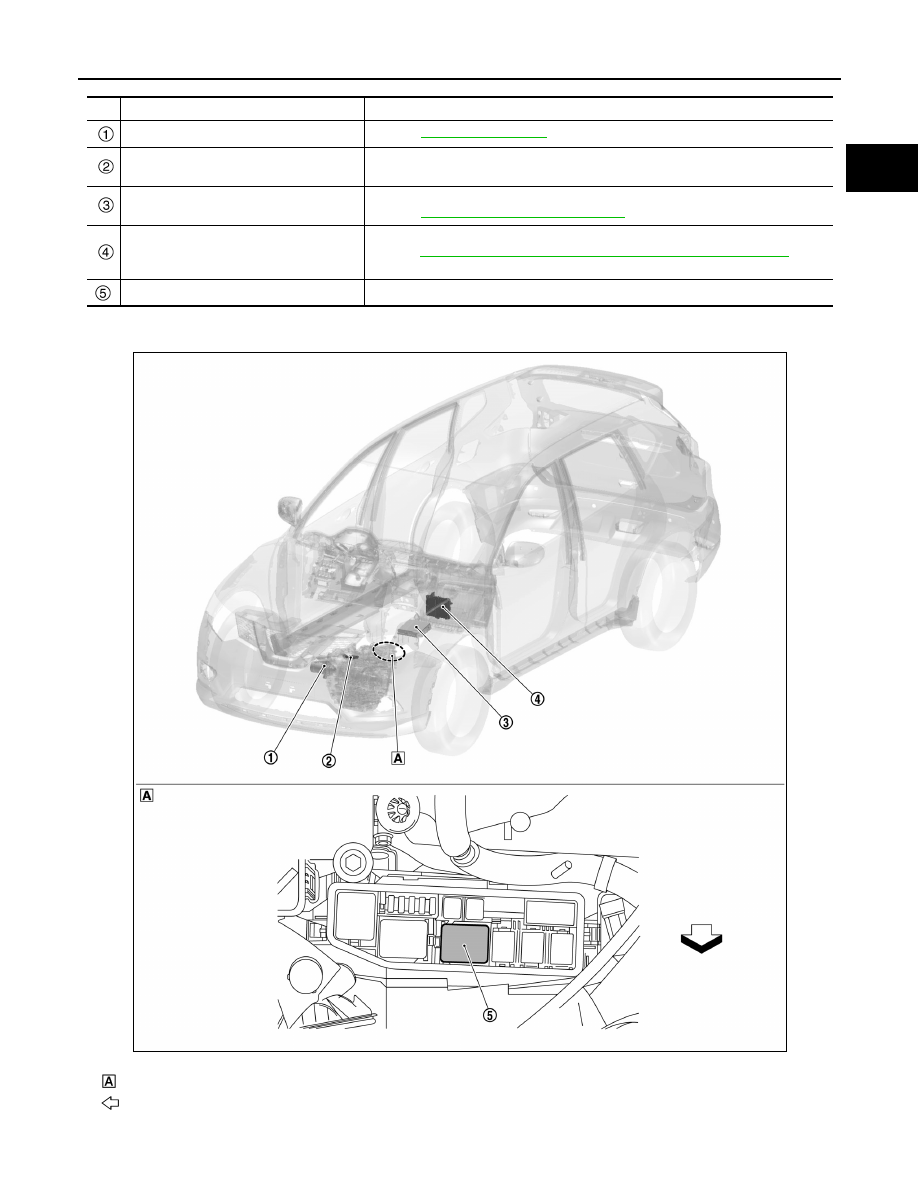

For RHD models

No.

Component

Function

Starter motor

Refer to

STR-8, "Starter motor"

.

Transmission range switch
(For CVT models)

Transmission range switch supplies power to the starter relay inside IPDM E/R
when the selector lever is shifted to the “P” or “N” position.

IPDM E/R

CPU inside IPDM E/R controls starter relay.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

BCM controls starter control relay.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Starter control relay

Power is supplied to the starter control relay with BCM control.

Front side of IPDM E/R

: Vehicle front

JMBIA4566ZZ
