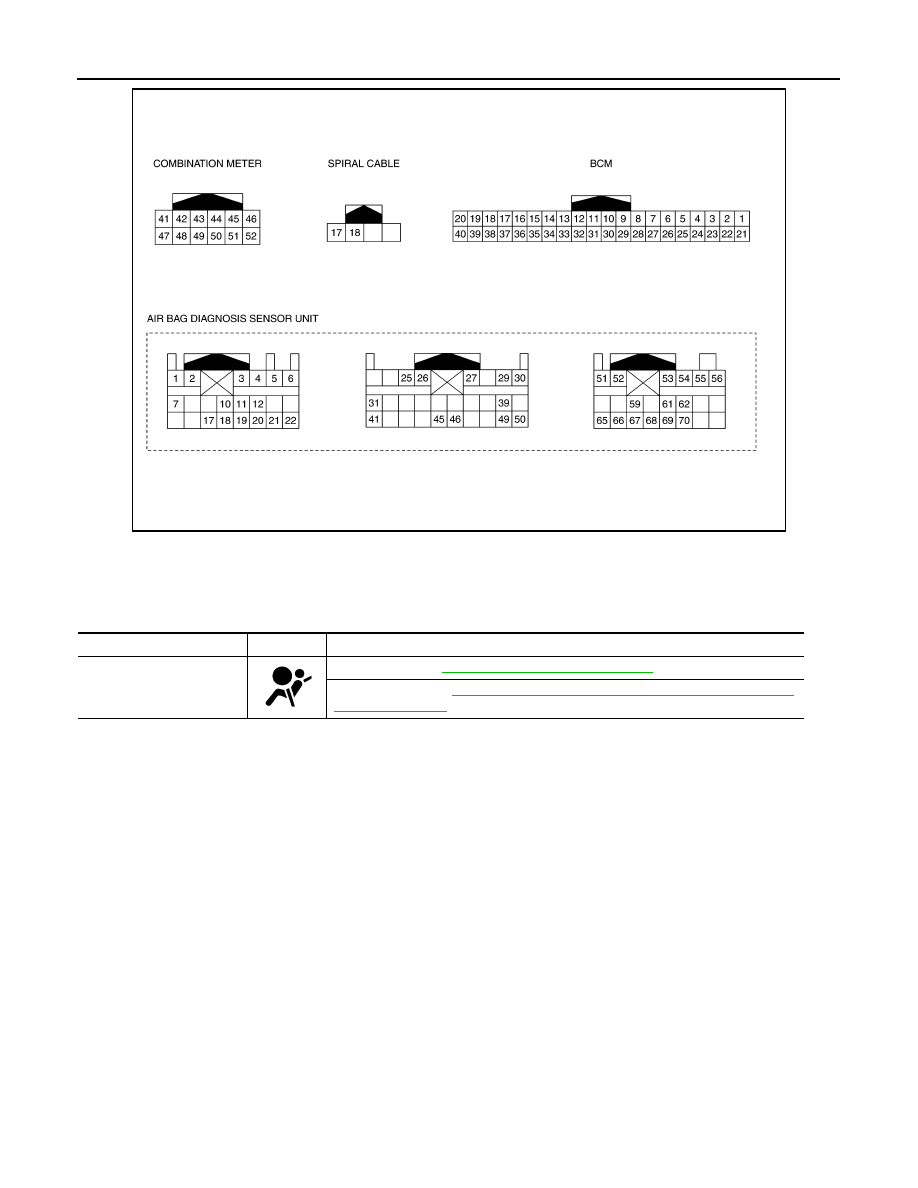

SRC-16

< SYSTEM DESCRIPTION >

SYSTEM

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010688452

JMHIA2947GB

Item

Design

Reference

SRS air bag warning lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-57, "WARNING LAMPS/INDICATOR LAMPS : SRS Air

Bag Warning Lamp"

.

DIAGNOSIS SYSTEM (AIR BAG)

SRC-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DIAGNOSIS SYSTEM (AIR BAG)

CONSULT Function

INFOID:0000000010688453

APPLICATION ITEM

CONSULT performs the following functions.

SELF-DIAG RESULT

Refer to

SRC-18, "DTC Index"

.

Diagnosis mode

Description

Self Diagnostic Result

• Self-diagnosis result is displayed.
• “No DTC” is displayed when repair is completed by part replacement or other operations.
• “SELF-DIAG RESULT [MEMORY]” is displayed until “Erase” performed.

Data Monitor

This item is displayed, but cannot be supported.

ECU Identification

Air bag diagnosis sensor unit ECU discriminated number (identification number) or part number is
displayed. Air bag diagnosis sensor unit has individual ECU discriminated number (identification
number) or part number based on model and equipment.

TROUBLE DIAG RECORD

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be
displayed on CONSULT screen.

SRC-18

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

ECU DIAGNOSIS INFORMATION

DIAGNOSIS SENSOR UNIT

DTC Index

INFOID:0000000010688454

DTC

Diagnostic item

Reference page

U1000–01

CAN COMM CIRCUIT

SRC-33, "DTC Logic"

U1010–49

CONTROL UNIT (CAN)

SRC-34, "DTC Logic"

B0001–00

DRIVER AIRBAG MODULE

SRC-35, "DTC Description"

B0001–09

B0001–11

B0001–12

B0001–13

B0001–1A

B0010–09

ASSIST A/B MODULE

SRC-38, "DTC Description"

B0010–11

B0010–12

B0010–13

B0010–1A

B0020–09

SIDE A/B MODULE LH

SRC-40, "DTC Description"

B0020–11

B0020–12

B0020–13

B0020–1A

B0021–09

CURTAIN A/B MODULE LH

SRC-42, "DTC Description"

B0021–11

B0021–12

B0021–13

B0021–1A

B0028–09

SIDE A/B MODULE RH

SRC-44, "DTC Description"

B0028–11

B0028–12

B0028–13

B0028–1A

B0029–09

CURTAIN A/B MODULE RH

SRC-46, "DTC Description"

B0029–11

B0029–12

B0029–13

B0029–1A

DIAGNOSIS SENSOR UNIT

SRC-19

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B0091–11

B-PILLAR SAT SEN LH

SRC-48, "DTC Description"

B0091–23

B0091–24

B0091–25

B0091–28

B0091–81

B0091–86

B0091–88

B0091–93

B0092–11

C-PILLAR SAT SEN LH

SRC-50, "DTC Description"

B0092–23

B0092–24

B0092–25

B0092–28

B0092–81

B0092–86

B0092–88

B0092–93

B0094–11

CRASH ZONE SENS

SRC-52, "DTC Description"

B0094–23

B0094–24

B0094–25

B0094–28

B0094–81

B0094–86

B0094–88

B0094–93

B0096–11

B-PILLAR SAT SEN RH

SRC-54, "DTC Description"

B0096–23

B0096–24

B0096–25

B0096–28

B0096–81

B0096–86

B0096–88

B0096–93

DTC

Diagnostic item

Reference page
