SRC-4

< PRECAUTION >

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010842500

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010842503

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

PRECAUTIONS

SRC-5

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.
• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Service

INFOID:0000000010688448

• Never use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn power switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, never work on any SRS connectors or wires until at least 3 minutes have
passed.

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Never turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.
• Never solder the harness when making repairs. Check that harness is not pinched and that there is no con-

tact with other components.

• Never allow harness to come in contact with oil, grease, waste oil, or water.
• Never insert foreign materials, such as a screwdriver, into the harness connector. (This is to prevent acci-

dental activation caused by static electricity.)

• Always use CONSULT or SRS air bag warning lamp to perform the circuit diagnosis. (Never use an electric

tester such as a circuit tester.)

SRC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

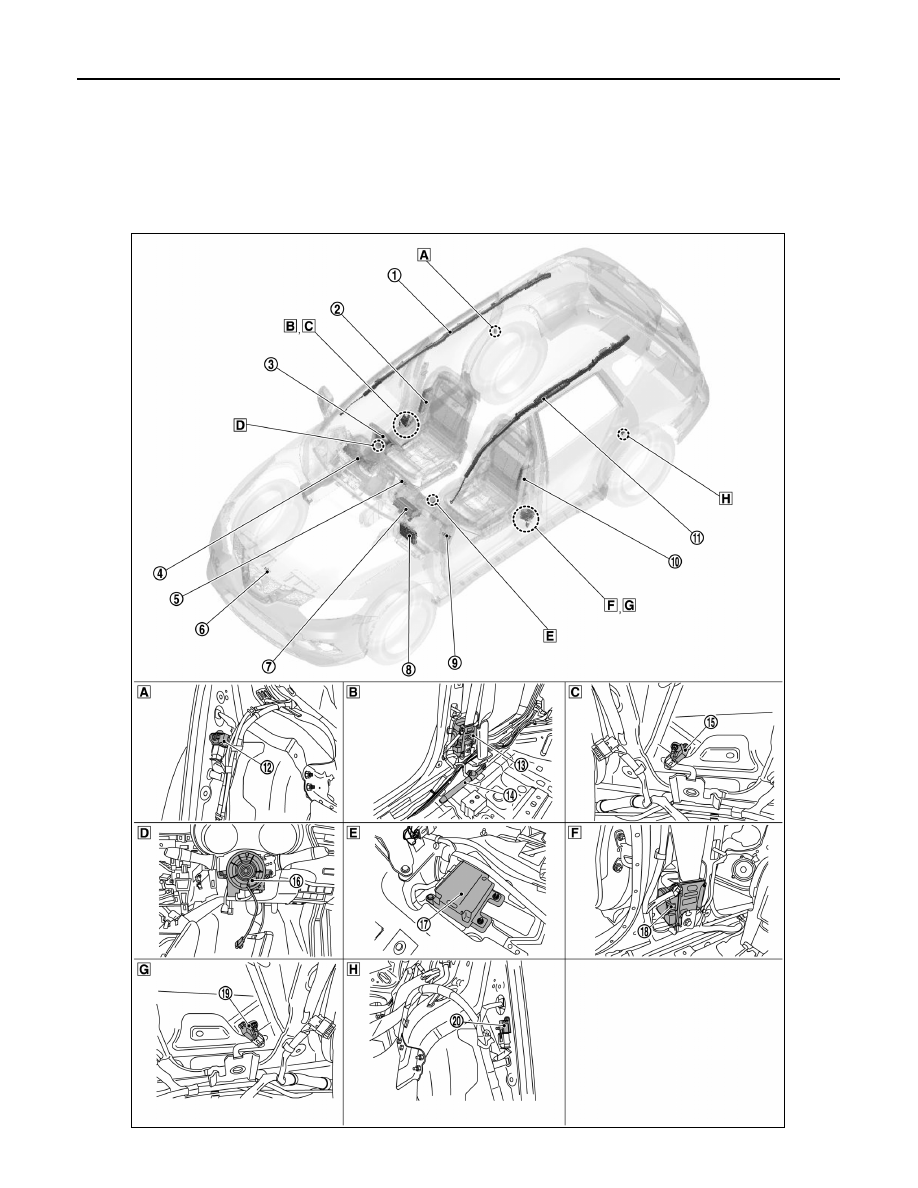

Component Parts Location

INFOID:0000000010688449

RHD models

JMHIA2943ZZ

COMPONENT PARTS

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

LHD models

Behind luggage side lower finisher
RH

Behind center pillar lower garnish
RH

Behind center pillar lower garnish
RH

View with steering wheel removed

View with center console assembly

Behind center pillar lower garnish LH

Behind center pillar lower garnish LH

Behind luggage side lower finisher
LH

No.

Component

Function

Curtain air bag module RH

Refer to

SR-8, "AIR BAG MODULE : Curtain air bag module"

.

Side air bag module RH

Refer to

SR-8, "AIR BAG MODULE : Side air bag module"

.

Driver air bag module

Refer to

SR-7, "AIR BAG MODULE : Driver air bag module"

.

Combination meter (air bag warning lamp)

Refer to

SR-12, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Air bag warning lamp"

.

Indicator unit

Front passenger air bag OFF
indicator

Refer to

SRC-9, "Front Passenger Air Bag Off Indicator"

.

Front passenger air bag ON
indicator

Refer to

SRC-10, "Front Passenger Air Bag On Indicator"

.

Crash zone sensor

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Crash zone sensor"

.

Passenger air bag module

Refer to

SR-7, "AIR BAG MODULE : Passenger air bag mod-

ule"

.

BCM

Refer to

BCS-6, "BODY CONTROL SYSTEM : Component

Parts Location"

.

Air bag cutoff switch

Deactivates passenger air bag module deployment by switch-
ing air bag cut OFF switch to the OFF position.

Side air bag module LH

Refer to

SR-8, "AIR BAG MODULE : Side air bag module"

.

Curtain air bag module LH

Refer to

SR-8, "AIR BAG MODULE : Curtain air bag module"

.

C-pillar satellite sensor RH

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Satellite sensor"

.

Seat belt pre-tensioner RH

Refer to

SB-5, "Seat belt pre-tensioner with Load limiter"

.

Lap pre-tensioner RH

Refer to

SB-6, "Double pre-tensioner seat belt"

.

B-pillar satellite sensor RH

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Satellite sensor"

.

Combination switch (spiral cable)

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Spiral cable"

.

Air bag diagnosis sensor unit

Refer to

SR-11, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Air bag diagnosis sensor unit"

.

Seat belt pre-tensioner LH

Refer to

SB-5, "Seat belt pre-tensioner with Load limiter"

.

B-pillar satellite sensor LH

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Satellite sensor"

.

C-pillar satellite sensor LH

Refer to

SR-10, "MAIN COMPONENT PARTS AND FUNC-

TIONS : Satellite sensor"

.
