SR-26

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

PASSENGER AIR BAG MODULE

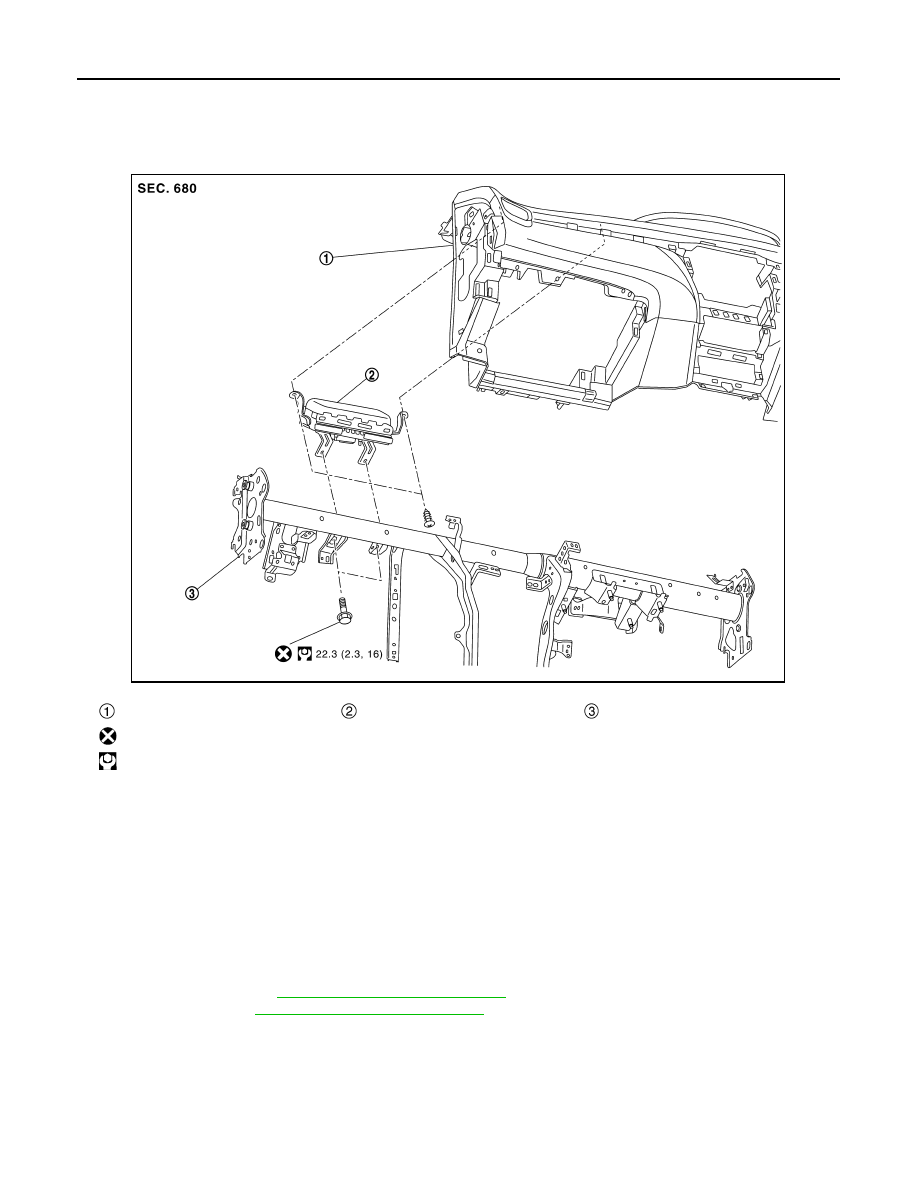

Exploded View

INFOID:0000000010927728

Removal and Installation

INFOID:0000000010927729

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more (discharges electricity held in the additional power supply circuit of the air bag diagno-
sis sensor unit).

• Always work from the side of air bag module. Never work in front of it.

REMOVAL

1.

Remove instrument panel assembly.
• For australia: Refer to

IP-41, "Removal and Installation"

.

For china: Refer to

IP-14, "Removal and Installation"

.

2.

Remove passenger air bag module assembly mounting screws, and then remove passenger air bag mod-
ule assembly.

CAUTION:

Instrument panel assembly

Passenger air bag module

Steering member assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA2879GB

PASSENGER AIR BAG MODULE

SR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

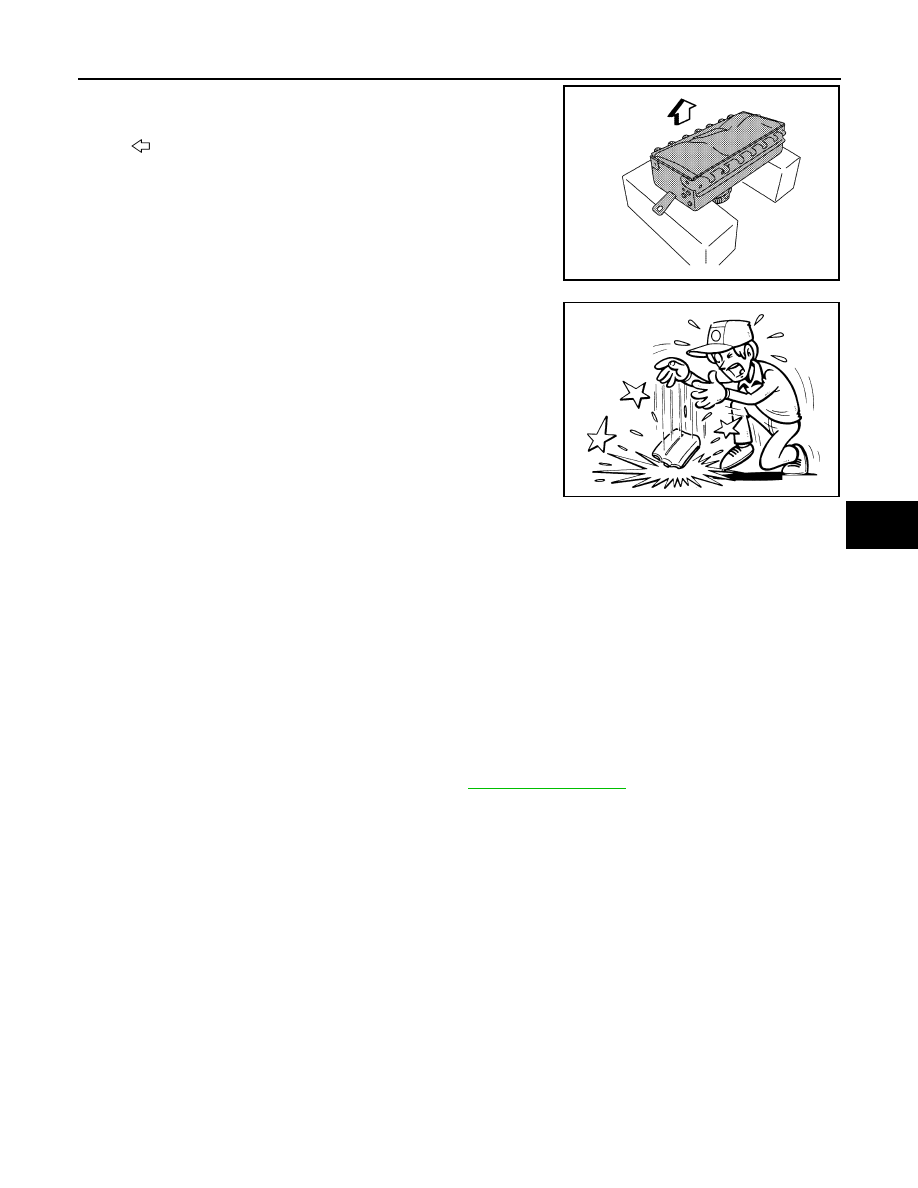

• To prevent accidental explosion, always place the driver

air bag module with deploying direction facing upward.

• To prevent damage to the parts, never impact the passen-

ger air bag module.

• Replace the passenger air bag module if it is dropped or

sustains an impact.

• To prevent accidental explosion, never insert any foreign objects (screwdriver, etc.) into the pas-

senger air bag module.

• To prevent accidental explosion, never disassemble the passenger air bag module.
• To prevent accidental explosion, never expose the passenger air bag module to temperature of

more than 90

°

C (194

°

F).

• To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact

with the passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse mounting bolts after removal, replace with new bolts.
• Never damage the harness while installing.
• After installation is complete, perform self-diagnosis using CONSULT or air bag warning lamp, if the

system is normal and

″

PAST

″

 of

″

Self Diagnostic Result

″

 is indicated, always perform

″

ERASE

″

 of

″

Self Diagnostic Result

″

 using CONSULT. Refer to

SRC-28, "Work Flow"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

: Deploying direction

AWHIA0403ZZ

JMHIA0009ZZ

SR-28

< REMOVAL AND INSTALLATION >

SIDE AIR BAG MODULE

SIDE AIR BAG MODULE

Exploded View

INFOID:0000000010927730

Refer to

SE-38, "Exploded View"

.

Removal and Installation

INFOID:0000000010927731

Refer to

SE-41, "SEATBACK : Disassembly and Assembly"

.

CURTAIN AIR BAG MODULE

SR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

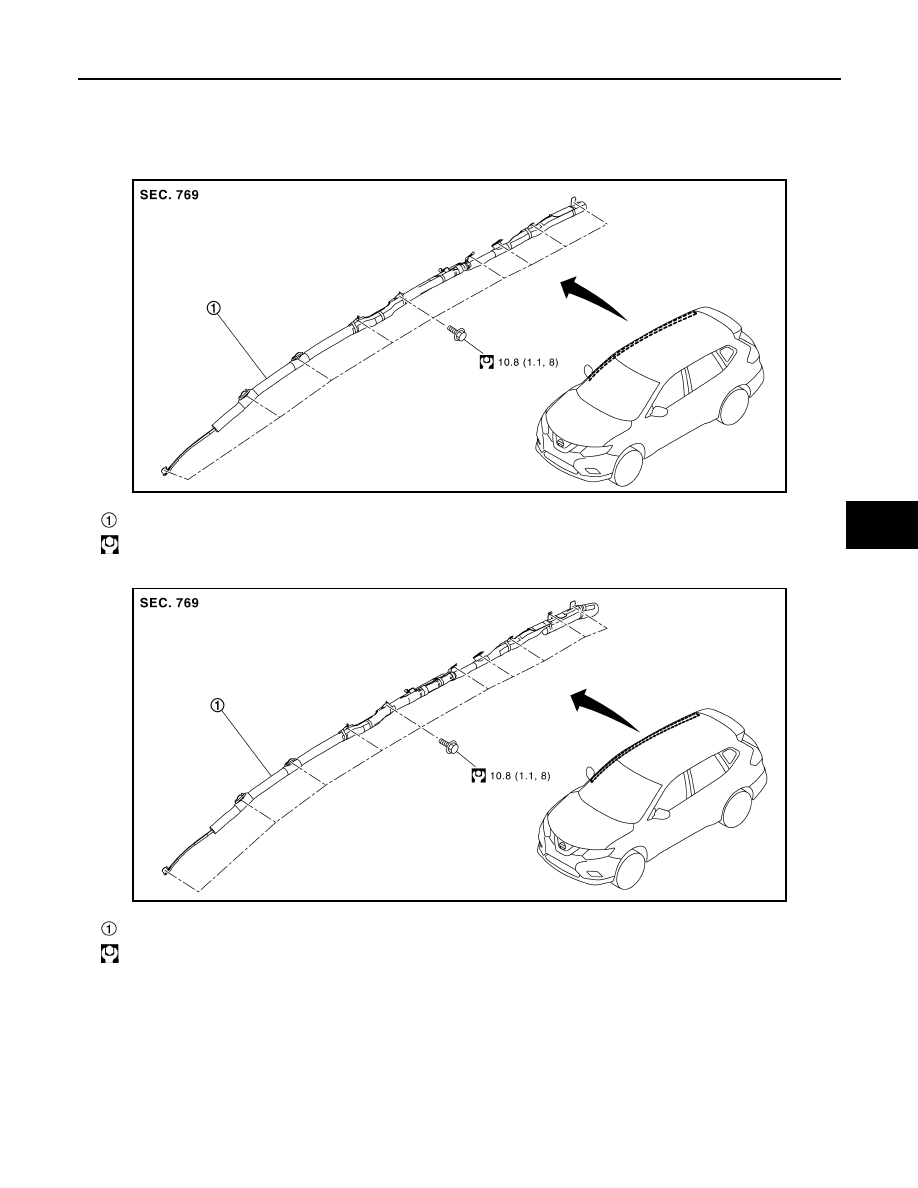

CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000010927732

2 Row

3 Row

Removal and Installation

INFOID:0000000010927733

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more (discharges electricity held in the additional power supply circuit of the air bag diagno-
sis sensor unit).

• Always work from the side of curtain air bag module. Never work in front of it.

JMHIA2880GB

Curtain air bag module

: N·m (kg-m, ft-lb)

JMHIA2881GB

Curtain air bag module

: N·m (kg-m, ft-lb)
