SR-22

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

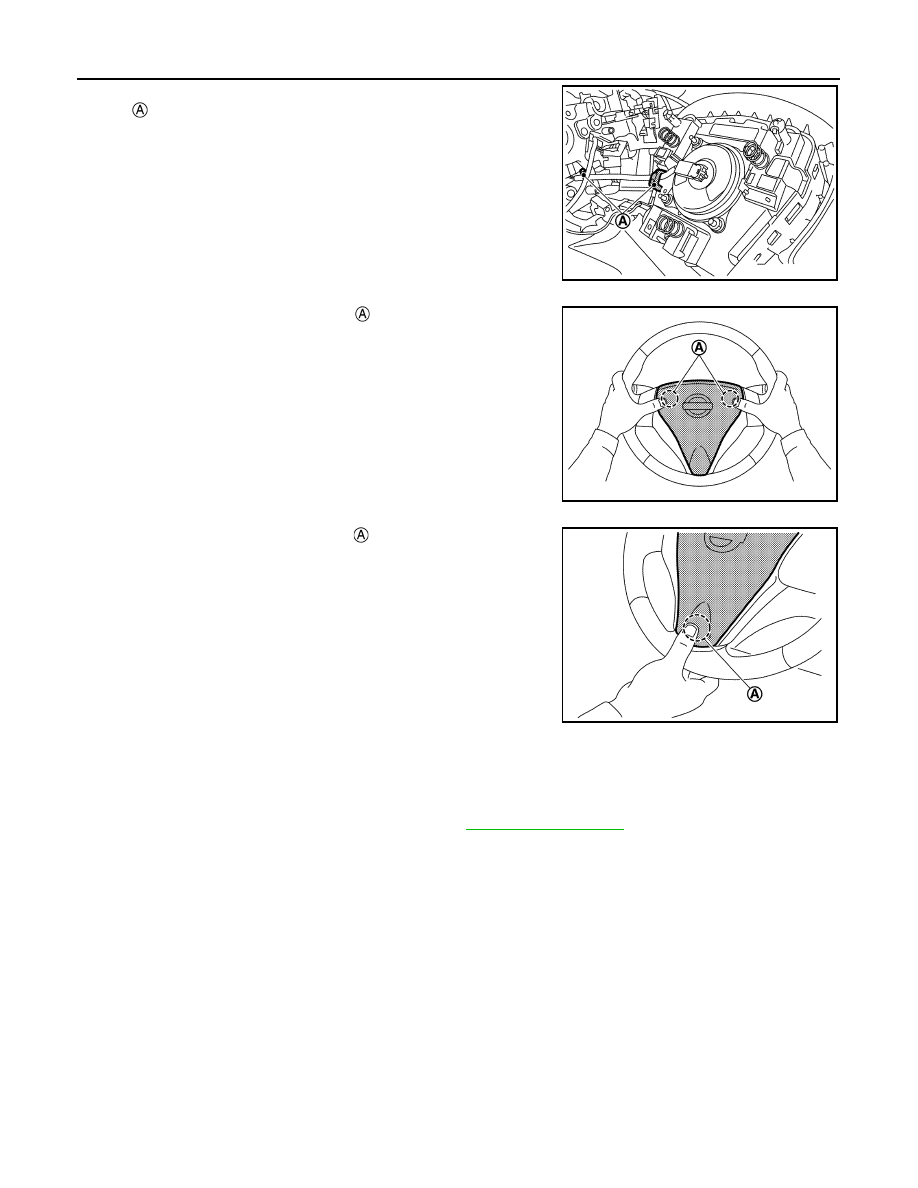

• Fix the driver air bag module harness to the harness fixing

hook .

• Press driver air bag module upper

 until it snaps into place

with a clicking sound.

• Press driver air bag module lower

 until it snaps into place

with a clicking sound.

• Check that horn does not sound when driver air bag module is not pressed.
• Never damage the harness while installing.
• After installation is complete, perform self-diagnosis using CONSULT or air bag warning lamp, if the

system is normal and

″

PAST

″

 of

″

Self Diagnostic Result

″

 is indicated, always perform

″

ERASE

″

 of

″

Self Diagnostic Result

″

 using CONSULT. Refer to

SRC-28, "Work Flow"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA2735ZZ

JMHIA2640ZZ

JMHIA2641ZZ

SPIRAL CABLE

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SPIRAL CABLE

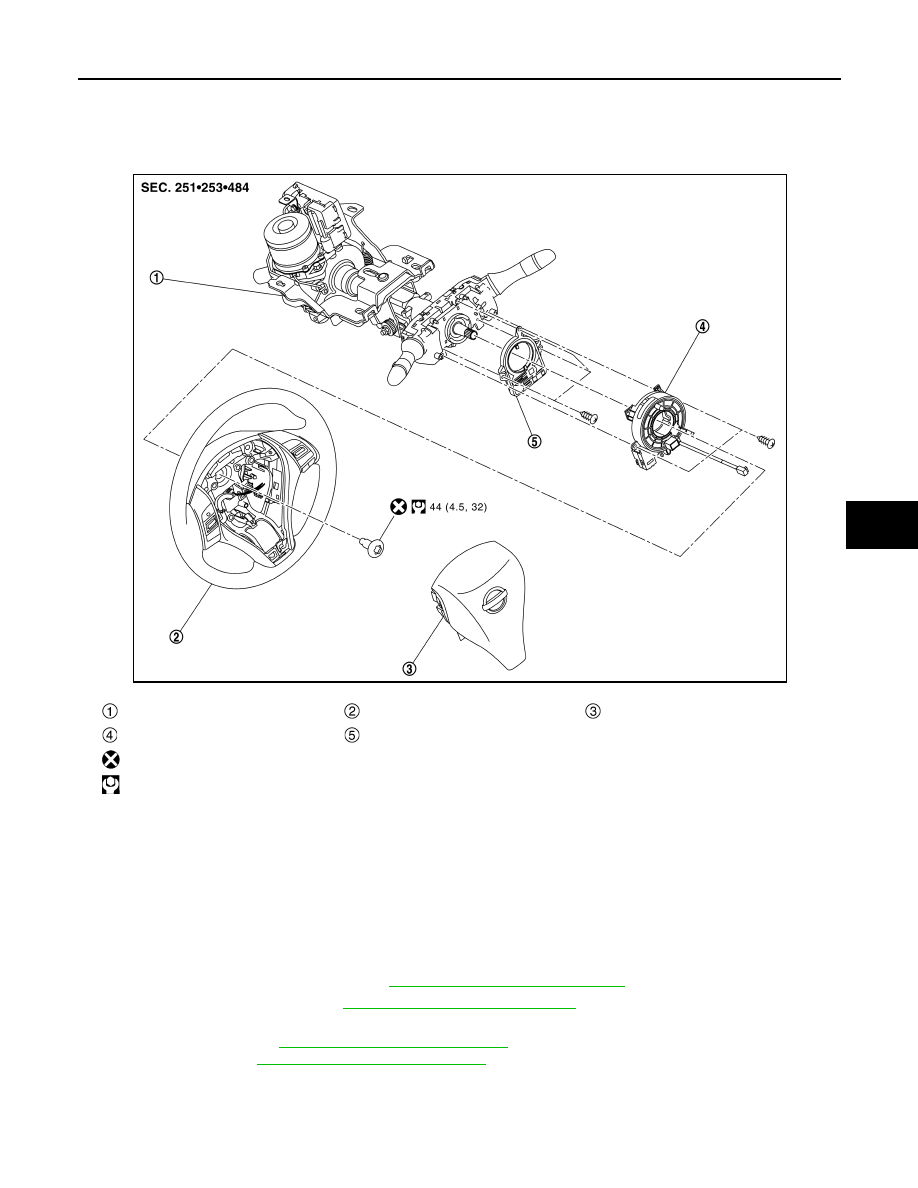

Exploded View

INFOID:0000000010927726

Removal and Installation

INFOID:0000000010927727

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more (discharges electricity held in the additional power supply circuit of the air bag diagno-
sis sensor unit).

REMOVAL

1.

Remove driver air bag module. Refer to

SR-19, "Removal and Installation"

.

2.

Remove steering wheel. Refer to

ST-12, "Removal and Installation"

.

3.

Remove steering column upper cover and steering column lower cover.
• For australia: Refer to

IP-41, "Removal and Installation"

.

• For china: Refer to

IP-14, "Removal and Installation"

.

Steering column assembly

Steering wheel

Driver air bag module

Spiral cable

Steering angle sensor

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA2875GB

SR-24

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

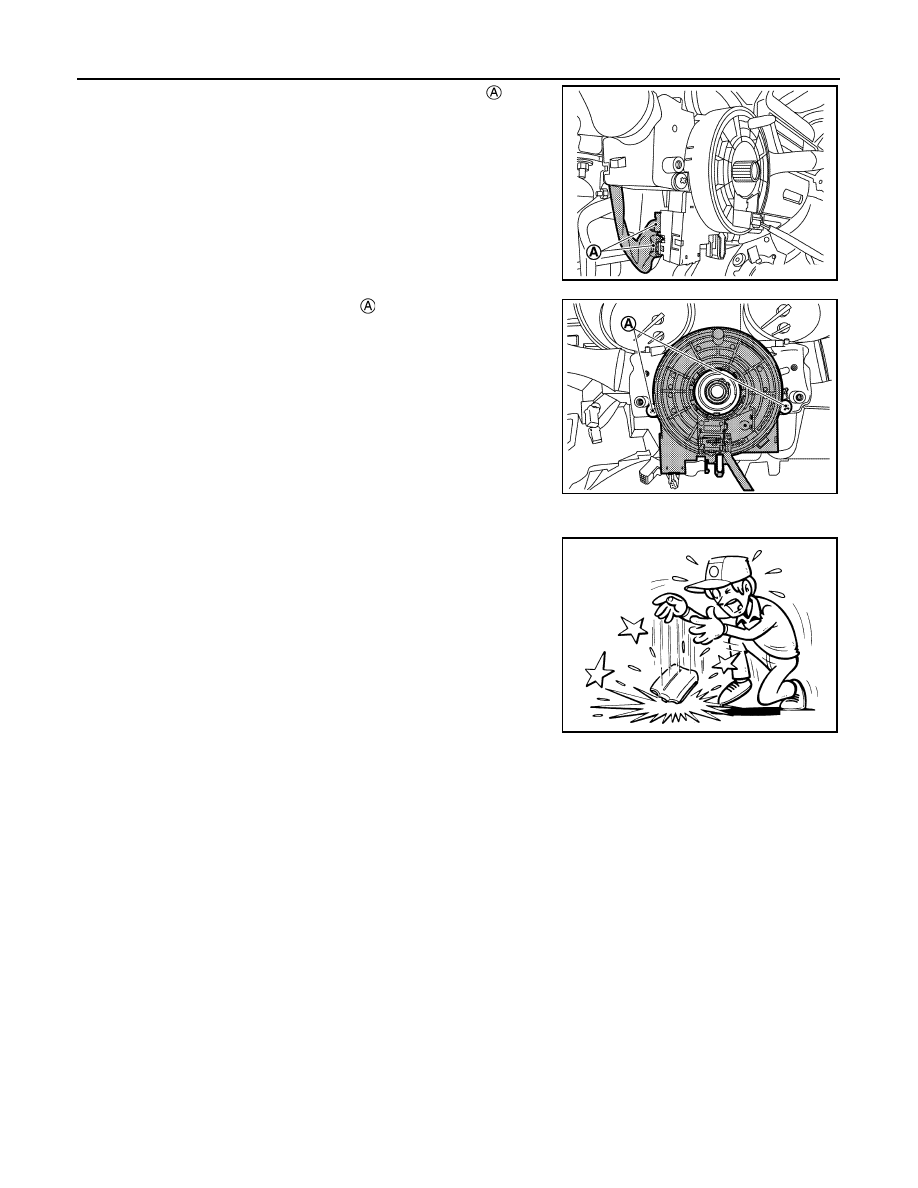

4.

Disconnect spiral cable body side harness connectors

.

5.

Remove spiral cable fixing screws

, and then remove spiral

cable.

CAUTION:

• To prevent damage to the spiral cable, never impact it.
• Replace the spiral cable if it is dropped or sustains an

impact.

• To prevent damage to the parts, never disassemble the spiral cable.
• To prevent damage to the parts, never apply lubricant to the spiral cable.
• To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact

with the spiral cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

JMHIA2876ZZ

JMHIA2877ZZ

JMHIA0009ZZ

SPIRAL CABLE

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

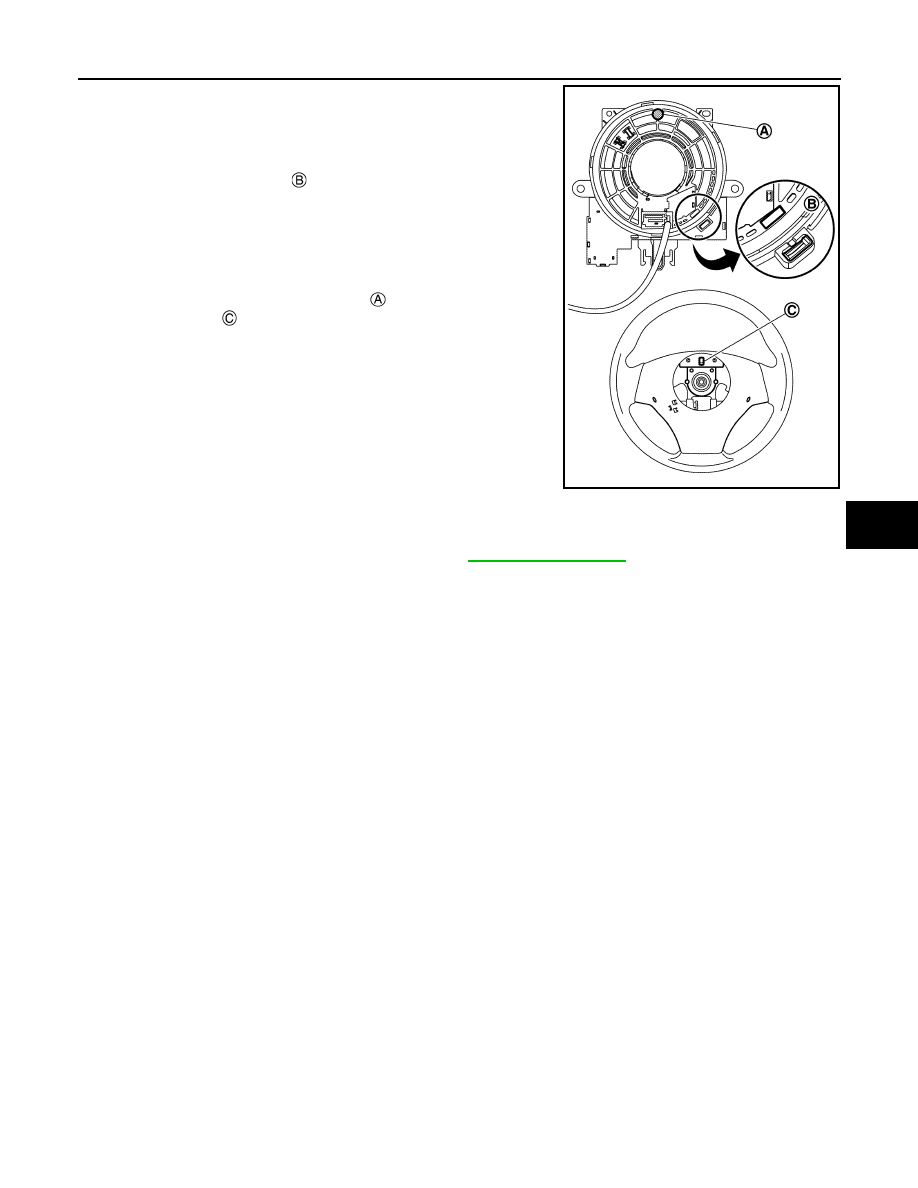

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as per the following.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark

 on which the stopper insertion

holes are in the same position.

- Never over turn the spiral cable or go beyond the number of

turns required. (This causes the cable to snap)

- The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Adjust the spiral cable locating pin

 to the steering wheel

locating pin hole

.

• After installation is complete, perform self-diagnosis using CONSULT or air bag warning lamp, if the

system is normal and

″

PAST

″

 of

″

Self Diagnostic Result

″

 is indicated, always perform

″

ERASE

″

 of

″

Self Diagnostic Result

″

 using CONSULT. Refer to

SRC-28, "Work Flow"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
