SR-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

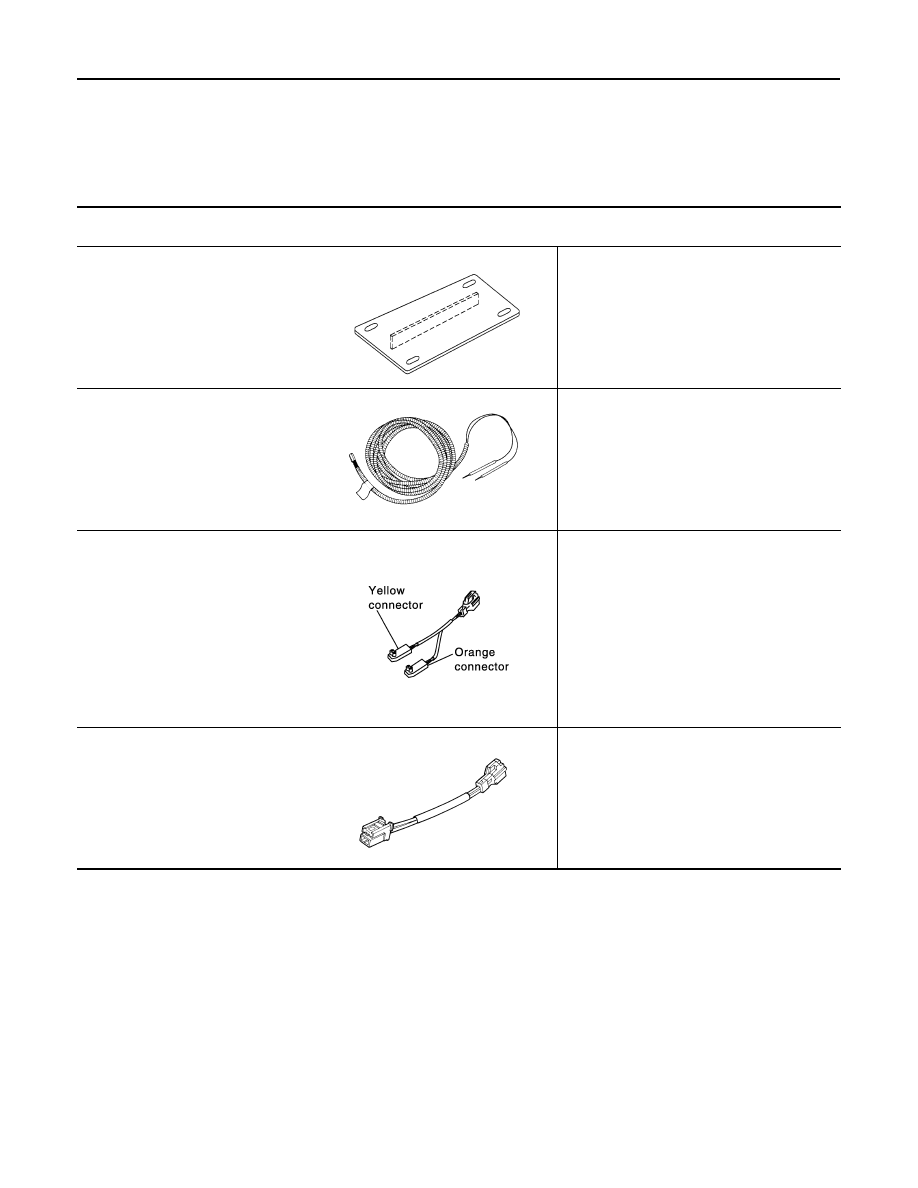

Special Service Tool

INFOID:0000000010927706

Tool number

Tool name

Description

KV99105300
Air bag module bracket

Anchors air bag module

KV99104600
Deployment tool

Disposes of air bag module, seat belt pre-ten-
sioner, and lap pre-tensioner

KV99110500
Deployment tool adapter
• Deployment tool adapter for driver

air bag module

• Deployment tool adapter for pas-

senger air bag module

• Deployment tool adapter for curtain

air bag module

• Deployment tool adapter for seat

belt pre-tensioner

• Deployment tool adapter for lap pre-

tensioner

• Connects the deployment tool and driver air

bag module

• Connects the deployment tool and passen-

ger air bag module

• Connects between the deployment tool and

curtain air bag module

• Connects the deployment tool and seat belt

pre-tensioner

• Connects the deployment tool and lap pre-

tensioner

KV99109000
Deployment tool adapter
Deployment tool adapter for side air
bag module

Connects between the deployment tool and
side air bag module

S-NT354

ZZA0966D

PHIA0184E

ZZA1190D

COMPONENT PARTS

SR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

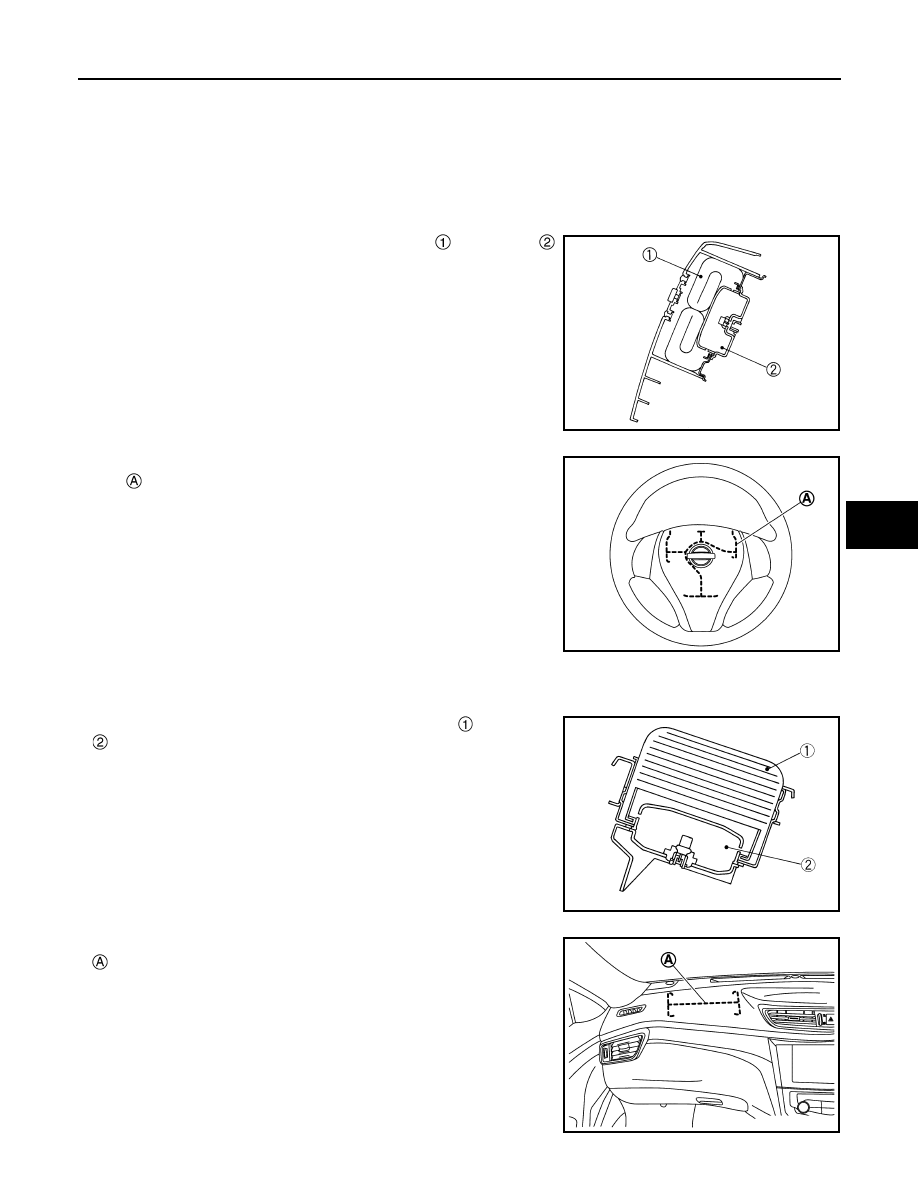

AIR BAG MODULE

AIR BAG MODULE : Driver air bag module

INFOID:0000000010927707

• Driver air bag module is built into steering wheel.
• Driver air bag module mainly consists of air bag

 and inflator

which inflates air bag.

• Driver air bag inflates by breaking steering wheel center pad sur-

face .

AIR BAG MODULE : Passenger air bag module

INFOID:0000000010927708

• Passenger air bag module is built into instrument panel.
• Passenger air bag module mainly consists of air bag

 and inflator

 which inflates air bag.

• Passenger air bag inflates by breaking instrument panel surface

.

JMHIA1121ZZ

JMHIA2623ZZ

JMHIA0155ZZ

JMHIA2864ZZ

SR-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

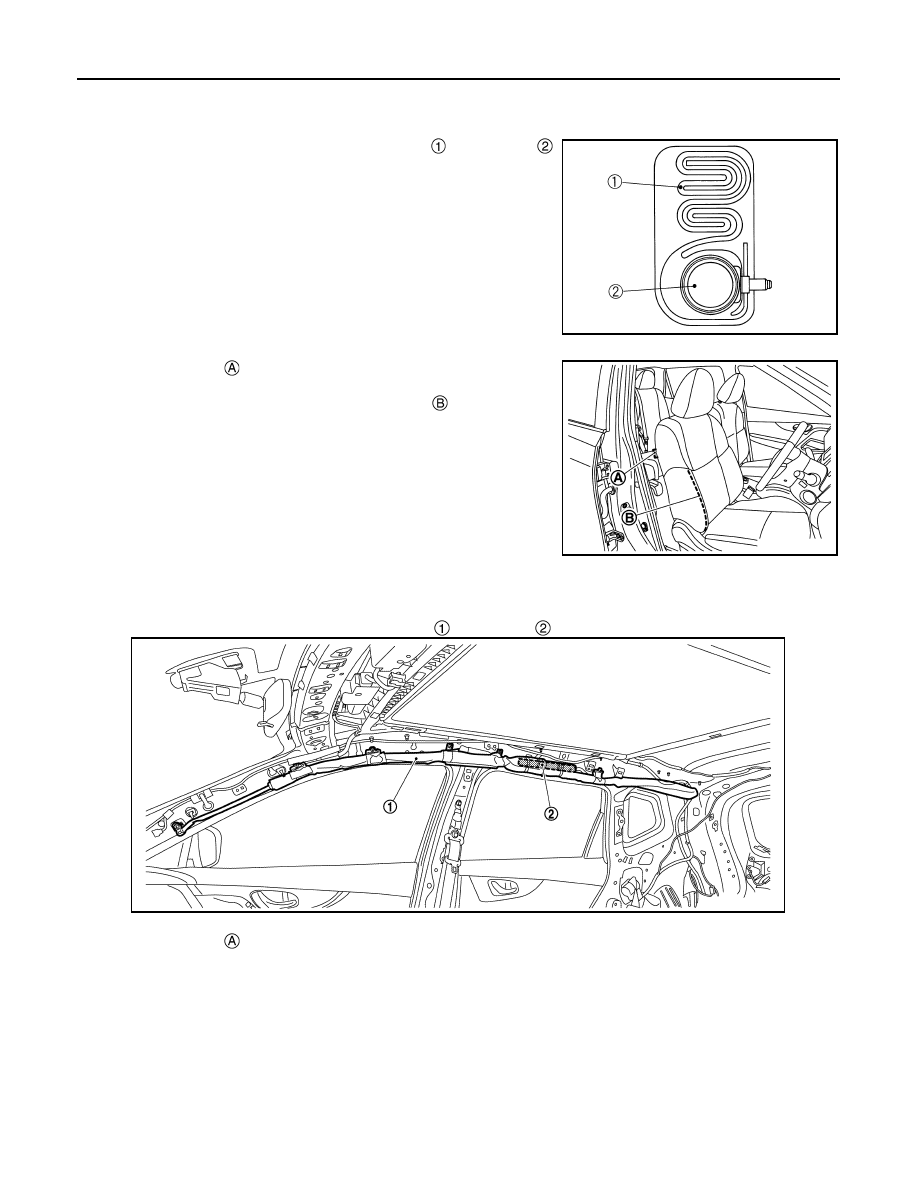

AIR BAG MODULE : Side air bag module

INFOID:0000000010927709

• Side air bag module is built into seatback side.
• Side air bag module mainly consists of air bag

 and inflator

which inflates air bag.

• Identification mark

 is installed to seatback side stitch indicating

that side air bag is equipped.

• Side air bag inflates through seatback side stitch

.

AIR BAG MODULE : Curtain air bag module

INFOID:0000000010927710

• Curtain air bag module is built into roof side portion LH and RH.
• Curtain air bag module mainly consists of air bag

 and inflator

 which inflates air bag.

• Identification mark

 is installed to center pillar upper garnish upper indicating that SRS curtain air bag is

equipped.

NNHIA0030ZZ

JMHIA2865ZZ

JMHIA2866ZZ

COMPONENT PARTS

SR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

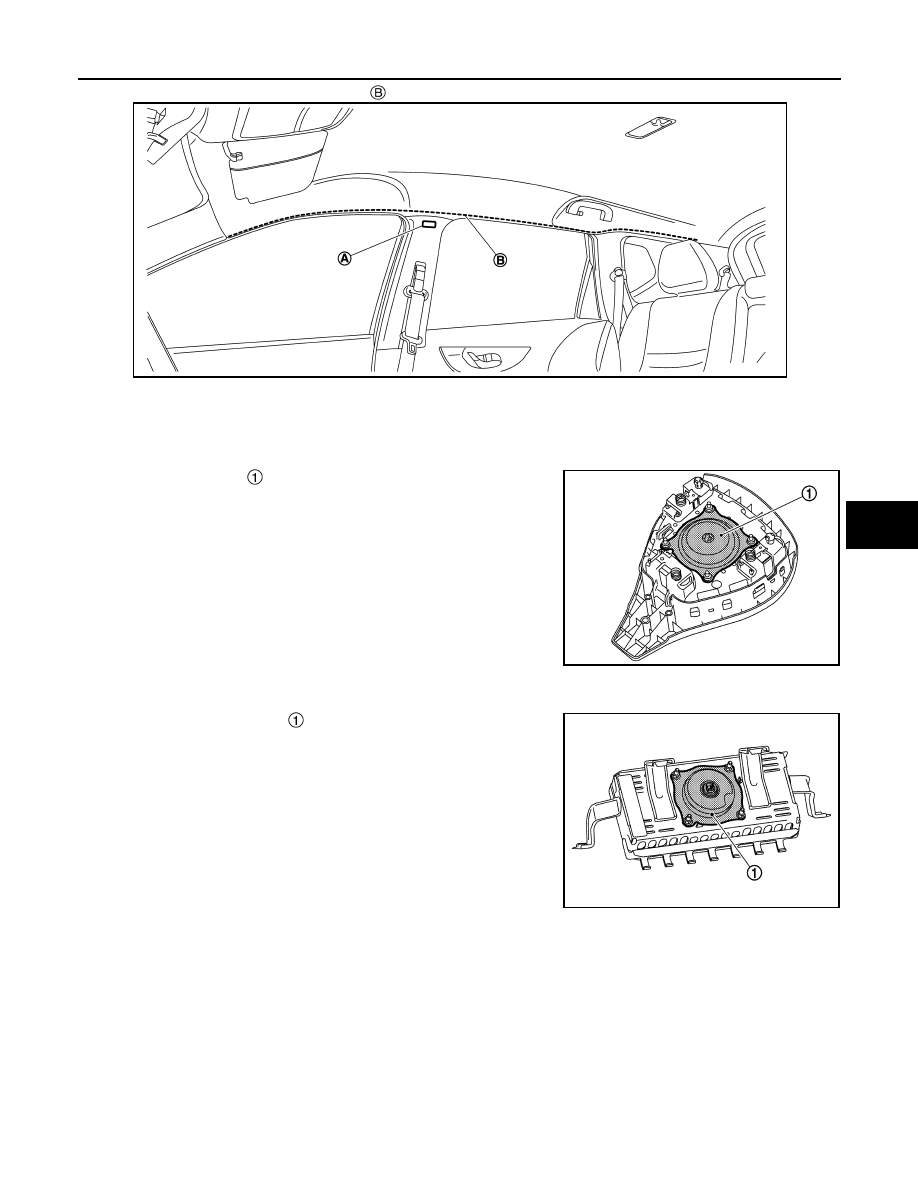

• Curtain air bag inflates through a space

 between headliner and roof side portion.

INFLATOR

INFLATOR : Driver air bag inflator

INFOID:0000000010927711

• Driver air bag inflator

 mainly consists of electric ignition device

(squib), igniting agent, gas generating agent, and filter. These
items are stored in a container.

• In a frontal collision which exceeds the specified limit of the vehi-

cle, electric ignition device (squib) ignites igniting agent. Gas gen-
erating agent burns due to heat from igniting agent. Generated gas
(high temperature) inflates air bag through filter.
NOTE:
Filter removes and cools residues of gas generating agent.

INFLATOR : Passenger air bag inflator

INFOID:0000000010927712

• Passenger air bag inflator

 mainly consists of electric ignition

device (squib), igniting agent, gas generating agent, and filter.
These items are stored in a container.

• In a frontal collision which exceeds the specified limit of the vehi-

cle, electric ignition device (squib) ignites igniting agent. Gas gen-
erating agent burns due to heat from igniting agent. Generated gas
(high temperature) inflates air bag through filter.
NOTE:
Filter removes and cools residues of gas generating agent.

JMHIA2867ZZ

JMHIA2628ZZ

JMHIA2868ZZ
