Nissan X-Trail 32. Manual - part 1946

SN-240

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

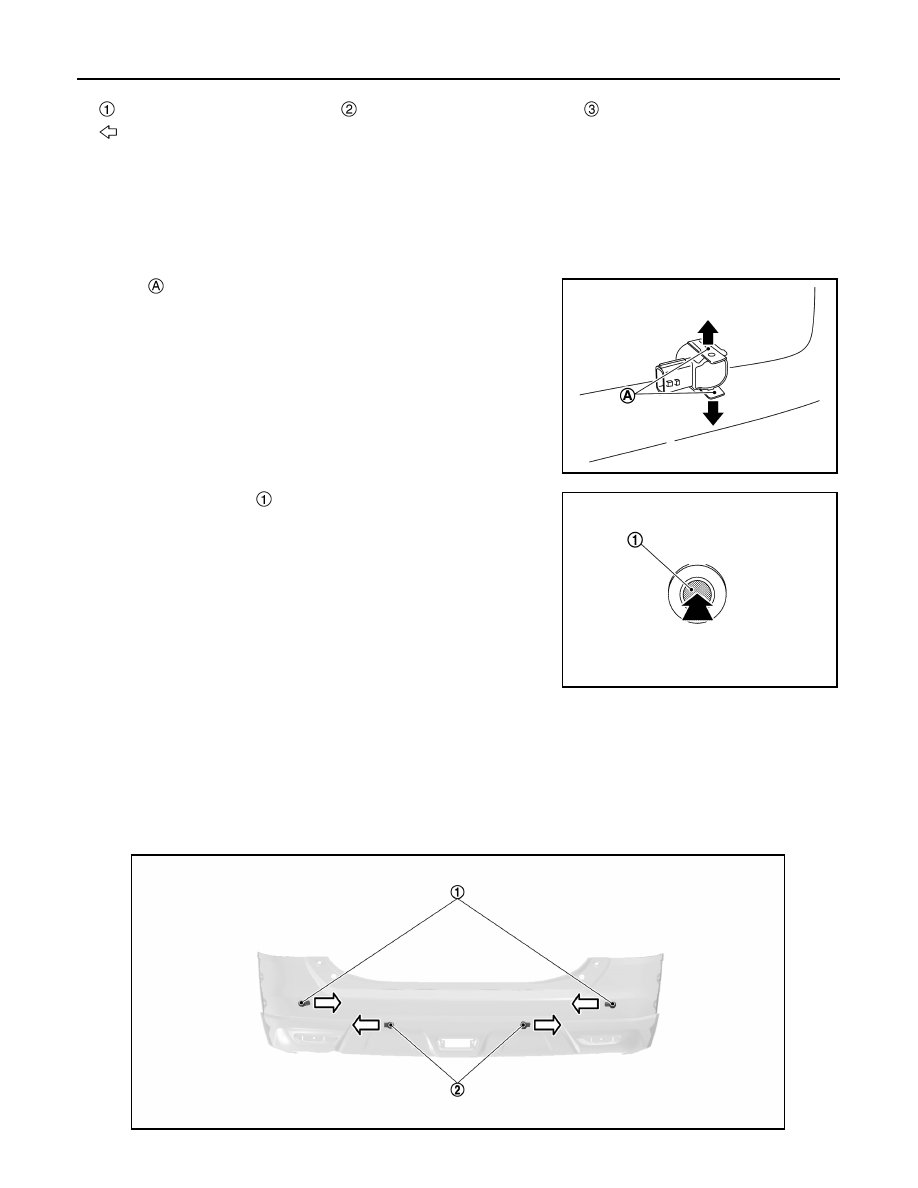

SONAR SENSOR

REAR

REAR : Removal and Installation

INFOID:0000000010792970

REMOVAL

1.

Remove sonar sensor connector from sonar sensor.

2.

Push

 fixing sonar sensor in the direction shown by arrow and

unhook the pawl of sonar sensor.

3.

Push sonar sensor

 in the direction shown by arrow and

remove sonar sensor from bumper.

4.

Remove sonar sensor finisher and sonar sensor packing from bumper.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

• Check sonar sensor packing for damage before installation.
• Check that the packing is properly installed to the sonar sensor.
• Install it so that the connector of the sensor turns to the arrow direction of the figure.

Corner sensor front

Center sensor front

Side sensor front

: Connector direction

JSNIA5796ZZ

JSNIA5797ZZ

JSNIA7436ZZ

SN

SONAR SENSOR

SN-241

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Corner sensor rear

Center sensor rear

: Connector direction

SN-242

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

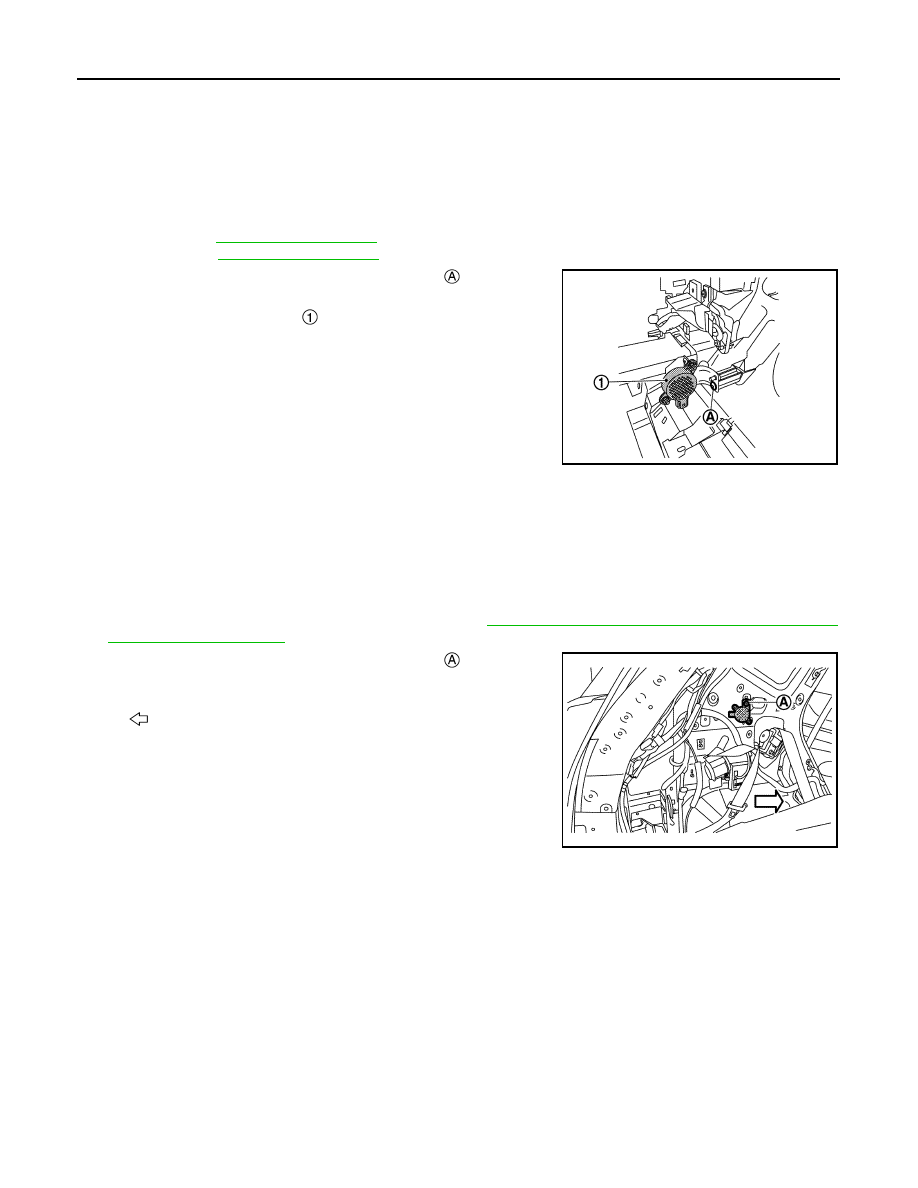

BUZZER

BUZZER

FRONT

FRONT : Removal and Installation

INFOID:0000000010792971

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or RH (RHD models). Refer to the following.
• LHD models:

IP-13, "Exploded View"

• RHD models:

IP-40, "Exploded View"

2.

Remove buzzer (frontward) mounting screw

 and buzzer

(frontward) connector.

3.

Remove buzzer (frontward)

.

INSTALLATION

Install in the reverse order of removal.

REAR

REAR : Removal and Installation

INFOID:0000000010792972

REMOVAL

1.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Remove buzzer (backward) mounting screw

 and buzzer

(backward) connector.

3.

Remove buzzer (backward).

INSTALLATION

Install in the reverse order of removal.

JSNIA6768ZZ

: Vehicle front

JSNIA7378ZZ

SR-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SR

A

B

SR

N

O

P
