SN-236

< SYMPTOM DIAGNOSIS >

[WITH PARK ASSIST]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000010736705

Symptom

Possible cause

Unstable object detection

• The vehicle is on a rough surface, such as stone or gravel.
• When used in poor weather conditions, such as heavy snow/rain or strong wind.
• When subjected to an ultrasonic noise generated from exhaust muffler or brakes.
• When left standing in the hot sun or in a cold climate.
• When the surface of the sensor is frozen or covered with snow/dirt/moisture.
• When a retrofitted xenon lamp, lighted license plate, or harness is close to the sensor body or sensor

harness.

• When subjected to loop coil noises generated from a vehicle detector placed at an intersection or

coin parking area.

Object undetectable

• Air-containing objects, such as cloth, cotton, glass wool, dust, and snow.
• Thin objects, such as rope, chain, and wire.
• Smooth-faced objects placed in a slanting direction.
• Fast-moving small animals.
• A corner of an angular object.
NOTE:
If the sensor detection part is scratched, obstacles cannot be detected.

SN

SONAR CONTROL UNIT

SN-237

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

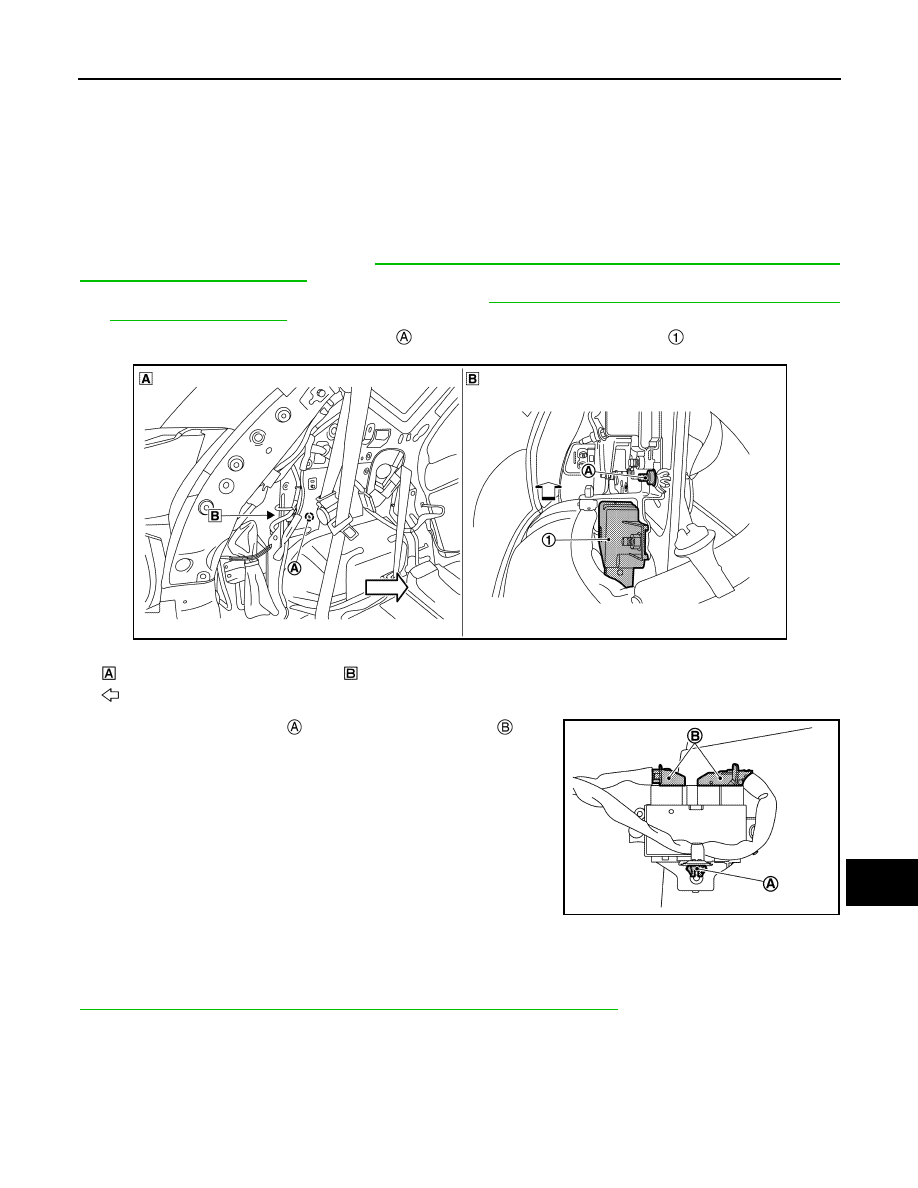

SONAR CONTROL UNIT

Removal and Installation

INFOID:0000000010792967

REMOVAL

CAUTION:

Before replacing sonar control unit, perform “Read/Write Configuration” to save or print current vehi-
cle specification. For details, refer to

SN-156, "ADDITIONAL SERVICE WHEN REPLACING SONAR

CONTROL UNIT : Description"

.

1.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Remove sonar control unit mounting bolt

, And than remove sonar control unit

 from the vehicle.

3.

Remove the harness clip

 and disconnect connectors

.

4.

Remove bracket from sonar control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “Read/Write Configuration” when replacing sonar control unit. For details, refer to

SN-156, "CONFIGURATION (SONAR CONTROL UNIT) : Work Procedure"

.

Luggage room left side

Luggage panel inside

: Vehicle front

JSNIA7373ZZ

JSNIA7374ZZ

SN-238

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

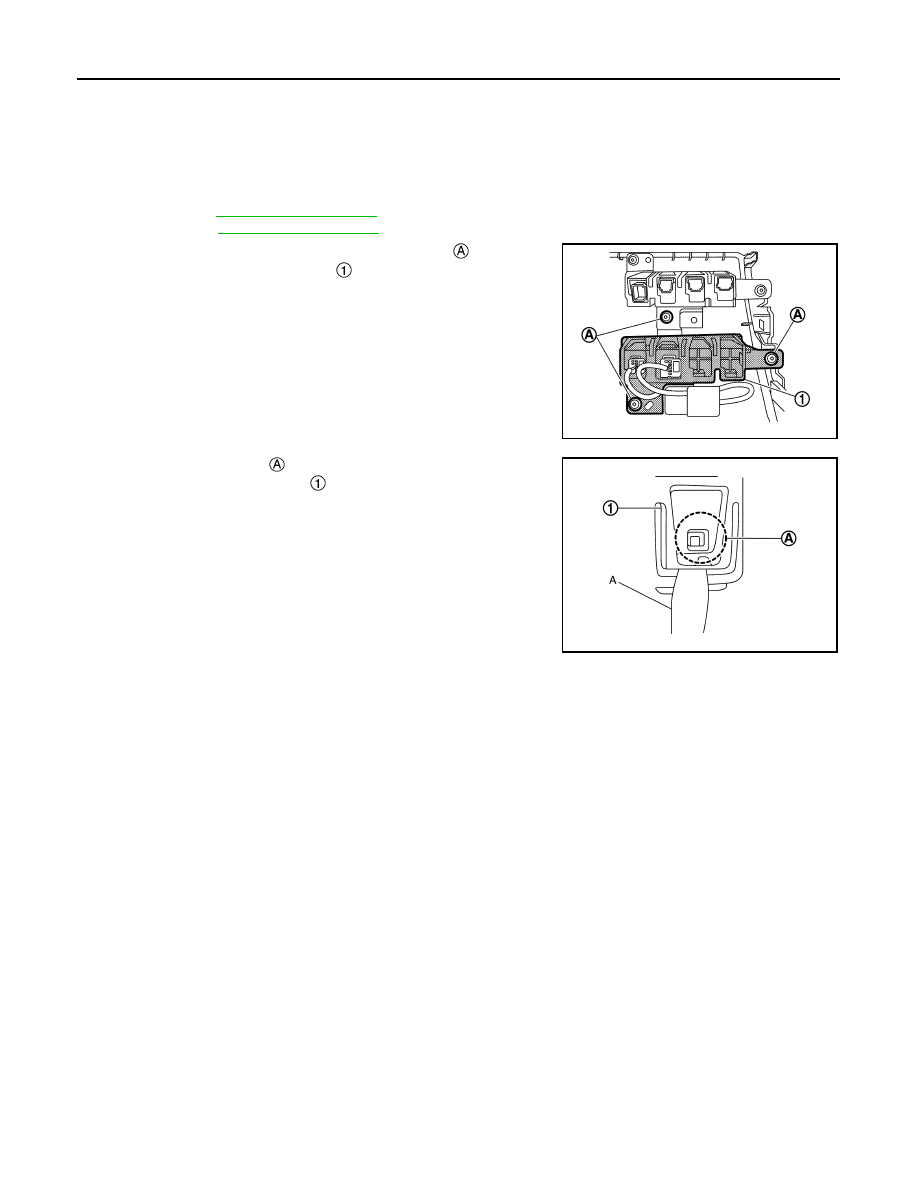

SONAR SYSTEM SWITCH

SONAR SYSTEM SWITCH

Removal and Installation

INFOID:0000000010792968

REMOVAL

1.

Remove the instrument lower panel LH (LHD models) or RH (RHD models). Refer to following.
• LHD models:

IP-13, "Exploded View"

• RHD models:

IP-40, "Exploded View"

2.

Remove the switch bracket mounting screw

. And than

remove the lower switch bracket

.

3.

Disengage the pawls

 using a suitable tool (A). And then

remove sonar system switch

.

INSTALLATION

Install in the reverse order of removal.

JSNIA7375ZZ

JSNIA7376ZZ

SN

SONAR SENSOR

SN-239

< REMOVAL AND INSTALLATION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

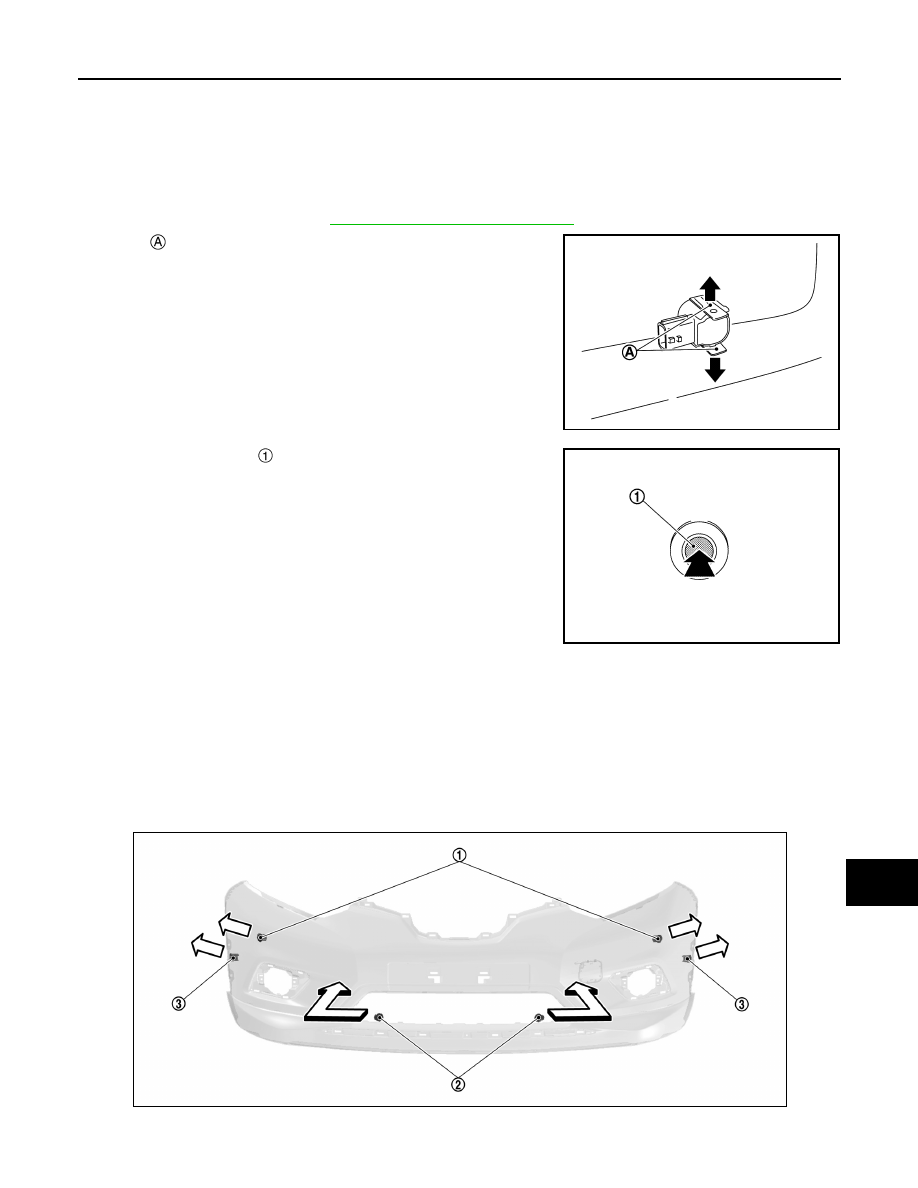

SONAR SENSOR

FRONT

FRONT : Removal and Installation

INFOID:0000000010792969

REMOVAL

1.

Remove front bumper. Refer to

EXT-15, "Removal and Installation"

.

2.

Push

 fixing sonar sensor in the direction shown by arrow and

unhook the pawl of sonar sensor.

3.

Push sonar sensor

 in the direction shown by arrow and

remove sonar sensor from bumper.

4.

Remove sonar sensor connector from sonar sensor.

5.

Remove sonar sensor finisher and sonar sensor packing from bumper.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

• Check sonar sensor packing for damage before installation.
• Check that the packing is properly installed to the sonar sensor.
• Install it so that the connector of the sensor turns to the arrow direction of the figure.

JSNIA5796ZZ

JSNIA5797ZZ

JSNIA7377ZZ
